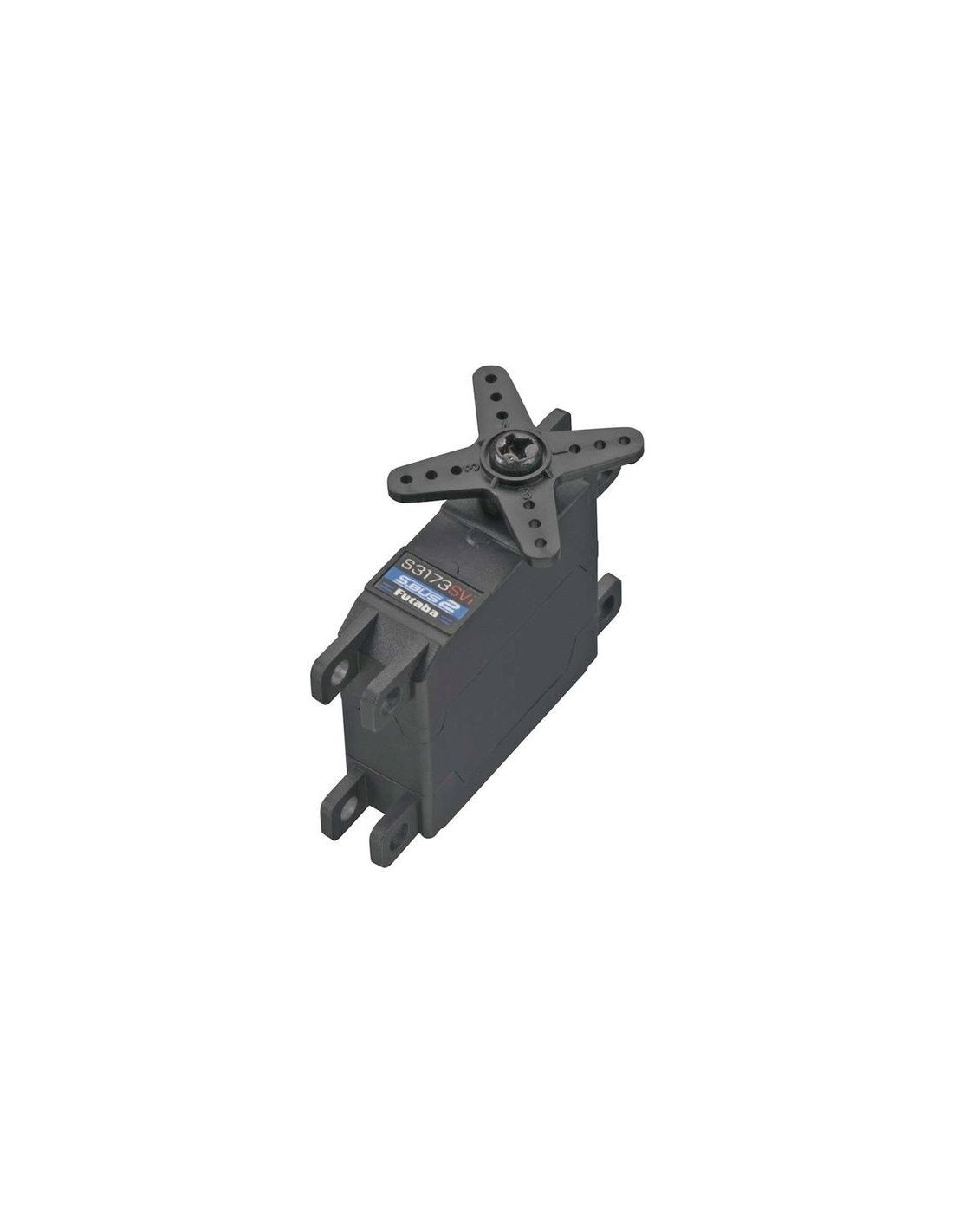

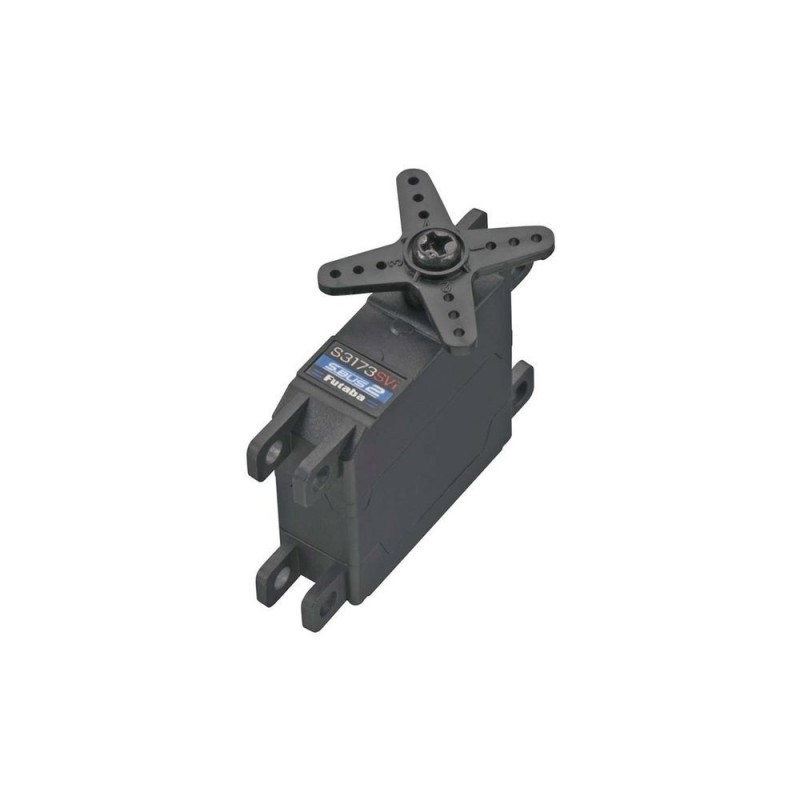

Futaba S3173SVi HV SBUS2 Mini Servo (20.6g, 3.9kg/cm)

Out-of-Stock
€48.25
Tax included

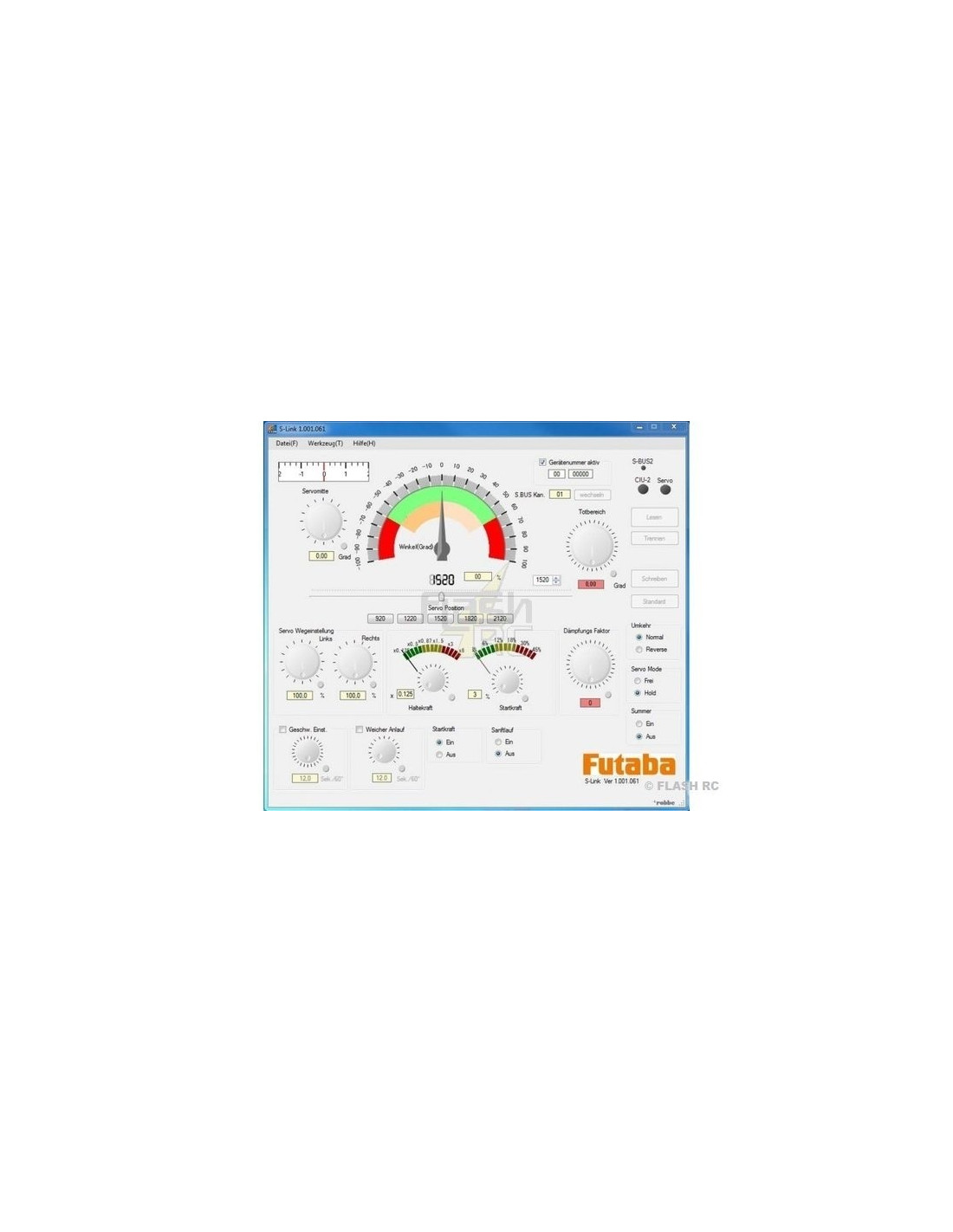

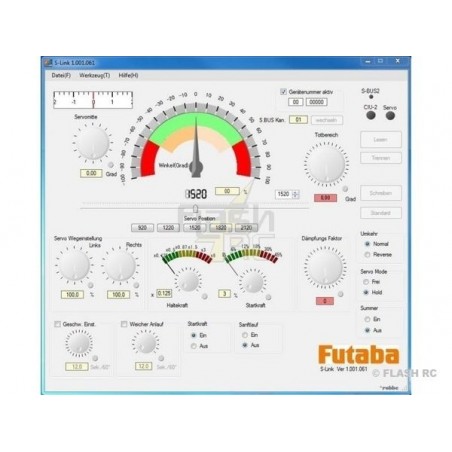

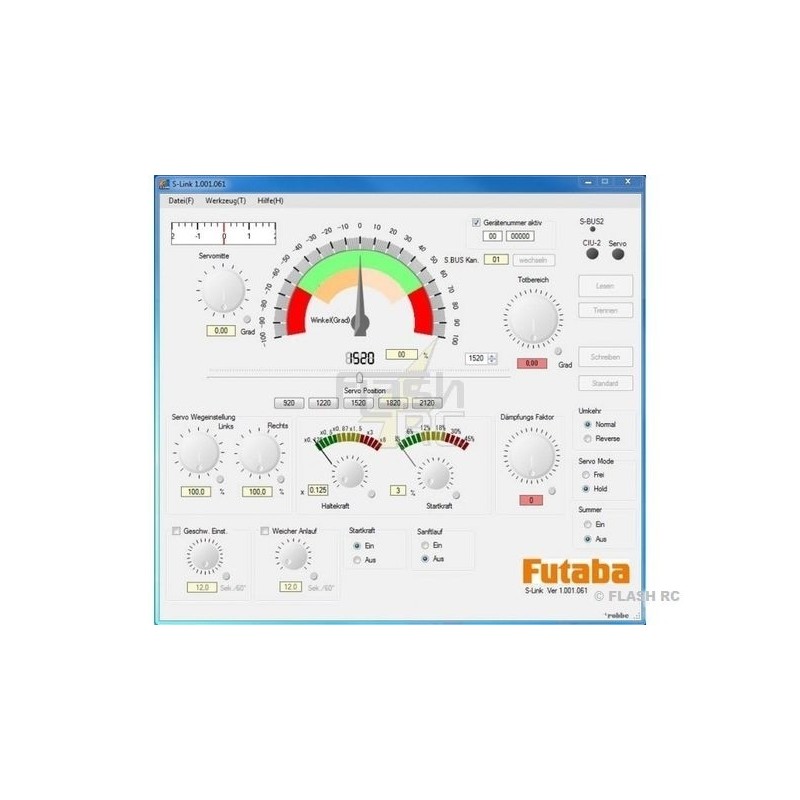

S3173SVi mini digital SBUS2 HV (high voltage) servo with metal gears, double bearings, specially designed for glider wings. This robust servo is ideal for mini and micro helicopters, gliders and airplanes. This servo can be connected to the SBUS 2 port on Fasstest receivers or the SBUS port on Fasst and Fasstest receivers. Like all SBUS and SBUS2 servos, it can also operate on a traditional PWM channel. The following functions can be programmed by software: Direction of rotation, rotation mode (normal or retracted train), faster or slower start, rotation speed, limit switch, neutral position ...


custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Technical specifications

  • Dimensions: 30X10.8X29.1 mm
  • Weight : 20.6g
  • Power supply voltage : 6.0 - 7.4V
  • Torque : 3.9Kg.cm under 6.6V, 4.3Kg.cm under 7.4V
  • Speed : 0.18 sec/60° under 6.6V, 0.16 sec/60° under 7.4V
  • Double bearing
  • Digital SBUS2
  • Programmable

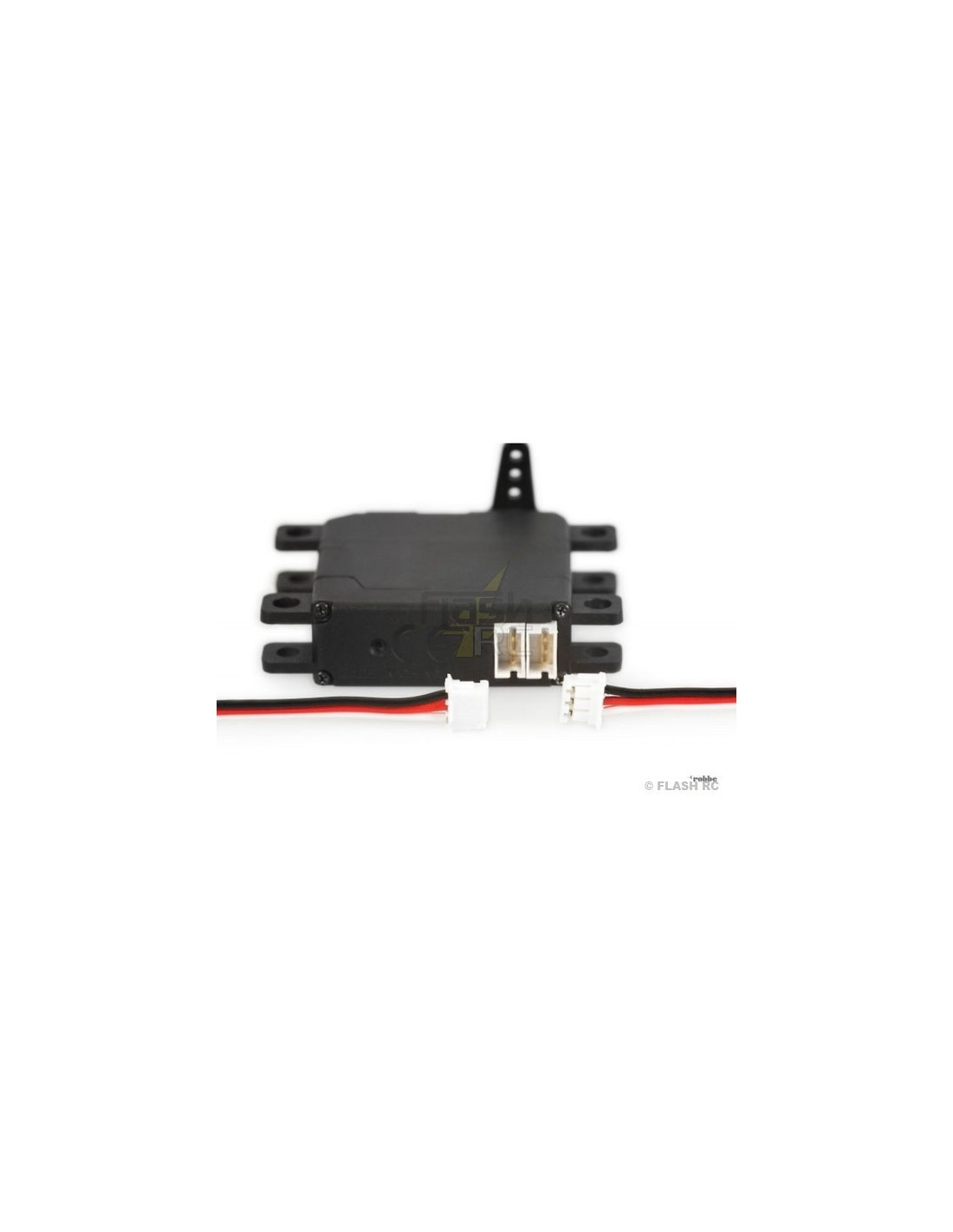

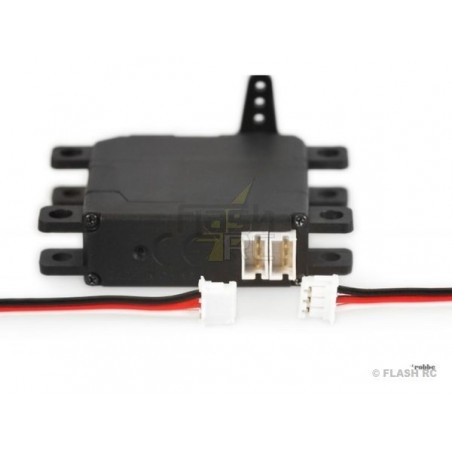

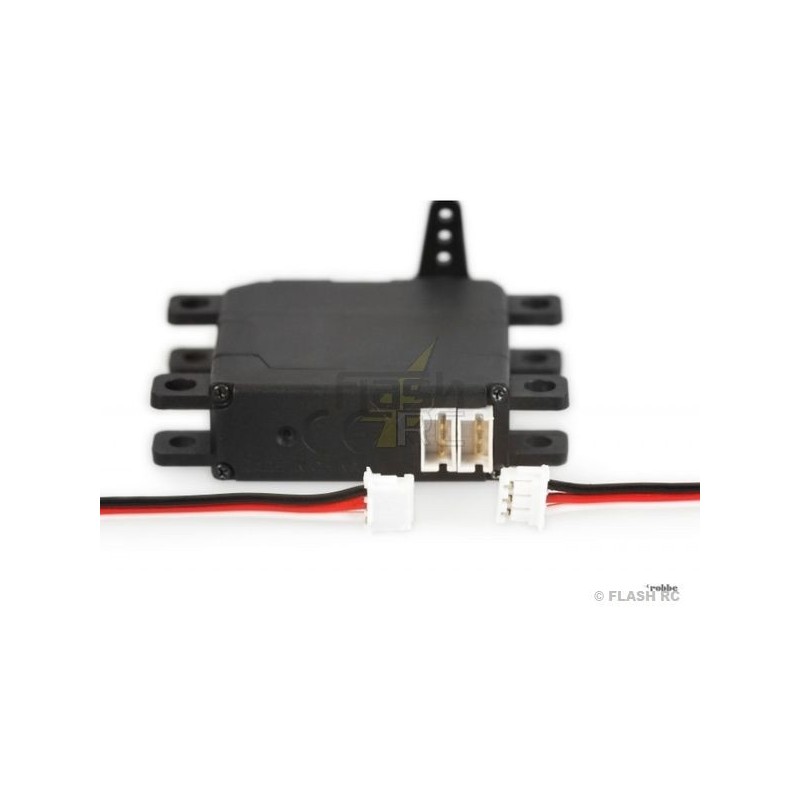

I-connector linkage

This servo is equipped with two "ZH" or "I connector" sockets (small white sockets) allowing to link in series two, three ... servos. This process is practical for example for a wing with two ailerons and a flap (3 servos). The three servos are connected in series by two ZH extensions, then the last servo is connected in SBUS to the receiver. In this way, the three pieces of information (aileron1, aileron2 and flap) pass through a single wire.

Thickness in mm (Servos)
10.8
Torque in kg.cm (servos)
3.9
Speed sec / 60° (servos)
0.16
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
20.6
066-01000827
4513886025655
4513886025655
