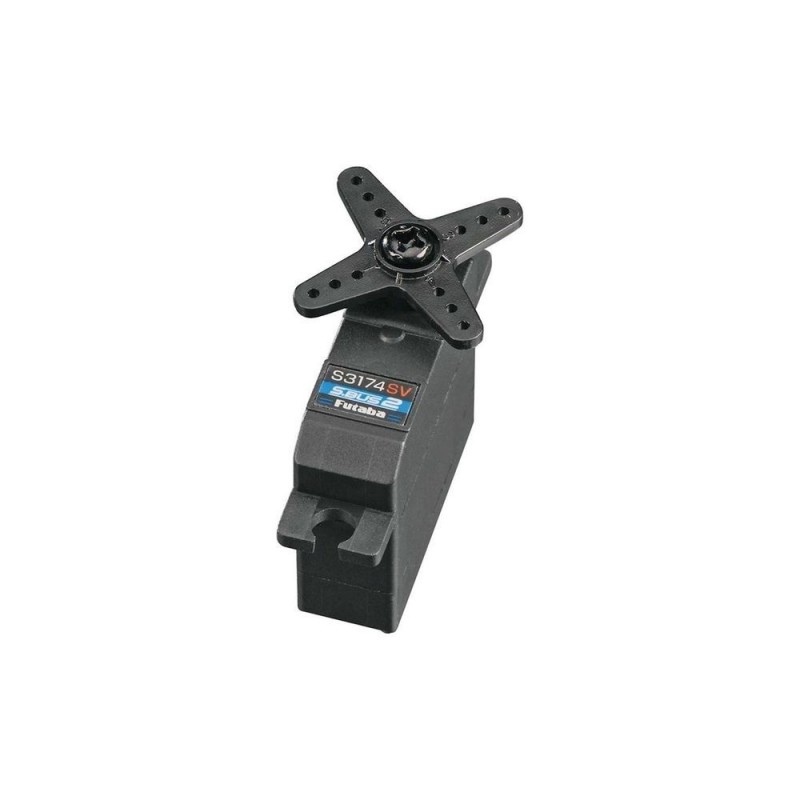

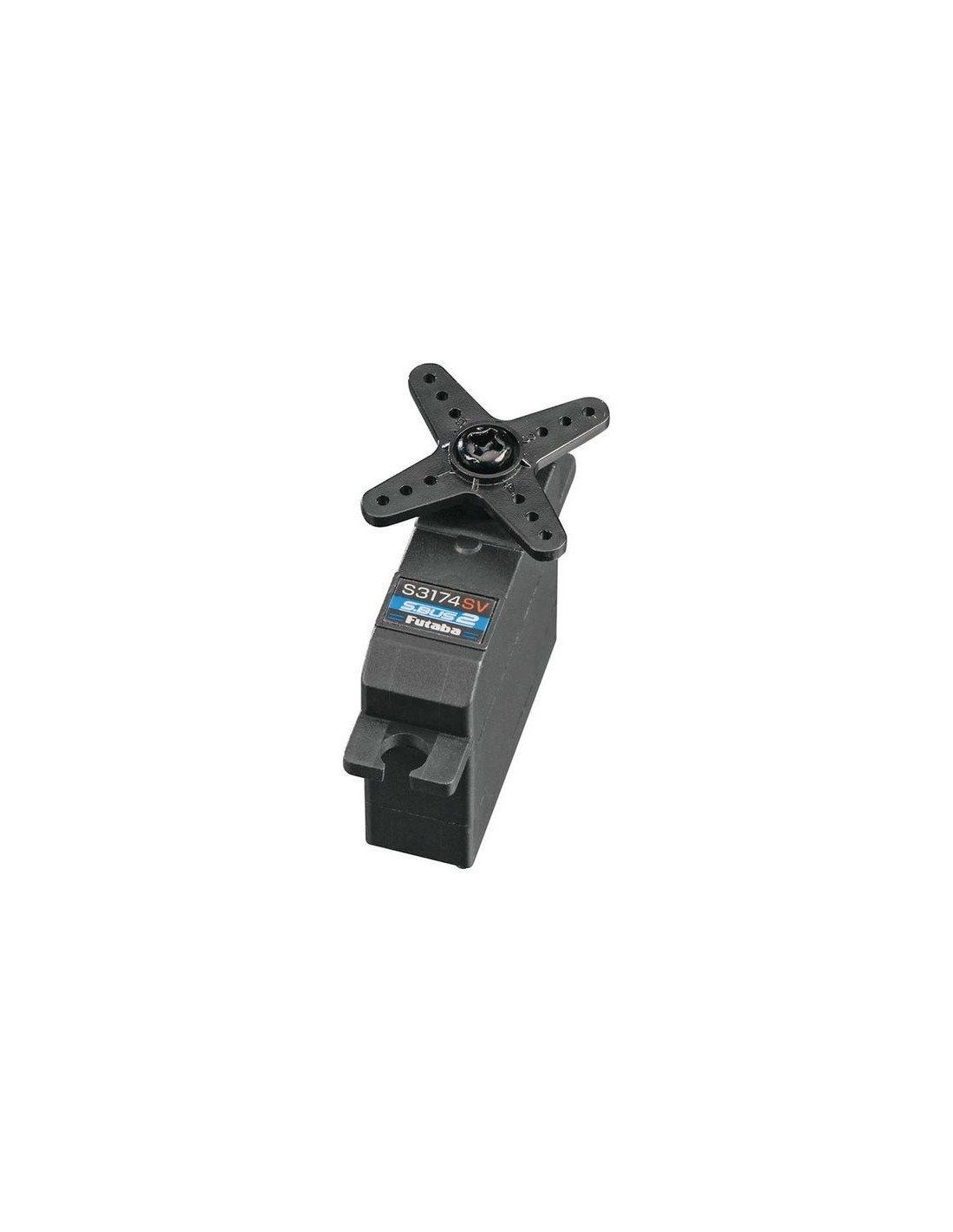

Futaba S3174SV MG HV SBUS2 Mini Servo (20g, 4.3kg/cm)

Out-of-Stock
€49.92
Tax included
S3174SV digital mini SBUS2 HV (high voltage) servo with metal gears, dual bearings, the replacement for the famous S3150. this robust servo is ideal for mini and micro helicopters, sailboats and airplanes. This servo can be connected to the SBUS 2 port on Fasstest receivers or the SBUS port on Fasst and Fasstest receivers. Like all SBUS and SBUS2 servos, it can also operate on a traditional PWM channel. The following functions can be programmed by software: Direction of rotation, rotation mode (normal or retracted train), faster or slower start, rotation speed, limit switch, neutral position ...


custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Technical specifications

  • Dimensions: 30X10.8X29.1 mm
  • Weight : 20g
  • Power supply voltage : 6.0 - 7.4V
  • Torque : 3.9Kg.cm under 6.6V, 4.3Kg.cm under 7.4V
  • Speed : 0.18 sec/60° under 6.6V, 0.16 sec/60° under 7.4V
  • Double bearing
  • Digital SBUS2

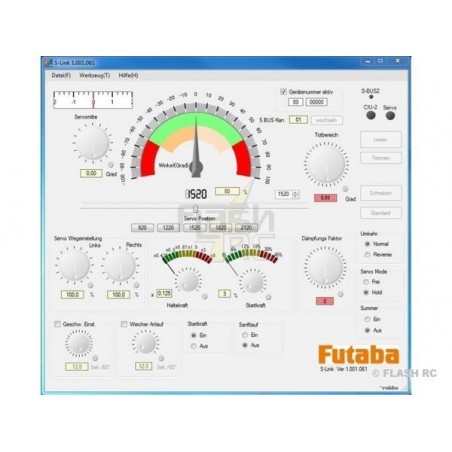

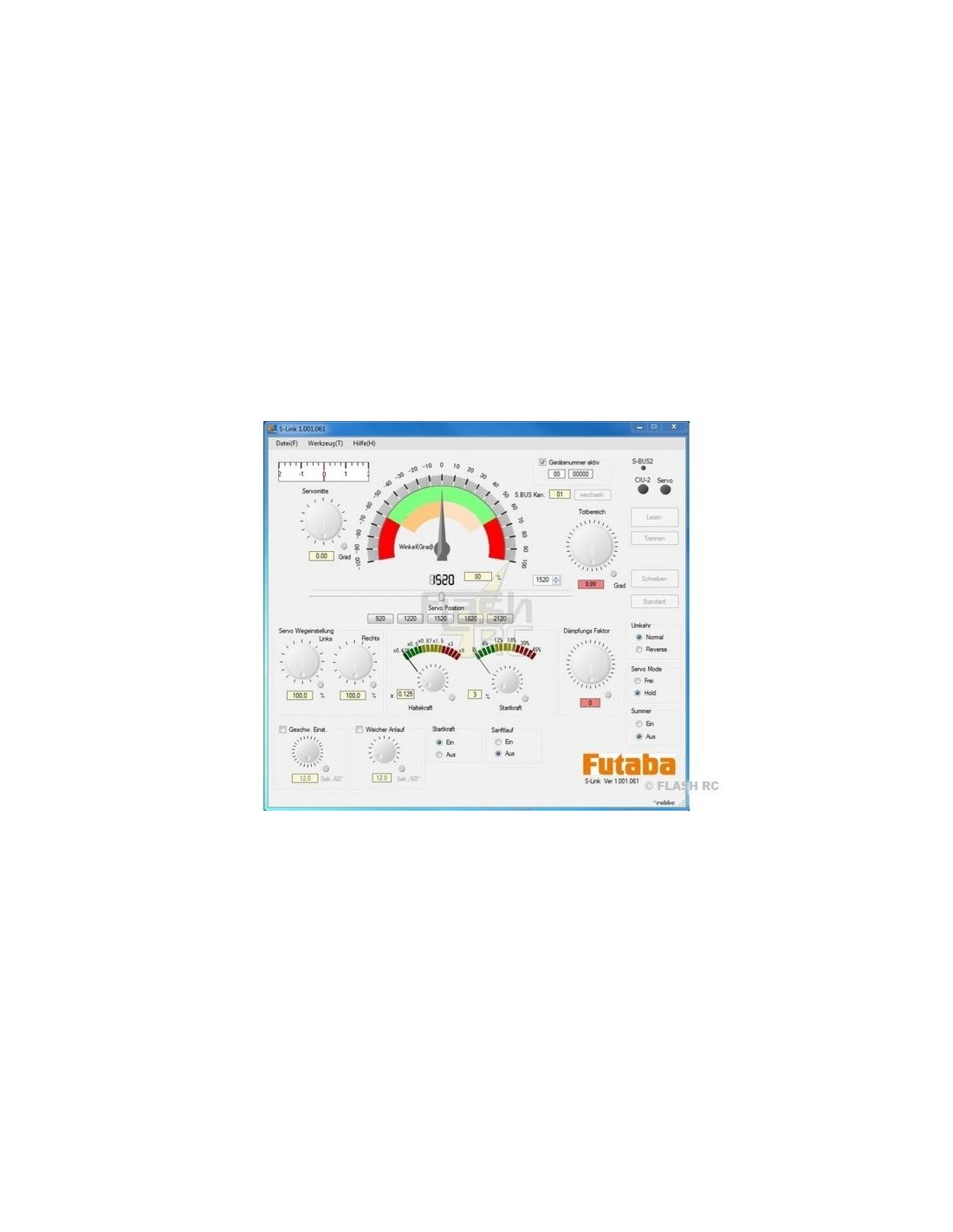

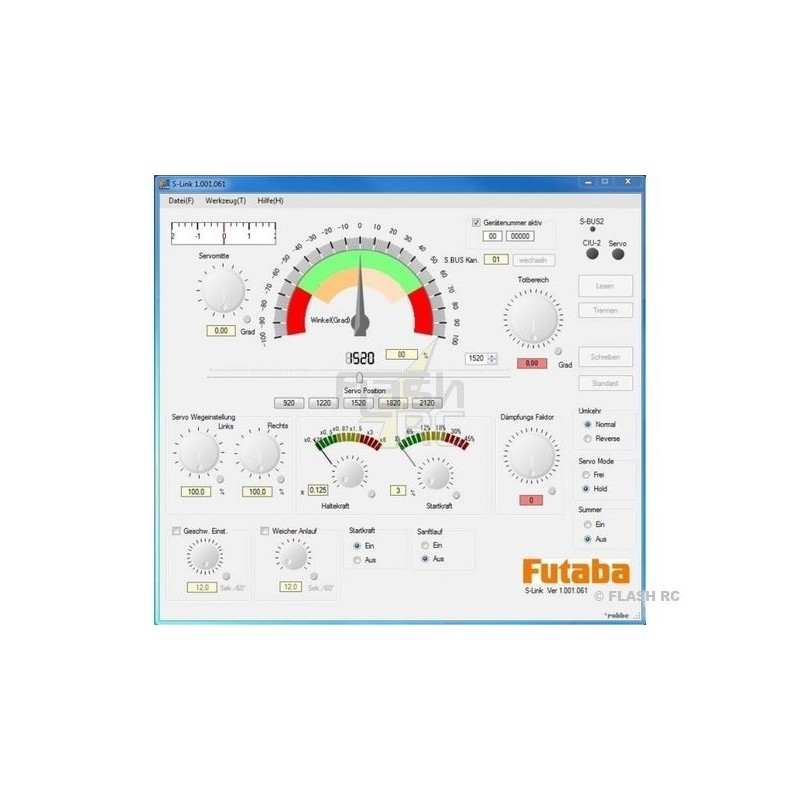

  • Programmable
Thickness in mm (Servos)
10.8
Torque in kg.cm (servos)
3.9
Speed sec / 60° (servos)
0.16
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
20
066-01000797
4513886025648
4513886025648
No reviews
Comments (0)
No customer reviews for the moment.
