Mini servo KST MS589 HV 15mm (38g, 9.2kg.cm, 0.08s/60°)

The new KST MS589 is a very powerful HV non-contact servo suitable for cyclic helicopters and all fixed-wing applications.
It will be excellent on aerobatic aircraft or mounted in your 4 to 6m gliders (wings, and stab).
With a thickness of 15 mm and a weight of 38 g, it is reasonably small and light, considering its excellent torque of 9.2 kg.cm and its speed of 0.08 s / 60 °.

Features :

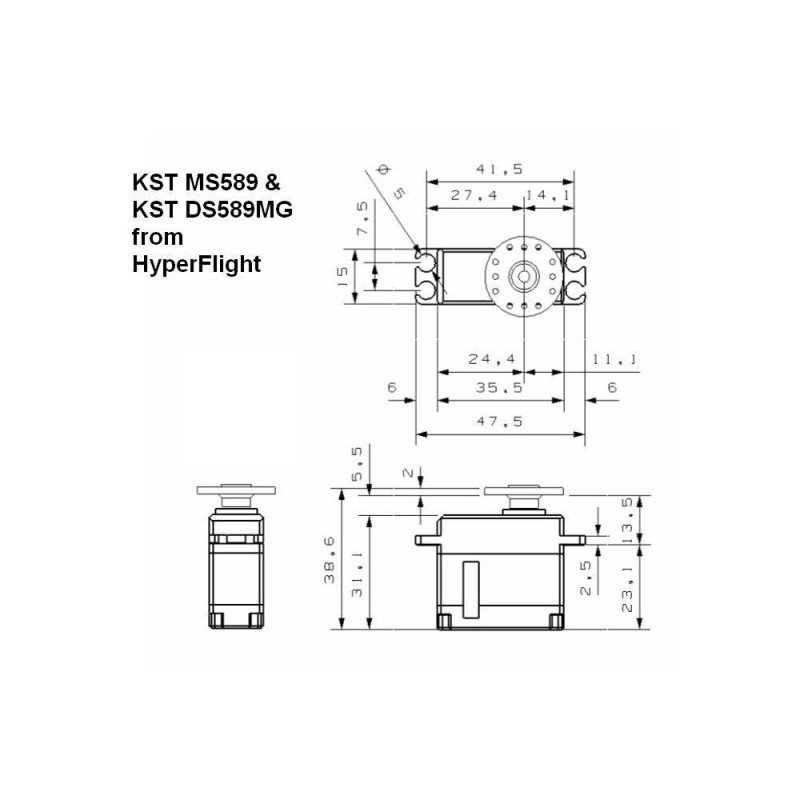

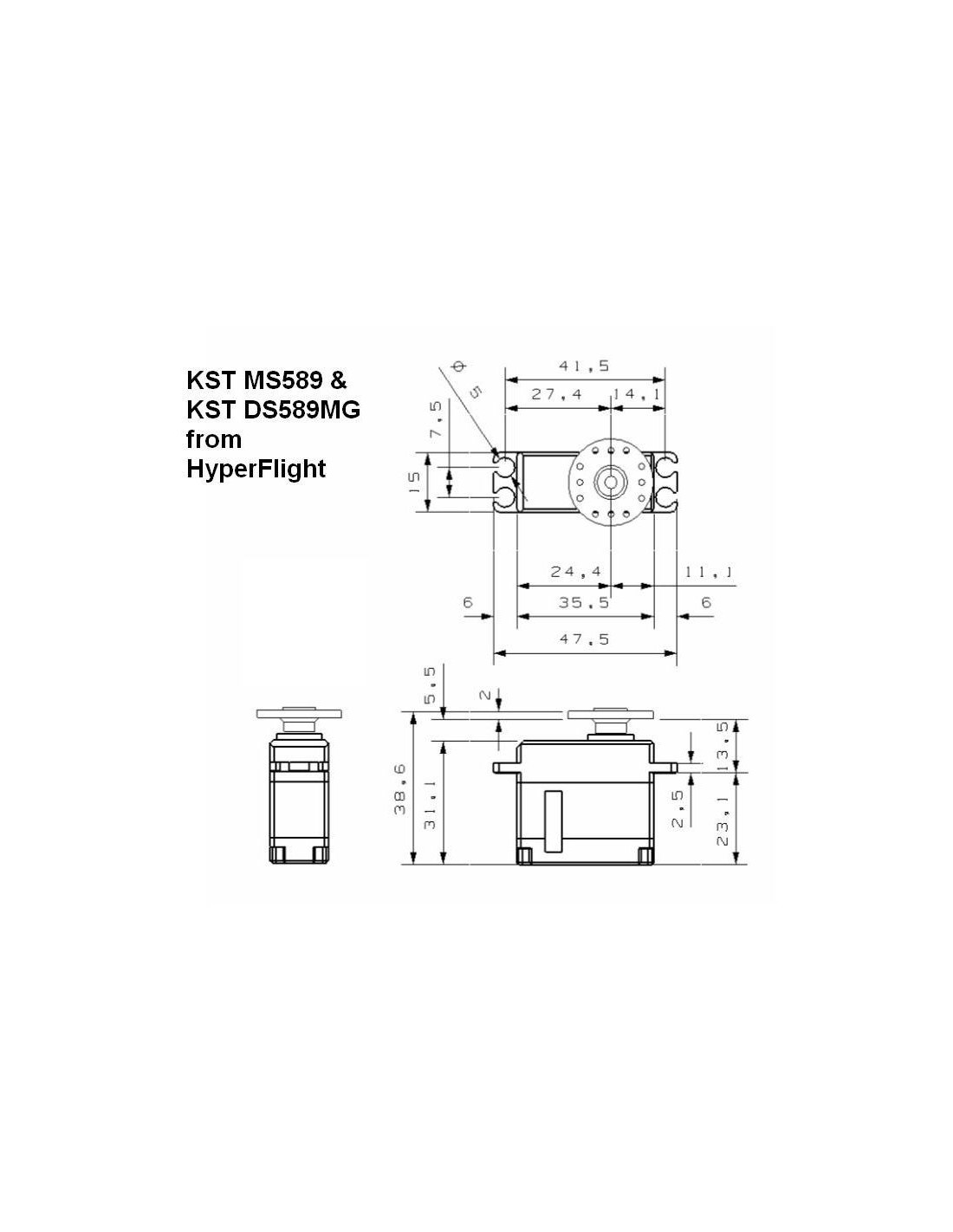

Body dimensions: 35.5 mm wide x 15.0 mm thick x 32.5 mm high
Stall torque (6V): 6.5 kg.cm
Stall torque (7.4 V): 8.0 kg.cm
Stall torque (8.4 V): 9.2 kg.cm
Weight: 38,0 g
Cable length: 21 cm
Operating speed (6V): 0,10 sec / 60 °
Operating speed (7,4 V): 0,09 sec / 60 °
Operating speed (8,4 V): 0,08 sec / 60 °
Operating voltage: 6,0 V to 8,4 V
Bearings: 2 ball bearings
Gear material: hardened steel
Housing material: aluminum alloy
Motor type: coreless
Working frequency: 333 Hz
Digital: Yes
Programmable: no
Position feedback: contactless / magnetic
Operating temperature: -20 to +65 ºC
