Digital metal servo DS6100 Mks

€35.75
Tax included
FLASH RC, authorized distributor MKS for France offers this elevator / drift servo for glider of very high quality: - digital servo - return to neutral ultra precise - motor coreless - set of metal gears - double bearing - torque lock of 3.32kg/cm under 5.0V with a speed of 0.11sec/60 ° - dead band: 0.001ms - Dimensions: 22.5x10x23.5 mmThe DS6100 is a metal gear servo particularly suitable for glider wings thanks to its thinness of 10mm, and is used in F3F competition, proof of its good performance. It is recommended to power it with 4S NiMh or with a BEC at 5.5V maximum.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Features :

Dead band: 0.001ms (Default)
Control System: +Pulse Width Control
Working frequence: 1520µs / 333hz
(RX) Required Pulse: 3.0~5.0 Volt Peak to Peak Square Wave
Operating Voltage: 4.8~5.0 V DC Volts
Operating Temperature Range: -10 to + 60 Degree C
Operating Speed (5V): 0.11 sec/60° dagrees at no load
Stall Torque (5V): 3.32 kg-cm
Bearing Type: Dual Ball Bearings
Gear Type: Metal
Programmable: NO
Connector Wire Length: 19.0 cm

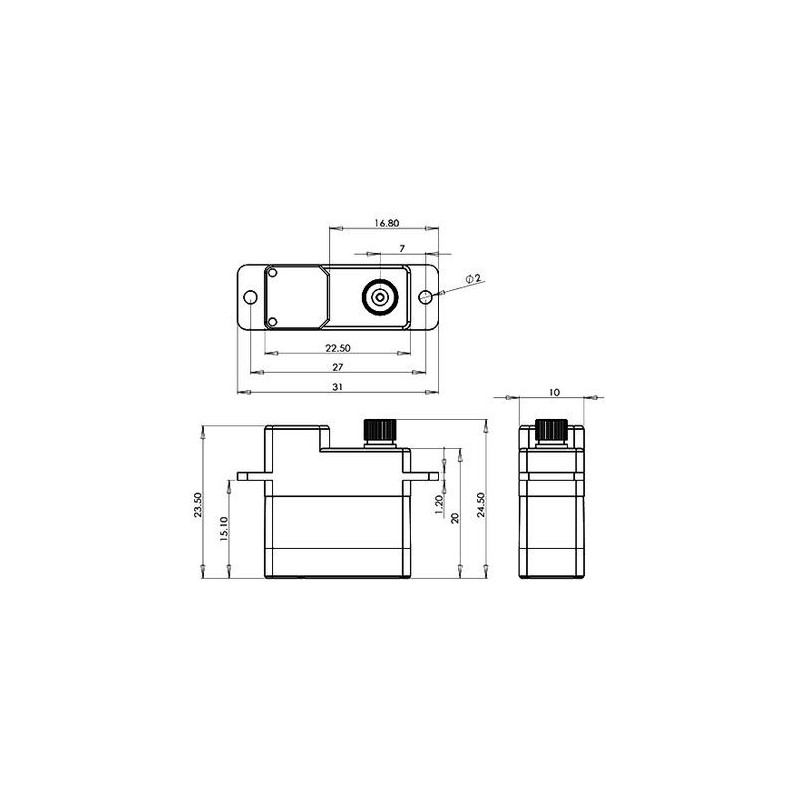

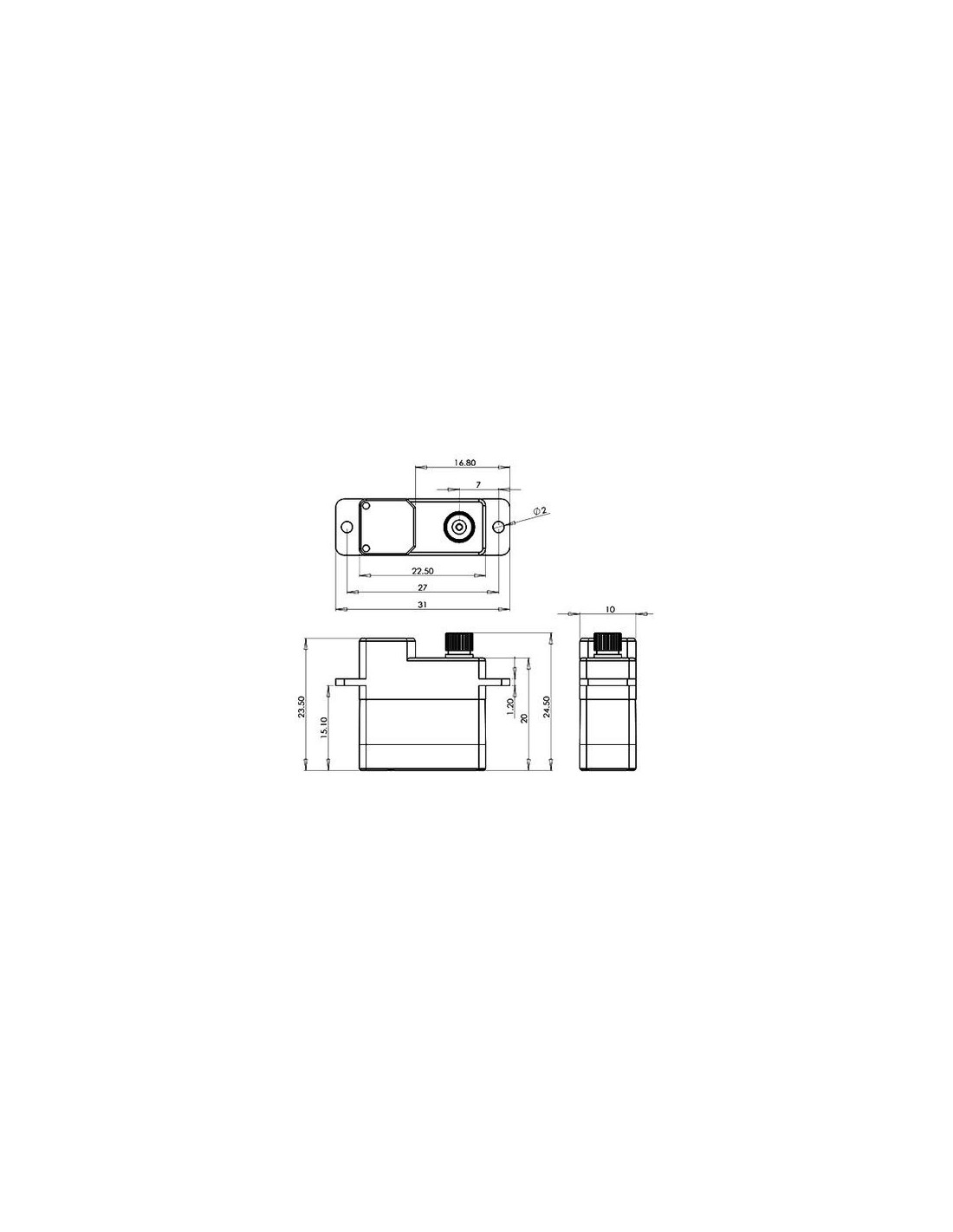

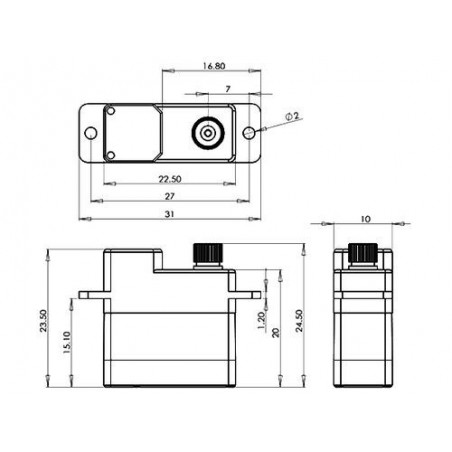

Dimensions: 22.5X10X23.5 mm
Weight: 9.5 g

Thickness in mm (Servos)
10
Torque in kg.cm (servos)
3.32
Speed sec / 60° (servos)
0.11
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
no
Weight in g (servos)
9.5
128-S0015005
4710150350424
4710150350424
