IDS mini - Integrated Drive System/Mono for X10 / X10 mini

€12.42
Tax included
IDS for servos: KST X10, KST X10 Mini, KingMax CLS0612W, CLS0911W, CHOCOmotion FOX HV 10/6.2 Mini, FOX HV 10/10, EMC-Vega KMST XV 10-612, KMST XV 10-911, Grupp GM992CHVCThis IDS (Integrated Drive System) is a complete servo mounting and control system, ideal for flap and aileron installation in all-composite gliders.This quality Servorahmen assembly comes with multiple drive lengths for a rigid, snug, and perfect installation, and the servo head is supported by a bearing, allowing for drive force recovery, backlash-free operation, and improved servo life.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option

This IDS assembly allows for full integration of the complete control system under the wing skin, thus ensuring zero drag.
The connection between the servo and the control surface is made via a ready-made hard plastic controller. No cutting or gluing is required, which makes installation faster and more reproducible. 11 of these single rods are provided in each kit, ranging in length from 61 mm to 81 mm, spaced approximately 2 mm apart. These new IDS kits are labeled "Mono" because the push rod is a monolithic component, not an assembly of parts that can be separated.

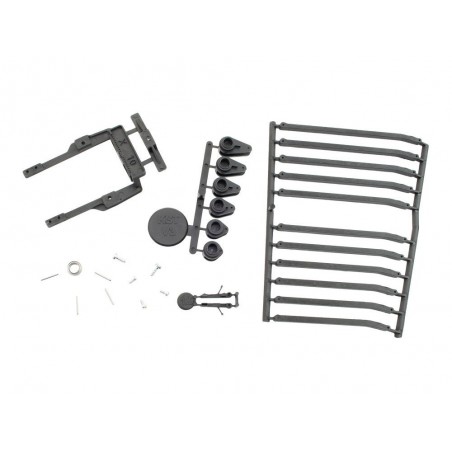

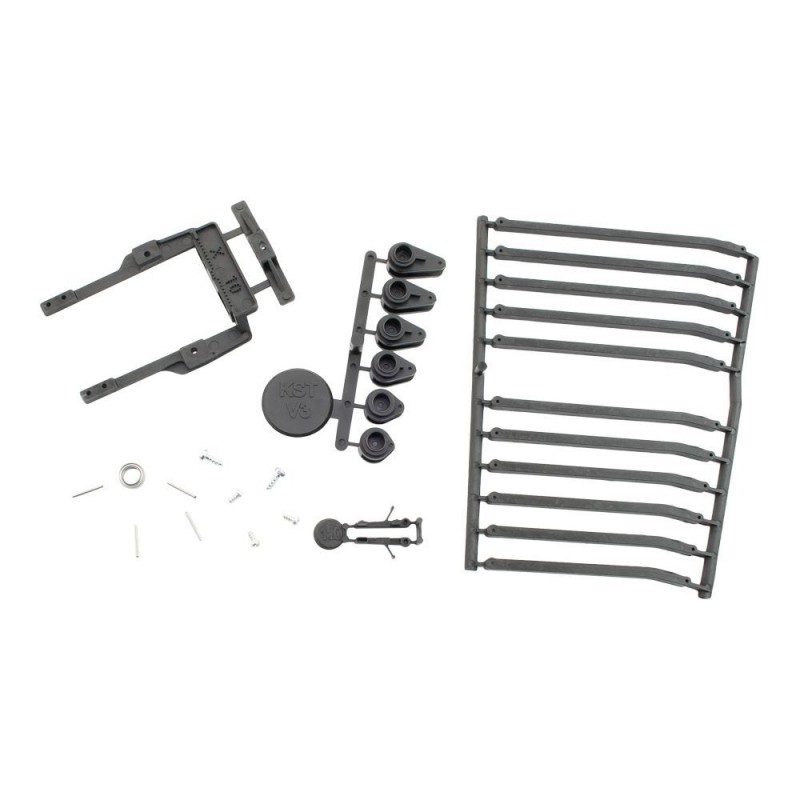

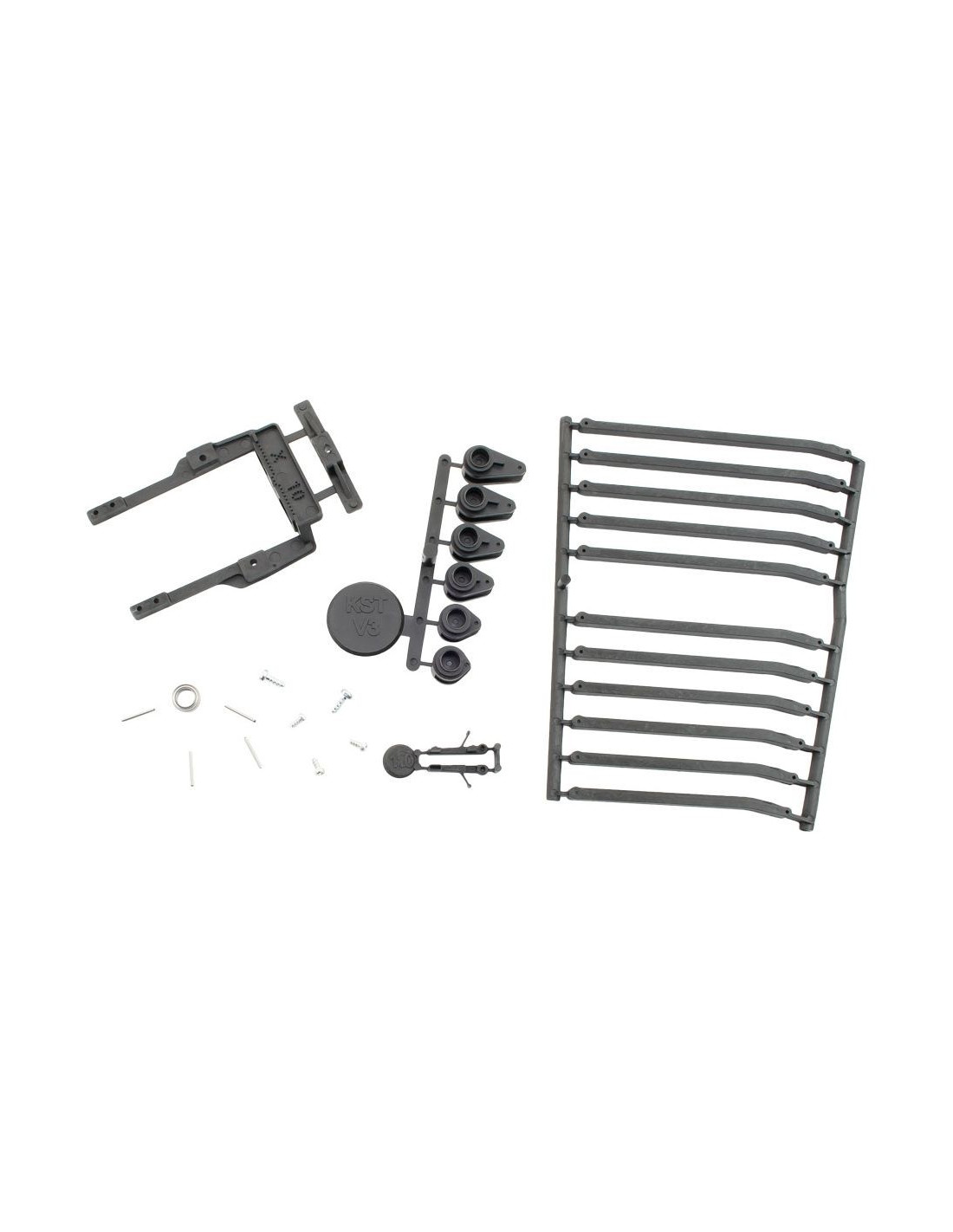

Parts included in this Mono IDS set:

1x servo frame
1x control horn
1x ball bearing
11x hard plastic IDS control rods - length range 61mm to 81mm
6x spreader bars of various lengths (4.5 to 11.5mm)
2x servo mounting screws
4x steel bearing shafts (2 are spares)
Sold individually. You need two for a pair of wings.
Nb: supplied without assembly instructions.
060-IDS-KST-X10-mini
8800223298015
8800223298015
No reviews
Comments (0)
No customer reviews for the moment.
