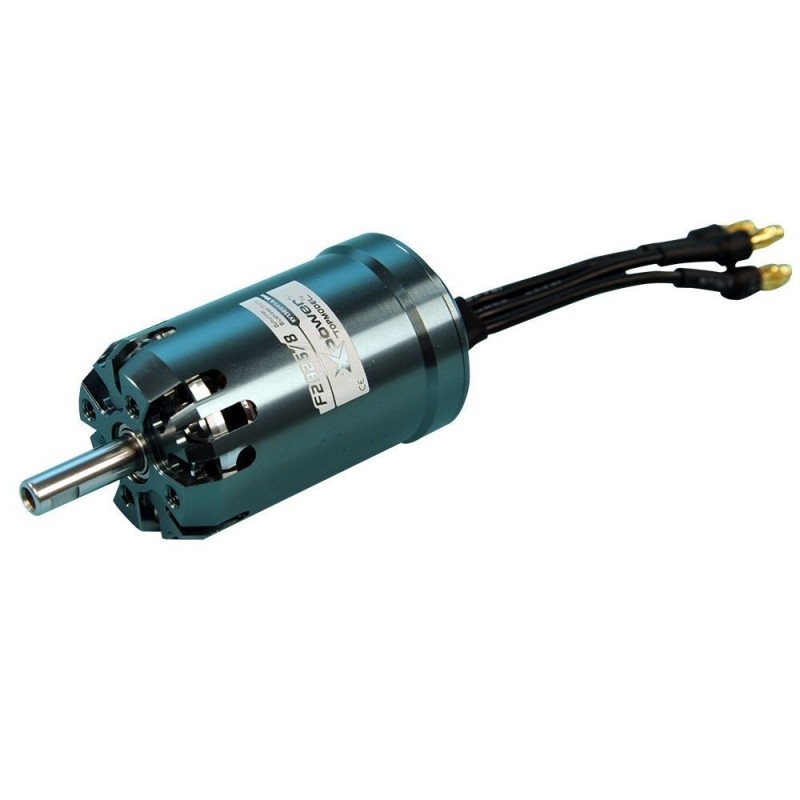

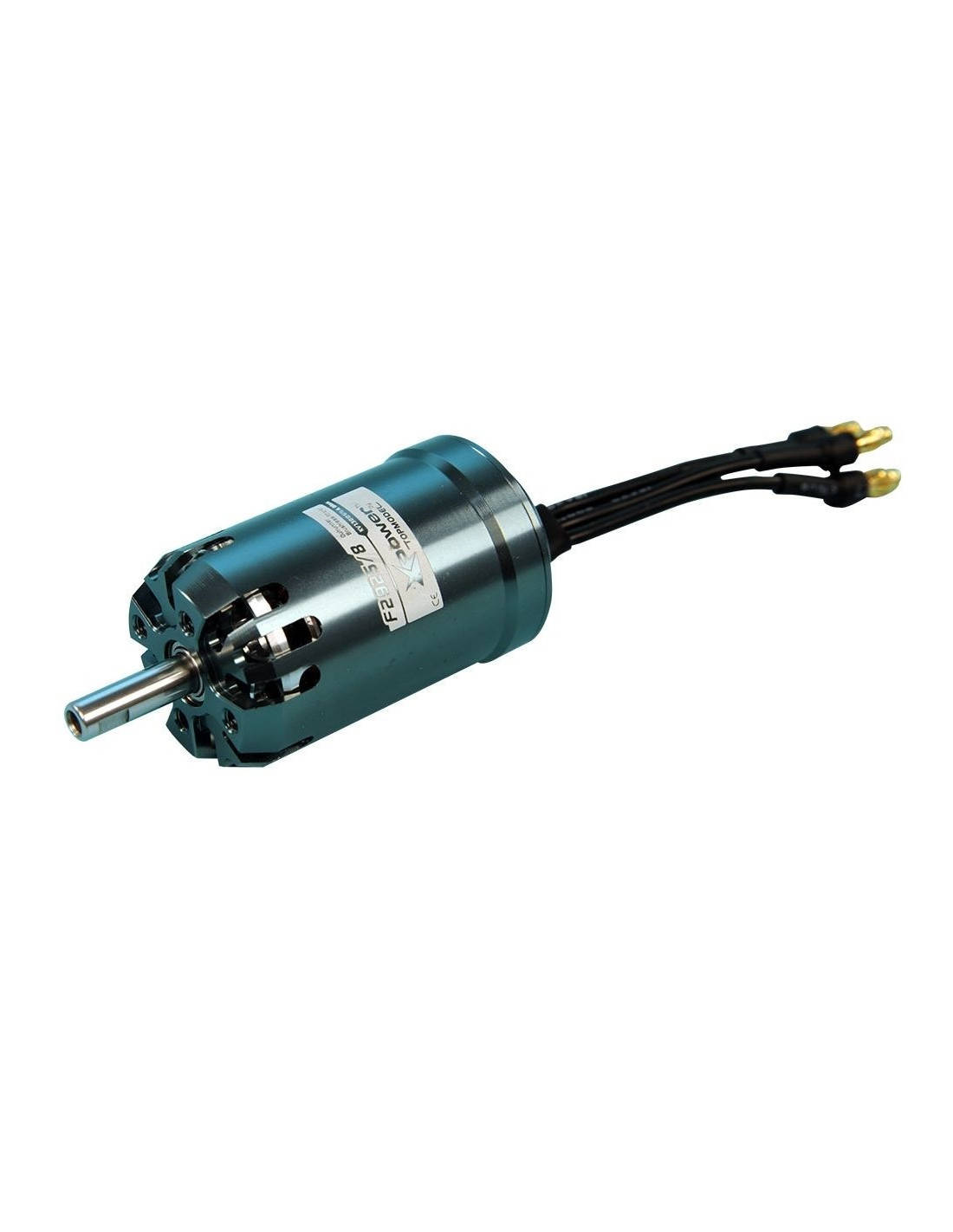

Power cables exit in the axis at the back of the motor, perfect for easy installation in thin glider noses, no more problems with wires rubbing on the motor!
Superbly adapted to F5J Windy gliders with a takeoff weight not exceeding 2300g.
Doing without a gearbox simplifies "the mechanics" and thus limits the risk of failure. In addition, turning much smaller propellers at high rpm reduces the effects of gyroscopic torques, which makes it easier to manage the climb and accelerates the horizontal speed of the model.
Robust 5mm diameter motor shaft to withstand hard landings on targets!
Recommended number of cells: 4 LiPo
Revolutions per Volt: 1380
Max current: 60A (30")
Internal resistance: 27,4mOhm

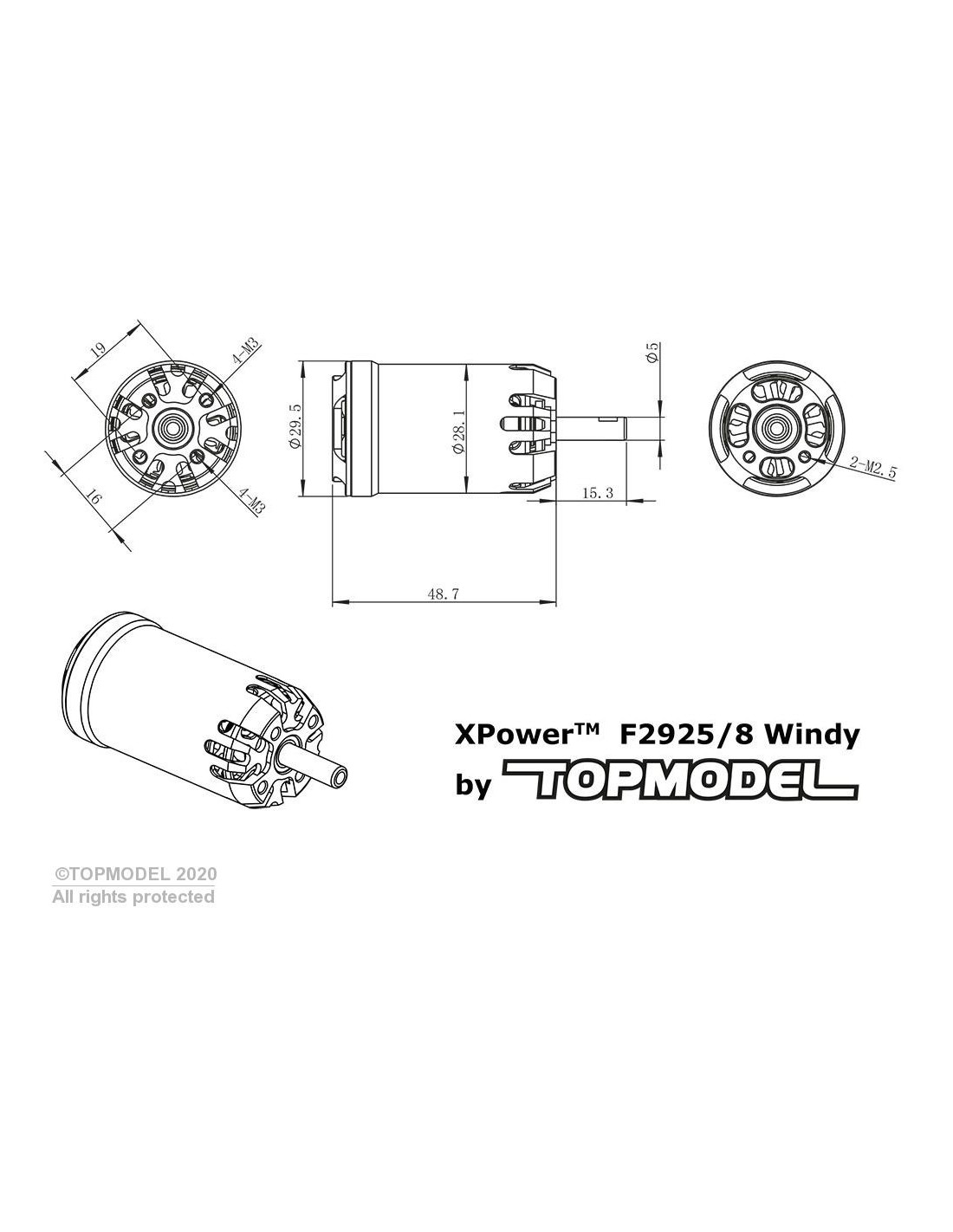

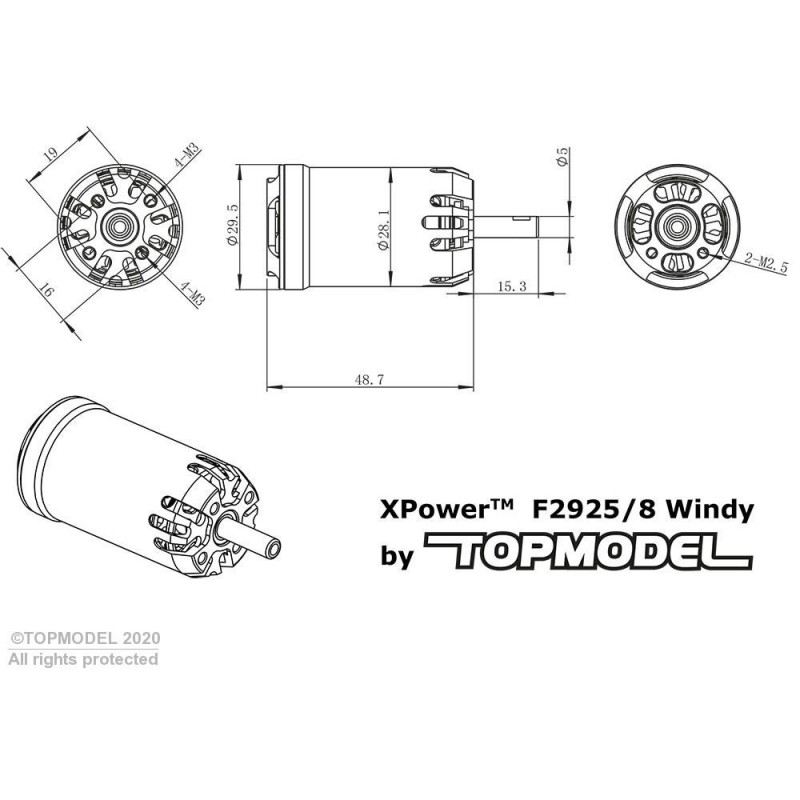

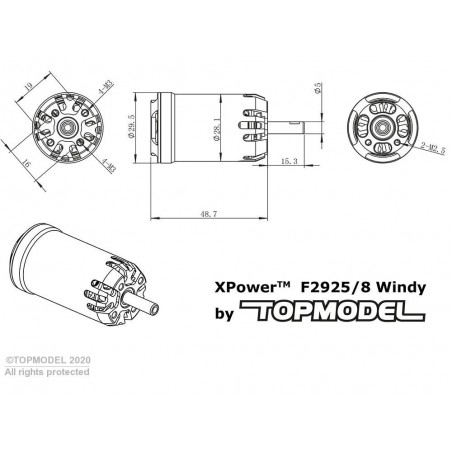

Dimensions: Ø28,1x48,7mm
Motor axis diameter: 5,0mm

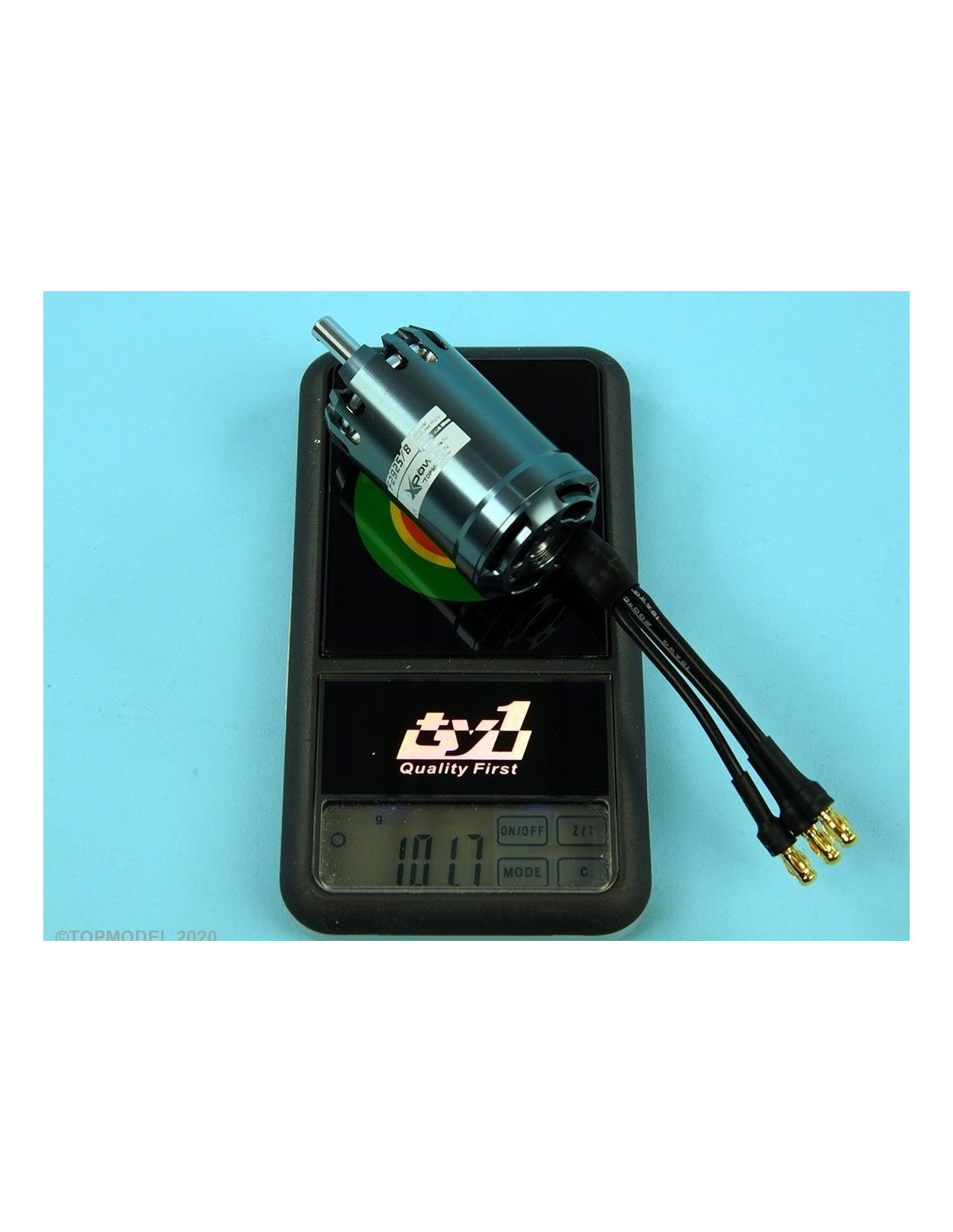

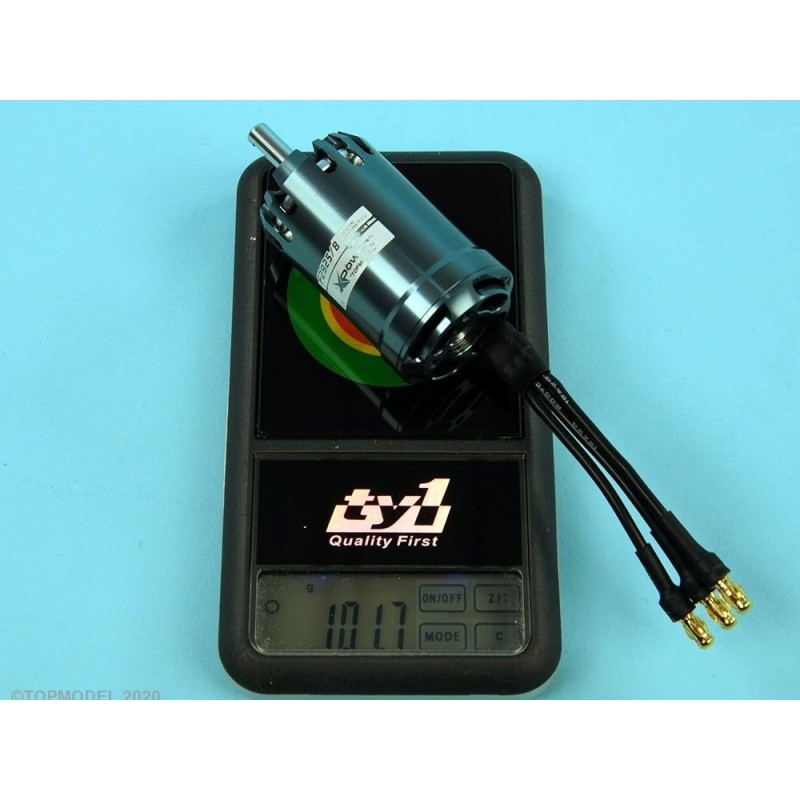

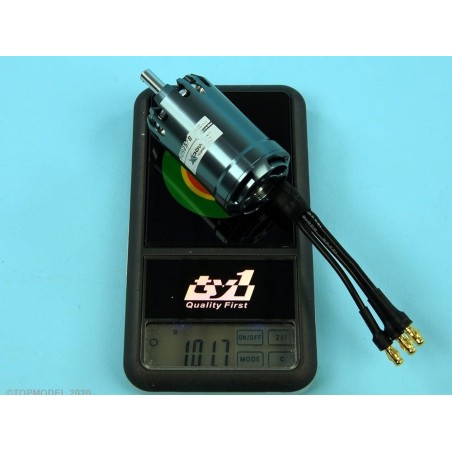

Weight: 101,7g approx.
Recommended propellers: 11x6-11x8"
Kliknut�m se zobraz� n�hled
Measurements:
Propeller: XPower Carbon Folding Prop 11x8"+ RFM carbon cone Ø32mm
Controller: YGE 65LVT
Battery: Hot Lips VHD 850 4S1P
Speed: 12000 rpm
Power consumption: 56A
Static pull: 2,5kg
Measurements:
Propeller: GM DD Carbon Folding Prop 11x6"+ GM carbon cone Ø32mm
Controller: YGE 65LVT
Battery: Hot Lips VHD 850 4S1P
Speed: 11700 rpm
Consumption: 56A
Static pull: 2,3kg
Measures:
Propeller: XPower Carbon Folding Prop 12x8"+ GM carbon cone Ø32mm
Controller: YGE 65LVT
Battery: Hot Lips VHD 850 3S1P
Speed: 9100 rpm
Consumption: 48A
Static pull: 1,95kg
Recommended controller: YGE 65LVT
