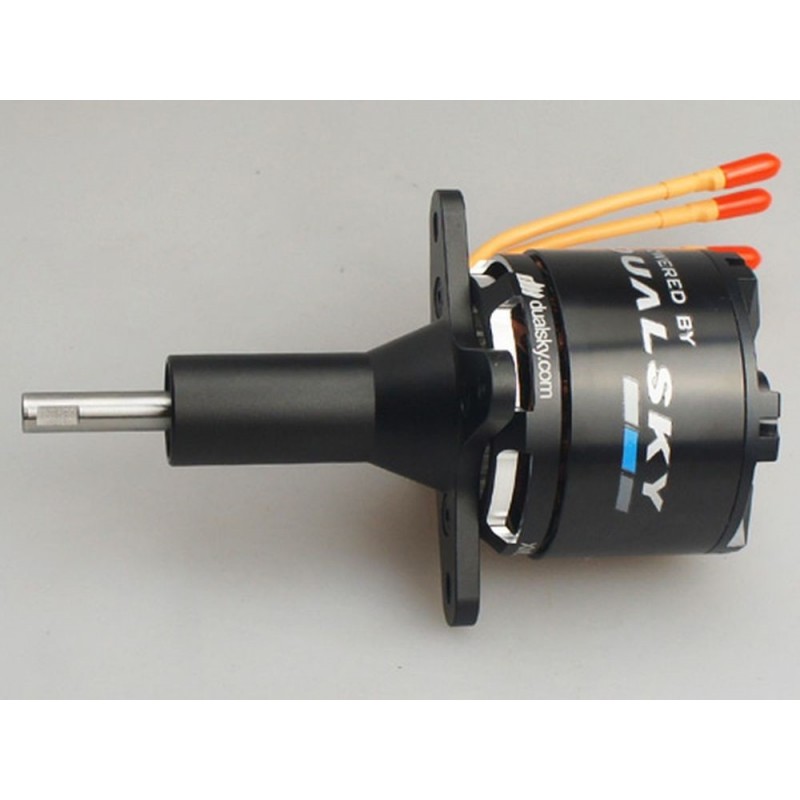

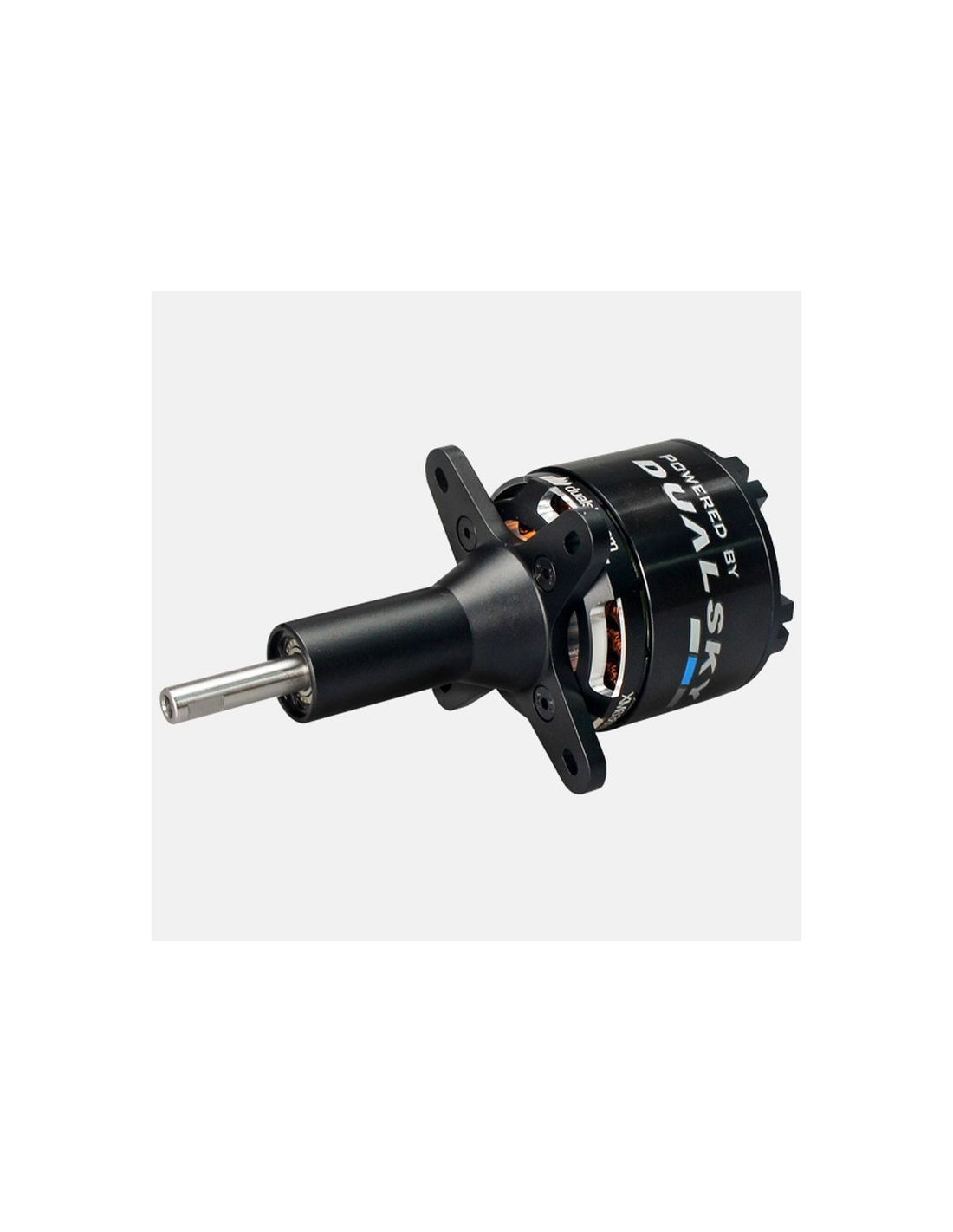

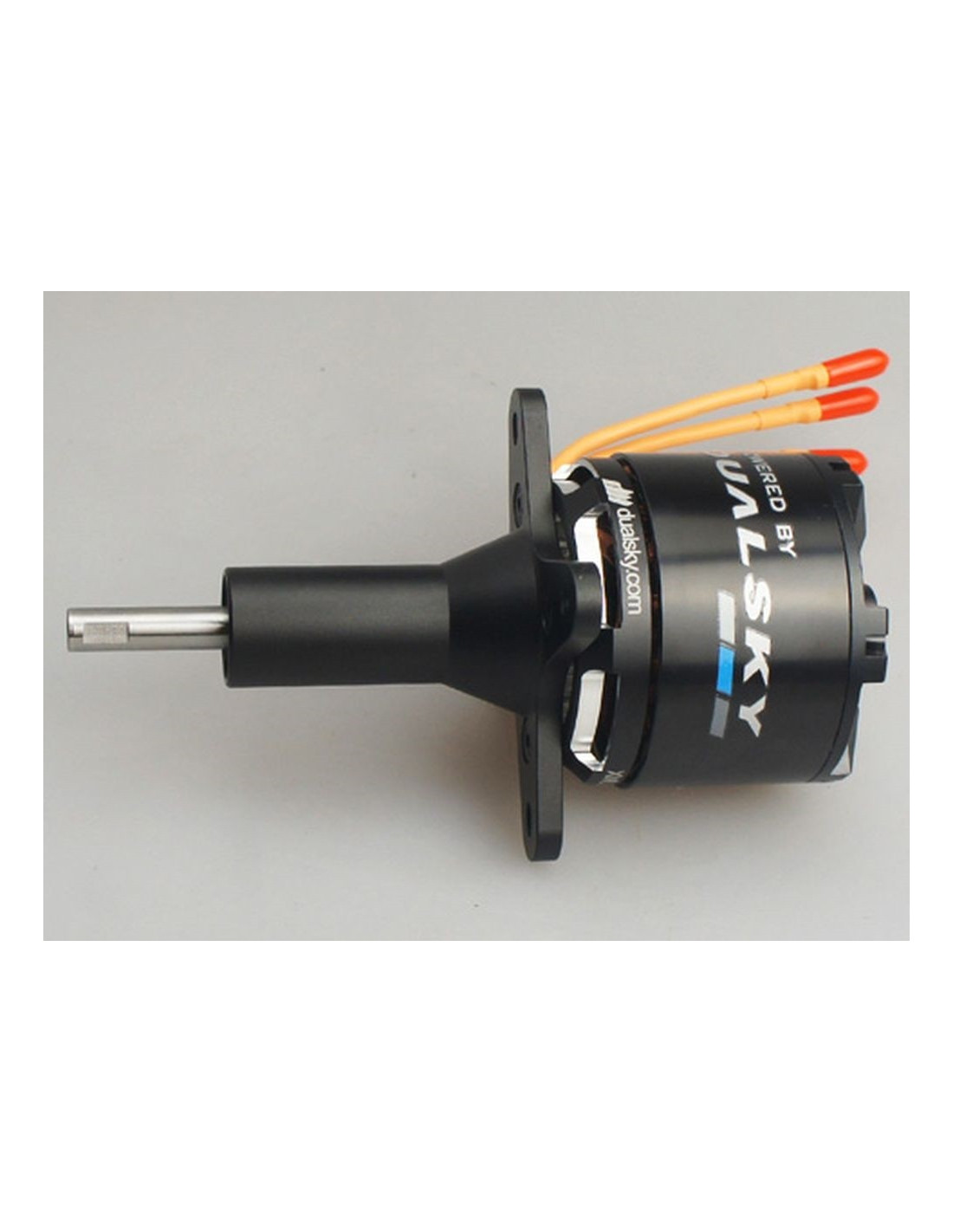

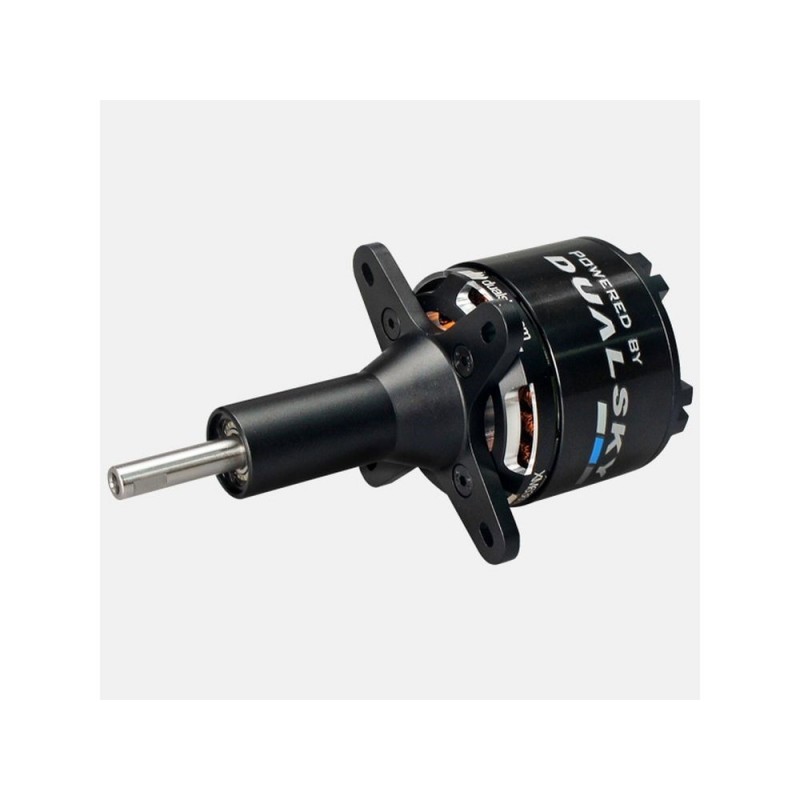

Dualsky XM6360EGL-19 motor (725g, 220kV, 4000W)

Last items in stock

€165.83

Tax included

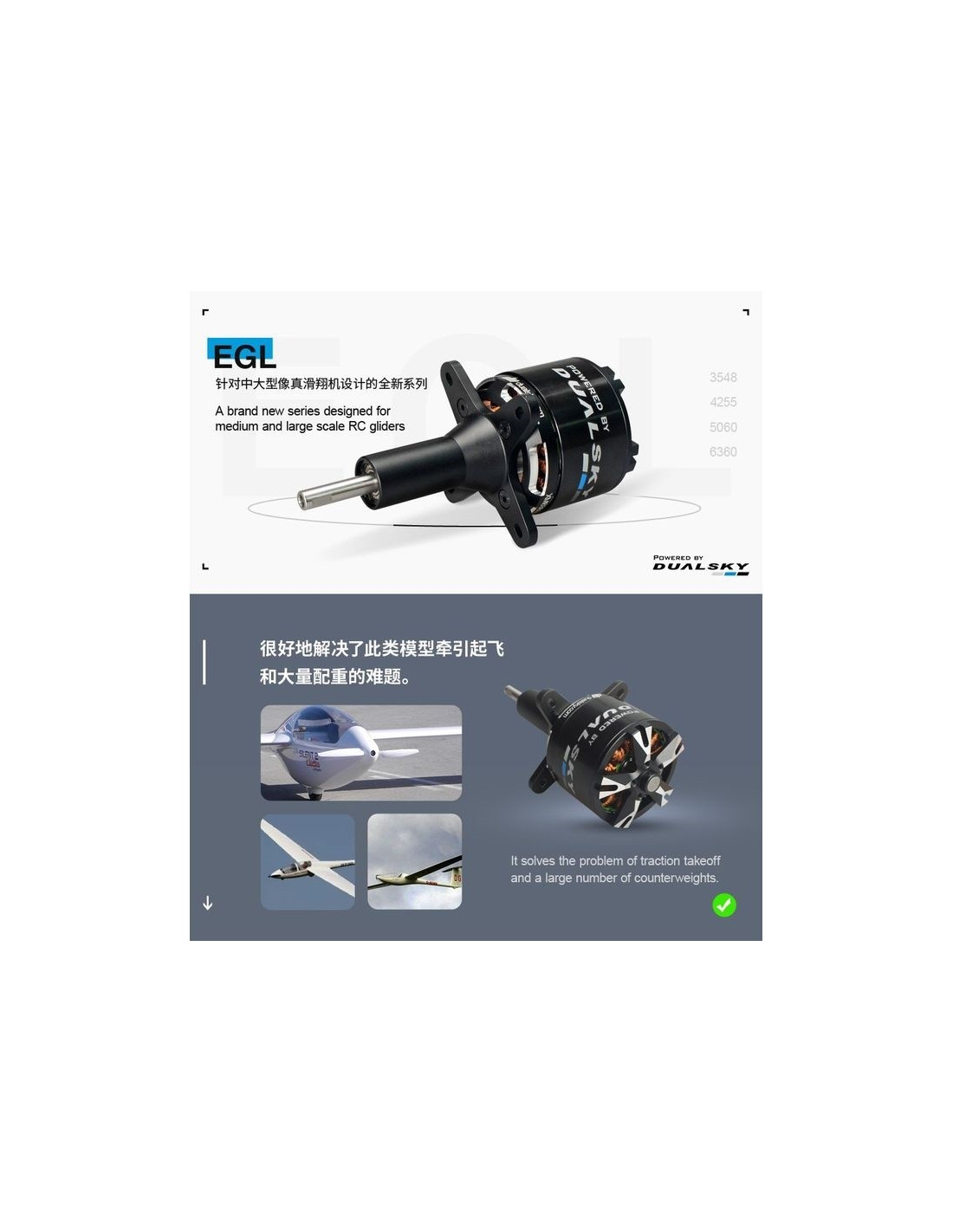

The Dualsky XM6360EGL-19 motor is particularly suitable for gliders up to 20kg

Dualsky was founded in early 2004.
Dualsky produces Xmotor brushless motors, Xcontroller brushless ESCs, Xpower high-speed Lipo batteries and other accessories.

Some details:

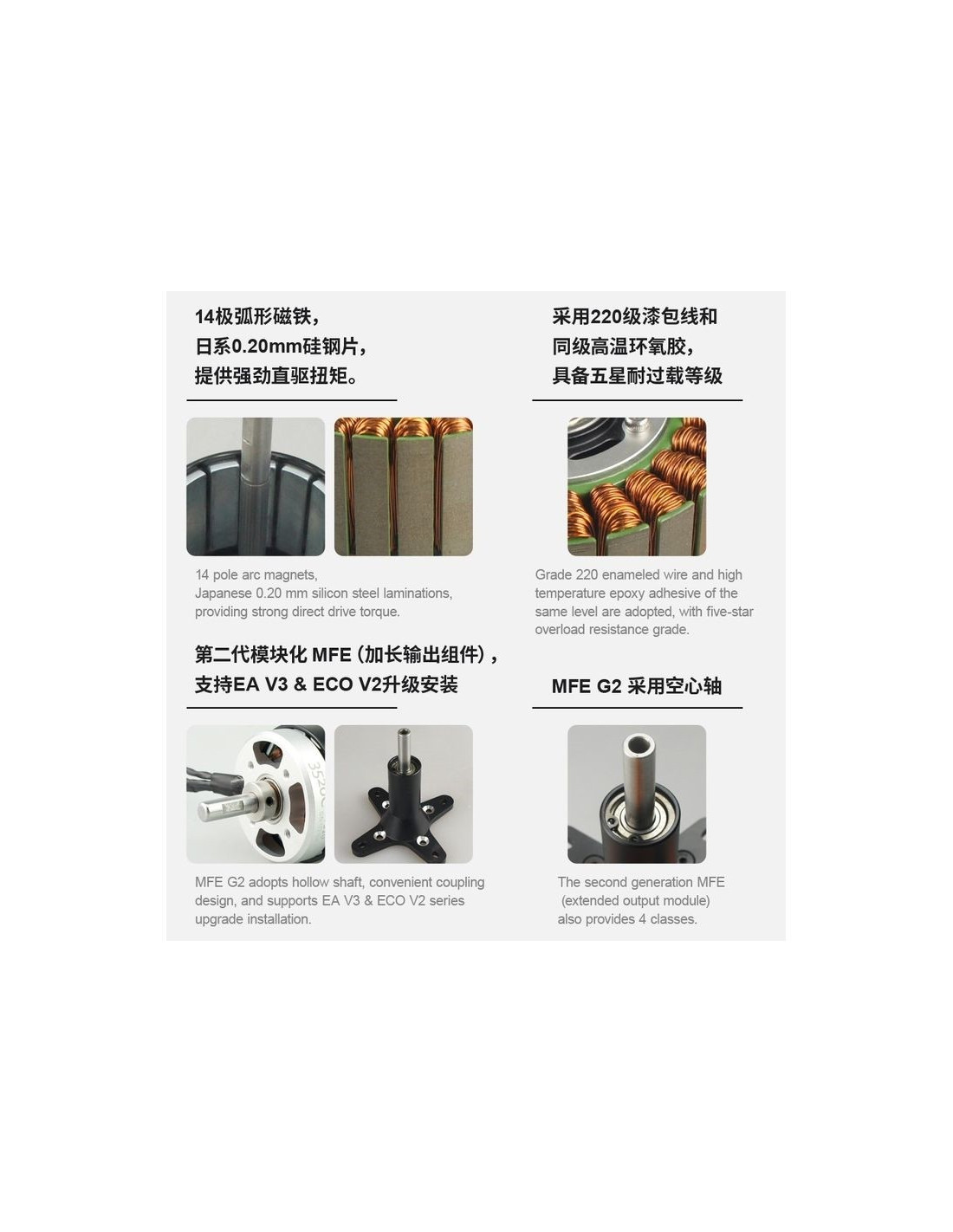

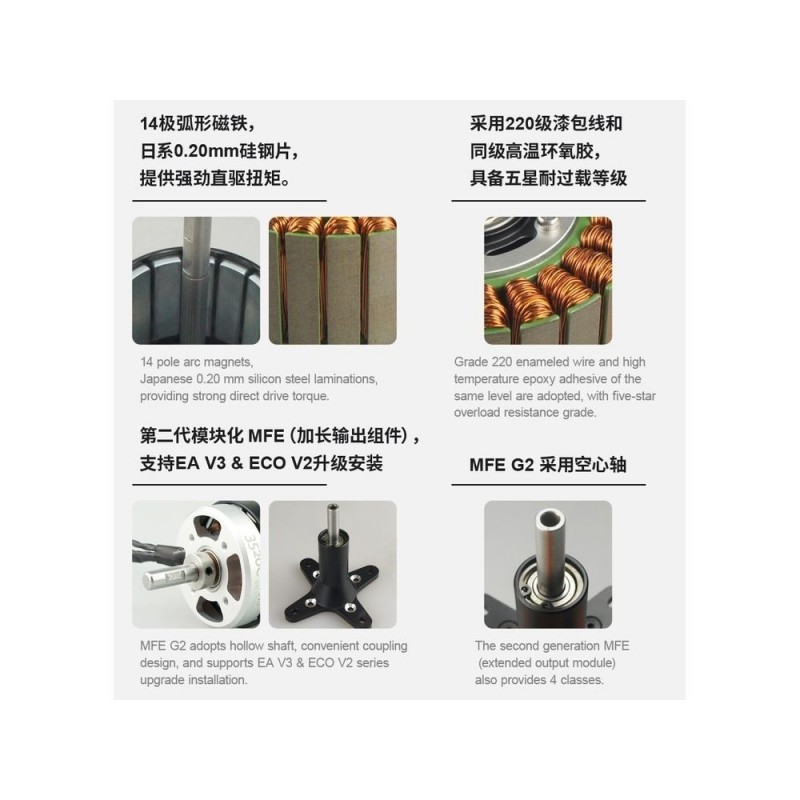

14-pole rotor composed of curved magnets, 0.20mm Japanese silicon laminated steel, offering high direct drive torque.
Uses 220 grade enameled wire and the same level of high temperature epoxy adhesive, with five-star quality overload resistance.
The second generation MFE (Extended Output Module) (G2) is available in 4 lengths.

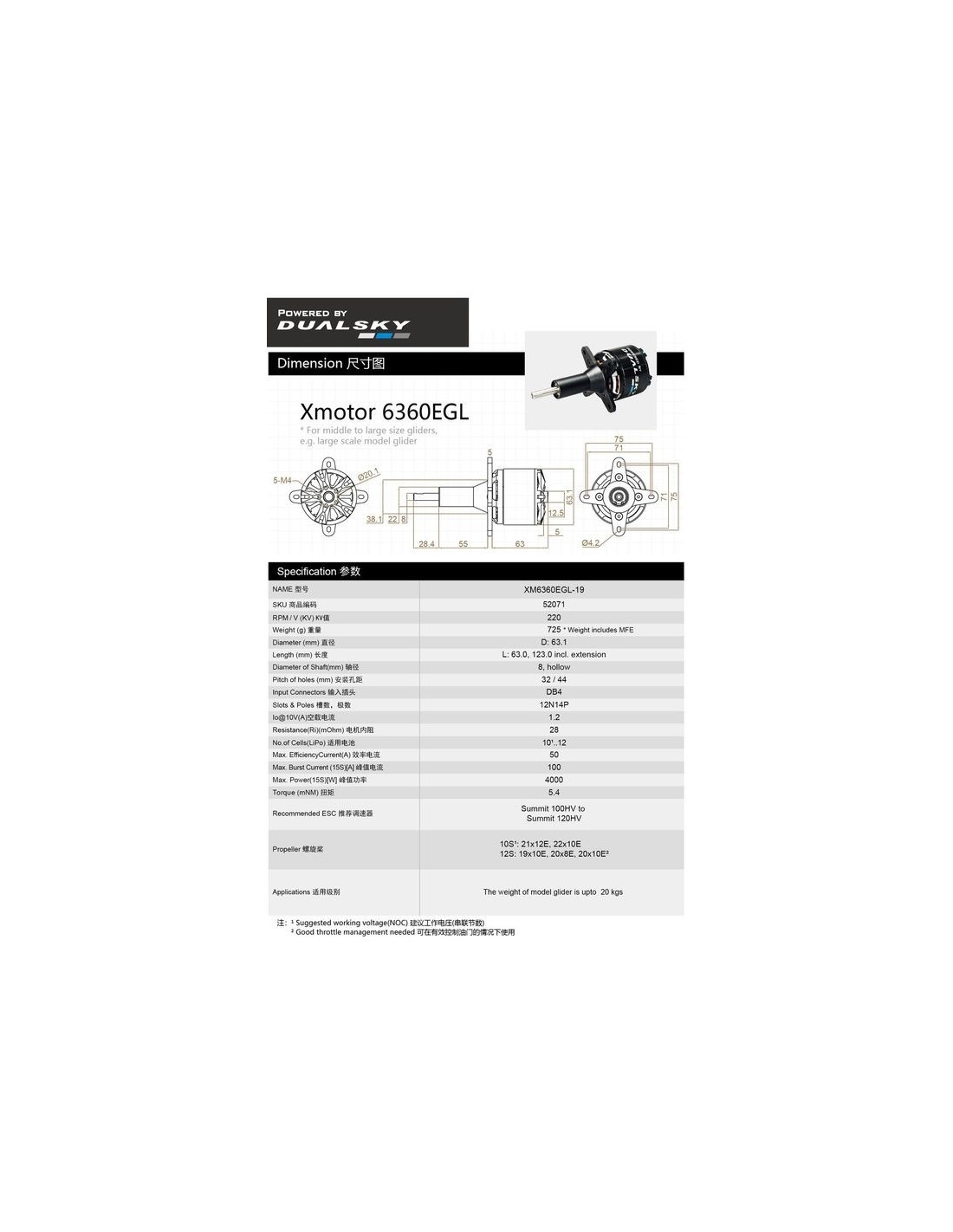

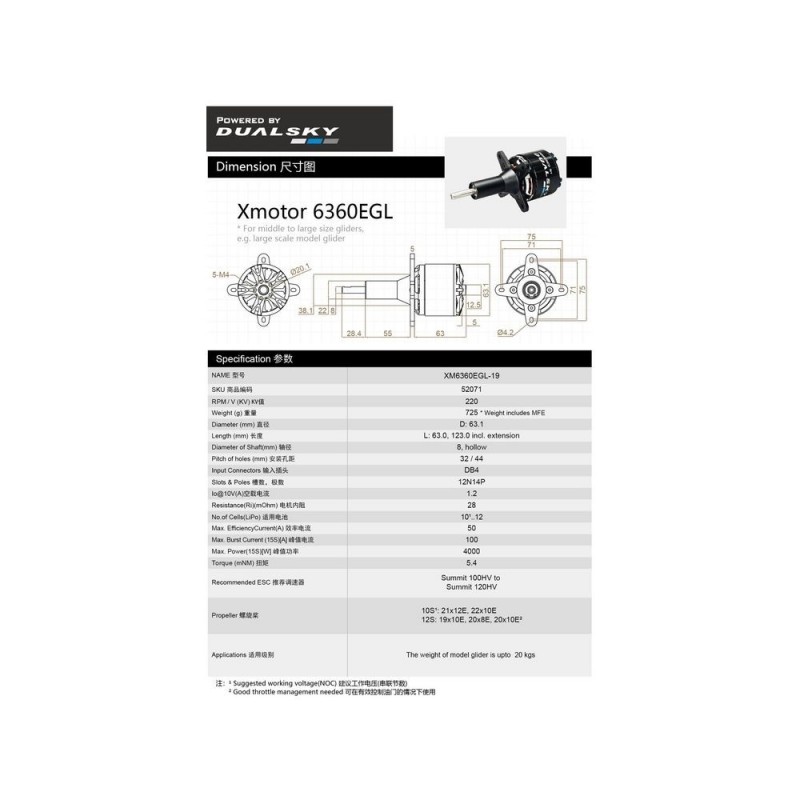

Technical data:

Recommended application: Glider up to 20kg
Diameter: 63.1mm
Length: 63mm, 123mm with the extended shaft
Weight: 725g (including extended shaft)
kV: 220 rpm/V
Shaft diameter: 8.00mm
Connectors : DB4 (3 pairs)
Recommended voltage: 10S to 12S LiPo
Max current (15s) : 100A
Max power (15s) : 4000W
Recommended propeller : 10S 21x12, 22x10
Recommended propeller : 12S 19x10, 20x8, 20x10

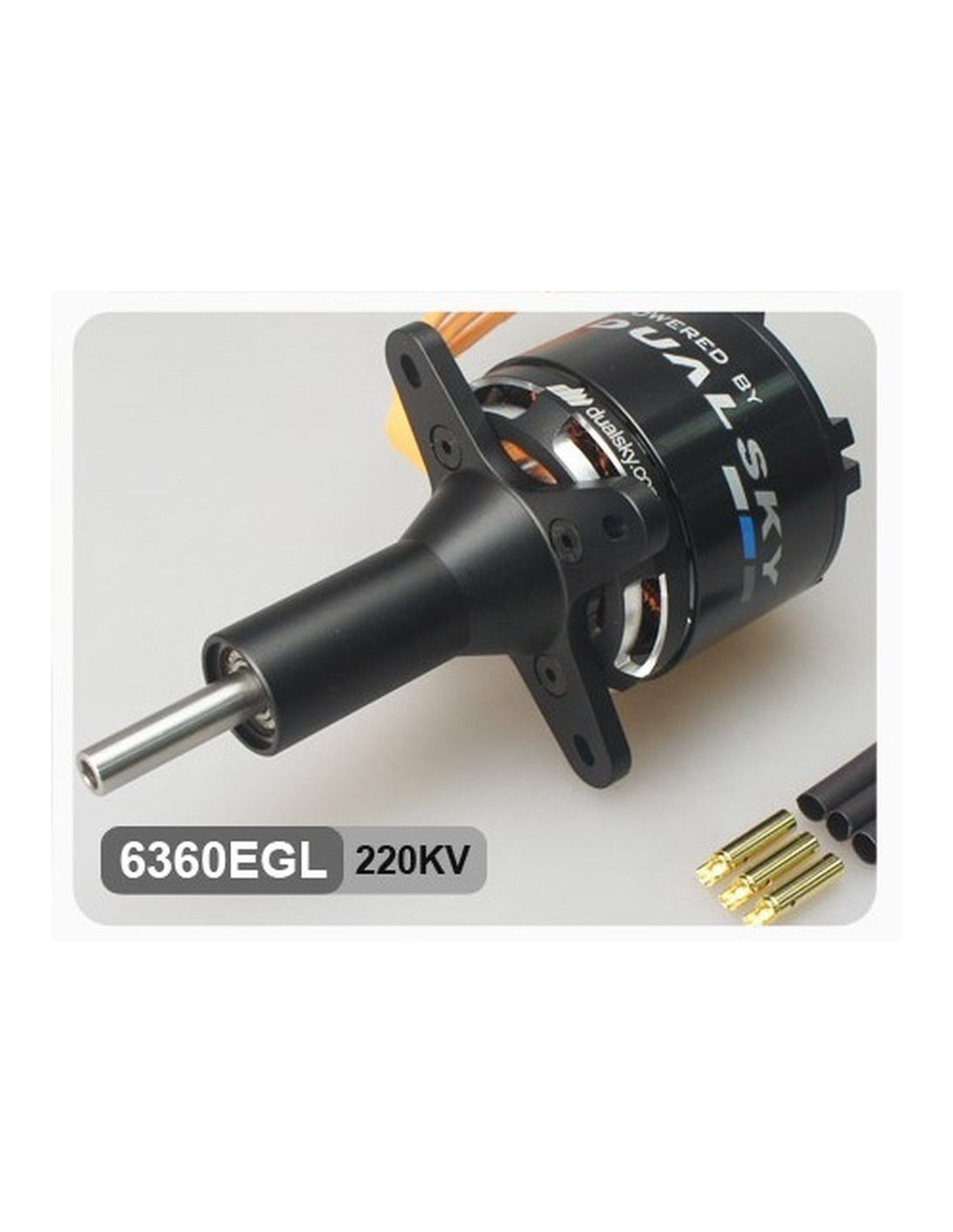

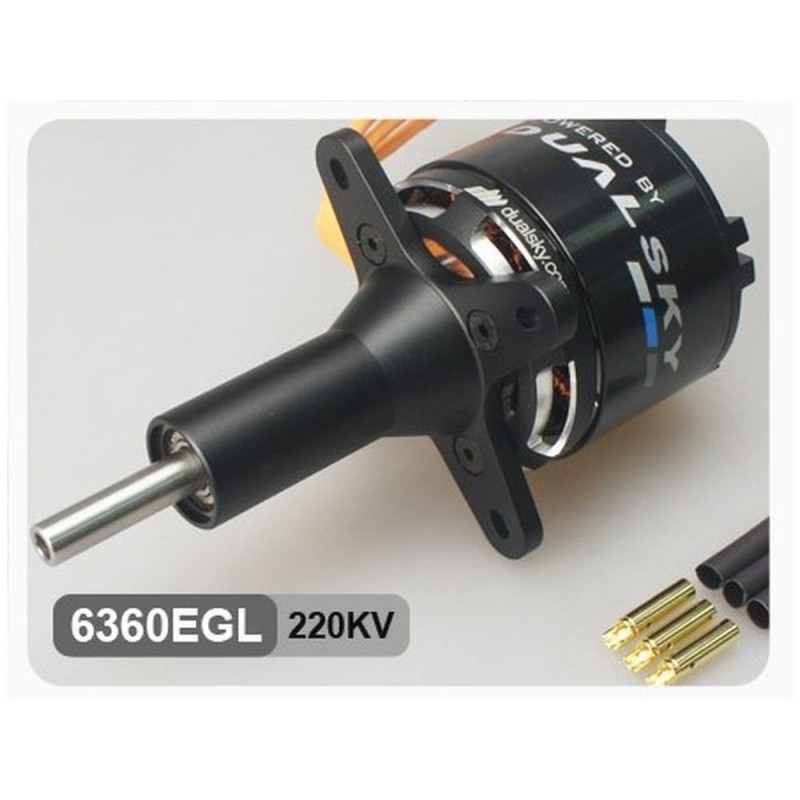

Contents of the box:

(1) XM6360EGL-19 motor
(3) Pair of DB4 connectors

Additional product(s) needed

Brushless controller 100A or more accepting 8S lipo minimum

Engine weight: from 600g to 999g
Motor power in Watts: 4000
Revs/ minute Kv: 220
Type of tree: Long

Reference 016-XM6360EGL-19

EAN13 6941047120716

MPN 6941047120716
