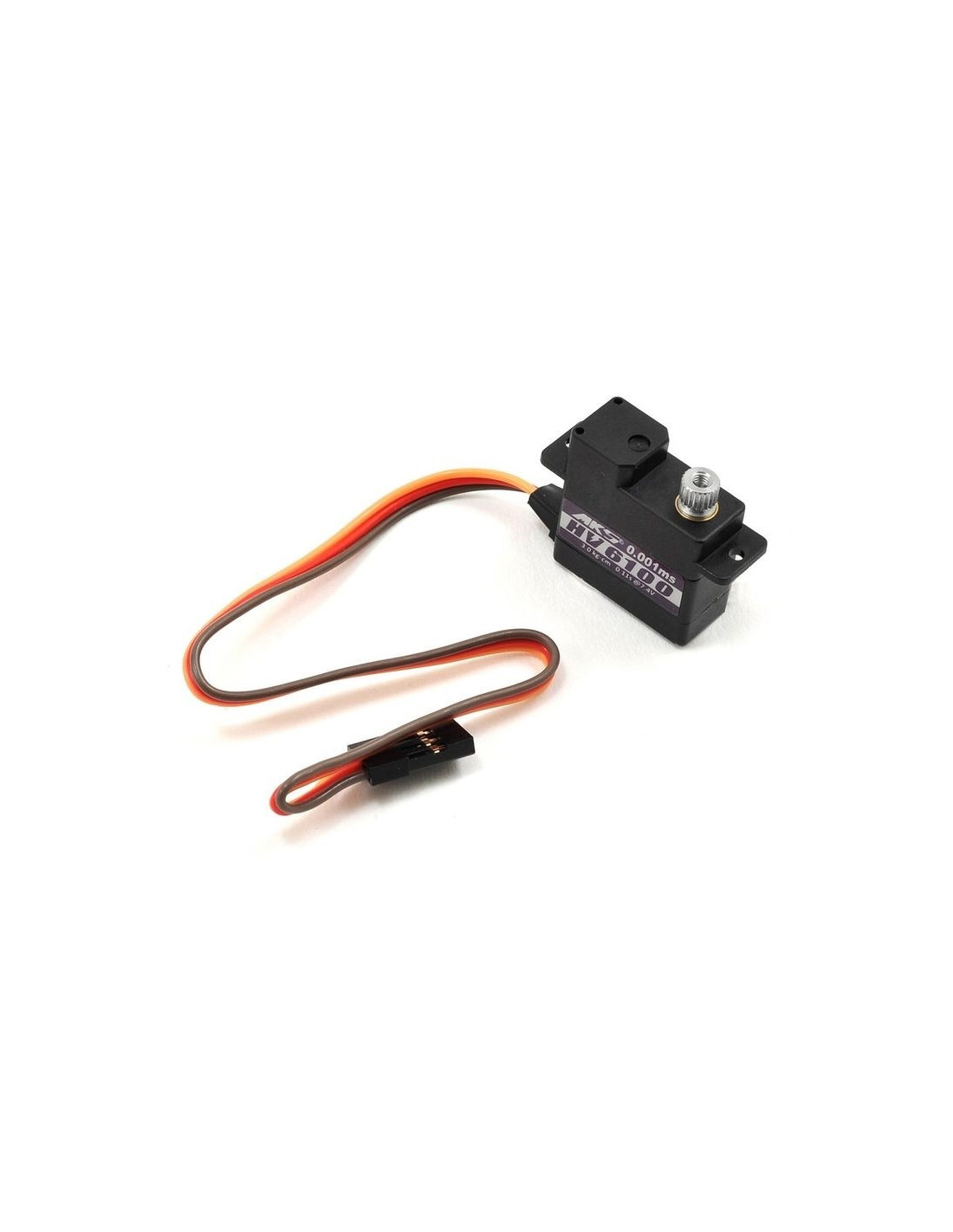

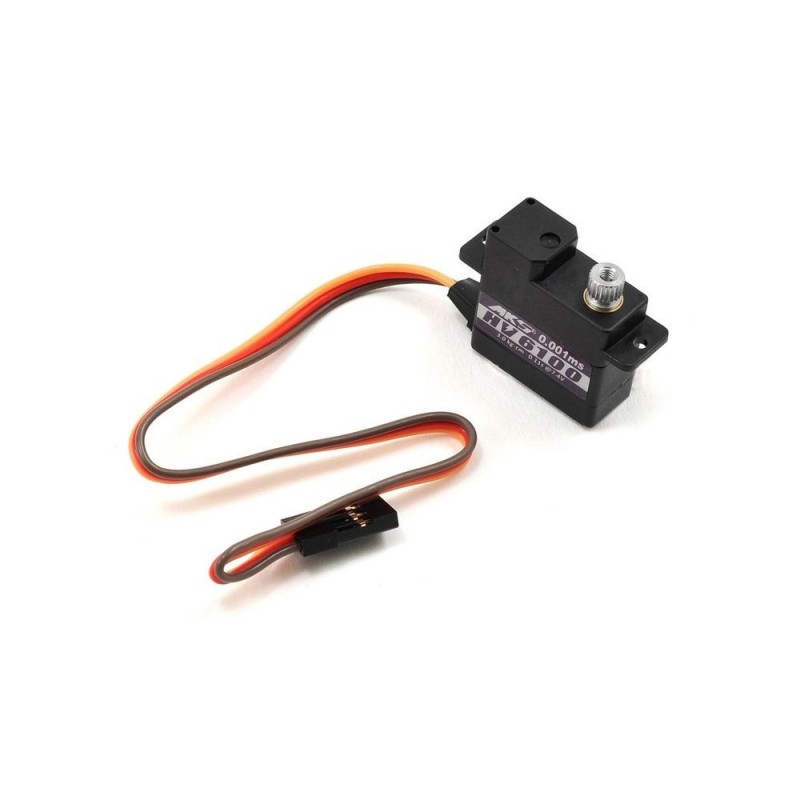

Digital metal servo HV6100 Mks

Last items in stock

€36.58

Tax included

FLASH RC, authorized MKS distributor for France offers this HV elevator/drift servo for gliders of very high quality: - digital servo - ultra precise neutral return - coreless motor - set of metal gears - double bearing - locking torque of 3.32kg/cm under 5.0V with a speed of 0.11sec/60° - dead band: 0.001ms - Dimensions: 22.5x10x23.5 mmThe HV6100 is a metal gear servo particularly suitable for glider wings thanks to its thinness of 10mm, and is used in F3F competition, proof of its good performance.it is designed to be powered directly by 2S LiFe or LiPo, but also works with 5 NiMh cells

Features:

Torque: 2.6 kg-cm (6.0V) / 3.0 kg-cm (7.4V) / 3.4 kg-cm (8.2V)
Speed: 0.14 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V)
Weight: 10 g

Dimensions : 22.5 x 10 x 23.5 mm
Voltage : 3.8V~8.4 V DC Volt (2S Lipo un-regulated)
Frequency : 1520μs / 333hz
Dead Band : 0.001 ms (Default)
Bearing : 2 bearings + 1 bronze bearing
Motor : 1 Coreless motor
Gears : Metal + Aluminum-magnesium

Thickness in mm (Servos): 10
Torque in kg.cm (servos): 3.4
Speed sec / 60° (servos): 0.1
Pinions (servos): Metal
Bearing (servos): yes
Technology (sevos): Digital
HV (servos): yes
Weight in g (servos): 10

Reference 128-S0022005

EAN13 4710150350509

MPN 4710150350509
