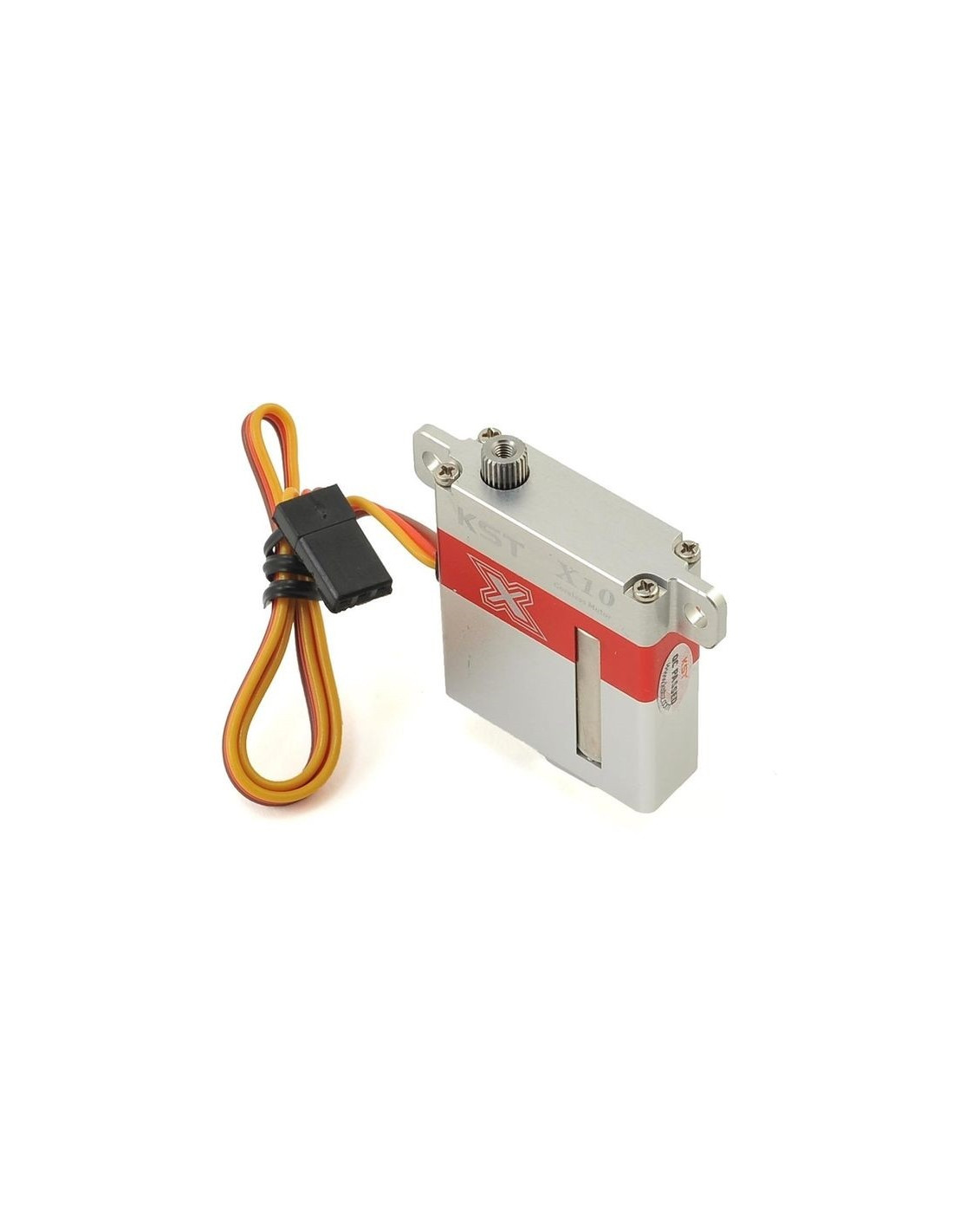

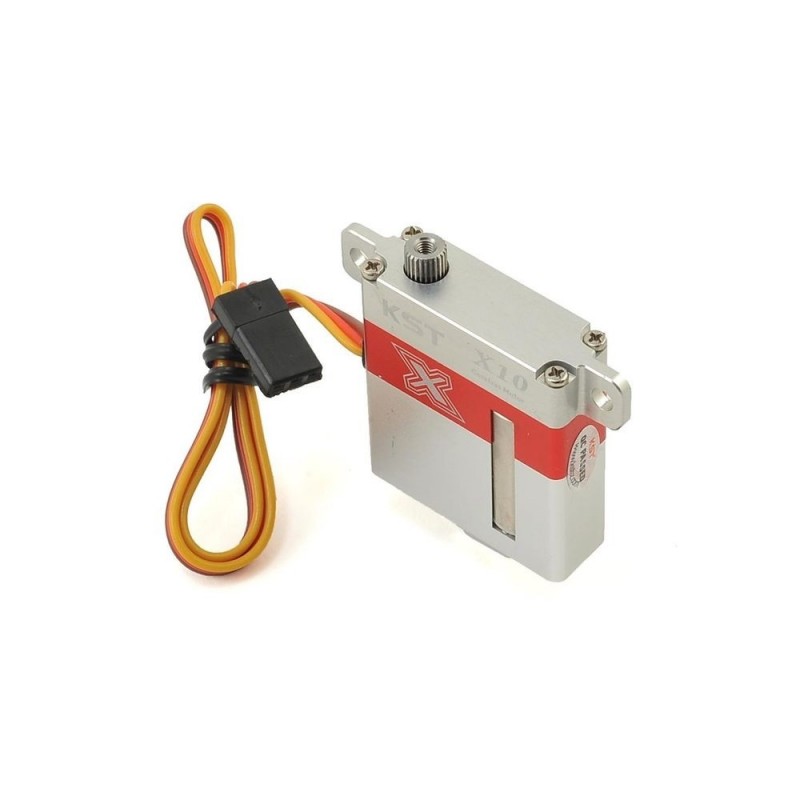

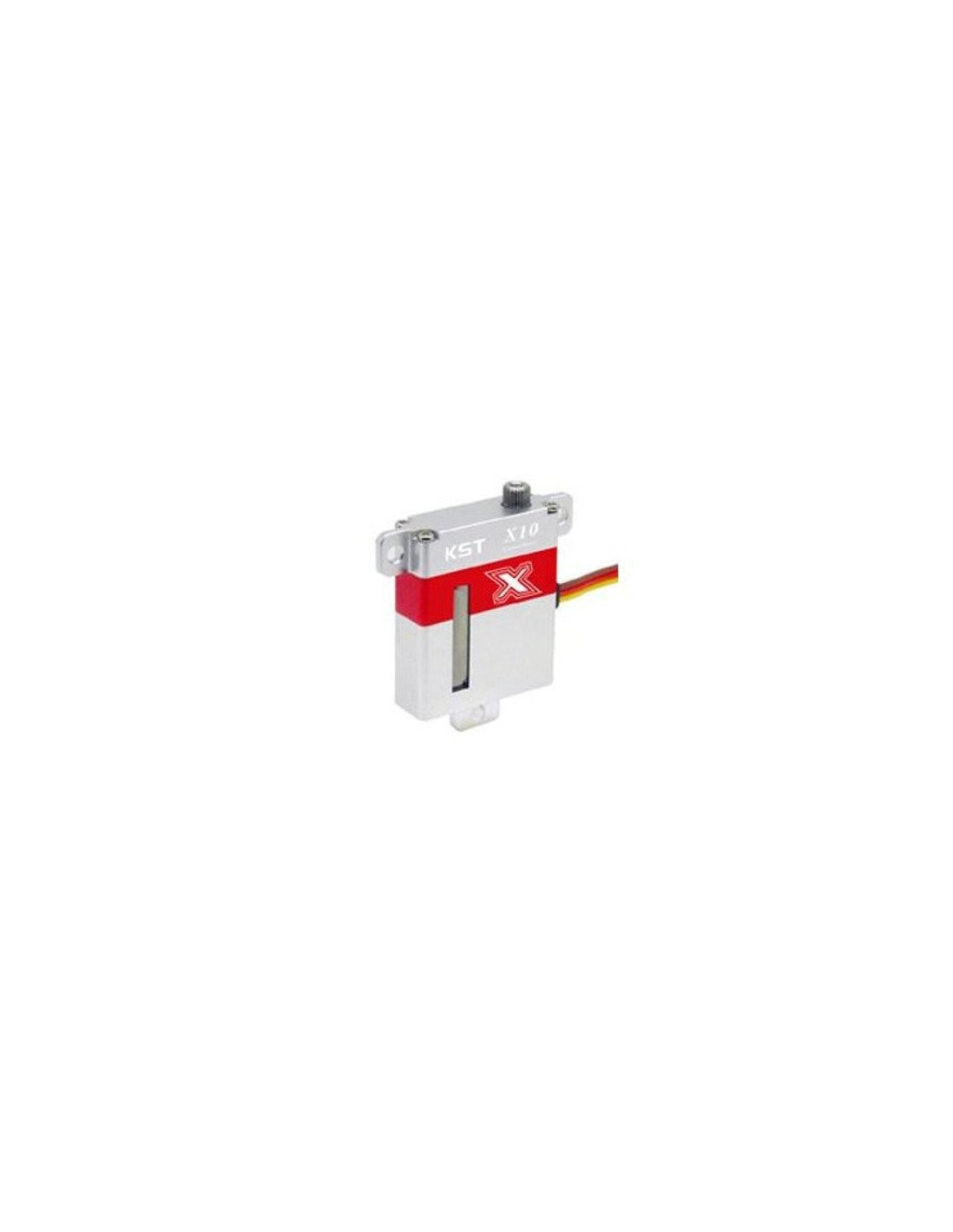

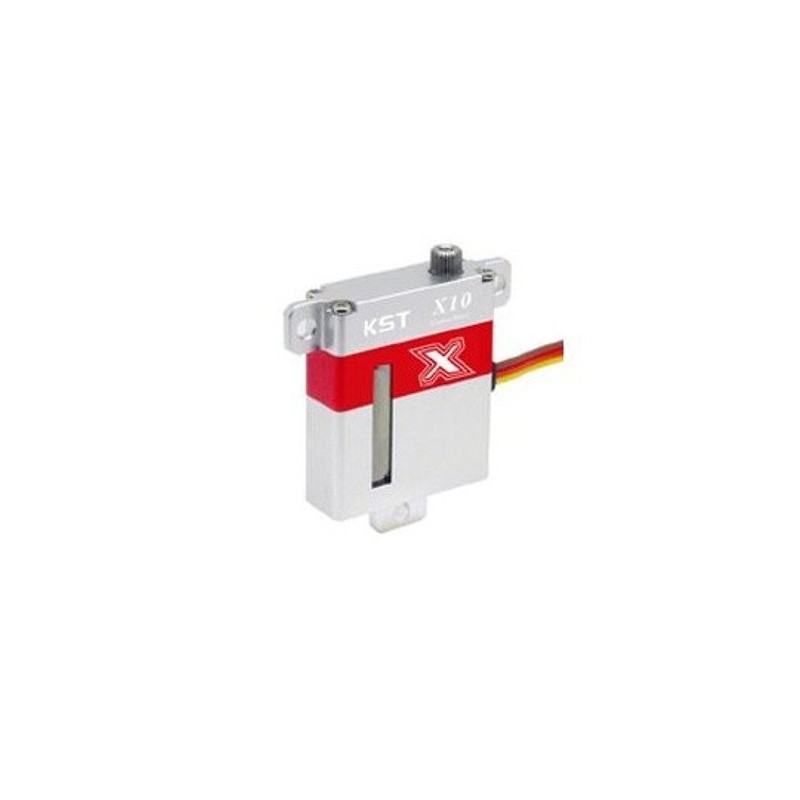

KST X10 HV 10mm wing servo (28g, 10.8kg.cm, 0.10s/60°)

€39.00
Tax included

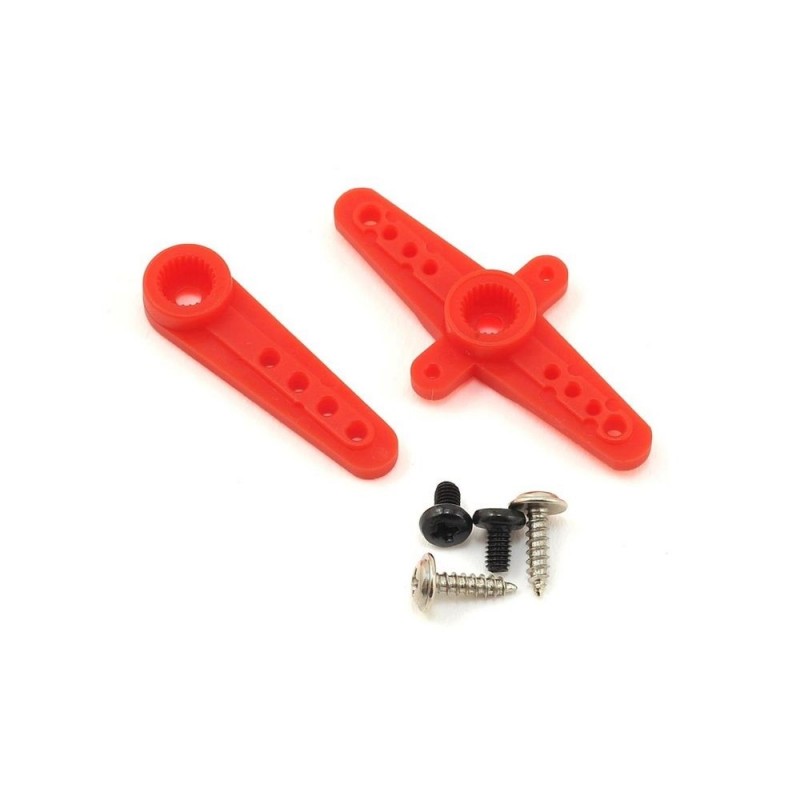

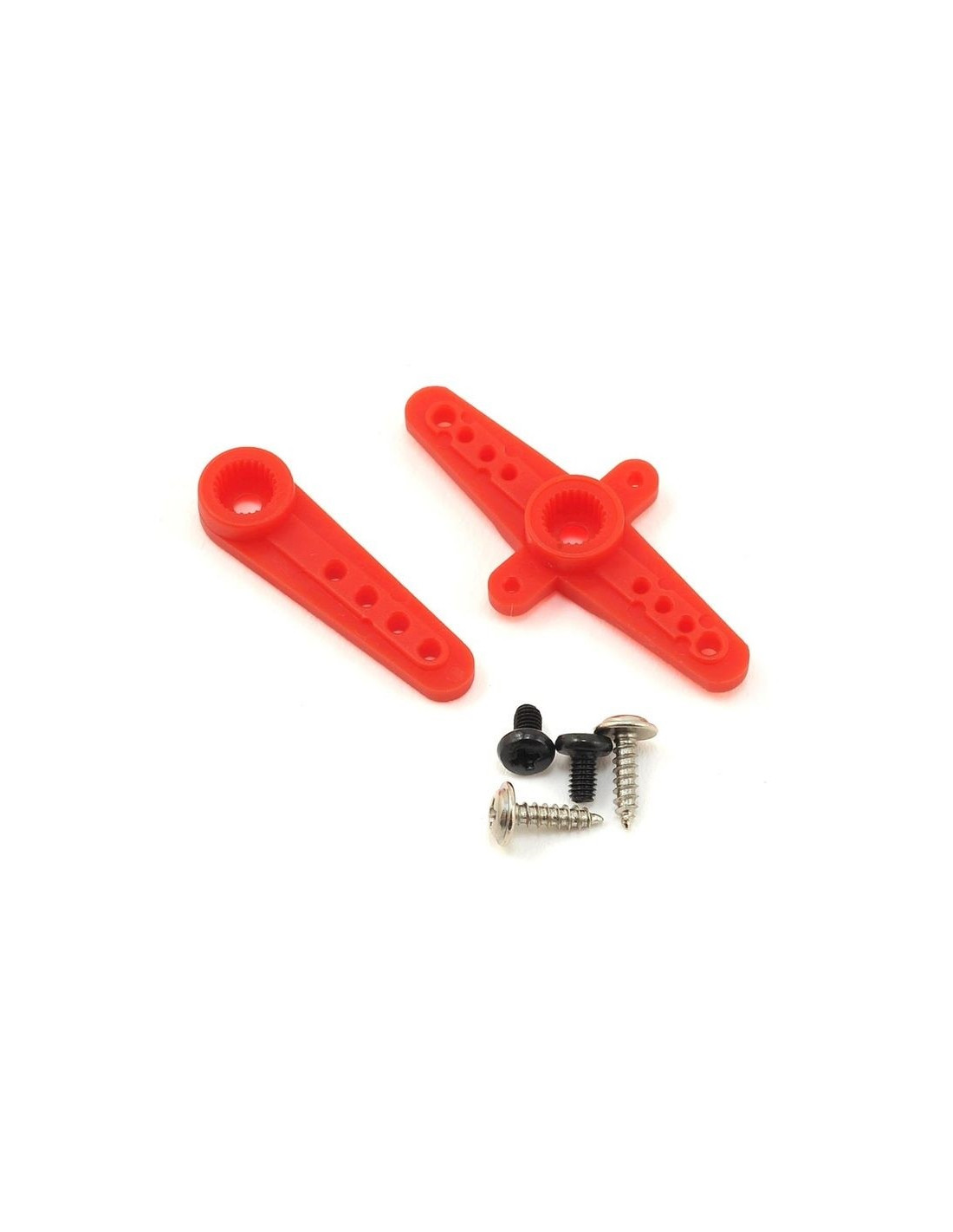

The KST X10 is a new servo in the X-series offering you a high torque HV product.The X10 is different from the DS225MG-HV by offering you new electronics to further improve its accuracy.With a torque of 10Kg.cm, equipped with precise metal gears, you will get a solid, durable servo with minimal play.The servo is delivered with two red plastic servo horns, a single one (4 holes from 10 to 20mm), and a double one (4 holes from 8 to 15mm on both sides of the center).

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Technical specifications KST X10

  • Dimensions : 30 mm x 10 mm x 35.5 mm
  • Torque (6.0V/ 7.4V/ 8.4V) : 7.5 Kg.cm / 9.5 Kg.cm / 10.8Kg.cm
  • Speed (6.0V/ 7.4V/ 8.4V) : 0.14sec/60° - 0.12sec/60° - 0.10 sec/60°
  • Power supply voltage : 6.0 - 8.4V
  • Weight : 28g
  • Coreless motor
  • Double bearing
  • Metal gears
Thickness in mm (Servos)
10
Torque in kg.cm (servos)
10.8
Speed sec / 60° (servos)
0.1
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
28
153-X10
4897073541037
4897073541037
