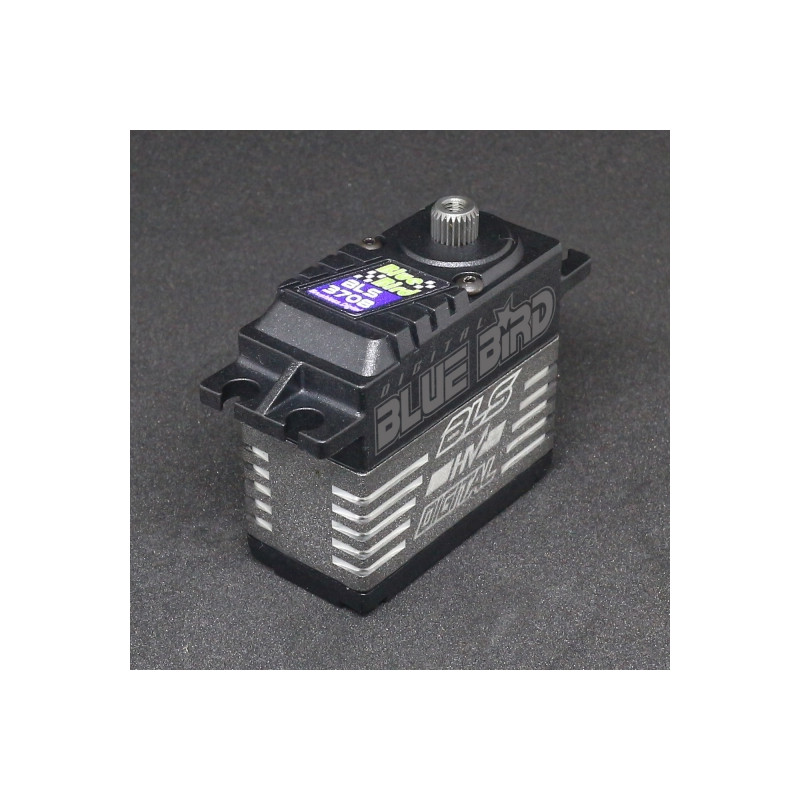

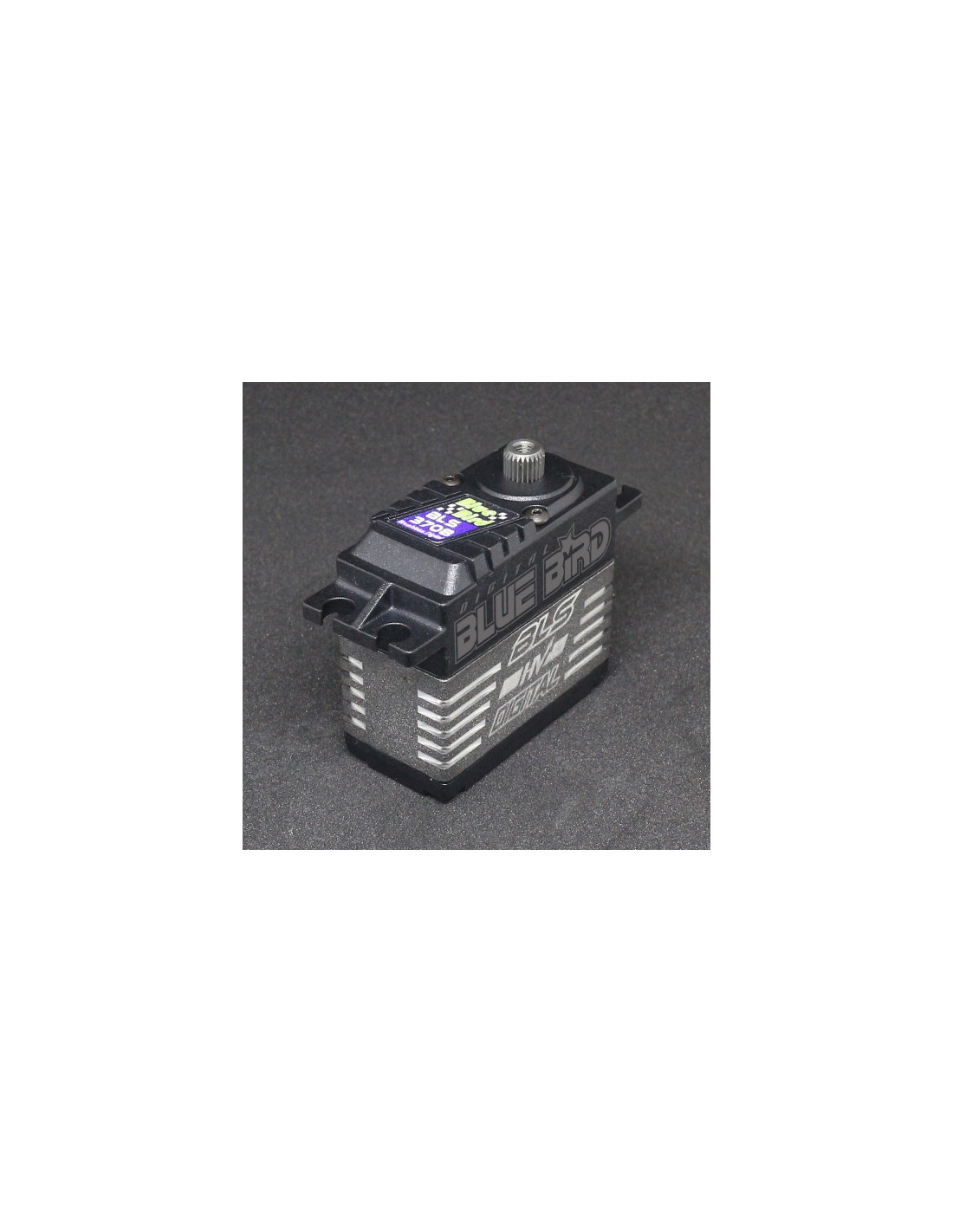

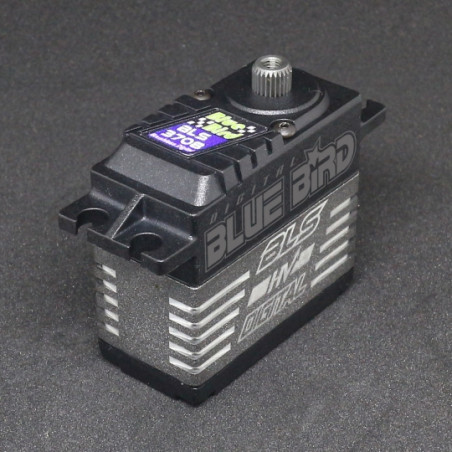

Blue Bird servo BLS-3708 43.2Kg 0.07s 76.5g This text does not contain any French words to translate. It appears to be a product name with technical specifications, already in English. If you need help understanding or rephrasing it, please let me know!
Out-of-Stock
€66.58
Tax included
custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.
To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option
To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option
Features:
- Torque at 6.0V: 27.3 kg-cm / 379.2 oz-in
- Torque at 7.4V: 33.7 kg-cm / 468.1 oz-in
- Torque at 8.4V: 38.4 kg-cm / 533.4 oz-in
- Speed at 6.0V : 0,11 sec / 60°.
- Speed at 7.4V : 0.09 sec / 60°.
- Speed at 8.4V : 0.08 sec / 60°.
- Protection against soft start : Soft start towards a neutral position.
- Protection against overvoltage : Above 9.0V, switch to protection mode and 8.4V back to normal mode.
- Protection against low voltage: Below 4.0V, switch to protection mode and return to normal mode at 4.5V.
- Protection against rotor blocking : Stall in 5 seconds, output torque decreases.
- Temperature protection: Overheating of 85 degrees C (185 degrees F), switch to protection mode and return to normal mode at 75 degrees C (167 degrees F).
- Loss of control protection: If the transmitter signal is lost, the servo immediately returns to neutral and locks.
- Operating voltage range: 4.5V ~ 8.5V (4 ~ 6 Ni-MH or 2S Li-Poly / 2S Li-Fe cells)
- Control System: Digital Controller / Resolution AD 12-Bit ( 4096 Steps )
- Frequency:Up to 333Hz / Neutral:1500us or 1520us
- Deadband Width: 0.001ms (default:1us)
- Ball Bearing: Double
- Gears: Alloy metal gears all steel
- Motor: High quality Coreless motor
- Gear Horn / Spline: 25 teeth (same as F type)

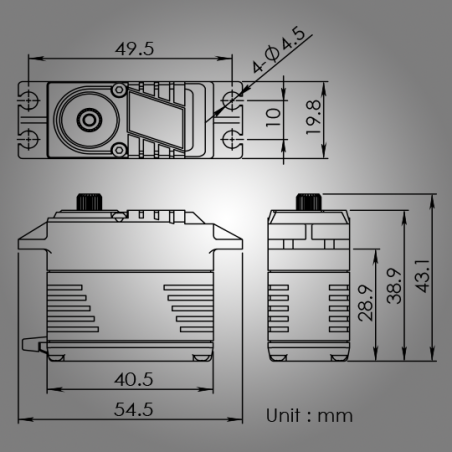

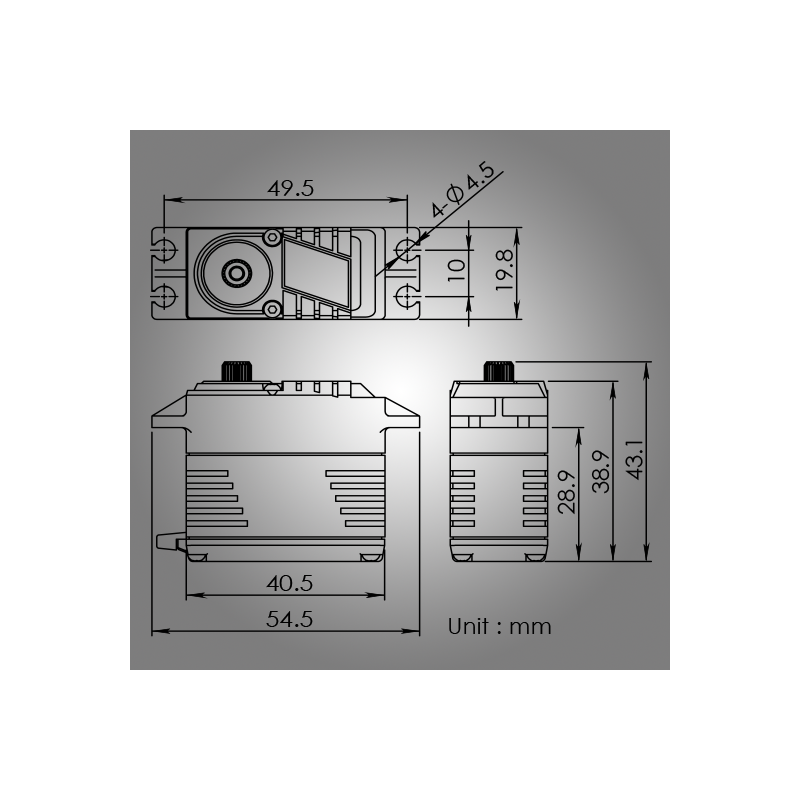

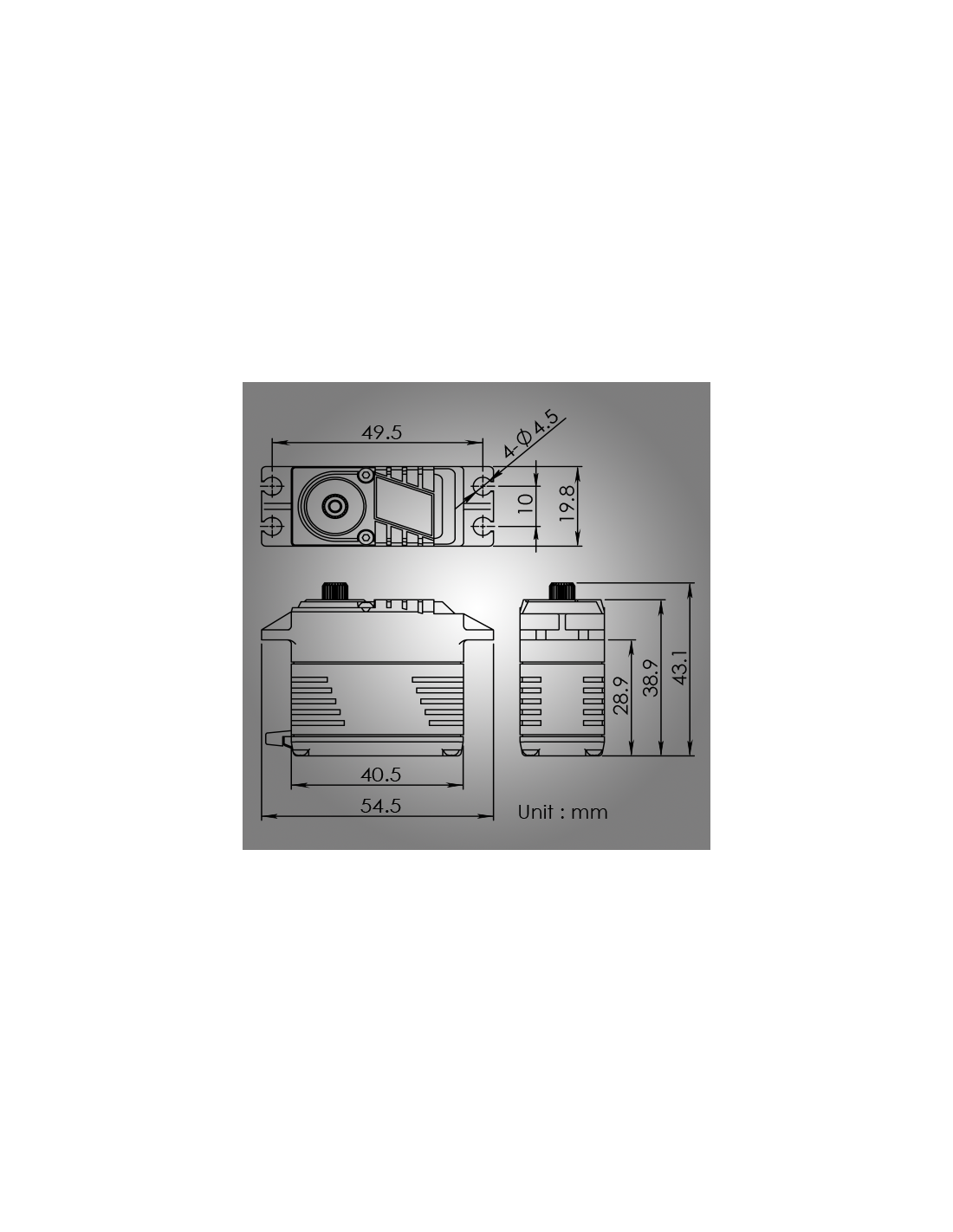

- Dimensions (mm): 40.5 x 20 x 39 mm / 1.59 x 0.79 x 1.54 in
- Weight (grams) : 66.0 ± 1 grams / 2.33 oz
- Thickness in mm (Servos)
- 20
- Torque in kg.cm (servos)
- 43.0
- Speed sec / 60° (servos)
- 0.07
- Pinions (servos)
- Metal
- Bearing (servos)
- yes
- Technology (sevos)
- Digital
- HV (servos)
- yes
- Weight in g (servos)
- 76
281-BLS-3708
4712070533253
BMS-3310
