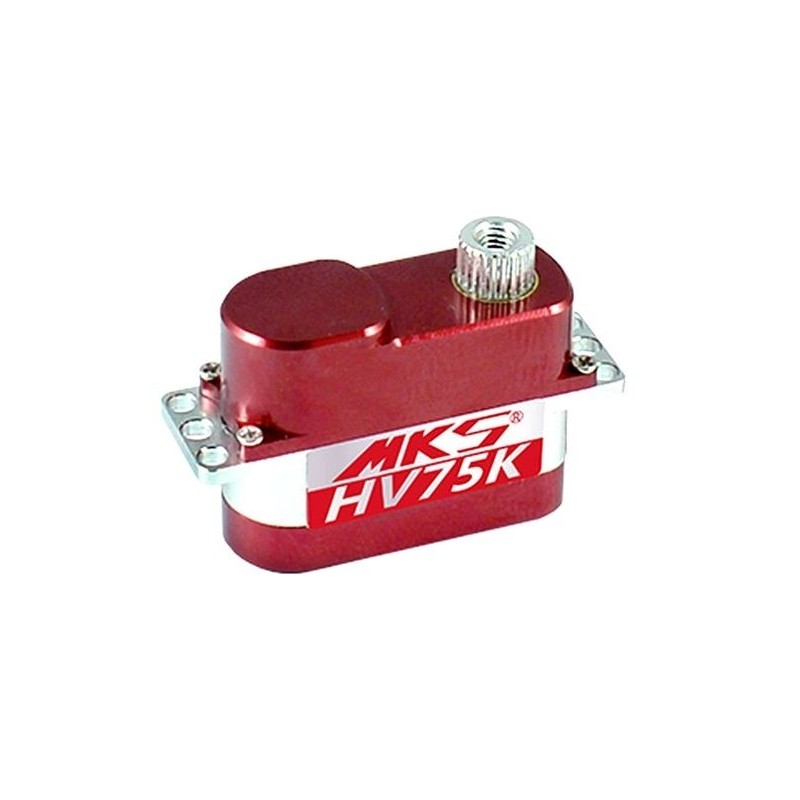

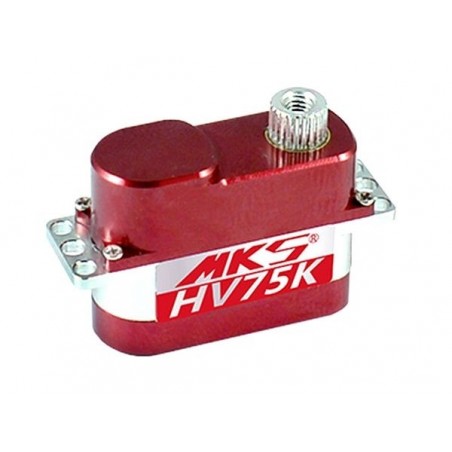

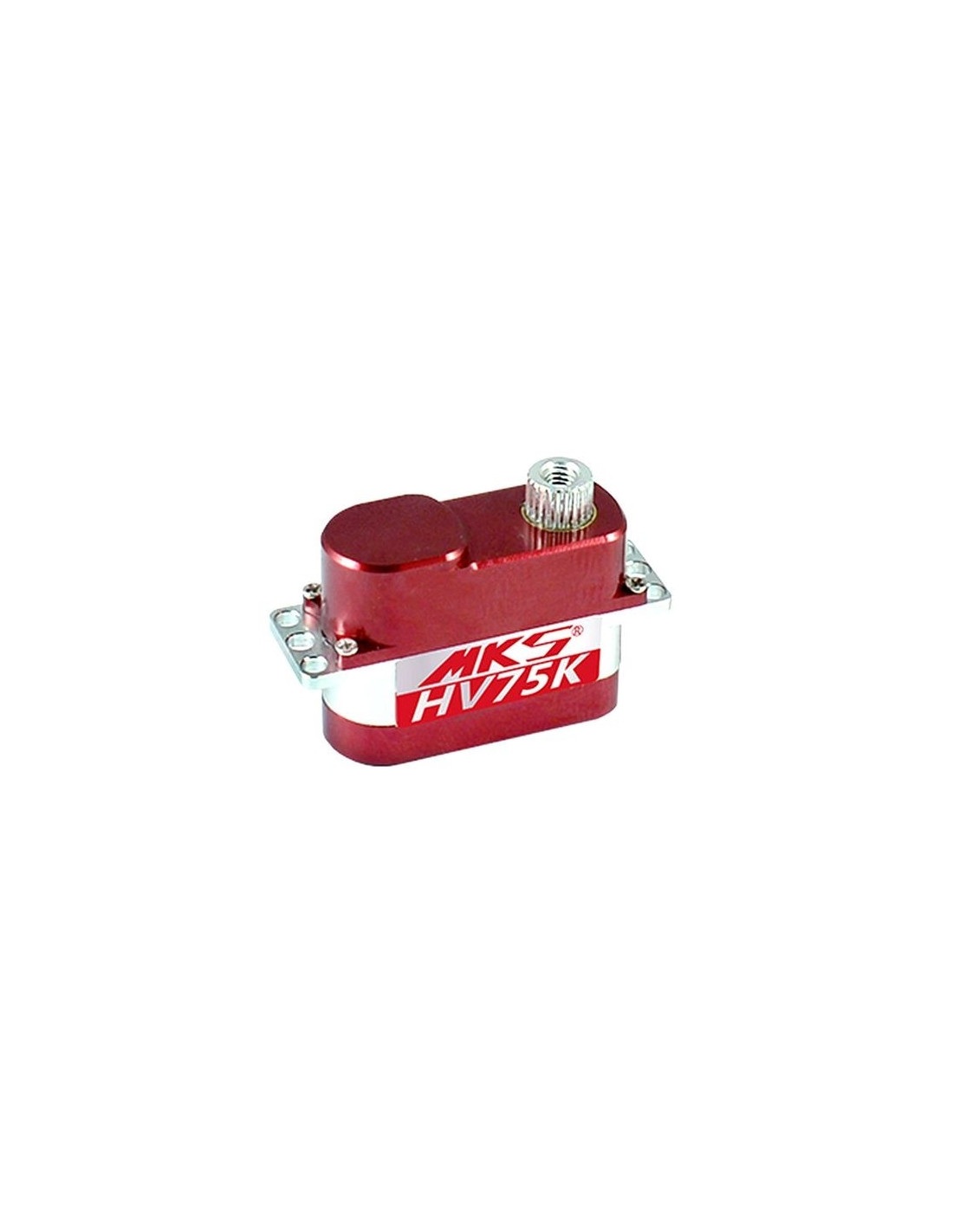

Digital metal servo HV75K 9mm Mks

€58.32
Tax included
New HV75K servo for F3K, HV version of the DS75K.very light (7,5gr) and thin (9mm), this servo is very powerful (3,3Kg/cm) and very high quality for the most demanding.Moreover the HV75K accepts a wide range of voltage, and has been designed to operate both in 1S LiPo and 2S! FLASH RC, authorized distributor MKS for France offers this micro servo very high quality which will be particularly well suited for hand-launched gliders type F3K

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Technical characteristics

  • Dimensions: 23 X 9 X 17.9 mm
  • Voltage range : 3.7 ~ 8.2 V DC Volts (supports 1S and 2S LiPo)
  • Torque : 1.4Kg.cm (3.7V), 2.3Kg.cm (6.0V), 2.8Kg.cm (7.4V)
  • Speed : 0.21s/60° (3.7V), 0.13s/60° (6.0V), 0.10s/60° (7.4V)
  • Pulse width/maximum operating frequency: 1520μs / 333hz
  • Dead zone : 0.001ms (Default)
  • Double bearing
  • Coreless motor
  • 7075 Chrome-Titanium gears
  • Aluminum housing

Thickness in mm (Servos)
9
Torque in kg.cm (servos)
2.8
Speed sec / 60° (servos)
0.1
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
7.5
128-S0022007
4710150350523
4710150350523
No reviews
Comments (0)
No customer reviews for the moment.
