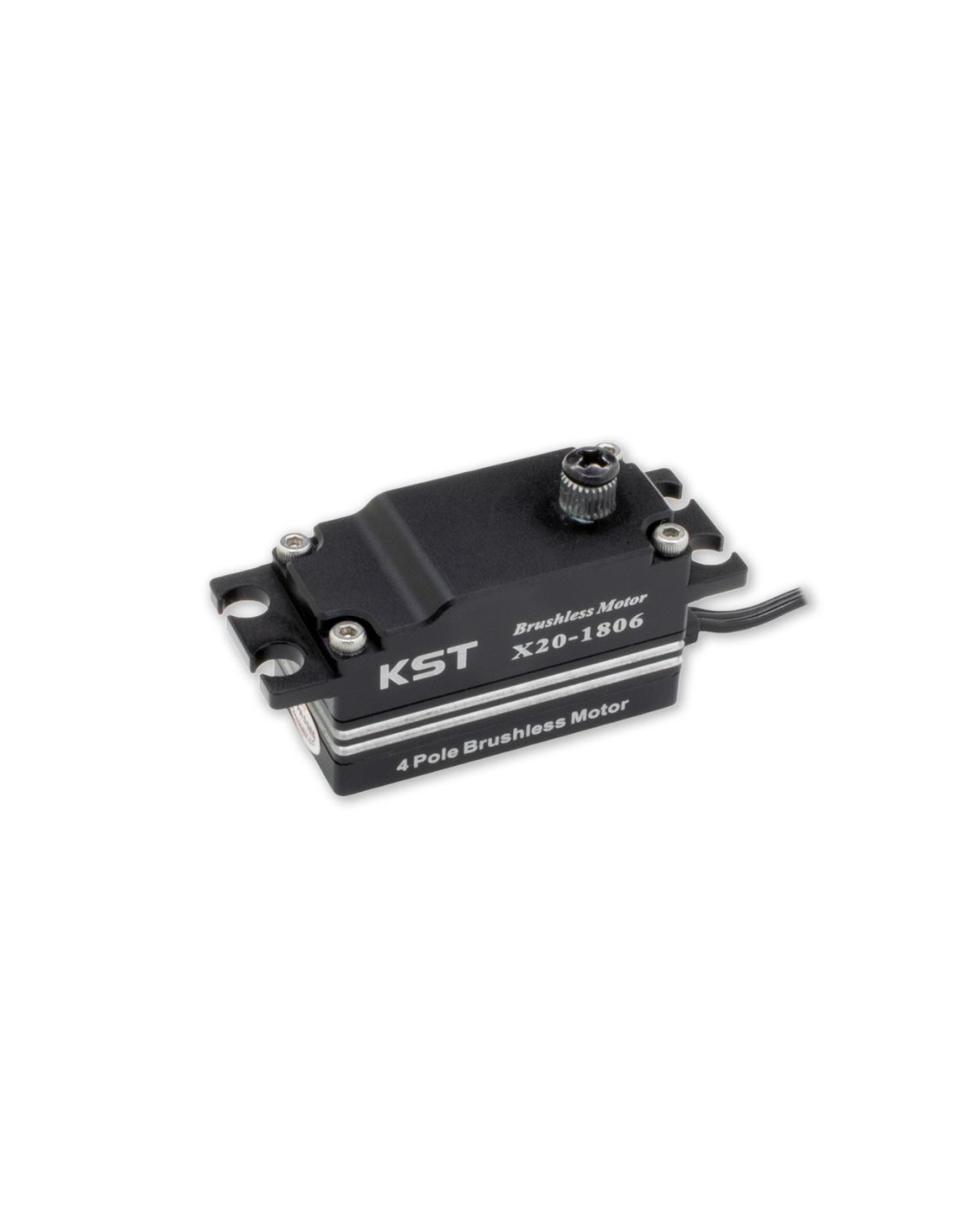

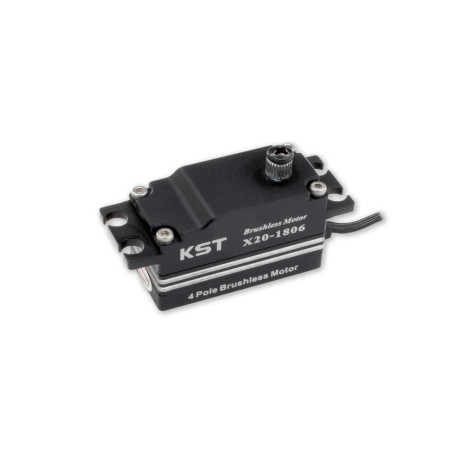

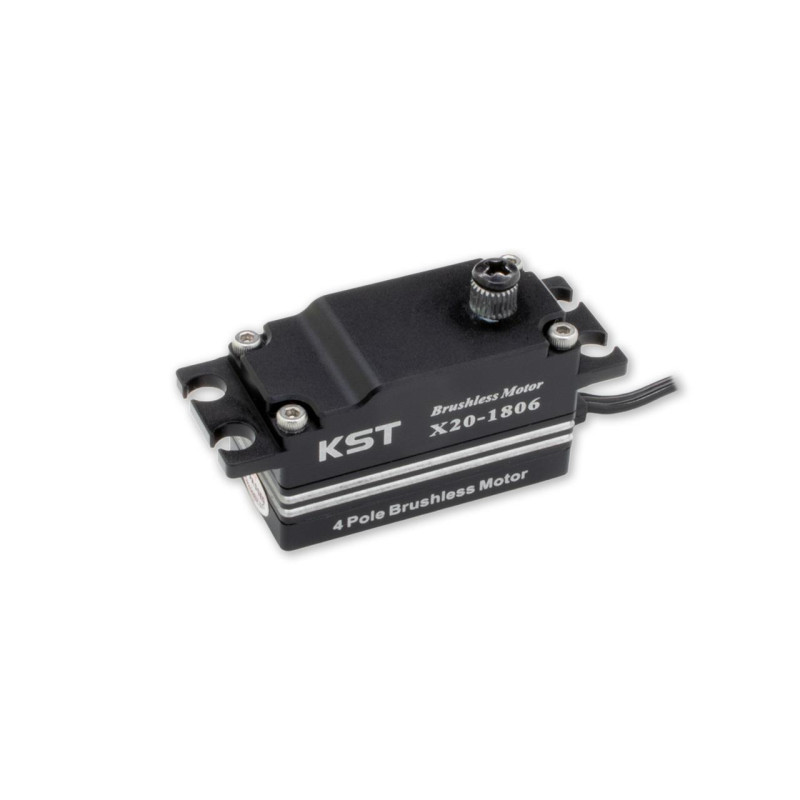

Servo brushless KST X20-1806 V8.0
Servo brushless KST X20-1806 V8.0
Servo brushless KST X20-1806 V8.0
Servo brushless KST X20-1806 V8.0

Servo brushless KST X20-1806 V8.0

Last items in stock
€83.25
Tax included

X20-1806 low-profile brushless servo is the first servo with a 4-pole brushless DC motor. High torque and super-fast response time. The low-profile design of these servos makes them ideal for use in modern 1:10 scale road touring and drift cars and off-road buggies.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Features

  • 4-pole brushless DC motor with fast response and high efficiency
  • Extreme torque and excellent speed
  • CNC aluminum housing
  • IP65 splash-proof
  • Operating frequency up to 1520us/333Hz
  • Programming box/USB connection compatible
  • Designed for 1:10 scale touring and drift cars and 1:10 scale off-road buggies. The - low profile of these servos also makes them ideal for high-performance aircraft and jets - which require a low-profile servo in a slim wing.

* Please note: never connect the servo to a live system.

Specification

  • Item: Brushless servo X20-1806
  • Rated voltage: DC7.4V
  • Voltage range: DC6.0V-8.4V
  • Torque: 14Kgf.cm@6.0V, 16Kgf.cm@7.4V, 18Kgf.cm@8.4V
  • Speed: 0.08sec/60 ° @ 6.0V, 0.07sec/60 ° @ 7.4V, 0.06sec/60 ° @ 8.4V
  • Starting current: 4.0A@6.0V, 4.8A@7.4V, 5.8A@8.4V
  • Operating frequency: 1520us/333Hz
  • Default displacement angle: ± 60 ° = 120 ° Total
  • Temperature range: -20 ℃......+ 65 ℃
  • Programmable: Yes
  • Housing material: aluminum alloy
  • Motor type: 4-pole brushless DC motor
  • Gear material: hardened steel
  • Position sensor: potentiometer
  • Ball bearing: 2BB
  • Waterproof: IP65

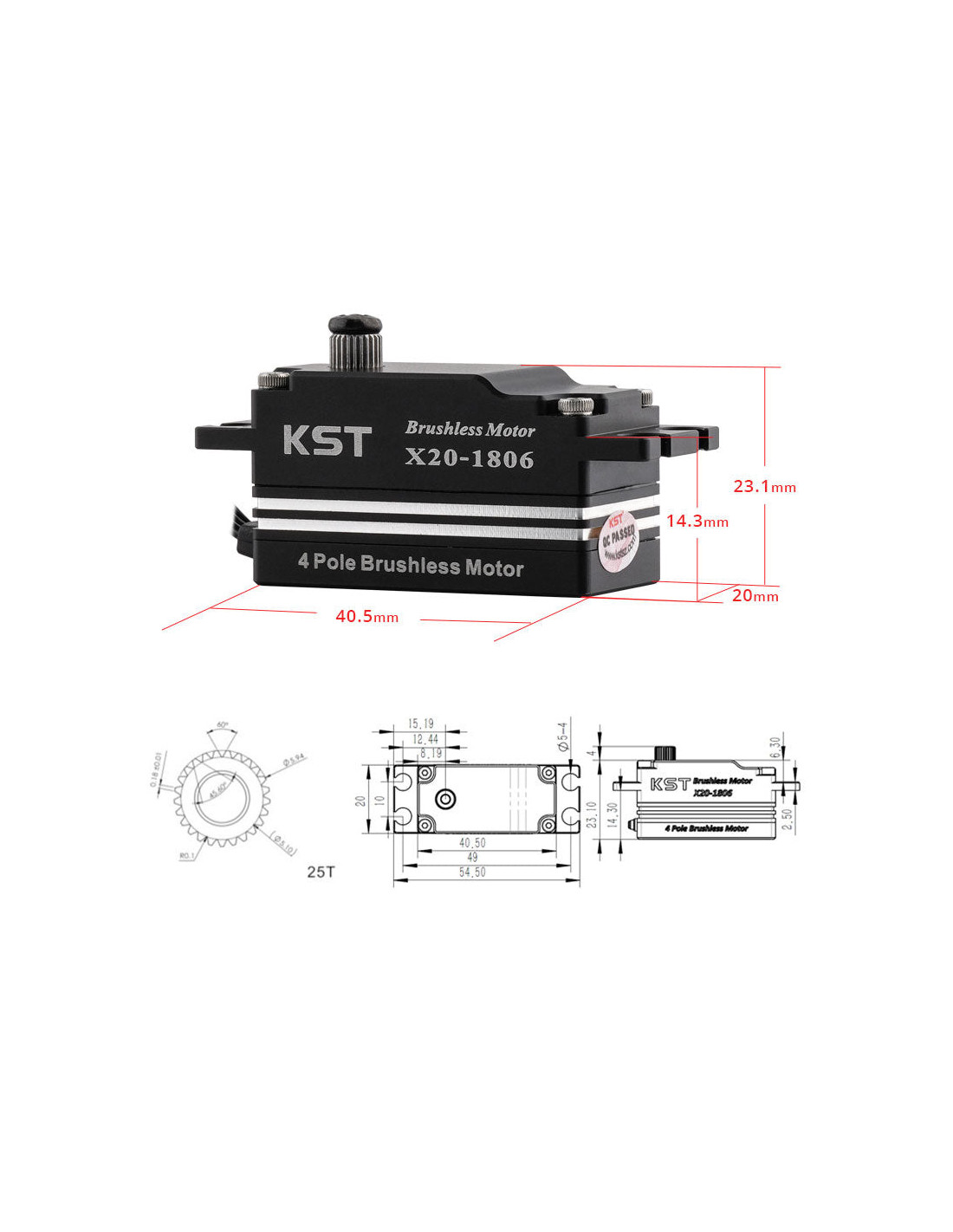

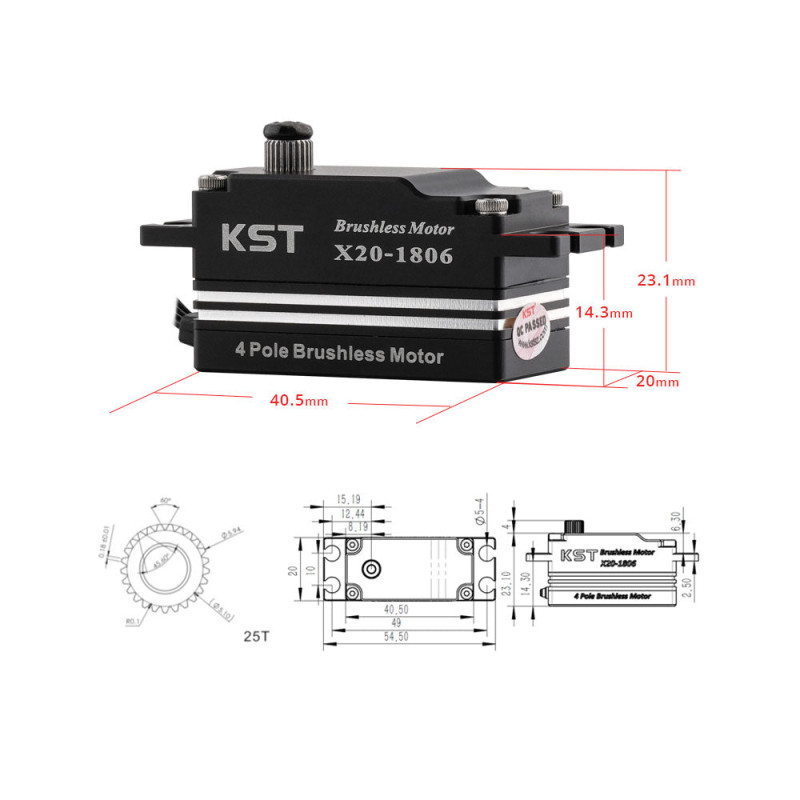

  • Housing dimensions: 40.5mm * 20mm * 23.1mm ± 0.2mm
  • Weight: 50g ± 10%
Thickness in mm (Servos)
20
Torque in kg.cm (servos)
18
Speed sec / 60° (servos)
0.06
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
50
153-X20-1806
4897073542225
