€47.50
Tax included

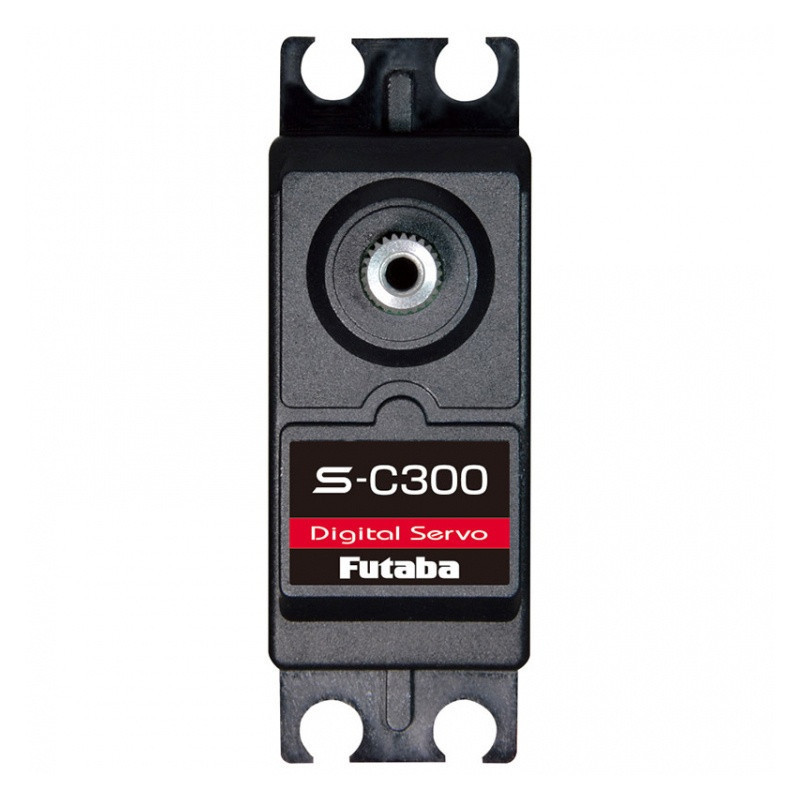

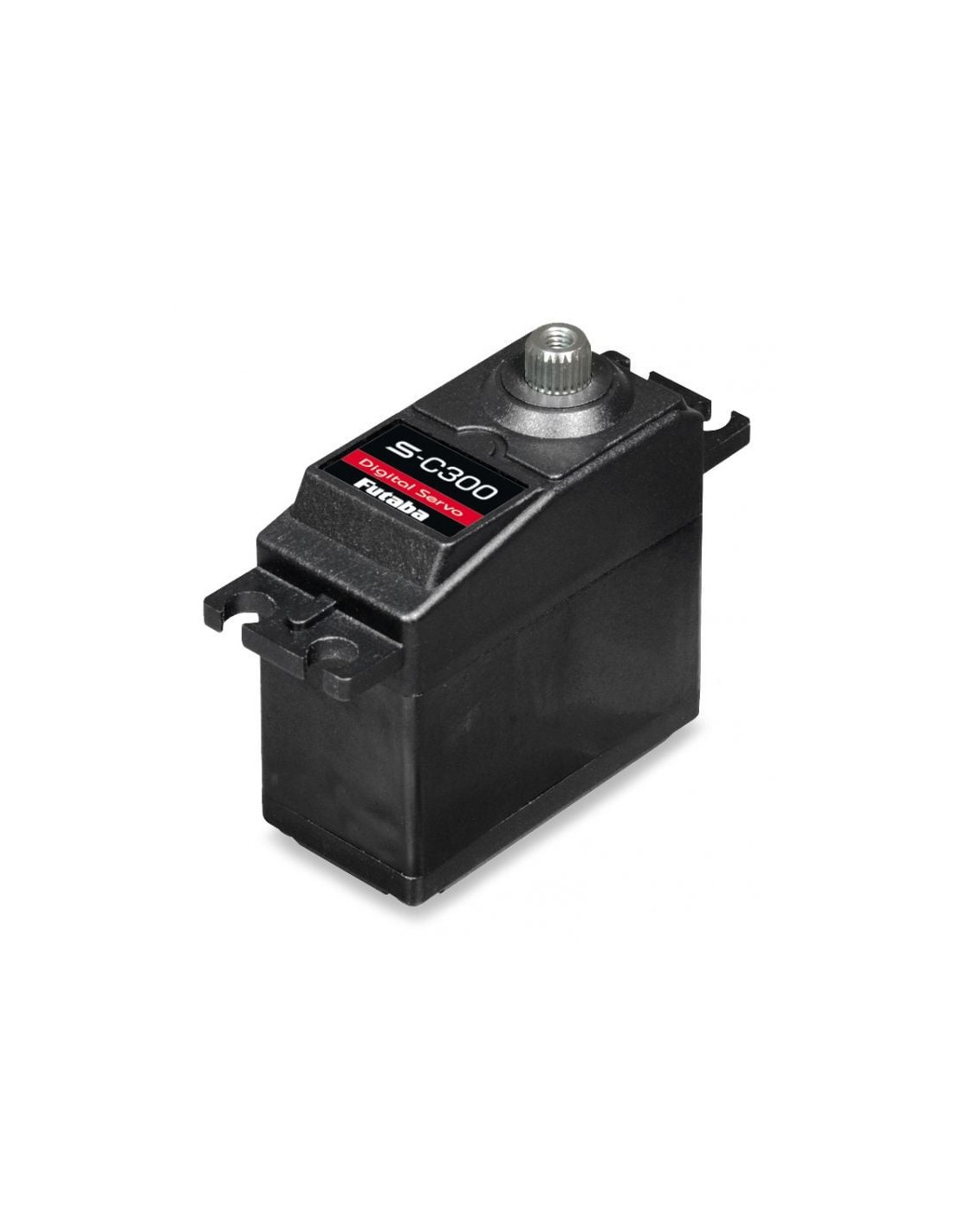

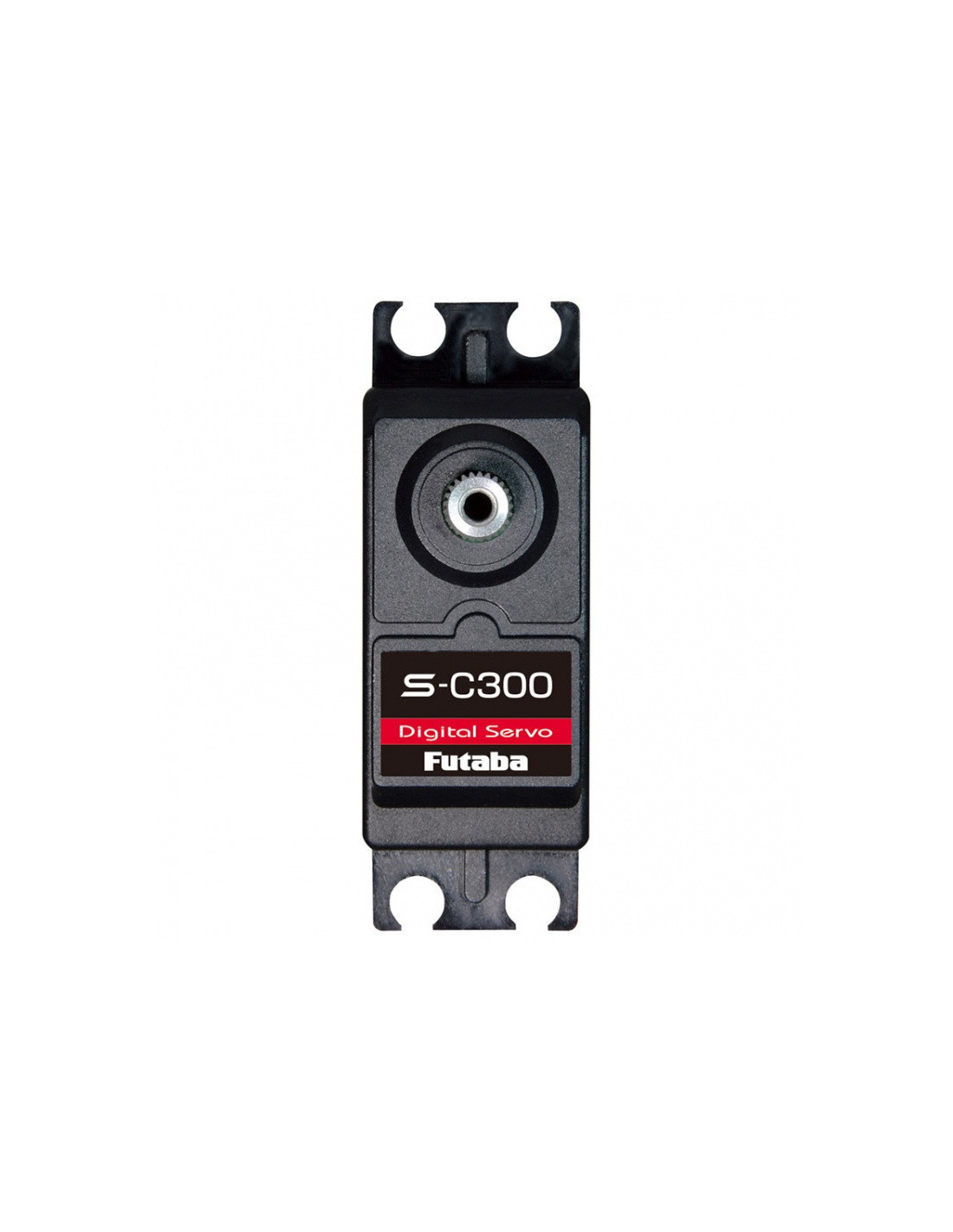

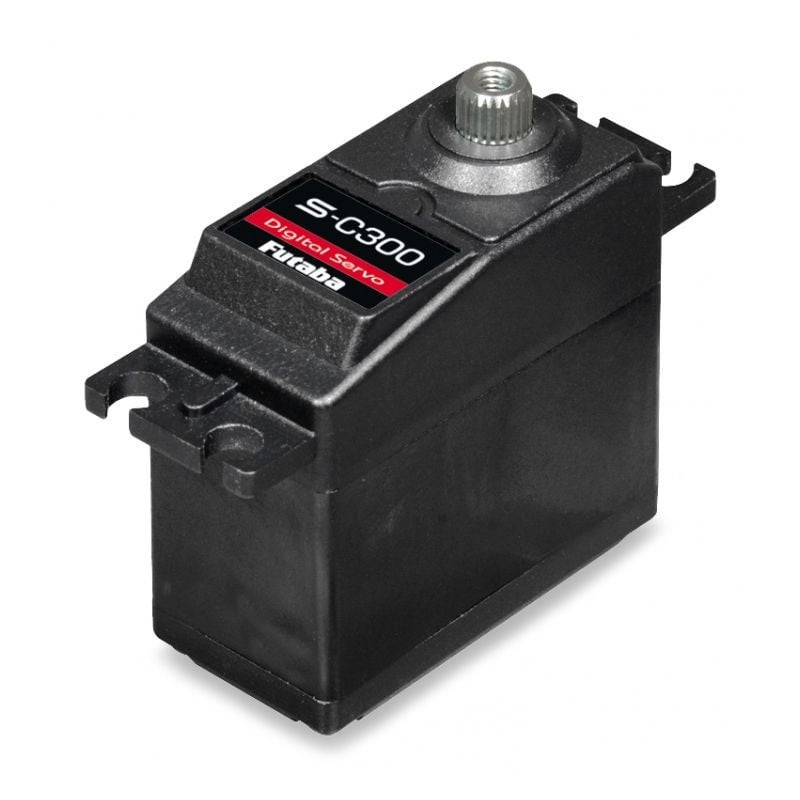

Futaba S-C300 - Servo numérique S.BUS pour voitures électriques, compatible avec le mode UR Il s'agit d'un servo numérique de milieu de gamme qui utilise la méthode S.BUS pour les voitures électriques et qui est compatible avec le mode UR.

Caractéristiques :

  • Servo numérique général pour voitures
  • Supporte le mode UR et le mode SR
  • Méthode S.BUS
  • Boîte de vitesses en métal avec 2-3 niveaux
  • Engrenage final en aluminium

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Specs :

  • Vitesse @6.0V : 0.14sec/60°.
  • Vitesse @7.4V : 0.12sec/60°.
  • Couple à 6,0 V : 8,0 kg/cm
  • Couple @7.4V : 9.6kg/cm
  • Taille : 40.0×20.0×38.1mm
  • Poids : 43g
  • longueur : 40 mm
  • hauteur : 38,1 mm
  • largeur : 20 mm
  • Poids : 43 g
  • Tension maximale : 7,4 V
  • Vitesse à 6,0V : 0,14 sec/60°.
  • Vitesse à 7,2/7,4V : 0,12 sec/60°.
  • Couple à 6,0 V : 8 kg/cm
  • Couple à 7,2/7,4 V : 9,6 kg/cm
Thickness in mm (Servos)
20
Torque in kg.cm (servos)
9.6
Speed sec / 60° (servos)
0.12
Pinions (servos)
Metal
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
43
066-01006040
New
No reviews
Comments (0)
No customer reviews for the moment.
