Servos - Hitec D-645MW HV standard digital servo (60g, 12.9kg.cm, 0.17s/60°) - FLASH RC
Servos - Hitec D-645MW HV standard digital servo (60g, 12.9kg.cm, 0.17s/60°) - FLASH RC

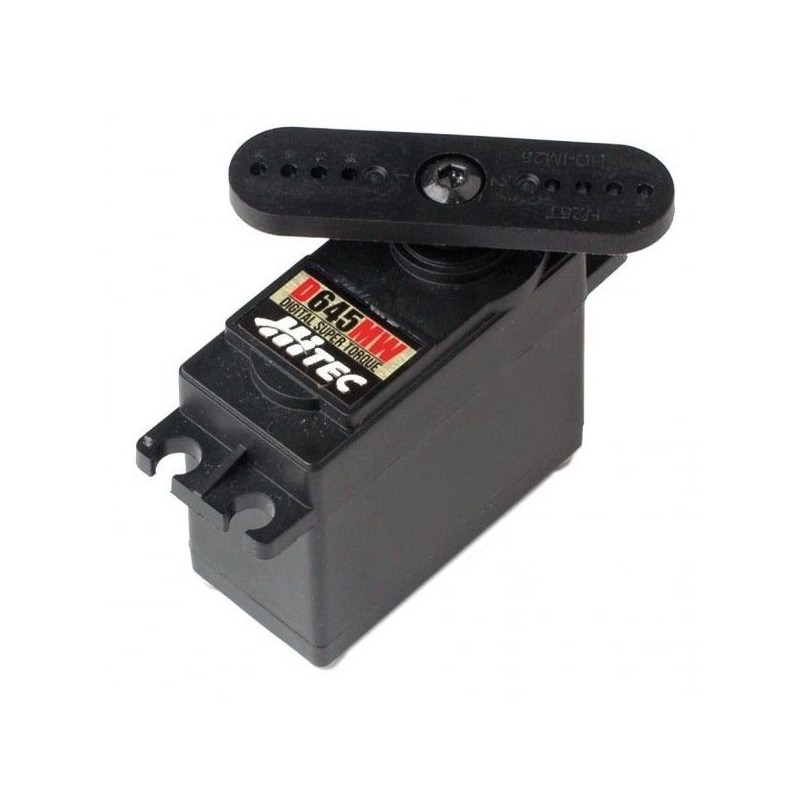

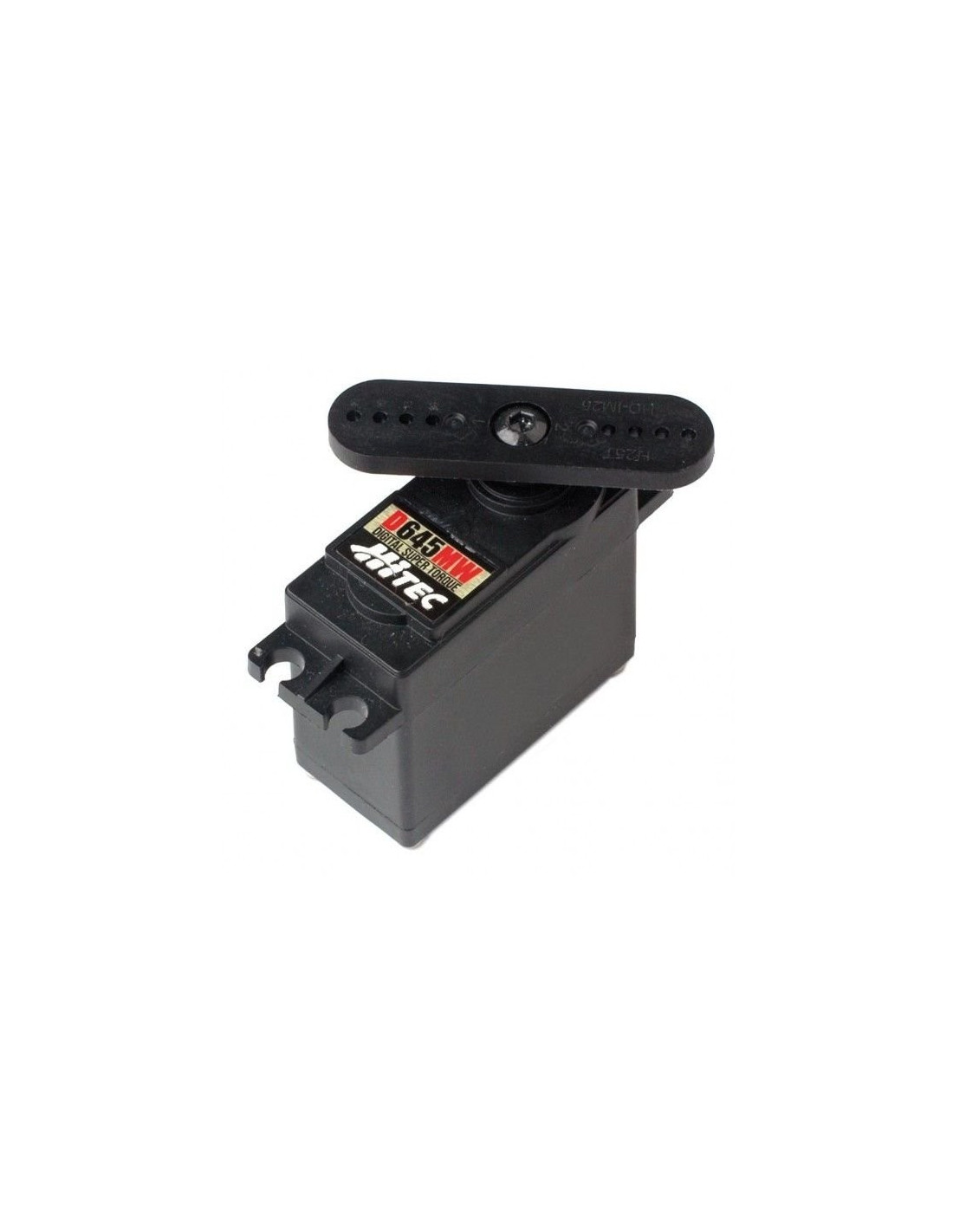

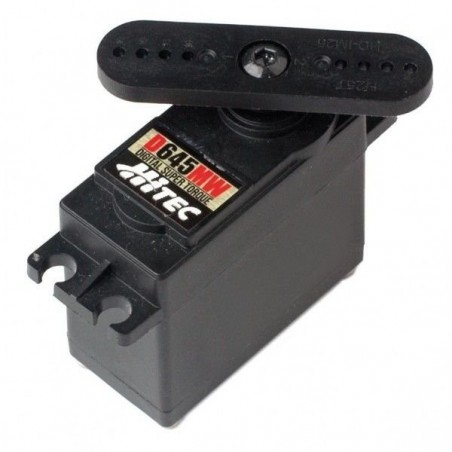

Hitec D-645MW HV standard digital servo (60g, 12.9kg.cm, 0.17s/60°)

€41.58
Tax included
Hitec D-645MW HV digital servoThe ultra-fast HS D-645MW HITEC D-Series servos offer the highest resolution on the market today. The best response and programming capabilities are achieved through the 32-bit MCU and 12-bit ADC technology.The 'D' series includes HITEC servos that operate on both conventional (4.8/6V) and HV (8.4V) voltage. The HS-645MW Digital servo is fully programmable and offers good durability thanks to its robust full steel gears and two ball bearings on the output shaft, which is especially suitable when low backlash and high positioning accuracy are important.The long life and uniquely designed transmission make it one of the most reliable and efficient servos on the market.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Features :

  • Width: 20 mm
  • Height: 37 mm
  • Length: 40 mm
  • Weight: 60 gr
  • Servo type: standard
  • Special features: wide-voltage digital
  • Servo motor type: coreless
  • Equipment: steel
  • Operating voltage in V: 4.8-8.4 V
  • Operating time s / 60 ° at 4.8 volts: 0.28
  • Operating time s / 60 ° at 6.0 volts: 0.20
  • Operating time s / 60 ° at 7.4 volts: 0.17
  • Torque in kgcm at 4.8 volts: 8.3
  • Torque in kgcm at 6.0 volts: 11.3
  • Torque in kgcm at 7.4 volts: 12.9
  • Gear: 25T
  • Ball bearing: yes
  • Sealed: no
Thickness in mm (Servos)
20
Torque in kg.cm (servos)
12.9
Speed sec / 60° (servos)
0.17
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
60
064-116645
669962366458
669962366458
