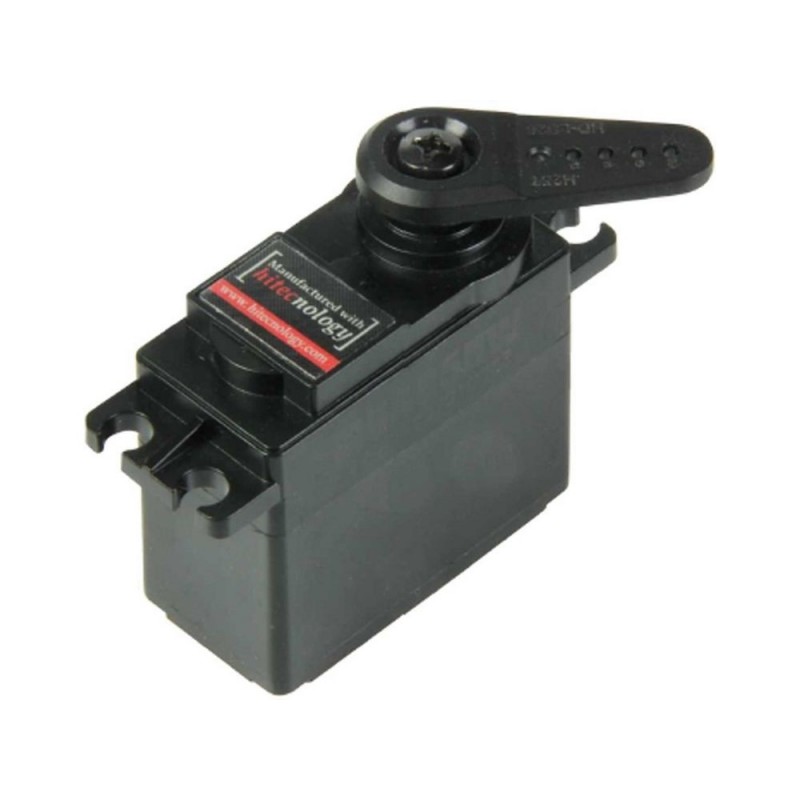

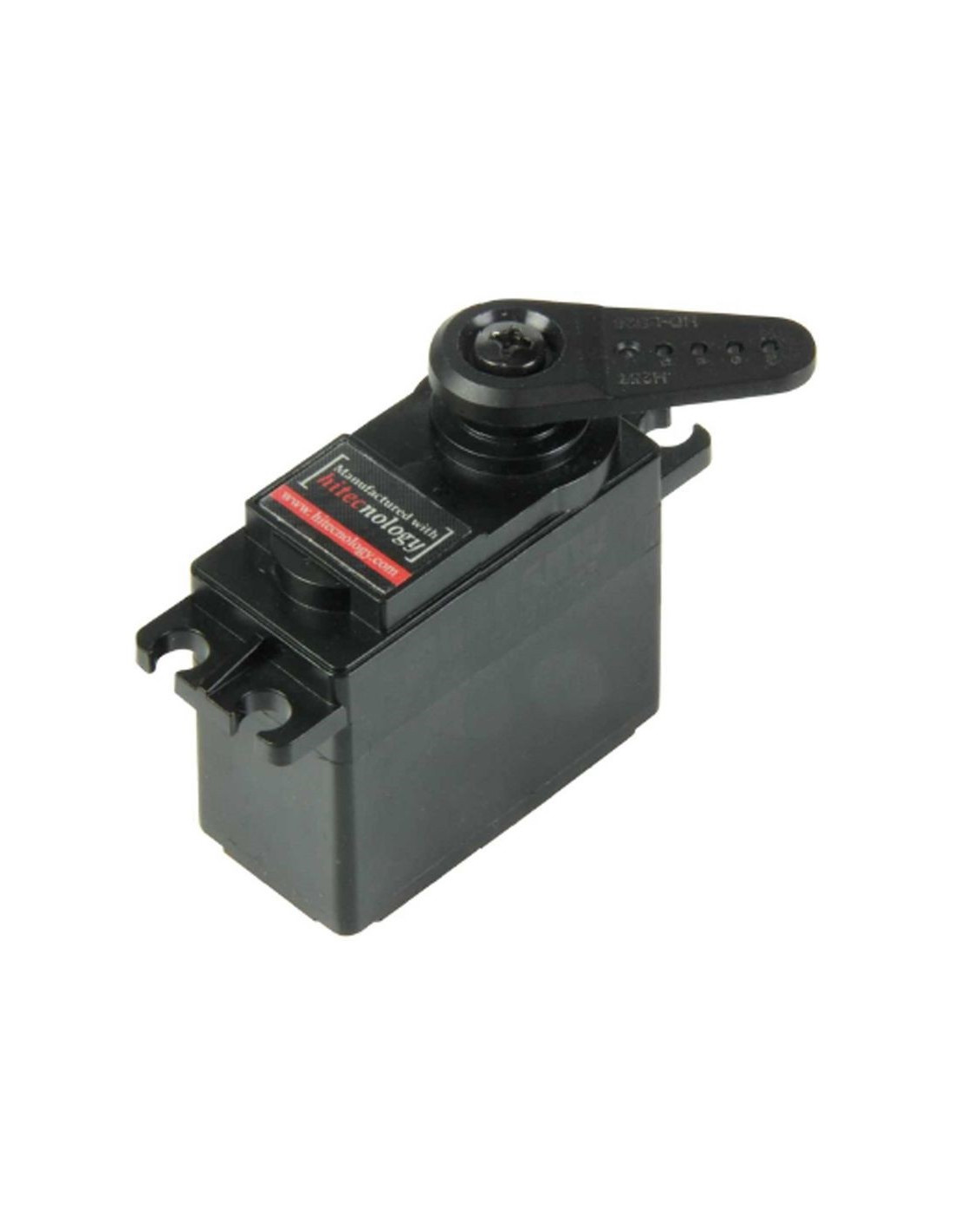

Standard digital servo Hitec MD485HW (45g, 7kg.cm, 0,15sec/60°)

Last items in stock
€37.42
Tax included

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


The Hitec MD485HW servo is the '2021' evolution of Hitec's highly regarded 'HS485' servo.
The very precise resolution and quality positioning via the magnetic position sensor. No more wear and tear on the potentiometer!
Ideal for use with Wingstabi or any other gyroscope that puts a lot of strain on the servo by permanent position corrections.
MD485HW is directly compatible from 4.8V to 7.4V.
25-tooth output head in market standard format.
High Resolution 32-bit PWM programmable digital circuit.

Technical specifications

  • Operating voltage: 4.8V to 7.4V
  • @4,8V - Speed: 0,20 sec./60° - Torque: 5 kg
  • @6,0V - Speed: 0,17 sec./60° - Torque: 6 kg
  • @7,0V - Speed: 0,15 sec./60° - Torque: 7 kg
  • Sprockets: Karbonite

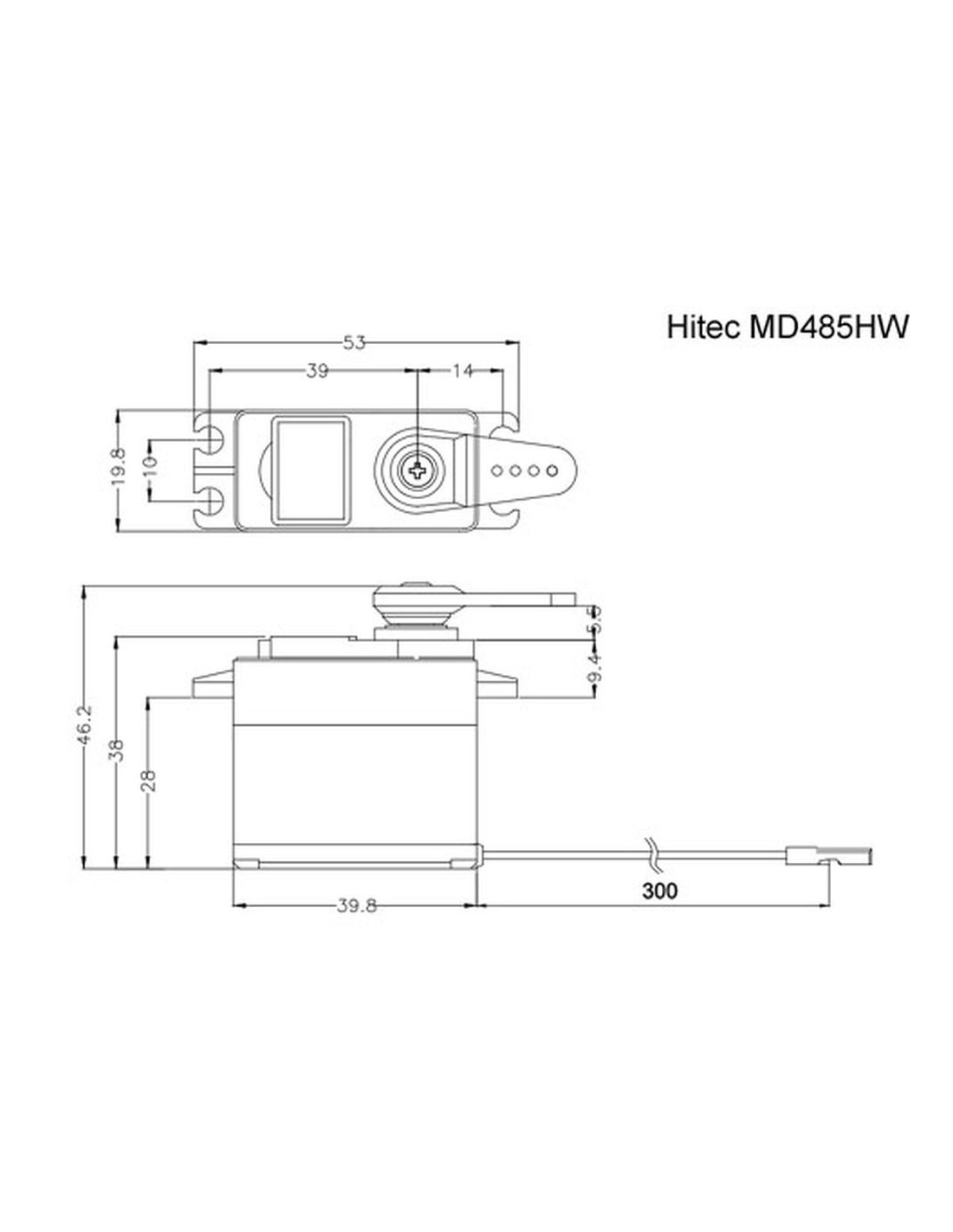

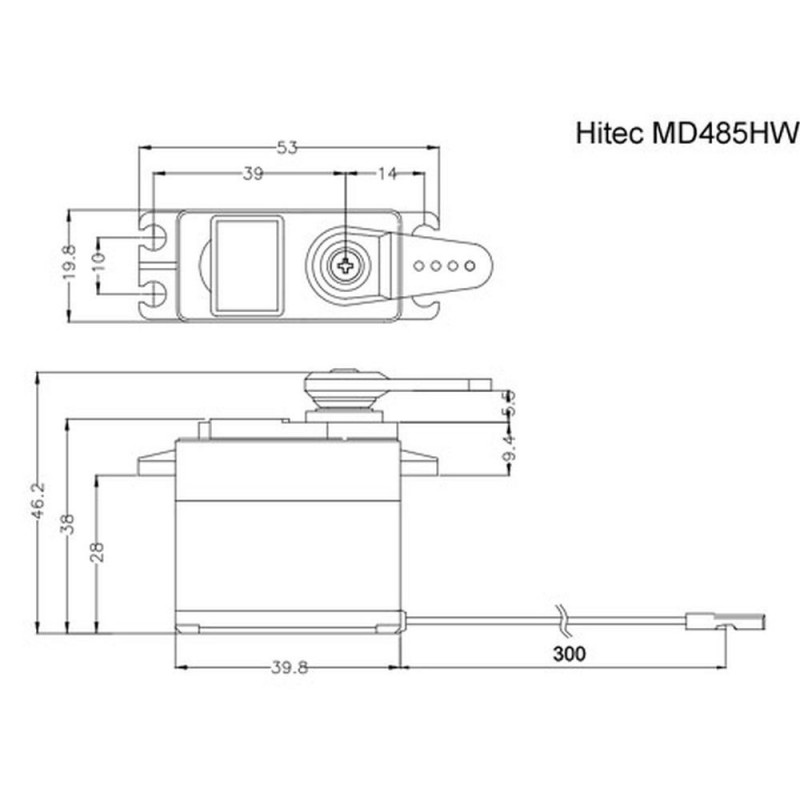

  • Dimensions: 39,8 x 19,8 x 38 mm
  • Weight: 45g

Thickness in mm (Servos)
19.8
Torque in kg.cm (servos)
7
Speed sec / 60° (servos)
0.15
Pinions (servos)
Carbonite
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
45
