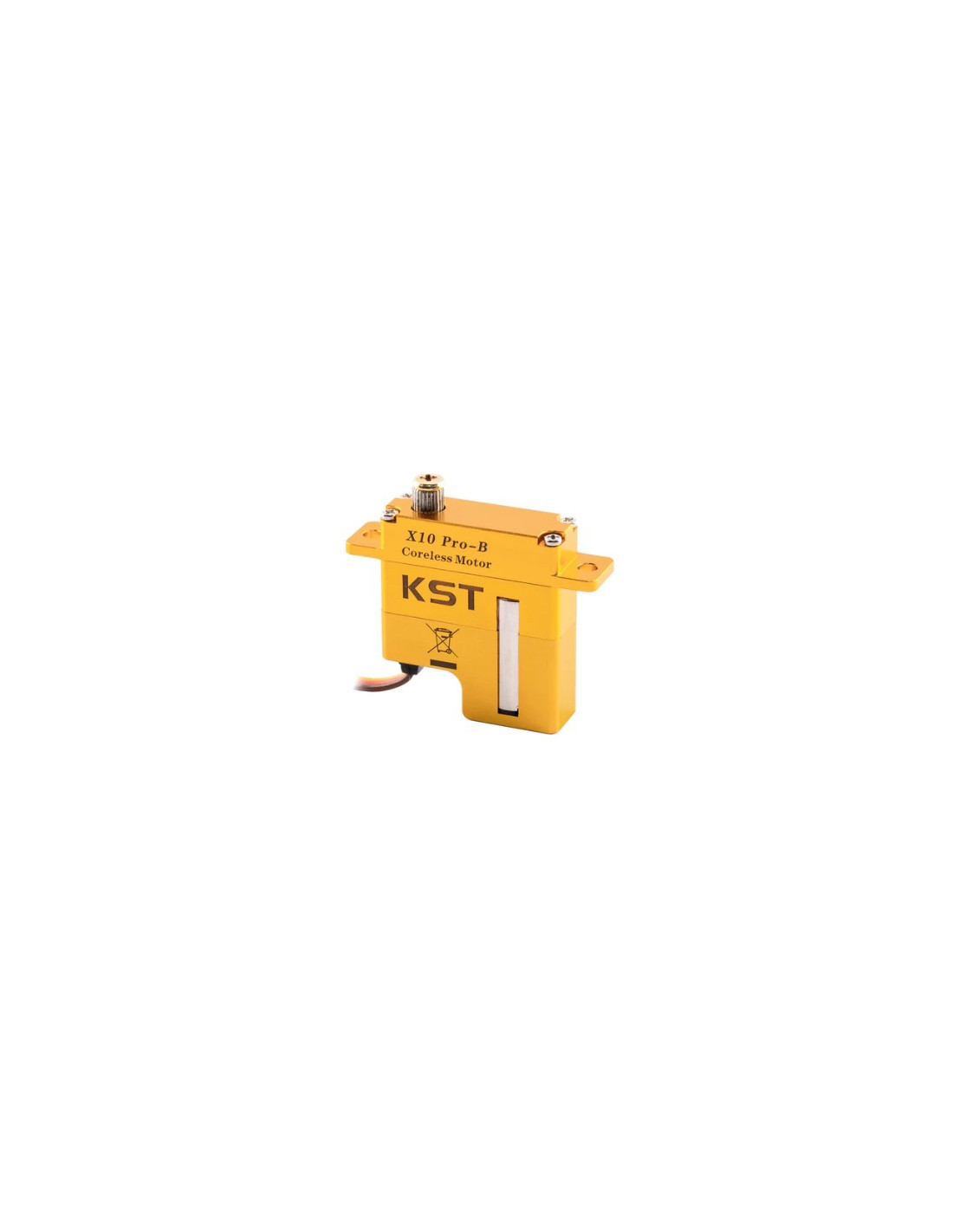

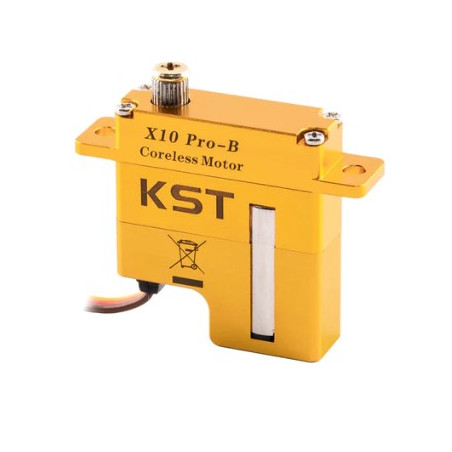

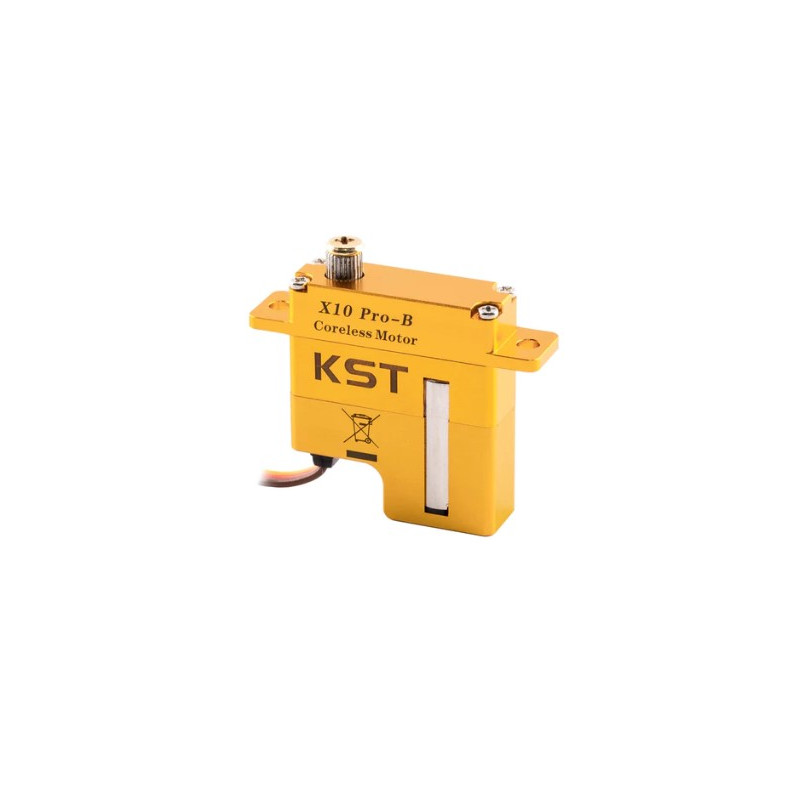

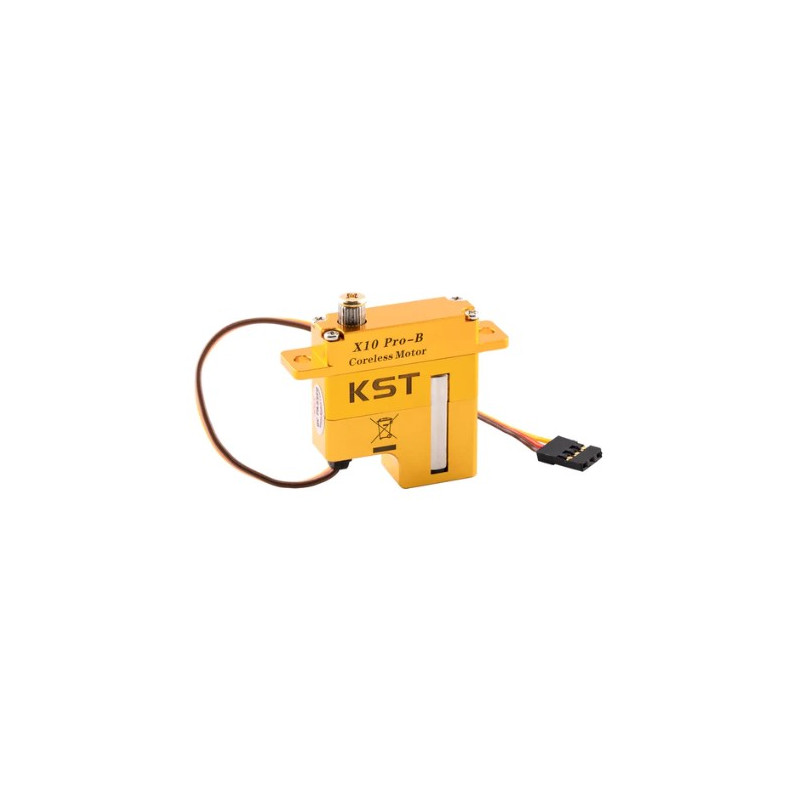

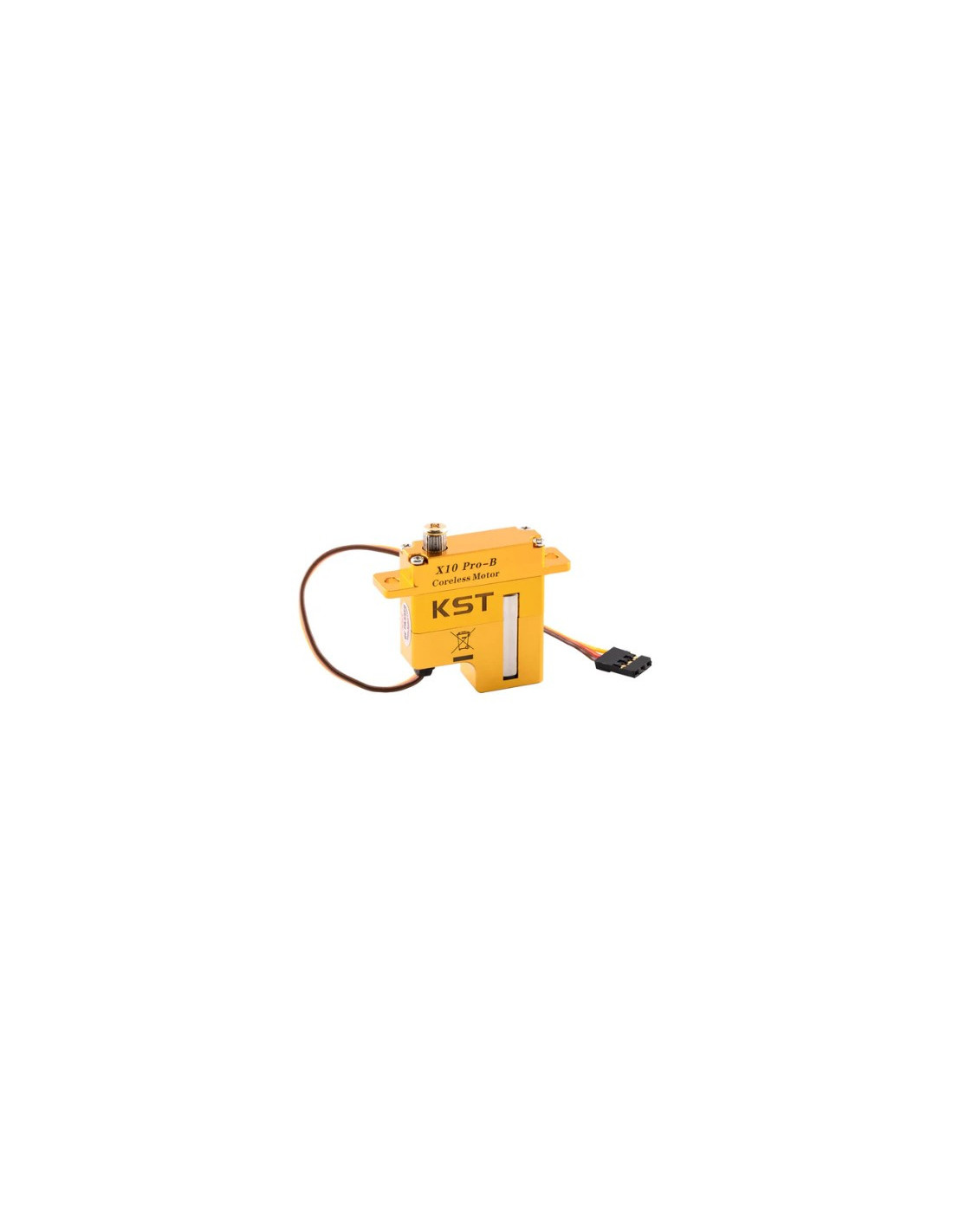

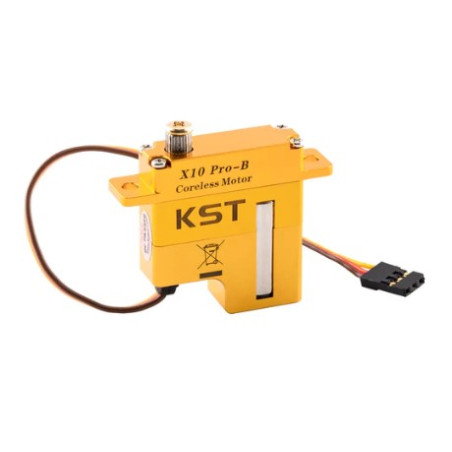

KST X10 PRO-B wing servo ( 25g, 11,5kg.cm, 0,10/60°)

€47.42
Tax included

The new KST X10 Pro servo replaces the historic KST X10.

We like their improved technical capacity, more torque, better resistance, etc.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Functionality

  • Ultra-high torque and excellent speed
  • Programmable
  • Supports soft start
  • Hardened steel gears
  • Anodized CNC aluminum housing
  • Ideal for competition and large-scale gliders

specification

  • Item: Servo X10 Pro
  • Nominal voltage: DC7.4 V.
  • Voltage range: DC4.8 V-8.4 V.
  • Torque: 6.5 Kgf.cm at 4.8 V, 8.5 Kgf.cm at 6.0 V, 10.5 Kgf.cm at 7.4 V, 11.5 Kgf.cm at 8.4 V
  • Speed: 0.16 s/60° at 4.8 V, 0.14 s/60° at 6.0 V, 0.12 s/60° at 7.4 V, 0.10 s/60° at 8.4 V
  • Operating frequency: 1520us/333 Hz
  • Default displacement angle: ±60°=120° Total
  • Temperature range: -10 ℃ ....... + 65 ℃
  • Soft start: programmable
  • Programmable: Yes
  • Housing material: aluminum alloy.
  • Motor type: coreless DC motor
  • Gear set material: hardened steel
  • Position sensor: Potentiometer
  • Housing dimensions: 30 mm * 10 mm * 33.5 mm ± 0.2 mm
  • Weight: 25g±10
Thickness in mm (Servos)
10
Torque in kg.cm (servos)
11.5
Speed sec / 60° (servos)
0.1
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
25
153-X10-PRO-B
4897073542577
No reviews
Comments (0)
No customer reviews for the moment.
