Servos - Servo Pro-Tronik Standard Digital Coreless 8840 TG-D - FLASH RC
Servos - Servo Pro-Tronik Standard Digital Coreless 8840 TG-D - FLASH RC

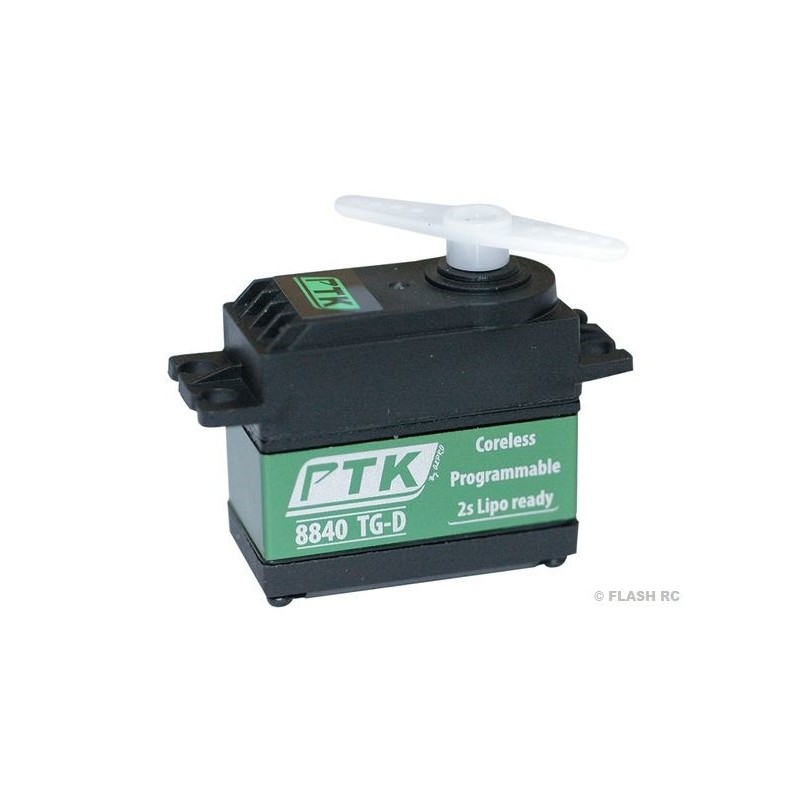

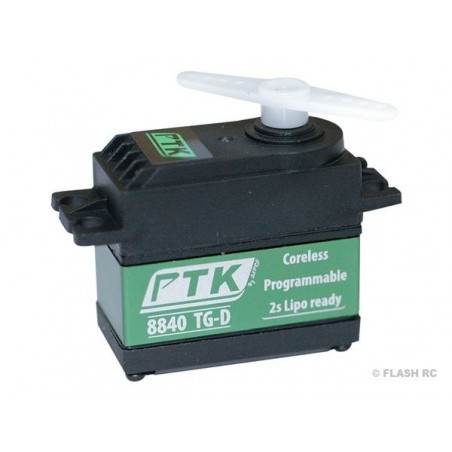

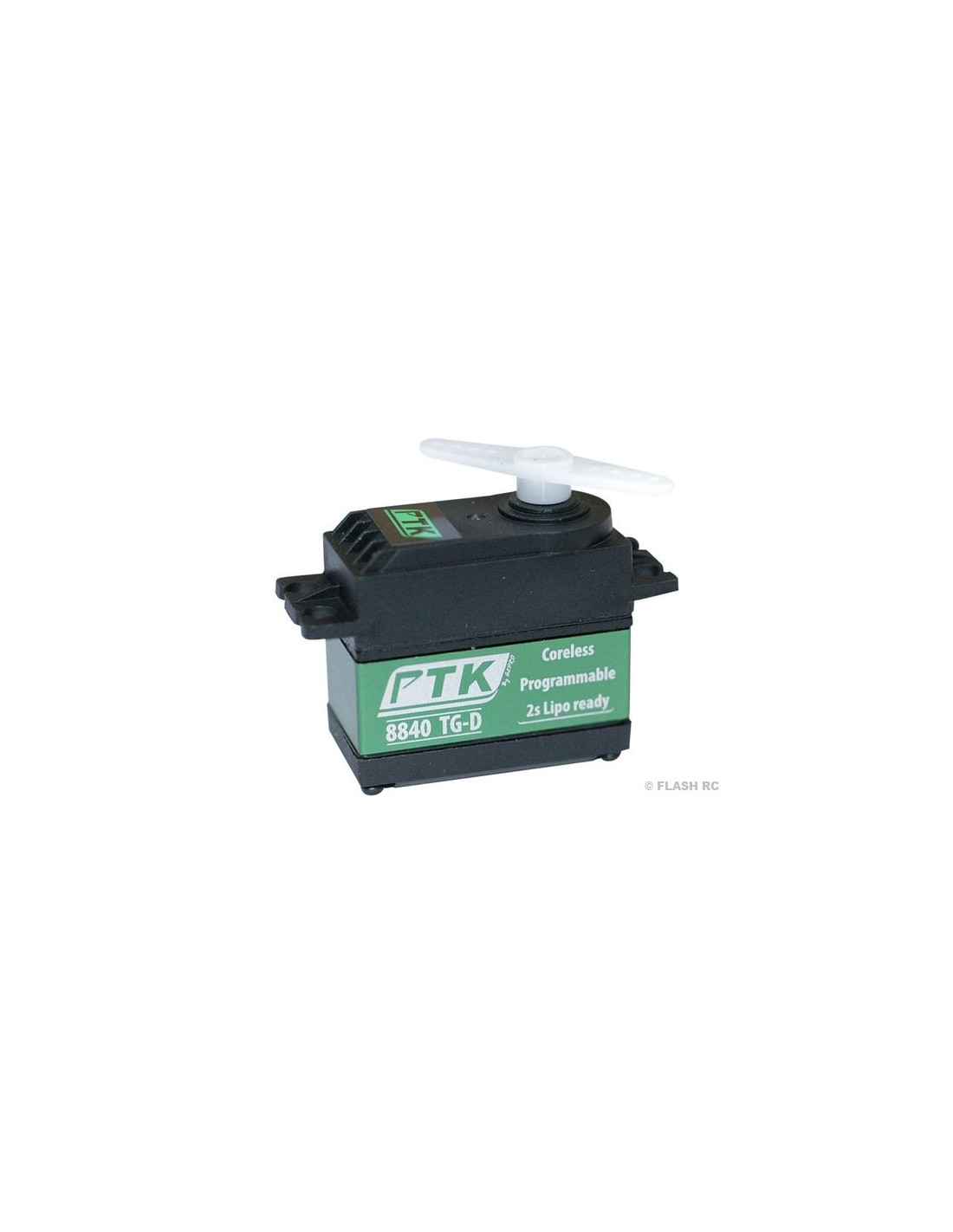

Servo Pro-Tronik Standard Digital Coreless 8840 TG-D

€33.25
Tax included

High-end servo, hyper powerful, fast, waterproof, perfectly adapted to 1/8 cars or any other application requiring a quality servo. Torque, Speed, Precision ! Everything in this servo, with an exceptional torque of 24kg, has been thought to satisfy the most demanding users -> Coreless motor with CNC machined cage-> Digital -> Waterproof-> Programmable (a PC programming card will be available soon)-> "2S Lipo Ready": optimized performances under 4.8V, 6V or 7.4V. Because of their high power, for classic use without HV, these servos require a quality power supply such as LiPo 2S + 6V regulator. The perfect compromise is obtained with the LVR (ref. 78505) and a 2S 2600mAh LiPo receiver pack (ref. 92605)

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Technical characteristics

  • Sprockets: Metal Titanium
  • Bearing : YES 2
  • Shaft bearing : YES 4
  • Motor : Coreless
  • Weight : 60.2 grs
  • Dimensions : 40.6 x 36 x 20mm
  • Torque / Speed at 4.8V : 16kg/cm - 0.15 sec/60°.
  • Torque / Speed under 6.0V : 20kg/cm - 0.13 sec/60°.
  • Torque / Speed at 7.4V : 24kg/cm - 0.12sec/60°.
  • Operating voltage: 4.8V - 8.4V
  • Cord length: 300mm
  • Compatibility: Universal connector
  • Dead band: 2μs (Adjustable)
  • Electrical accuracy: 1.2μs (Adjustable)
Thickness in mm (Servos)
20
Torque in kg.cm (servos)
24
Speed sec / 60° (servos)
0.12
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
60.2
272-S04378840
3701383606311
3701383606311
