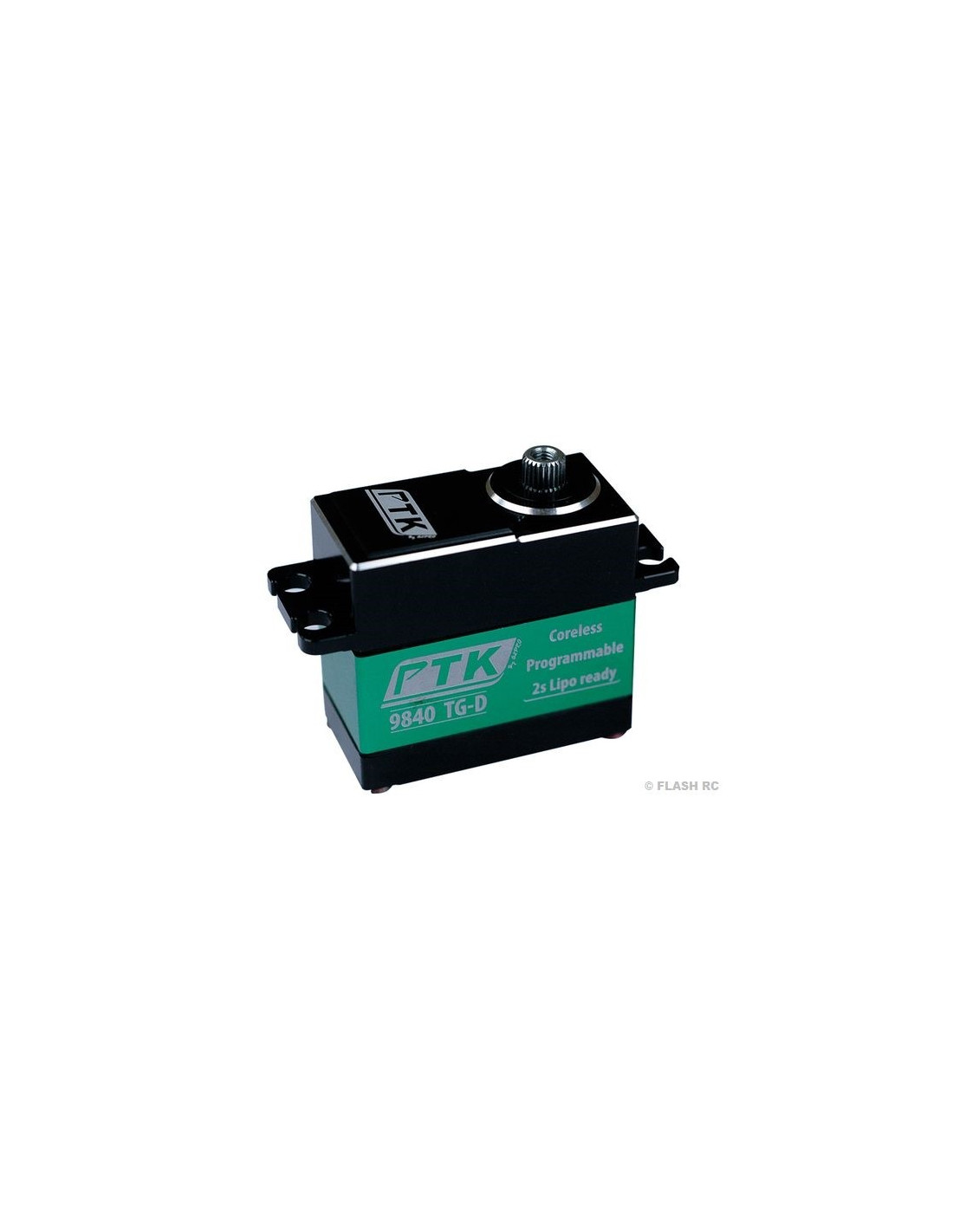

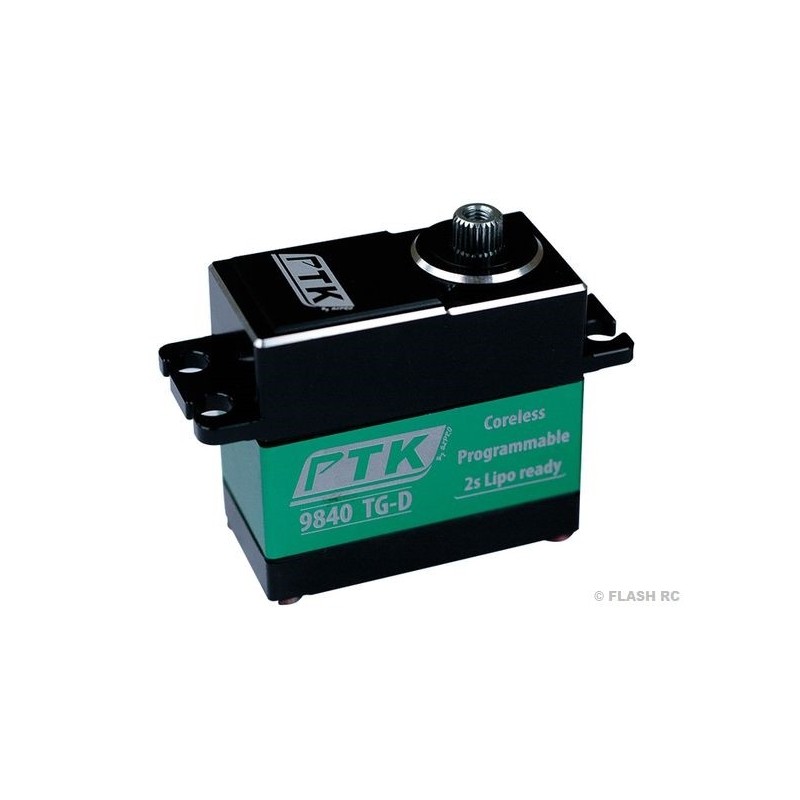

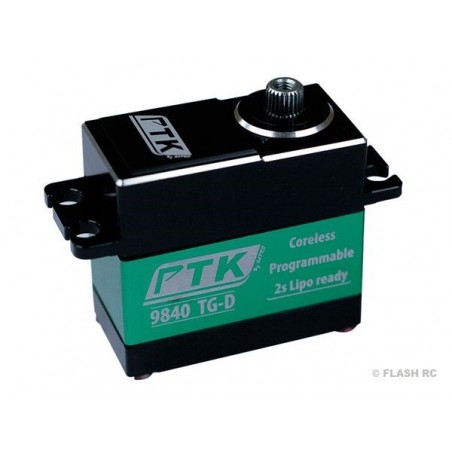

High-end servo, aluminum housing, very powerful, fast, waterproof, perfectly adapted to 1/8 cars or any other application requiring a quality servo. Torque, Speed, Precision ! Everything in this servo, with an exceptional torque of 30kg, has been thought to satisfy the most demanding users -> Coreless motor with CNC machined cage-> Digital -> Waterproof-> Programmable (a PC programming card will be available soon)-> "2S Lipo Ready": optimized performances under 4.8V, 6V or 7.4V. Because of their high power, for classic use without HV, these servos require a quality power supply such as LiPo 2S + 6V regulator. The perfect compromise is obtained with the LVR (ref. 78505) and a 2S 2600mAh LiPo receiver pack (ref. 92605)
custom html
To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option
Technical characteristics
- Sprockets: Metal Titanium
- Bearing: YES 2
- Motor : Coreless
- Weight: 71 grs
- Dimensions : 40.5 x 38.3 x 20mm
- Torque / Speed under 4.8V : 23kg/cm - 0.14 sec/60°.
- Torque / Speed under 6.0V : 26kg/cm - 0.12 sec/60°.
- Torque / Speed at 7.4V : 30kg/cm - 0.11 sec/60°.
- Operating voltage: 4.8V - 8.4V
- Cord length: 300mm
- Compatibility: Universal connector
- Dead band: 2μs (Adjustable)
- Electrical accuracy: 1.2μs (Adjustable)
- Thickness in mm (Servos)
- 20
- Torque in kg.cm (servos)
- 30
- Speed sec / 60° (servos)
- 0.11
- Pinions (servos)
- Metal
- Bearing (servos)
- yes
- Technology (sevos)
- Digital
- HV (servos)
- yes
- Weight in g (servos)
- 71
