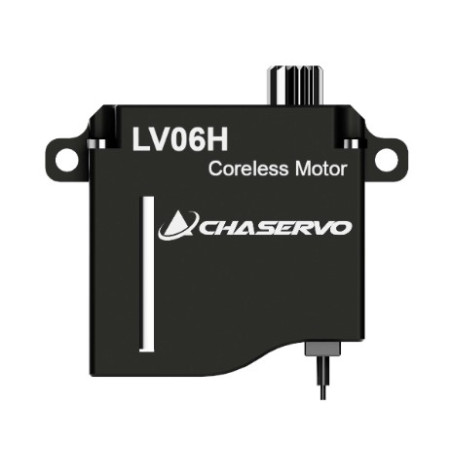

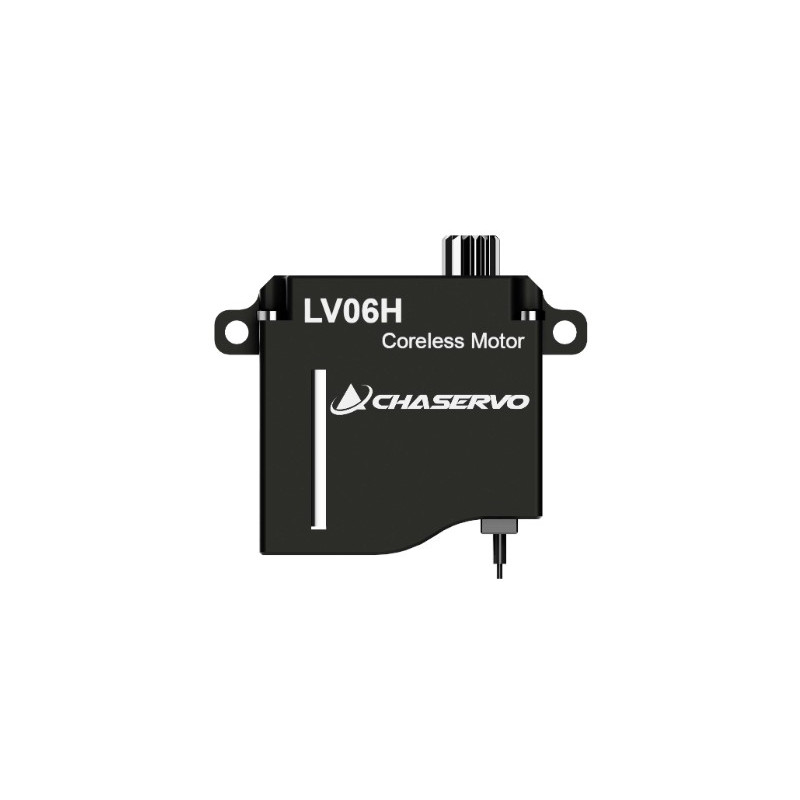

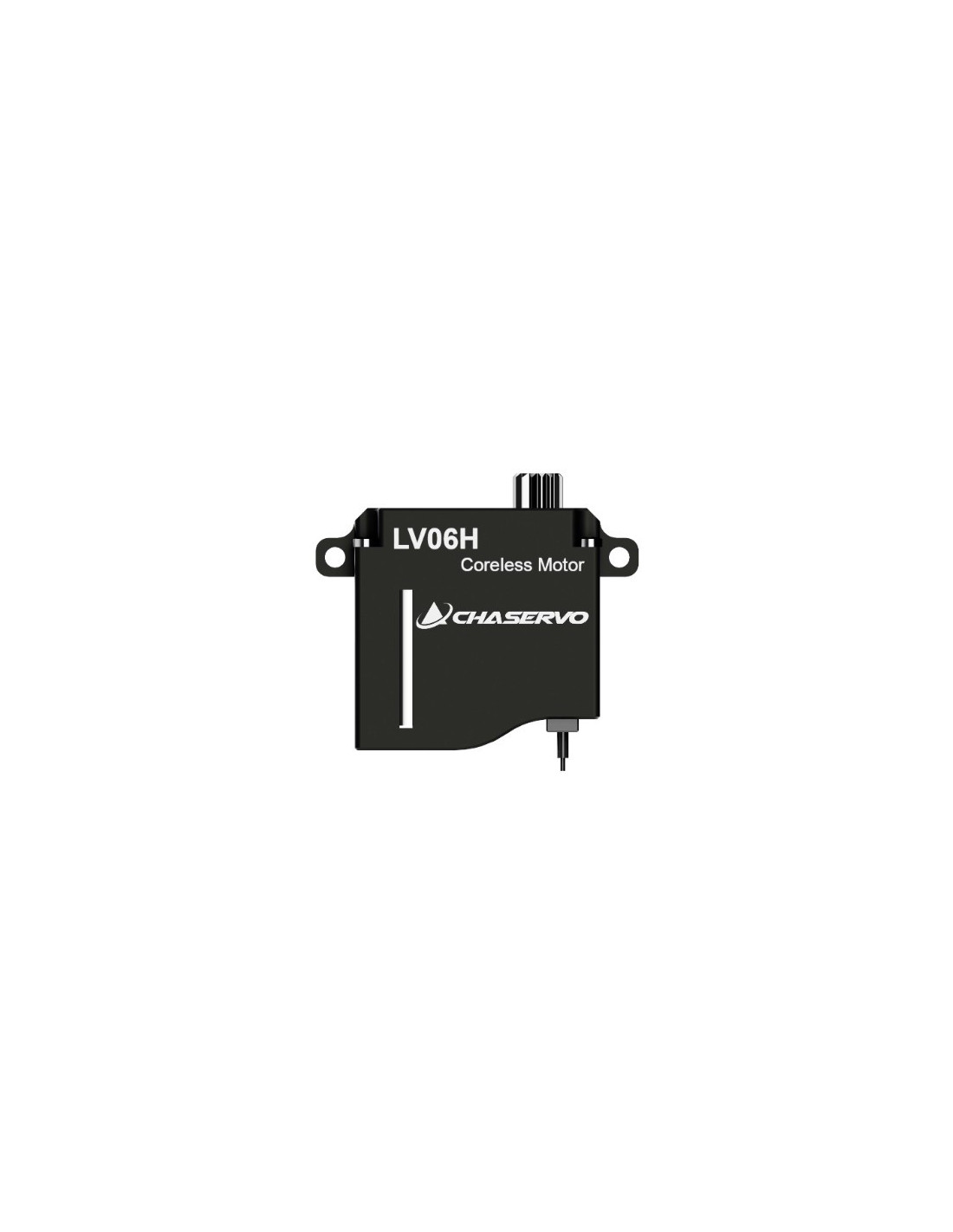

Digital servo LV06H Chaservo MICRO (6g, 1.7kg.cm, 0.055s)

€44.08
Tax included

This powerful low-voltage servo offers the highest level of build quality and shows off its strengths with impressive precision. Wrapped in an elegant black aluminum bodice, the LV equivalent of our HV06 series packs an impressive punch.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Features:

  • Extremely thin, 6 mm thick
  • Extremely light, only 6.1 g
  • Extremely fast and accurate
  • Highest manufacturing quality
  • Suitable for 1S, voltage range 3.5V - 5.0V
  • Available in three versions
  • High quality connection cable
  • Metal gears
  • Ideal for QR in the thinnest wings

SERVO DATA

  • Nominal voltage: 4.2 V DC
  • Voltage range: DC 3.3 V - 5.0 V
  • Standard magazine: ±60° = 120
  • Operating frequency: 1520µs/20KHz
  • Operating temperature : -10°C ... +65°C
  • Housing material: Aluminum alloy
  • Motor type: Coreless DC
  • Gear material: hardened steel
  • Position sensors: potentiometer
  • Programmable: Yes
  • Ball bearing: double ball bearing
  • 0.077 s/60 ° at 3.3 V
  • 0.066 s/60 ° at 4.2 V
  • 0.055 s/60 ° at 5.0 V
Thickness in mm (Servos)
Torque in kg.cm (servos)
1.7
Speed sec / 60° (servos)
0.05
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
no
Weight in g (servos)
6
366-LV06H
