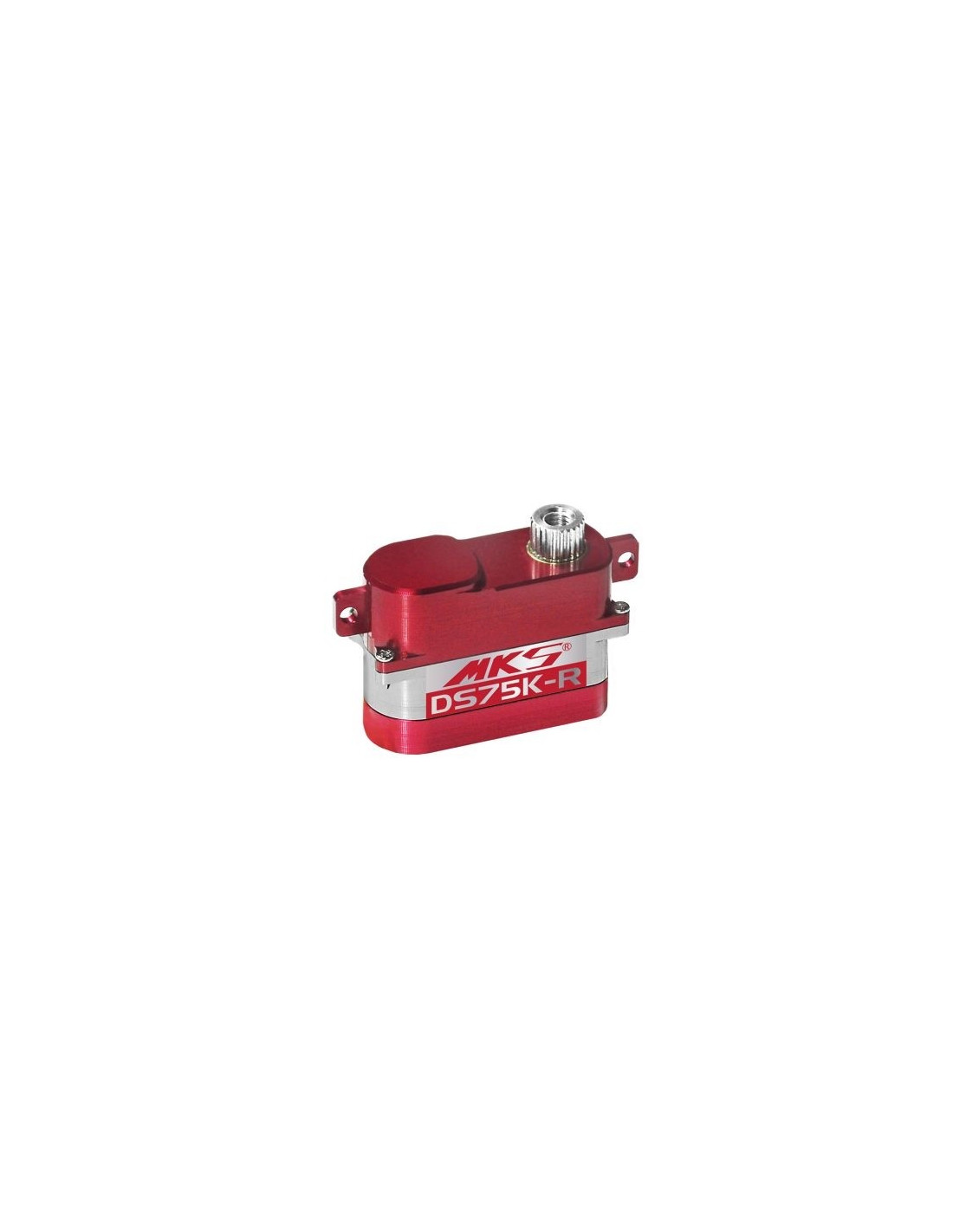

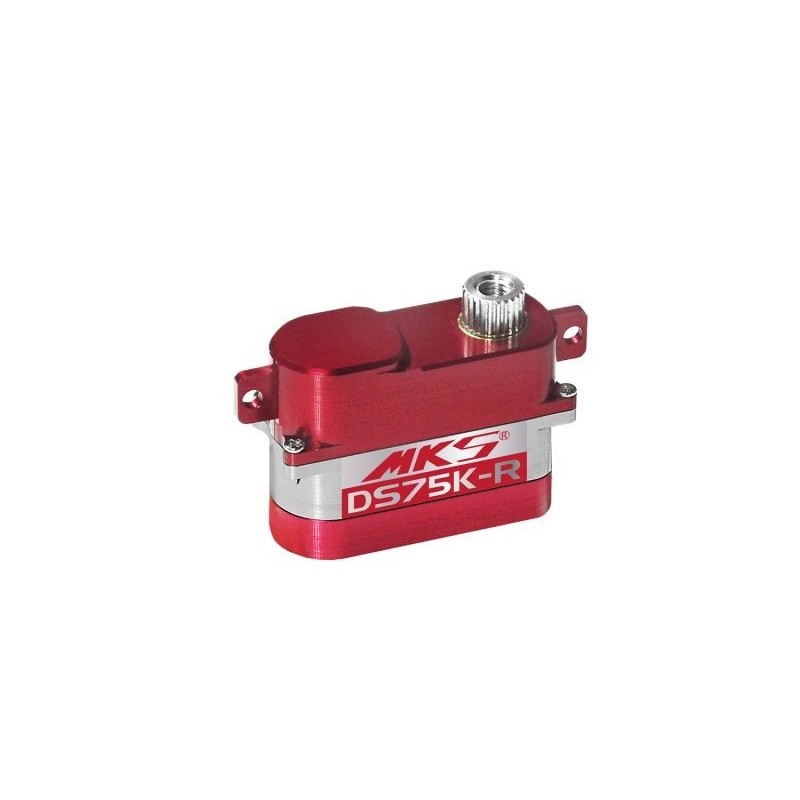

Digital metal servo DS75K-R MKS

€58.25

Tax included

New DS75K servo for F3K, replacing the DS65K, with horizontal support legs for mounting in the wings.FLASH RC, MKS authorized distributor for France offers this micro servo very high quality that will be particularly well suited for hand-launched gliders type F3K

Technical characteristics

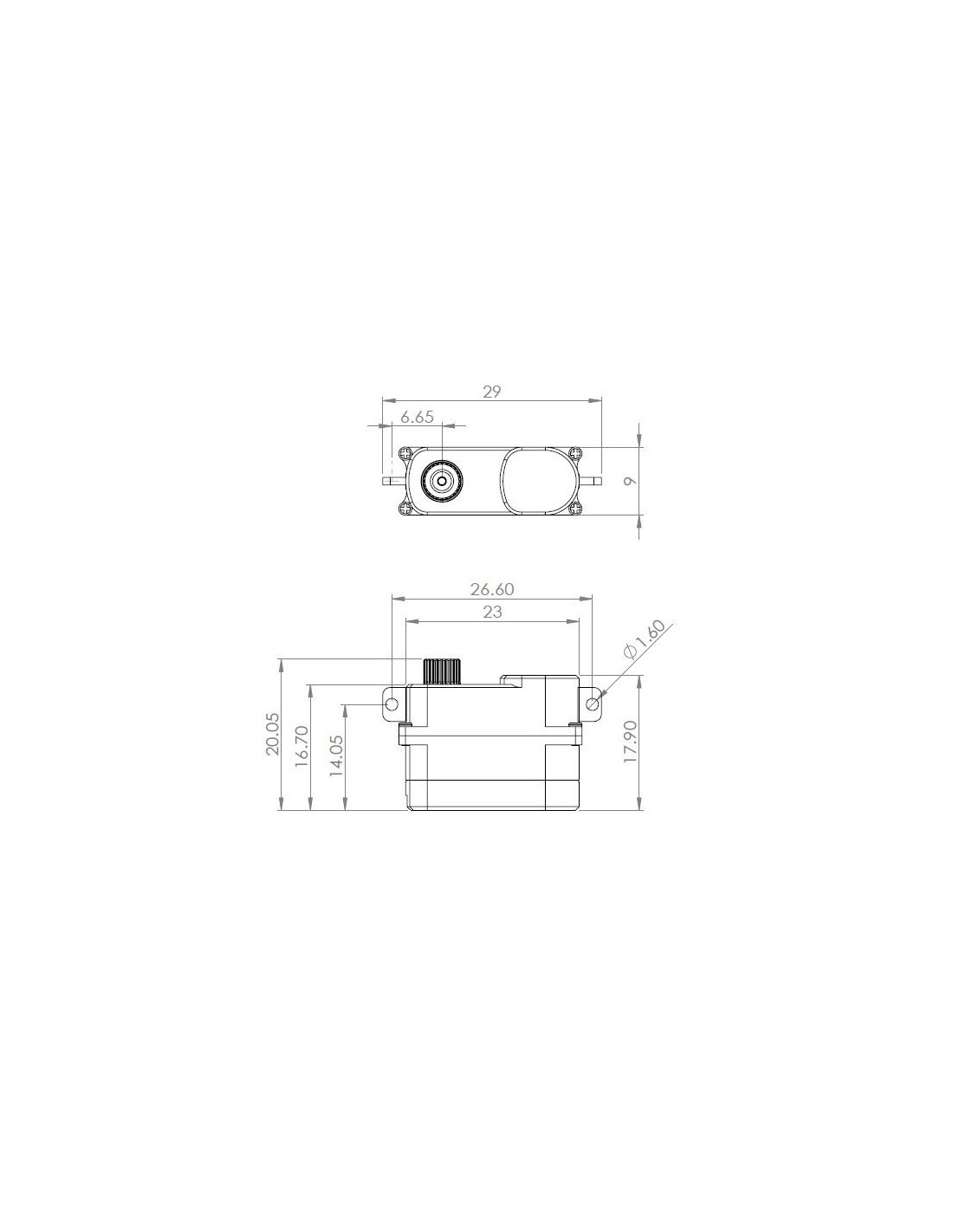

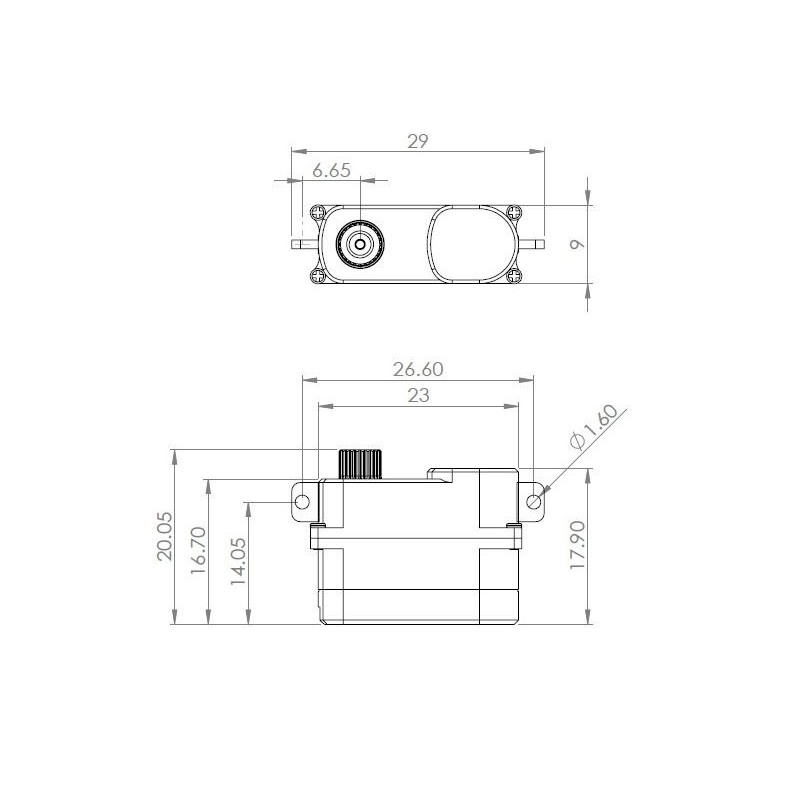

Dimensions: 23 X 9 X 16.7 mm
Voltage range : 3.7 ~ 6.0 V DC Volts (supports 1S LiPo)
Torque : 1.6Kg.cm (3.7V), 2.0Kg.cm (4.8V), 2.4Kg.cm (6.0V)
Speed : 0.22s/60° (3.7V), 0.16s/60° (4.8V), 0.13s/60° (6.0V)
Blocking current : 0.9A (3.7V) / 1.2A (4.8V) / 1.5A (6.0V)
Pulse width/maximum operating frequency: 1520μs / 333hz
Dead zone : 0.001ms (Default)
Double bearing
Coreless motor
7075 Chrome-Titanium gears
Aluminum housing

Thickness in mm (Servos): 9
Torque in kg.cm (servos): 2.4
Speed sec / 60° (servos): 0.13
Pinions (servos): Metal
Bearing (servos): yes
Technology (sevos): Digital
HV (servos): no
Weight in g (servos): 7.5

Reference 128-S0015010

EAN13 4710150350752

MPN 4710150350752
