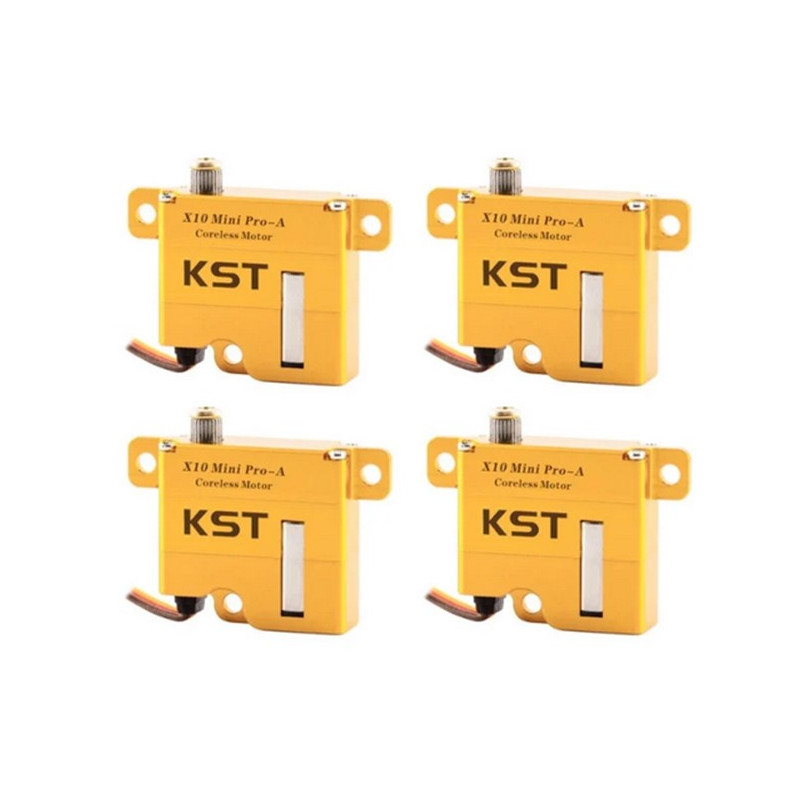

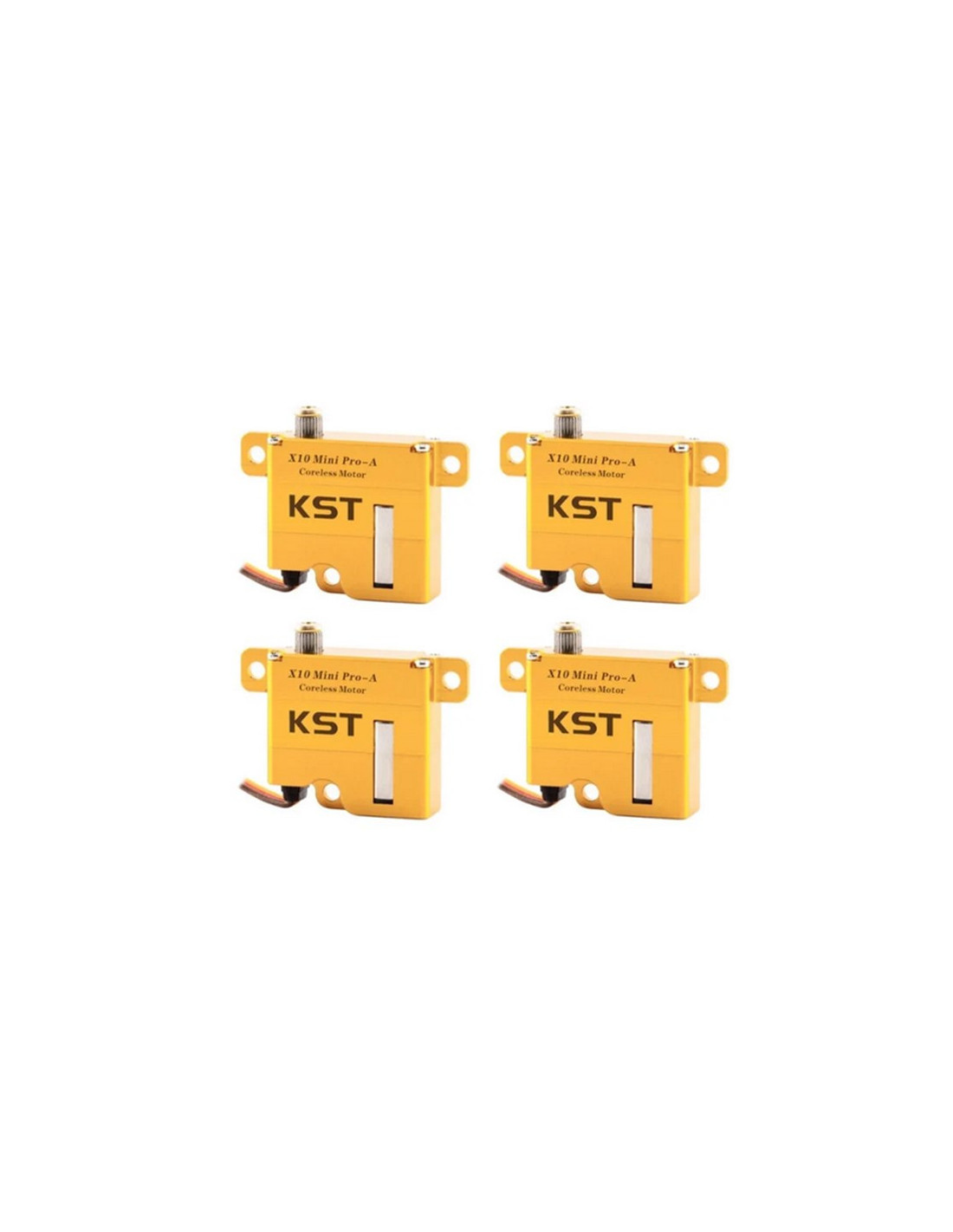

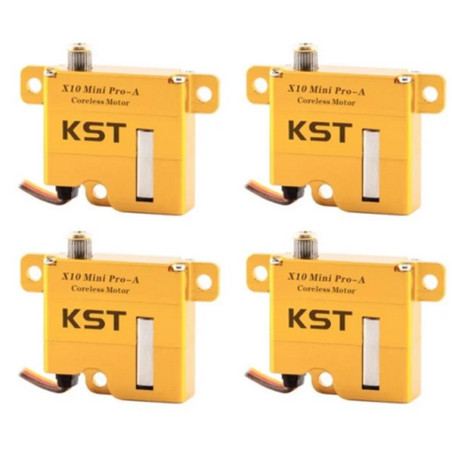

Pack 4 servos - Servo wing KST X10 MINI PRO-A ( 20g, 8kg.cm, 0,08/60°)
Pack 4 servos - Servo wing KST X10 MINI PRO-A ( 20g, 8kg.cm, 0,08/60°)

Pack 4 servos - Servo wing KST X10 MINI PRO-A ( 20g, 8kg.cm, 0,08/60°)

€158.25
Tax included

PACK OF 4 SERVO

The new X10 Mini Pro servo is a great mini servo for competition gliders, such as the F5J and F5B, and large-scale gliders.

Compared with the classic X10 Mini servo, it has higher torque, faster speed and a wider travel angle. The X10 Mini Pro servo has an exceptional torque of 8.0 Kgf.cm and an incredible speed of 0.08 s.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Features

  • Programmable
  • Supports soft start
  • Hardened steel gears
  • Anodized CNC aluminum housing
  • Ultra-high torque and excellent speed
  • Smaller size and wider travel angle
  • Ideal for competition and large-scale gliders

specification

  • Item: X10 Mini ProServo
  • Nominal voltage: DC7.4 V.
  • Voltage range: DC4.8 V-8.4 V.
  • Torque: 4.5 Kgf.cm at 4.8 V, 6.0 Kgf.cm at 6.0 V, 7.2 Kgf.cm at 7.4 V, 8.0 Kgf.cm at 8.4 V
  • Speed: 0.13 s/60° at 4.8 V, 0.11 s/60° at 6.0 V, 0.09 s/60° at 7.4 V, 0.08 s/60° at 8.4 V
  • Operating frequency: 1520us/333 Hz
  • Default displacement angle: ±60°=120° Total
  • Temperature range: -10 ℃ ....... + 65 ℃
  • Soft start: programmable
  • Programmable: Yes
  • Housing material: aluminum alloy.
  • Motor type: coreless DC motor
  • Gear set material: hardened steel
  • Position sensor: Potentiometer
  • Housing dimensions: 30 mm * 10 mm * 28 mm ± 0.2 mm
  • Weight: 20g±10

Thickness in mm (Servos)
10
Torque in kg.cm (servos)
8
Speed sec / 60° (servos)
0.08
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
20
P153-X10-MINI-PRO-A
