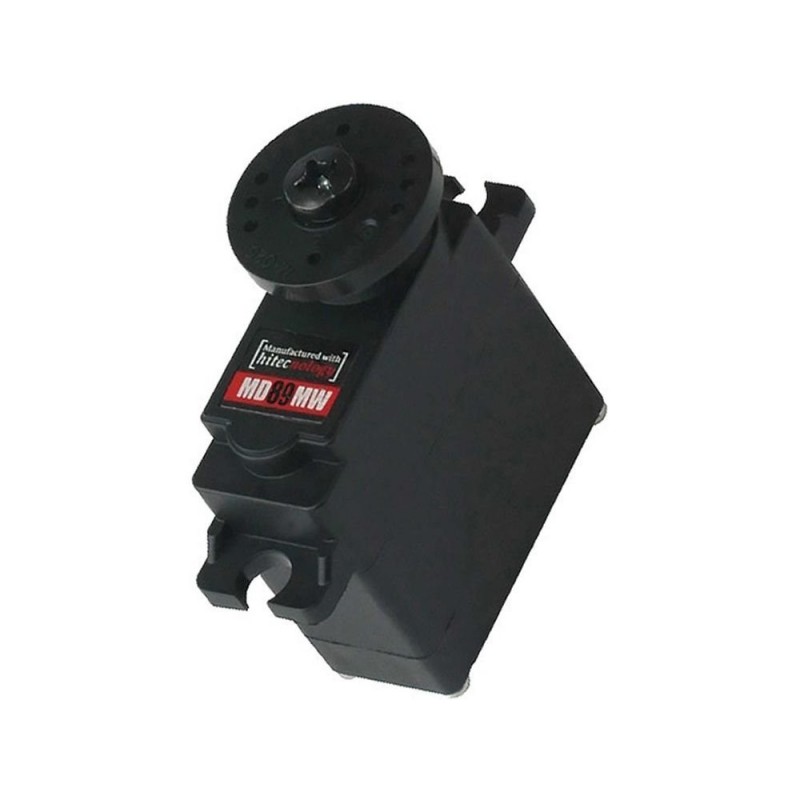

Hitec MD89MW mini digital servo with magnetic encoder (25g, 8.5kg.cm, 0.11s/60°)

€79.92
Tax included
Hitec MD-89MG HV digital servo, with magnetic encoderTake the popular Hitec HS-85. Add a set of five metal gears, Hitec's High Response technology, 32-bit D-Series processor board, two bearings, and the ability to operate from 4.8V to 7.4V...and you have the new gold standard in the mini performance servo family! The HITEC D-Series HS D-89MW ultra-fast servos offer the highest resolution on the market today. The best response and programming capabilities are achieved through the 32-bit MCU and 12-bit ADC technology.The 'D' series includes HITEC servos that operate on both conventional (4.8/6V) and HV (8.4V) voltage. The MD-89MW Digital servo is fully programmable and offers good durability thanks to its robust full steel gears and two ball bearings on the output shaft, which is especially suitable when low backlash and high positioning accuracy are important.The long life and uniquely designed transmission make it one of the most reliable and efficient servos on the market.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Features :

  • Width: 13 mm
  • Height: 30 mm
  • Length: 29 mm
  • Weight: 25 gr
  • Servo type: mini
  • Special features: large digital voltage
  • gears: metal (x5)
  • Operating voltage in V: 4.8-7.4 V
  • Operating time s / 60 ° at 4.8 volts: 0.17
  • Operating time s / 60 ° at 7.4 volts: 0.11
  • Torque in kgcm at 4.8 volts: 5.3
  • Torque in kgcm at 7.4 volts: 8.5
  • Gear: 25T
  • Ball bearing: yes, double
  • Sealed: no
  • Magnetic encoder

Features

32-bit programmable digital PWM circuit
CAN bus (2.0A or 2.0B), UAVCAN, RS-485, PWM and TTL protocol capability
Magnetic encoder position sensor
Wide operating voltage (4.8 ~ 7.4 V)
Robust, long-life motors
IP65-rated enclosures
25-tooth output shaft
Customization and modification options available
Custom connector options available

Parts and Accessories

Replacement gear set
Replacement case set
Applicable horns and mounting hardware

Programmable features

Endpoint adjustments
Direction
Fail Safe
Deadband
Speed (slower)
Soft start rate
Overload protection
Data backup / loading


Thickness in mm (Servos)
13
Torque in kg.cm (servos)
8.5
Speed sec / 60° (servos)
0.11
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
25
064-1-01237
4059818012374
4059818012374
