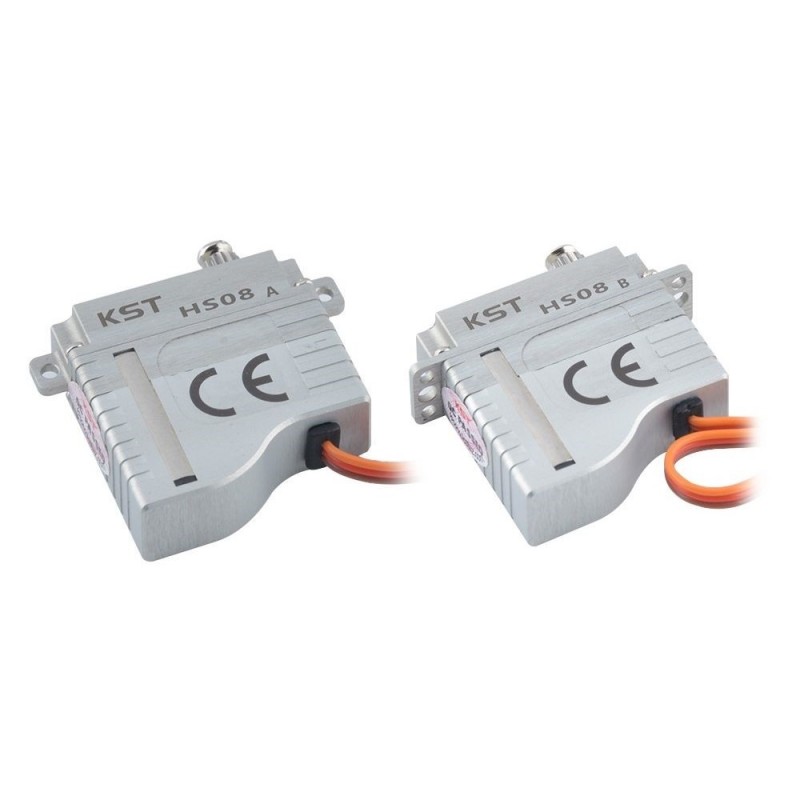

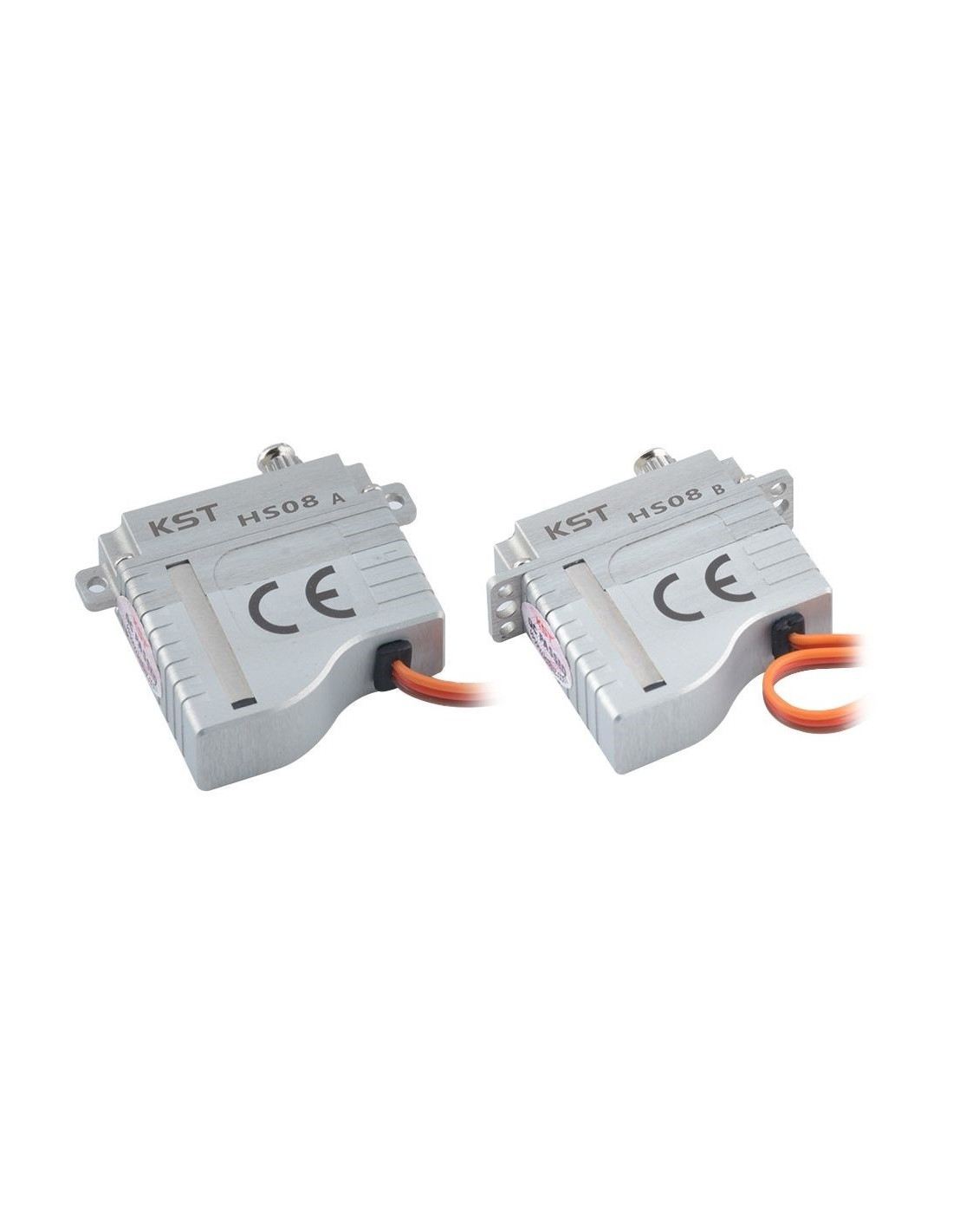

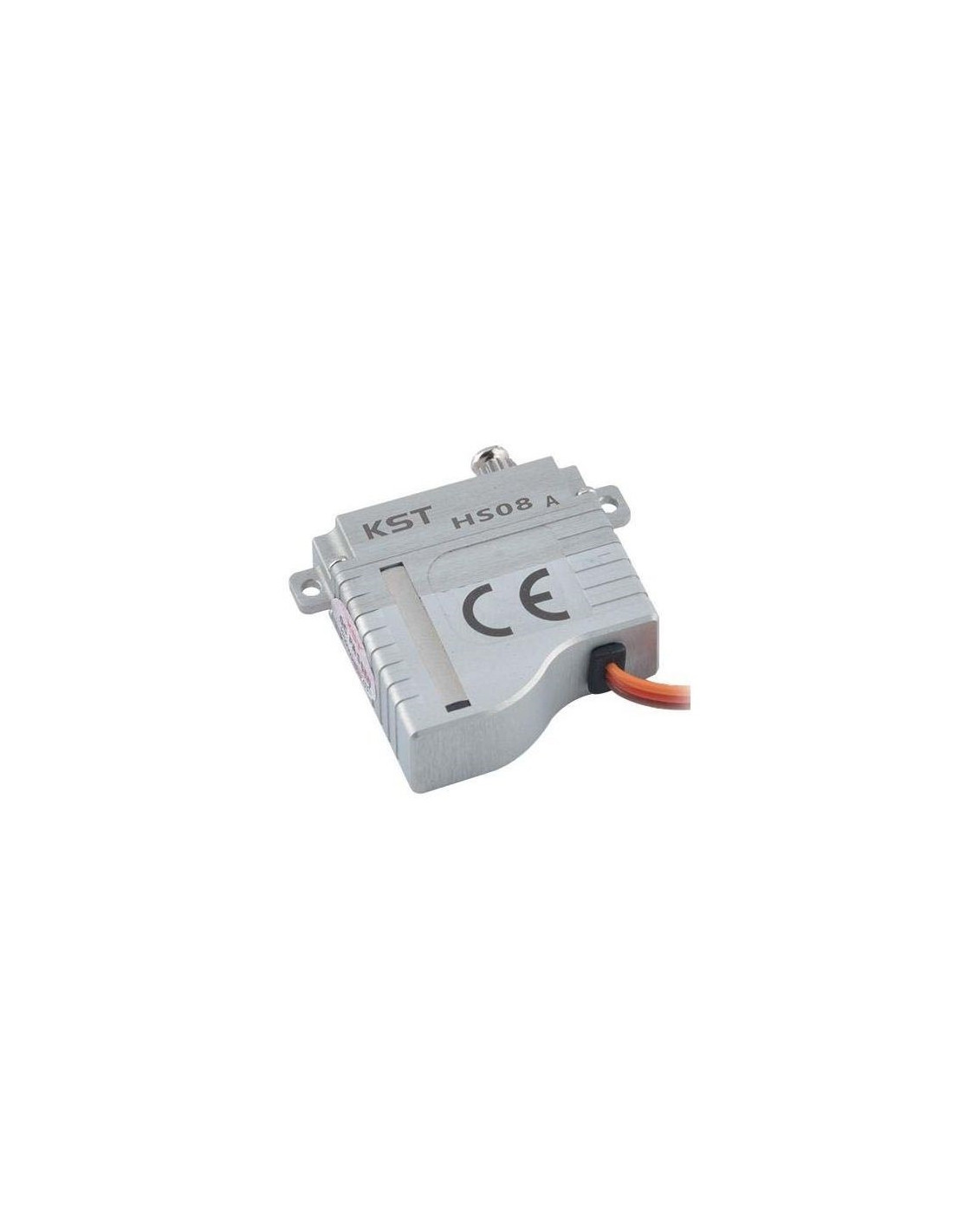

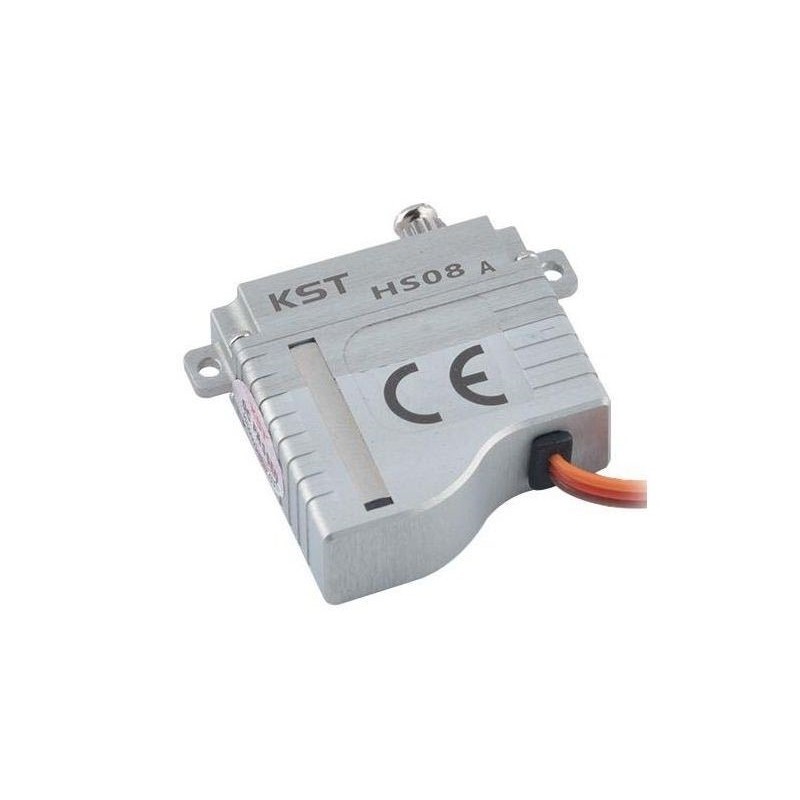

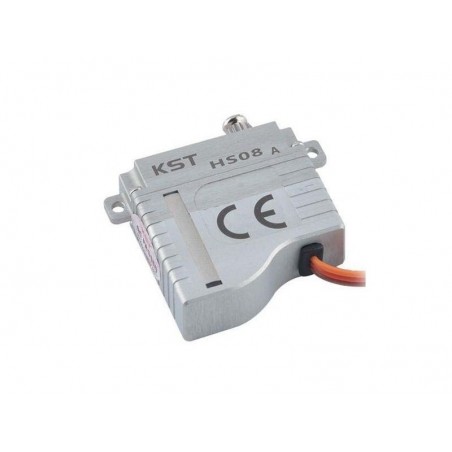

KST delivers again with these KST HS08 series competition servos for F5J glider pilots and glider enthusiasts who demand the best! The all-new HS08s are almost as compact as the popular KST X08 series and offer power and performance levels close to those of the X10 Mini servos in an 8mm thick housing.The slim 8mm thick housing is made from 7075 aluminum alloy, so not only are these servos fantastic, they are also very rigid and robust.The HS08 series is available with wing mounting tabs (version A) or normal mounting tabs (version B), to allow convenient installations in fuselages or wings or even on rear surfaces. Introducing the KST HS08A, the wing mount versionThe KST HS08A features a set of hardened steel gears and a coreless motor capable of operating from 3.8V to 8.4V (1S to 2S LiPo), making these HV (wide voltage range) servos capable of delivering the power and reliability you need.
Compact and lightweight design
Excellent torque and speed
Wide voltage range 1S to 2S
Designed for high performance RC gliders
Excellent heat dissipation
Ultra thin 8 mm body
Alloy 7075 housing
Hardened steel gears
Servo tabs/legs for flat mounting (wing)

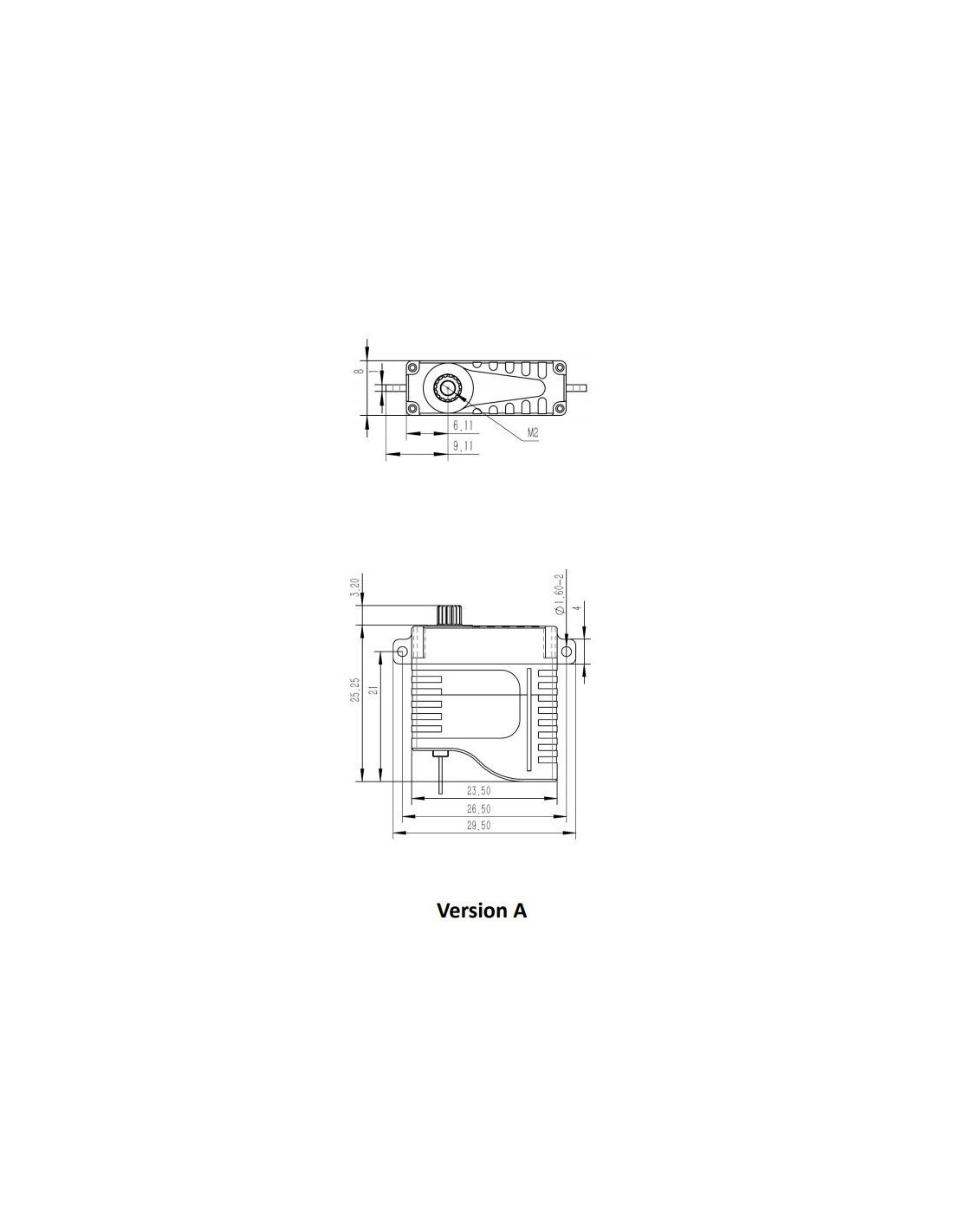

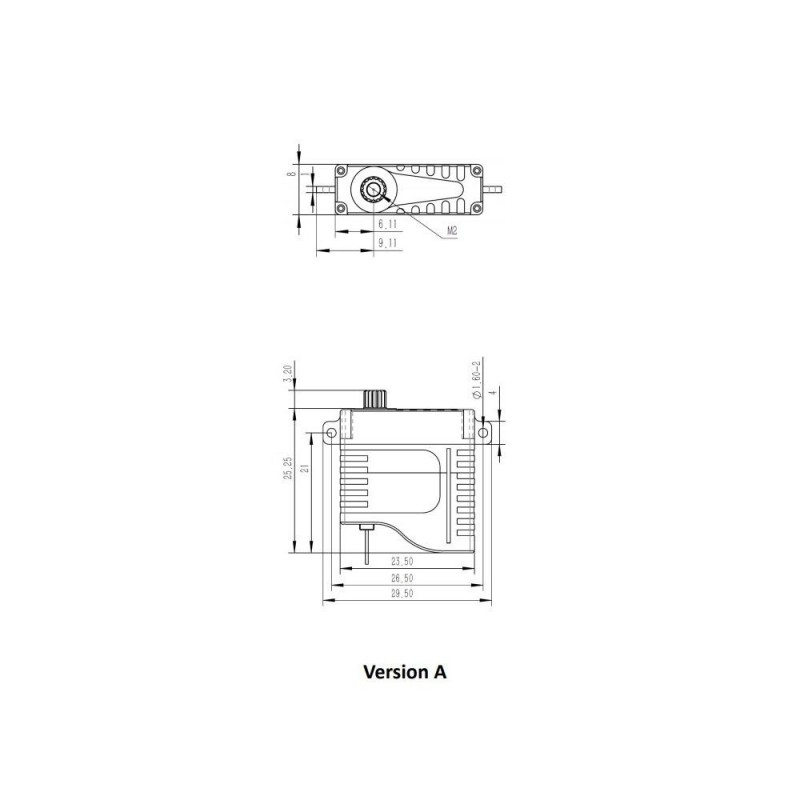

Body dimensions: 23.5 mm wide x 8.0 mm thick x 25.3 mm high
Maximum dimensions: 29.5 mm wide x 8.0 mm thick x 29.0 mm high
Stall torque (3.8 V): 2.8 Kg.cm
Stall torque (6V): 4.5 Kg.cm
Stall torque (7.4 V): 5.2 Kg.cm
Weight : 11 g
Cable length : 15 cm
Operating speed (3,8 V) : 0,21 sec / 60 °
Operating speed (6V) : 0,13 sec / 60 °
Operating speed (7,4 V) : 0,11 sec / 60 °
Operating voltage : 3,8 V to 8,4 V
Operating temperature -20 to +65 ° C
Bearings : 2 ball bearings
Gear material: Hardened steel
Housing material: Aluminum alloy 7075
Motor type: Coreless motor
Pulse width for ± 60º 1000 - 2000 µs
Digital: Yes

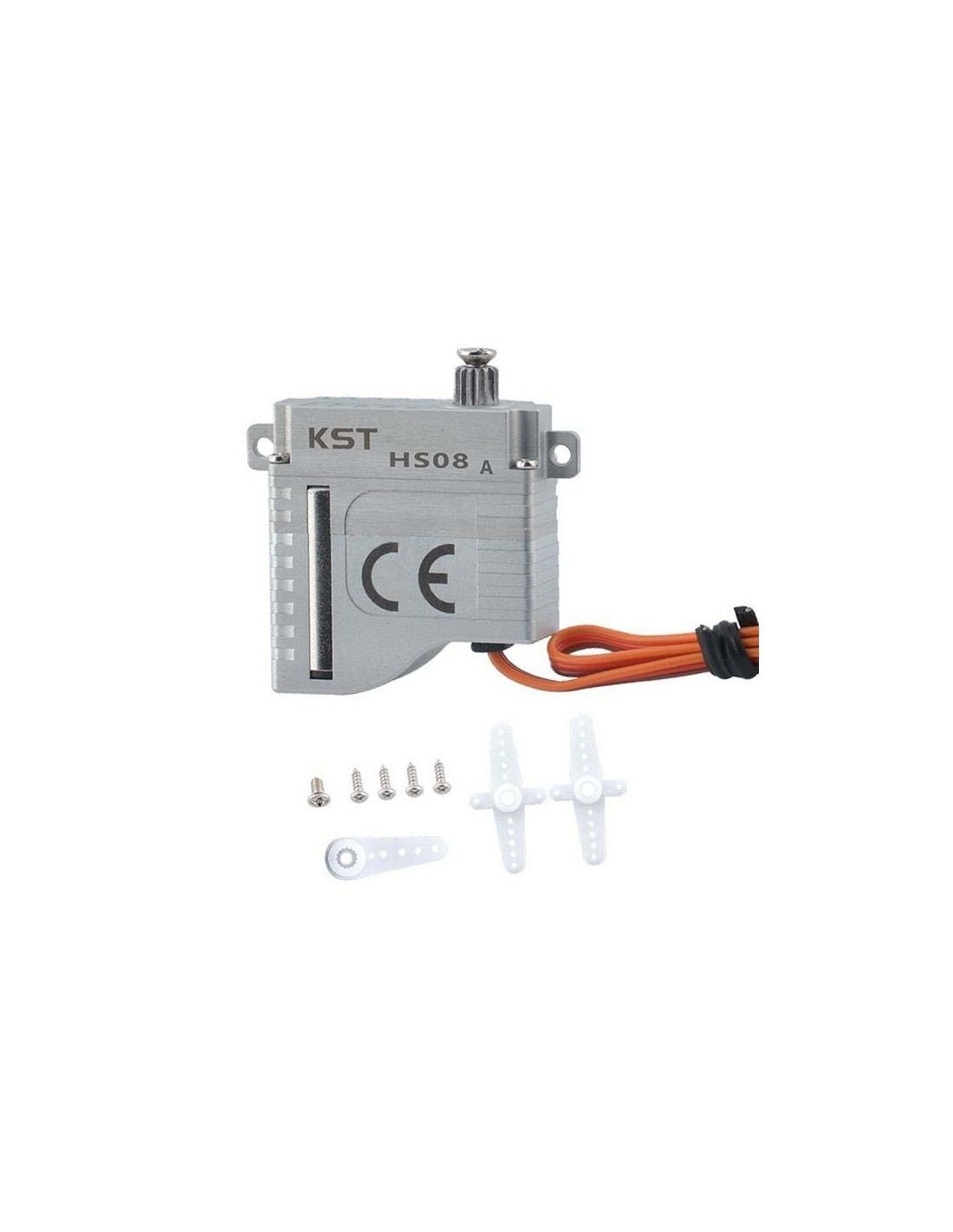

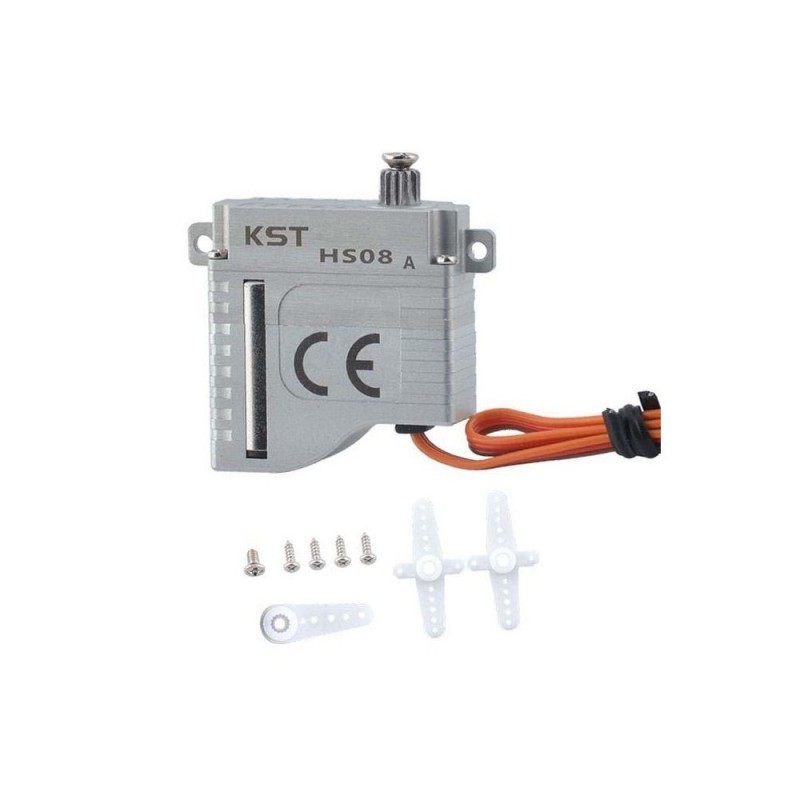

Supplied accessories: 3 output arms, 1 arm mounting screw, 4 mounting screws
