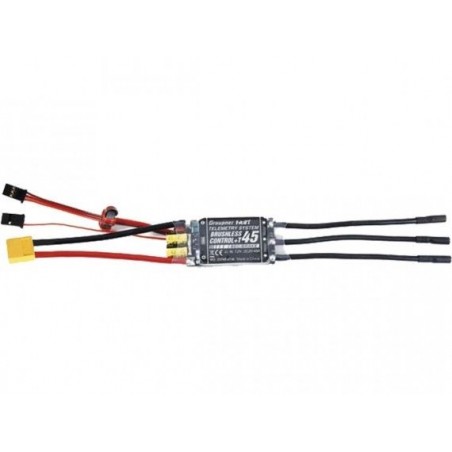

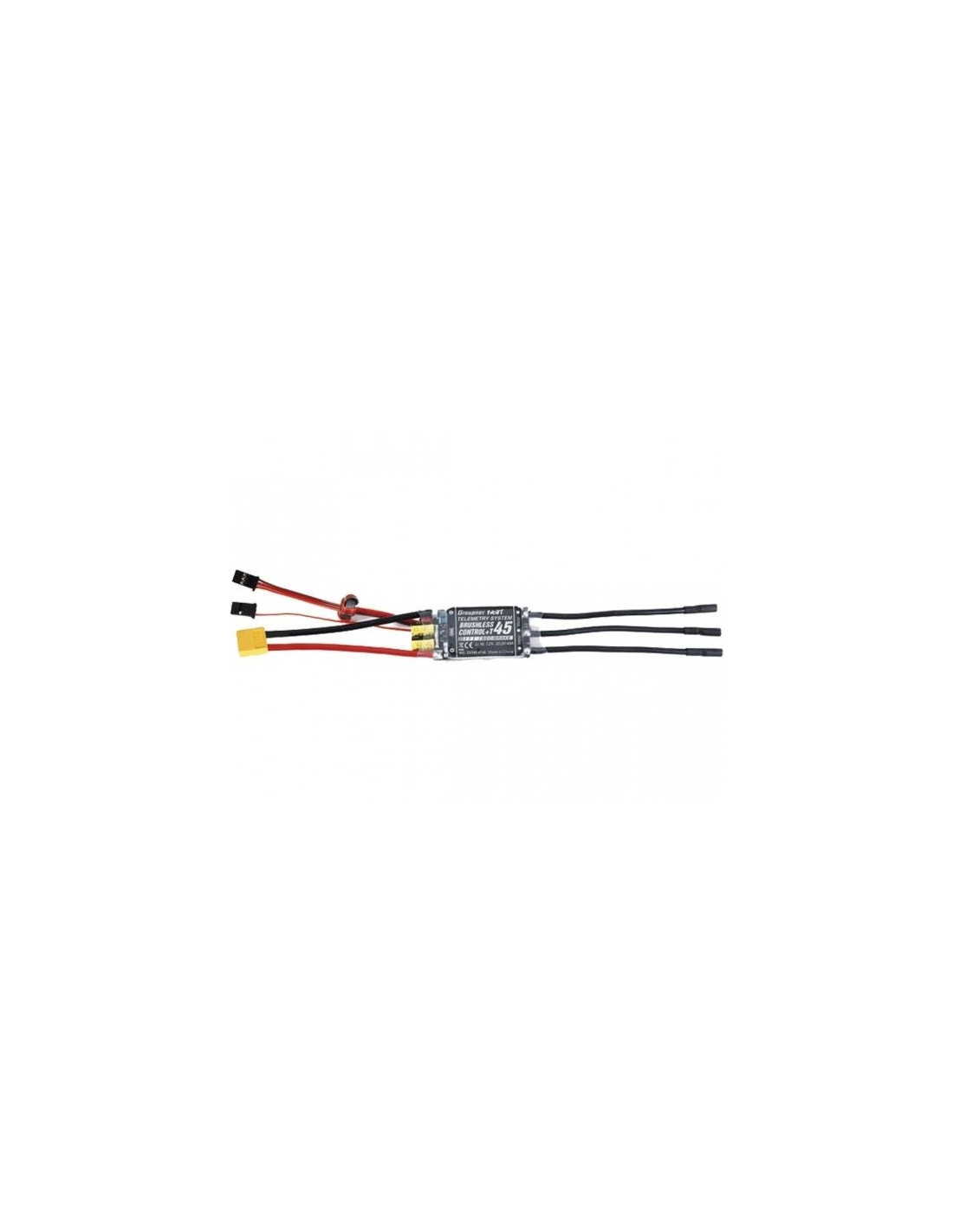

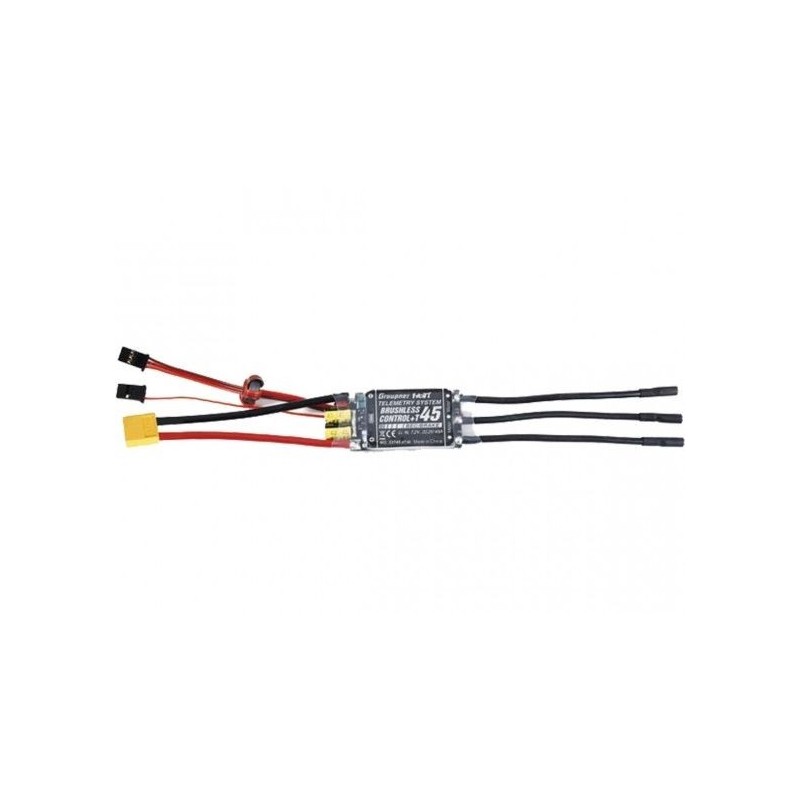

45A Brushless controller + telemetry BEC 5.0 - 8.0V Graupner

Technical data

• Efficient and extremely powerful clocked SBEC system, voltage adjustable between 5.0 - 8.0 V in 0.2 V steps.
• Graupner HoTT telemetry data and warnings for voltage, current, temperature, speed and capacity
• Weight with wiring: 67 g
• Continuous current: 45 A
• NOZZLE: 5.0...8.0/3 V/A
• Soft start: programmable
• EMK brake: programmable
• Frequency range: 32 kHz
• Dimensions with capacitor: 70 x 31.5 x 10 mm
• Battery connection: G3.5
• Number of cells, LiPo, Lilo: 2 ... 6
• Number of cells, NiCd, NiMH: 6 ... 18
• BEC short term current: 10 A
• Dimensions without capacitor: 55x 31.5 x 10 mm
• Supply voltage: 5.5 ... 25 V

Controller programming and telemetry

• Battery type NiCd/NiMH/LiIo/LiPo/LiFe
• Control voltage
• Control type soft/hard
• Direction of rotation
• Motor timing
• Ramp-up time
• Starting torque
• Brake On/Off
• Reverse gear for boats/cars, On/Off
• Cruise control mode for helicopters, On/Off
• Regulating speed in governor mode
• Number of motor poles
• Reduction
• Telemetric warnings
• Low voltage limit
• Maximum current
• Minimum rotation speed
• Maximum temperature
• Maximum capacity
• Telemetric display
• Current voltage
• Current and maximum current
• Current and maximum speed
• Current and maximum temperature
• Capacity
