Servos - Micro digital servo Graupner DES 281BB MG (8.5g, 2.0kg.cm, 0.10s/40°) - FLASH RC
Servos - Micro digital servo Graupner DES 281BB MG (8.5g, 2.0kg.cm, 0.10s/40°) - FLASH RC

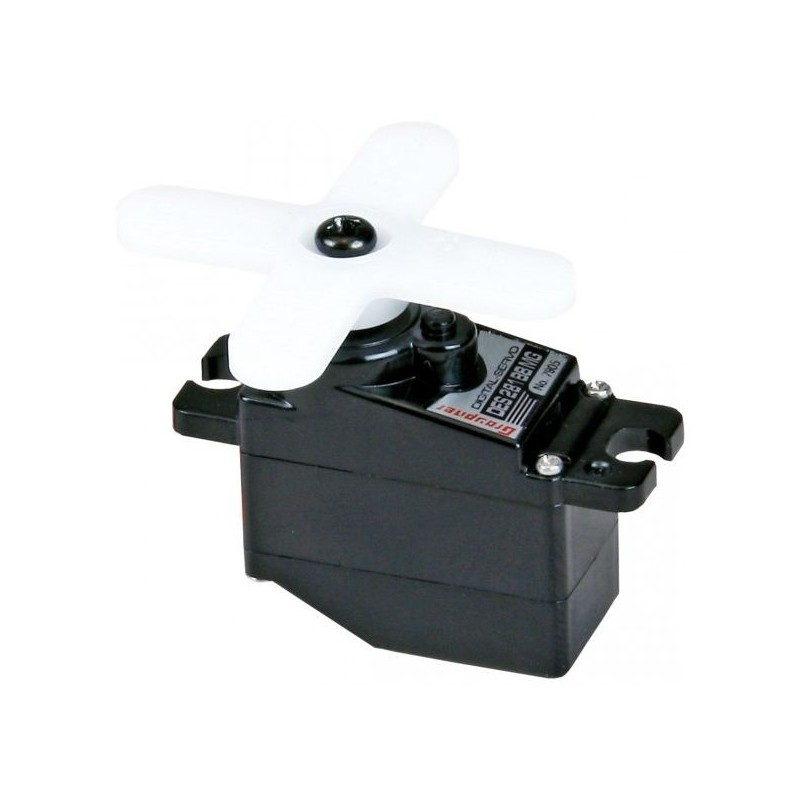

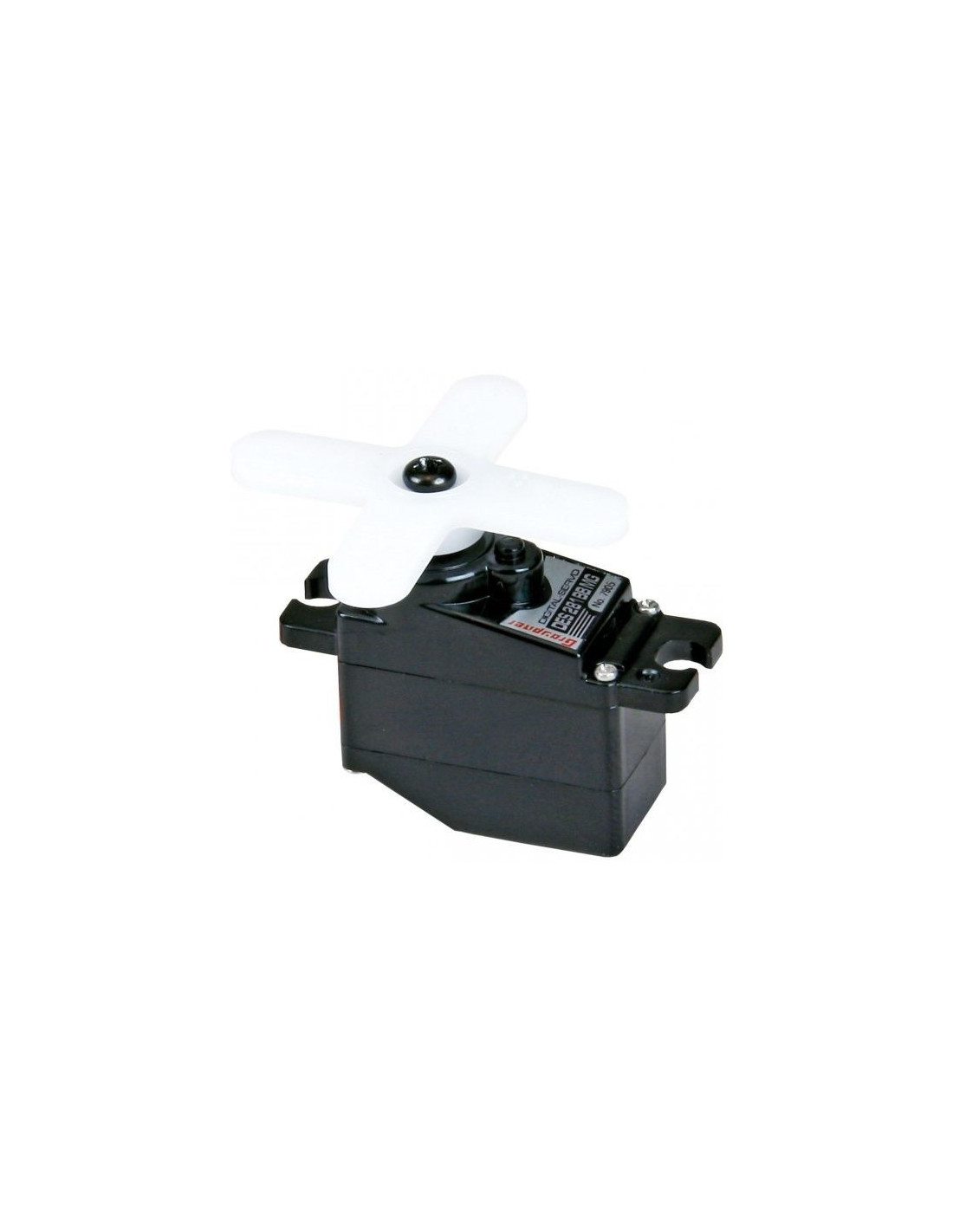

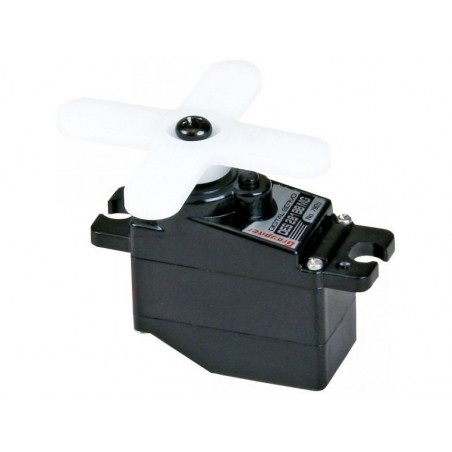

Micro digital servo Graupner DES 281BB MG (8.5g, 2.0kg.cm, 0.10s/40°)

€33.25
Tax included
A new product range in the digital servo segment. The DES servos represent a product line that delivers the right servo for almost every field of application with different specifications. Different sizes, gearbox designs, torque strengths and resolution times are designed for beginners to competition pilots. The fully sealed variants (screws, housing parts and output shaft pinion) increase the safety of the models. These servos are mounted on double ball bearings with precision metal and aluminum gearing which guarantee an exact resolution process. A high quality Amtel micro controller ensures the control signal processing and precise positioning of these servos.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Technical data

  • Torque at 4.8V, approx: 17 N/cm
  • Resolution time at 4.8V, approx.: 0.125 s/40°.
  • Max. current consumption at 4.8V approx. 360 mA
  • Torque at 6.0V, approx.: 20 N/cm
  • Resolution time at 6.0V, approx.: 0.1 s/40
  • Max. power consumption at 6.0V approx.: 450 mA
  • Weight, approx.: 8.5 g
  • Travel with trim, approx.: 2 x 45°.
  • Power consumption at no load, approx.: 5 mA
  • Dimensions: 21,5 x 11 x 21 mm
  • Double bearing
  • Gears: metal
  • Supply voltage: 4.8 ... 6,0 V
  • Pulse width: 1.5 ms
  • Max. operating frequency: 3.0 / 333 ms / Hz
Thickness in mm (Servos)
11
Torque in kg.cm (servos)
2
Speed sec / 60° (servos)
0.15
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
no
Weight in g (servos)
8.5
094-7905
8809403499358
4013389462020
