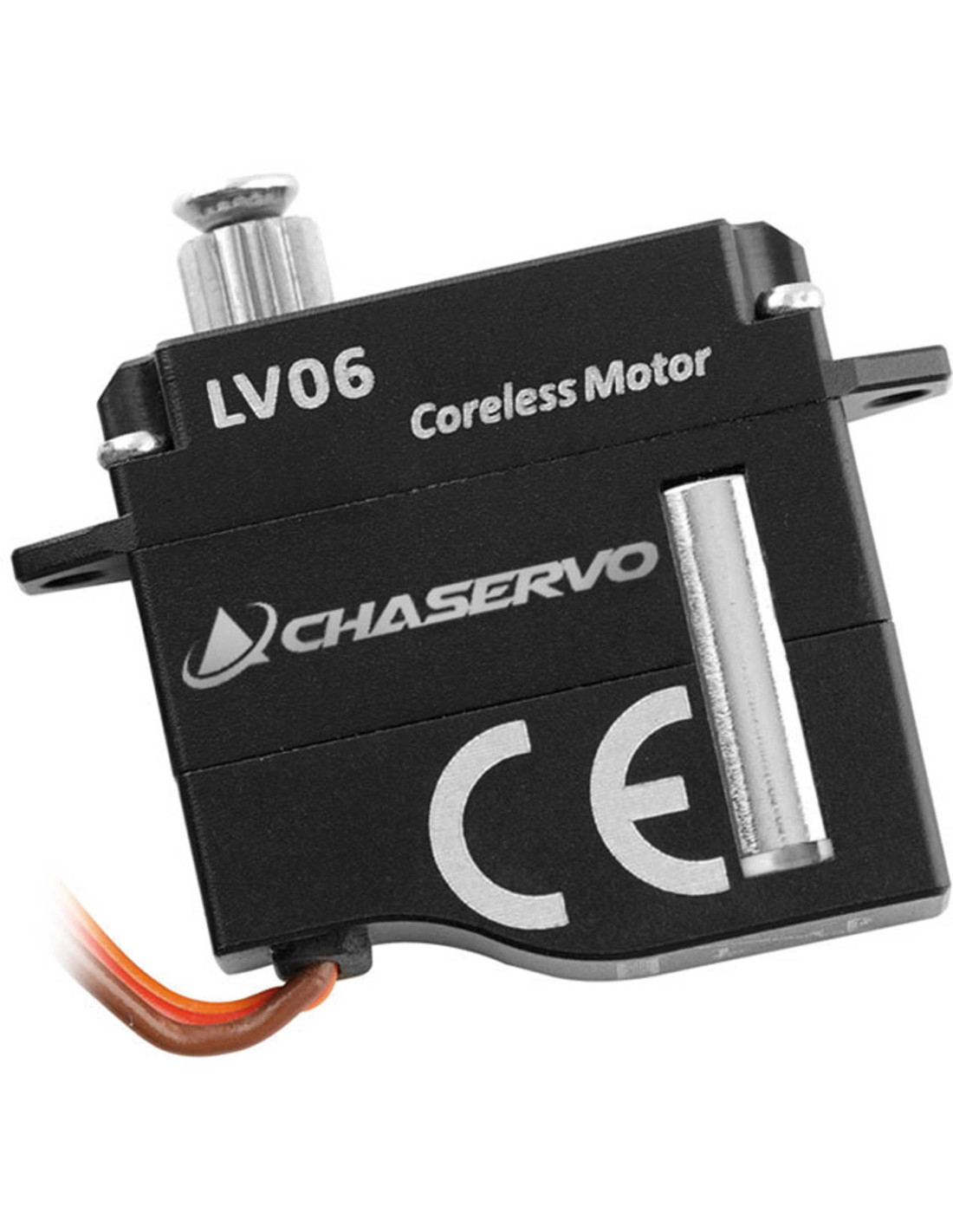

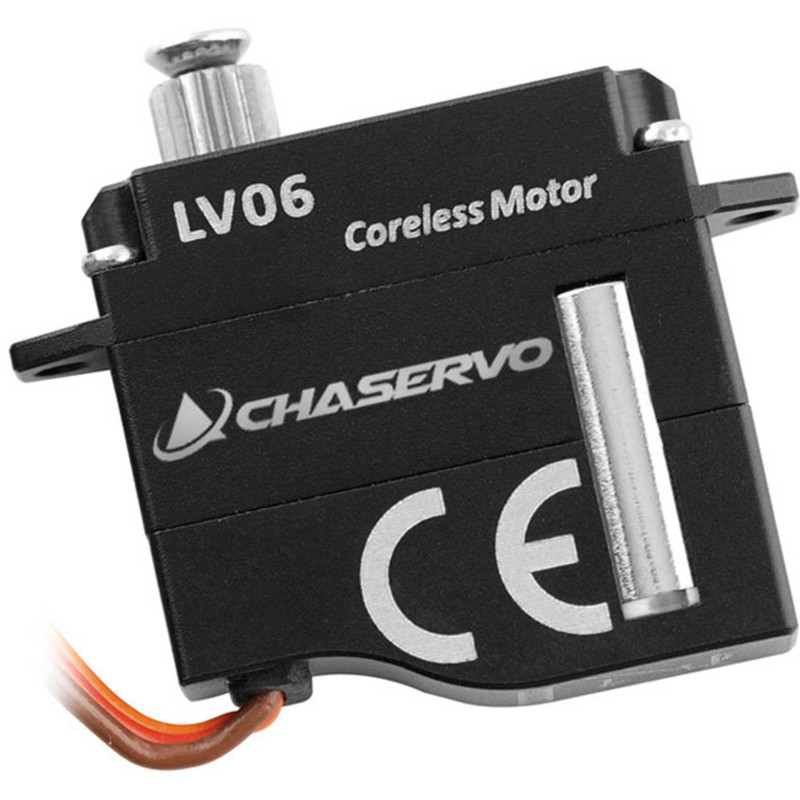

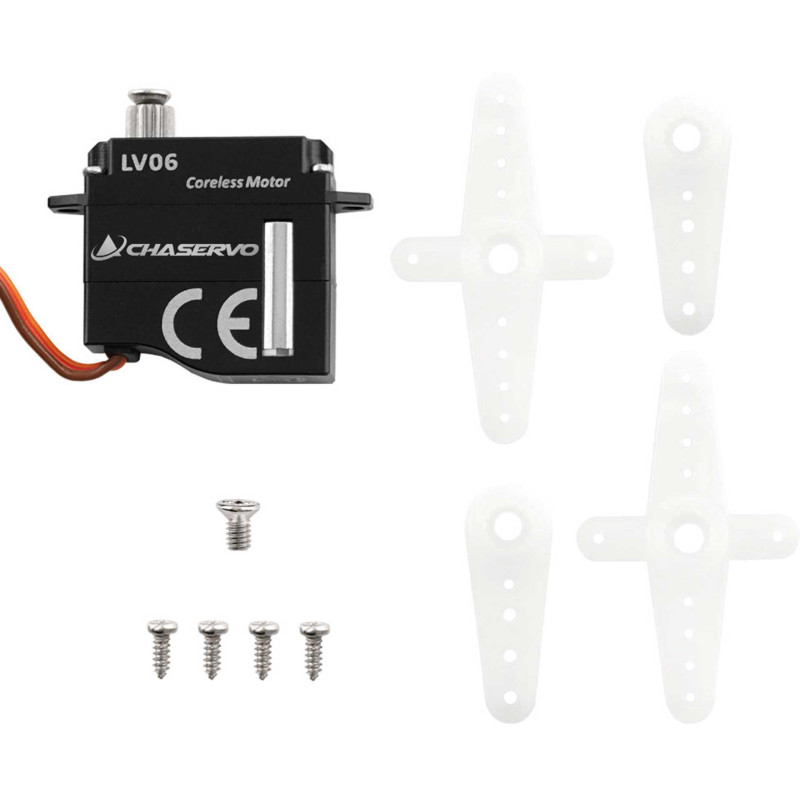

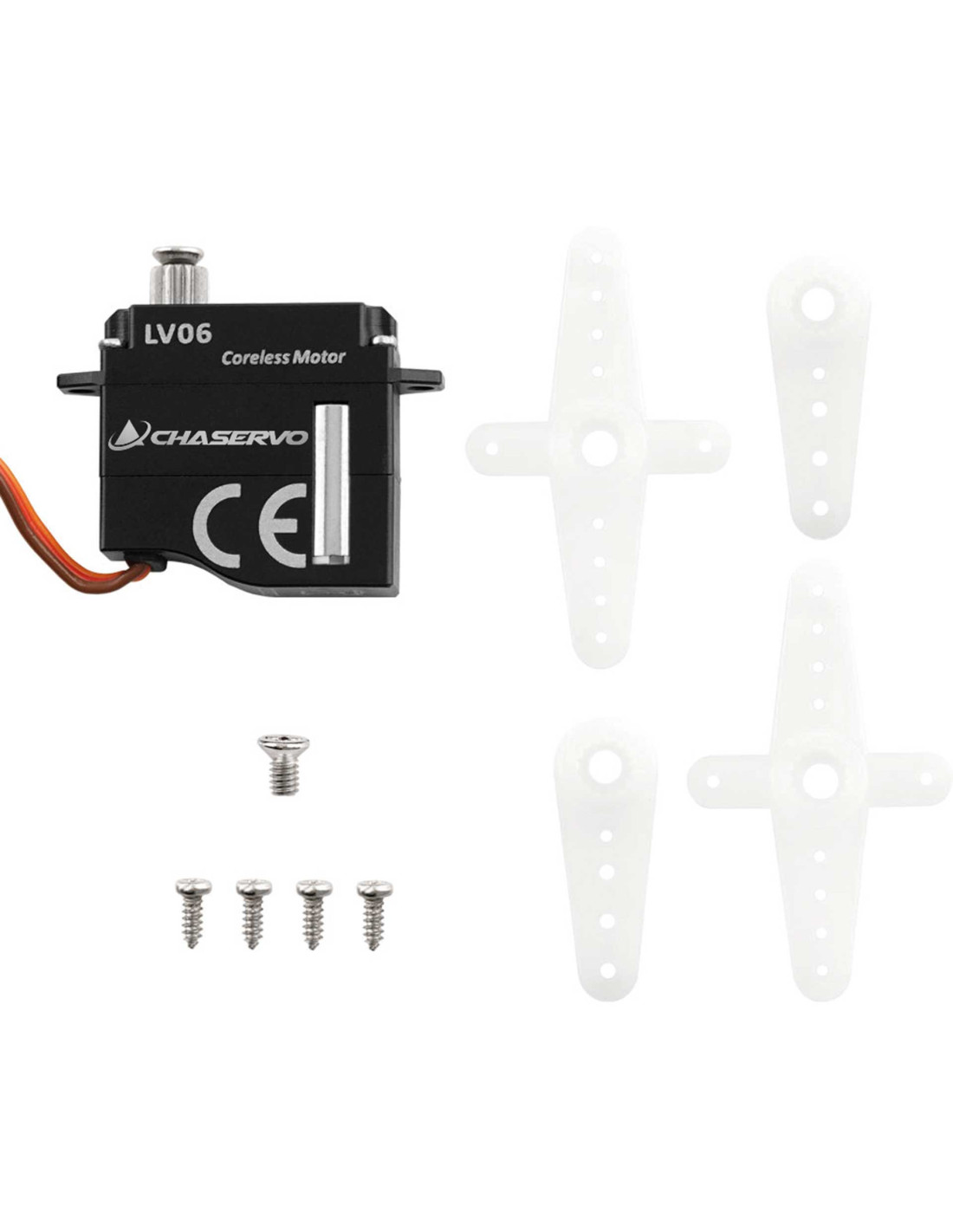

Digital servo LV06 Chaservo MICRO (6g, 1.7kg.cm, 0.055s)

€44.08

Tax included

This powerful low-voltage servo offers the highest level of build quality and shows off its strengths with impressive precision. Wrapped in an elegant black aluminum bodice, the LV equivalent of our HV06 series packs an impressive punch.

Features:

Extremely thin, 6 mm thick
Extremely light, only 6.1 g
Extremely fast and accurate
Highest manufacturing quality
Suitable for 1S, voltage range 3.5V - 5.0V
Available in three versions
High quality connection cable
Metal gears
Ideal for QR in the thinnest wings

SERVO DATA

Nominal voltage: 4.2 V DC
Voltage range: DC 3.3 V - 5.0 V
Standard magazine: ±60° = 120
Operating frequency: 1520µs/20KHz
Operating temperature : -10°C ... +65°C
Housing material: Aluminum alloy
Motor type: Coreless DC
Gear material: hardened steel
Position sensors: potentiometer
Programmable: Yes
Ball bearing: double ball bearing
0.077 s/60 ° at 3.3 V
0.066 s/60 ° at 4.2 V
0.055 s/60 ° at 5.0 V

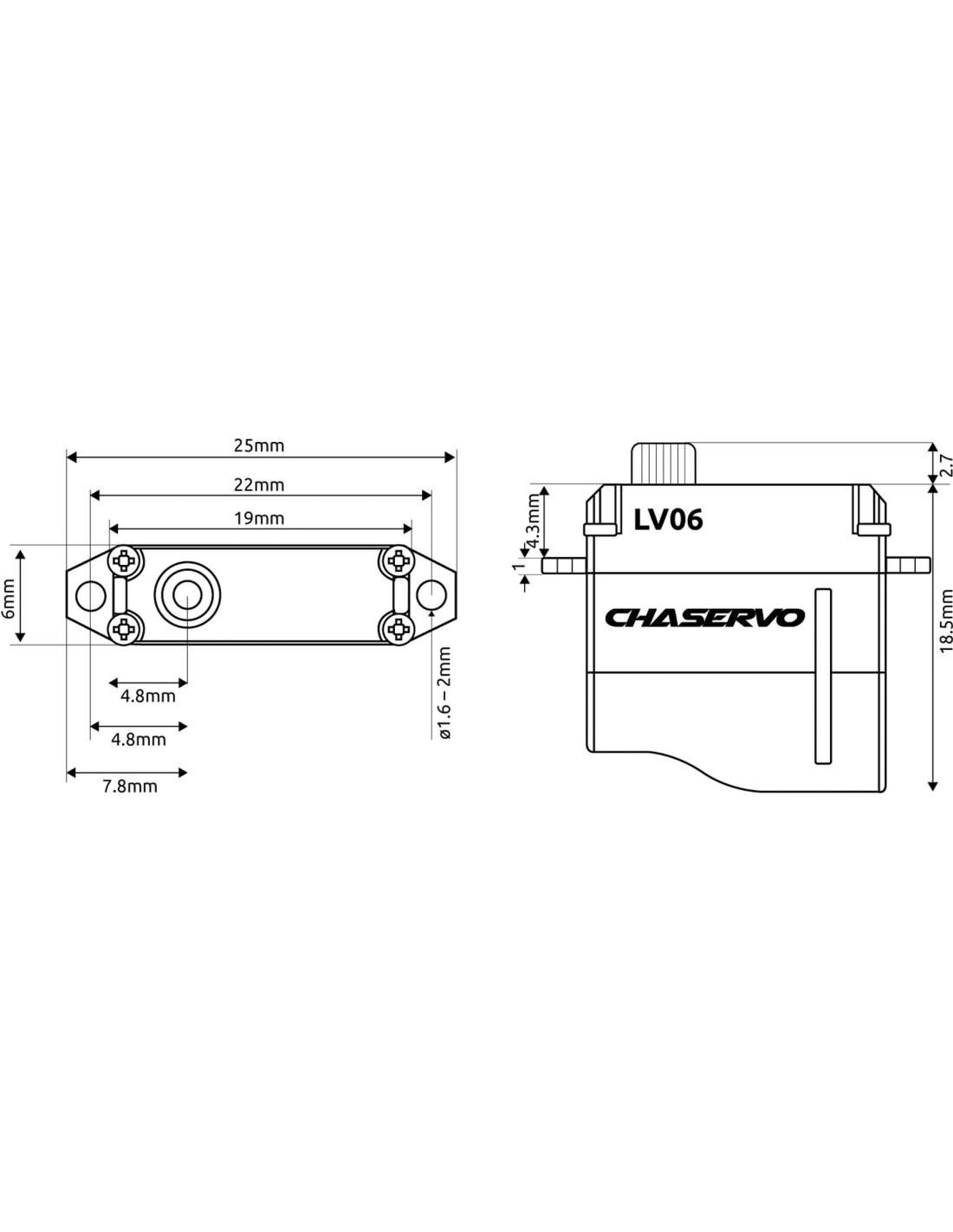

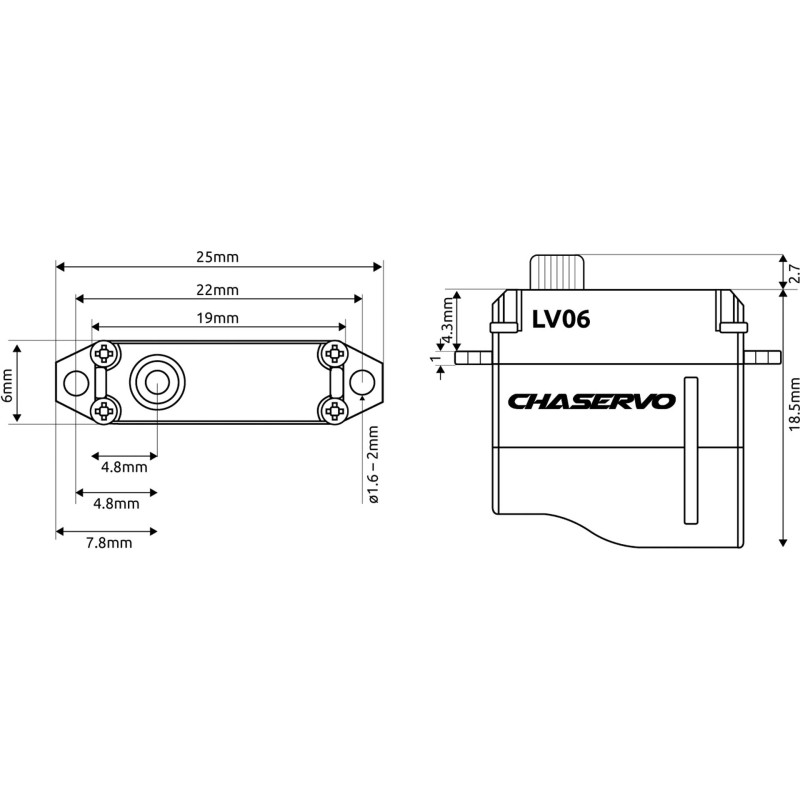

Thickness in mm (Servos)
Torque in kg.cm (servos): 1.7
Speed sec / 60° (servos): 0.05
Pinions (servos): Metal
Bearing (servos): yes
Technology (sevos): Digital
HV (servos): no
Weight in g (servos): 6

Reference 366-LV06
