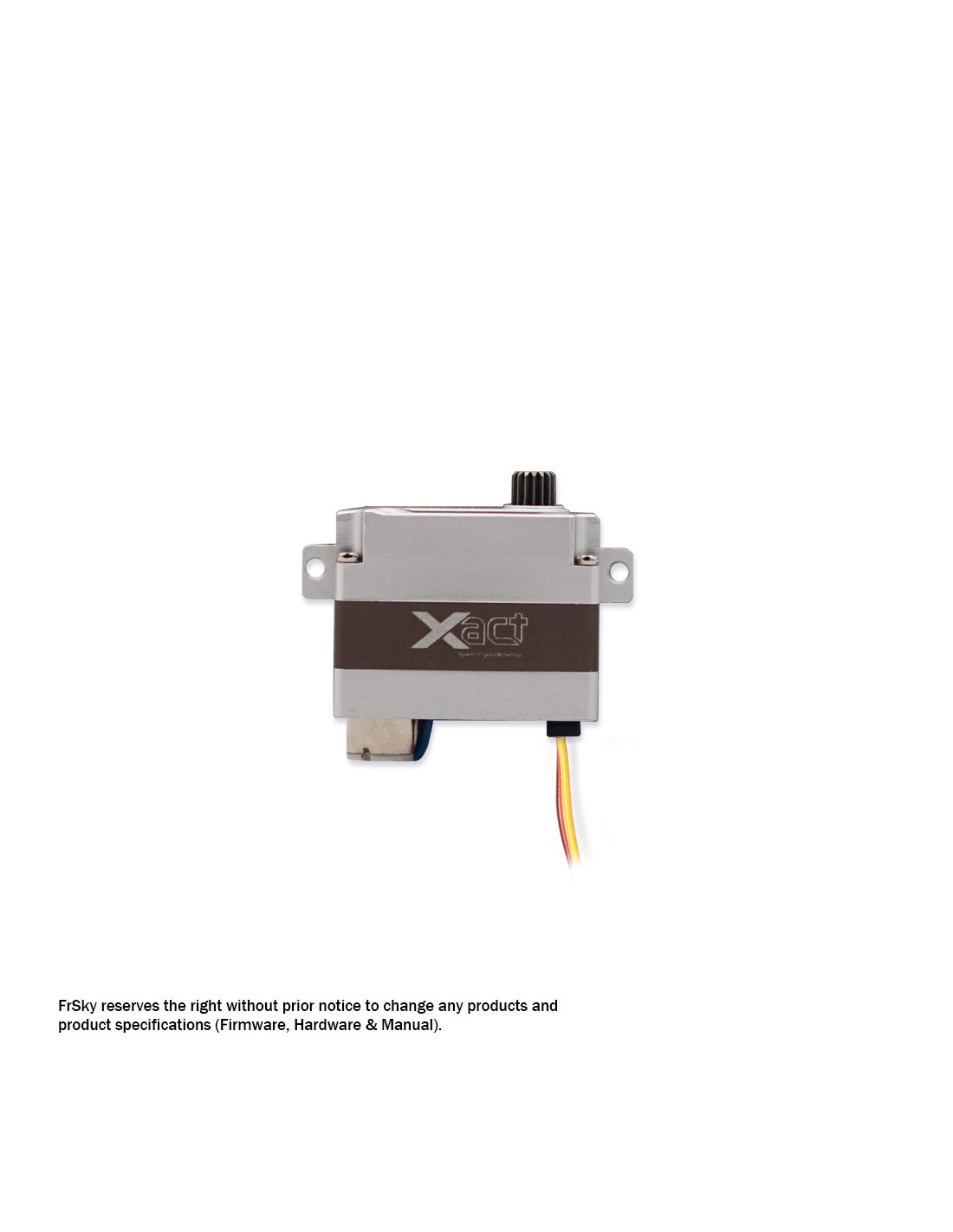

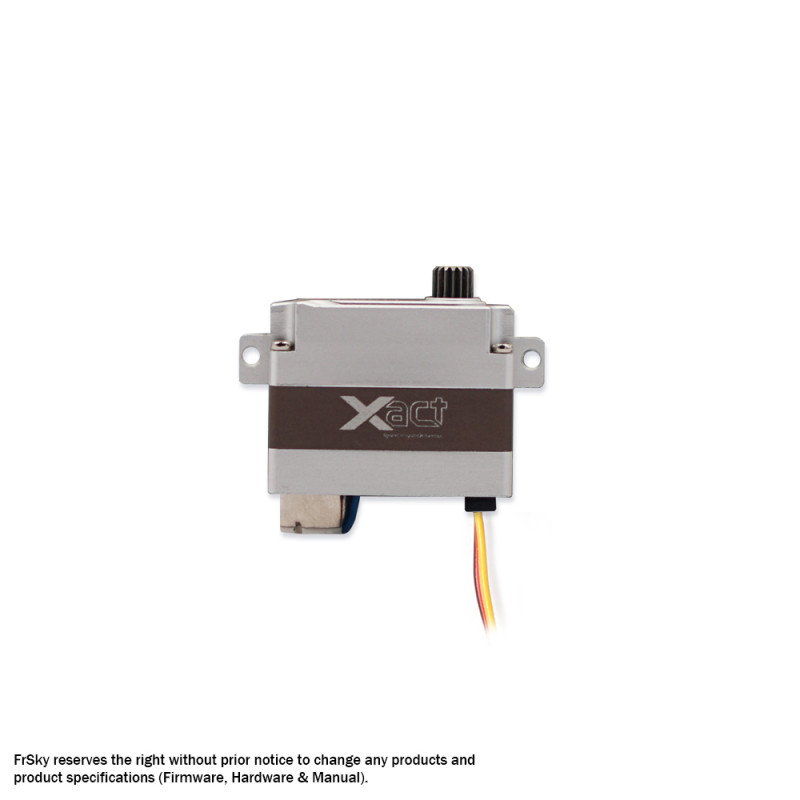

The Xact Series coreless servos use a fully CNC machined aluminum protective housing and benefit from metal gears. These high voltage servos are capable of handling up to 8.4V and offer high performance in terms of speed and torque. The Xact series servos fit many different types of models, especially when power, reliability and accuracy are required.
These high-quality servos support the FBUS protocol, which allows telemetry data (such as real-time current, voltage, temperature, etc.) from Xact servos to be transmitted to the radio by connecting an FBUS-compatible receiver or flight controller. The Xact servos offer a configurable travel (90° / 120° / 180°). The servo travel and other options are now available for adjustment via the ETHOS Xact configuration tool or the Freelink application.
Dimension: 19*8*23mm (L*W*H)
Weight: 10g
Dentition: 15T
Power supply voltage: 4.8-8.4V
Frequency: 333Hz
Torque: 2.1Kg at 6.0V 2.4Kg at 7.0V 4.8Kg at 8.4V
Speed: 0.11s/60° under 6.0V 0.1s/60° under 7.0V 0.05s/60° under 8.4V
Sprockets: metal
