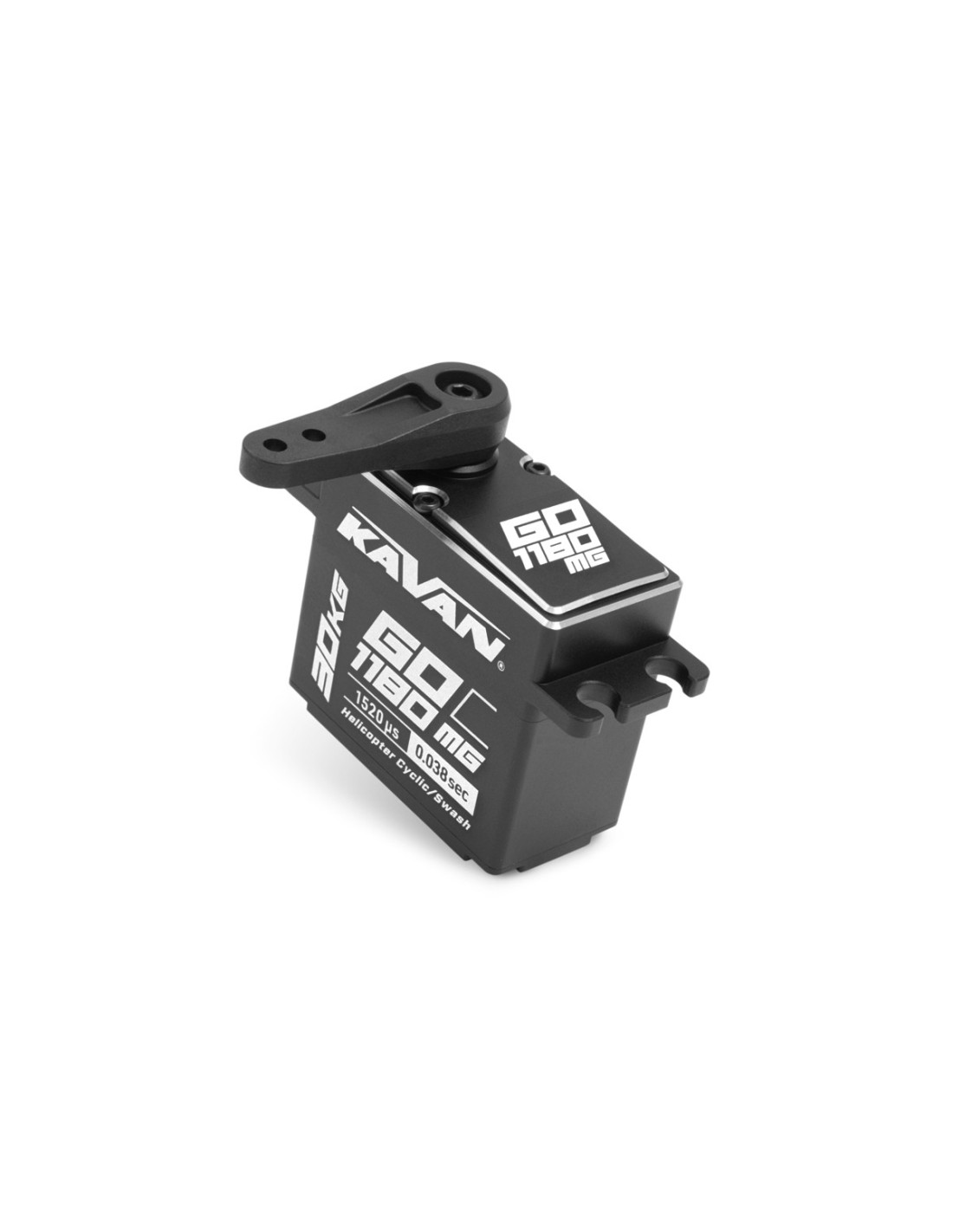

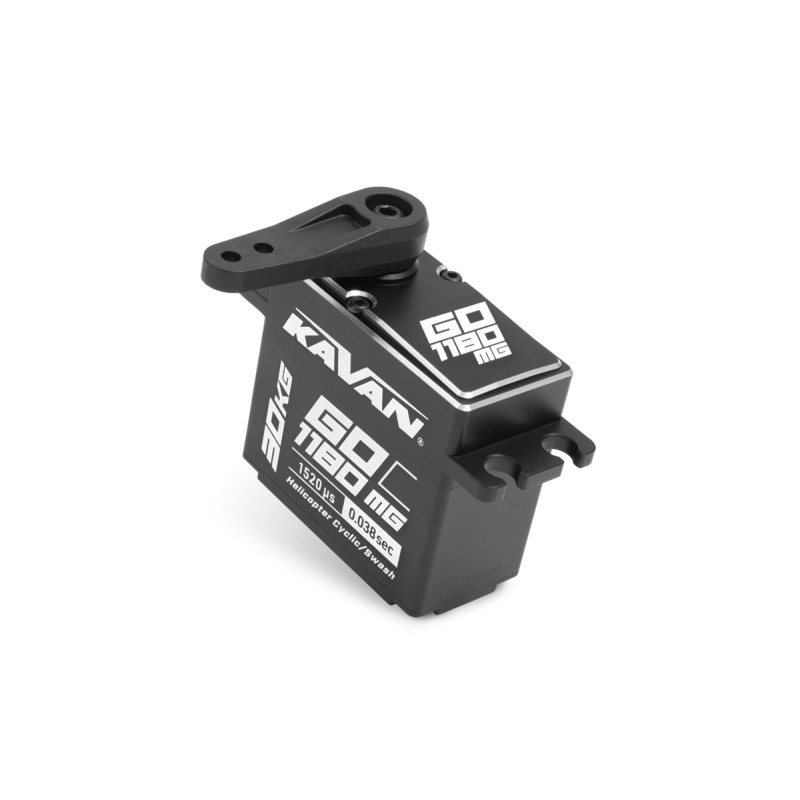

GO-1180MG (0.038s/60°, 30kg.cm)

Out-of-Stock
€83.25
Tax included

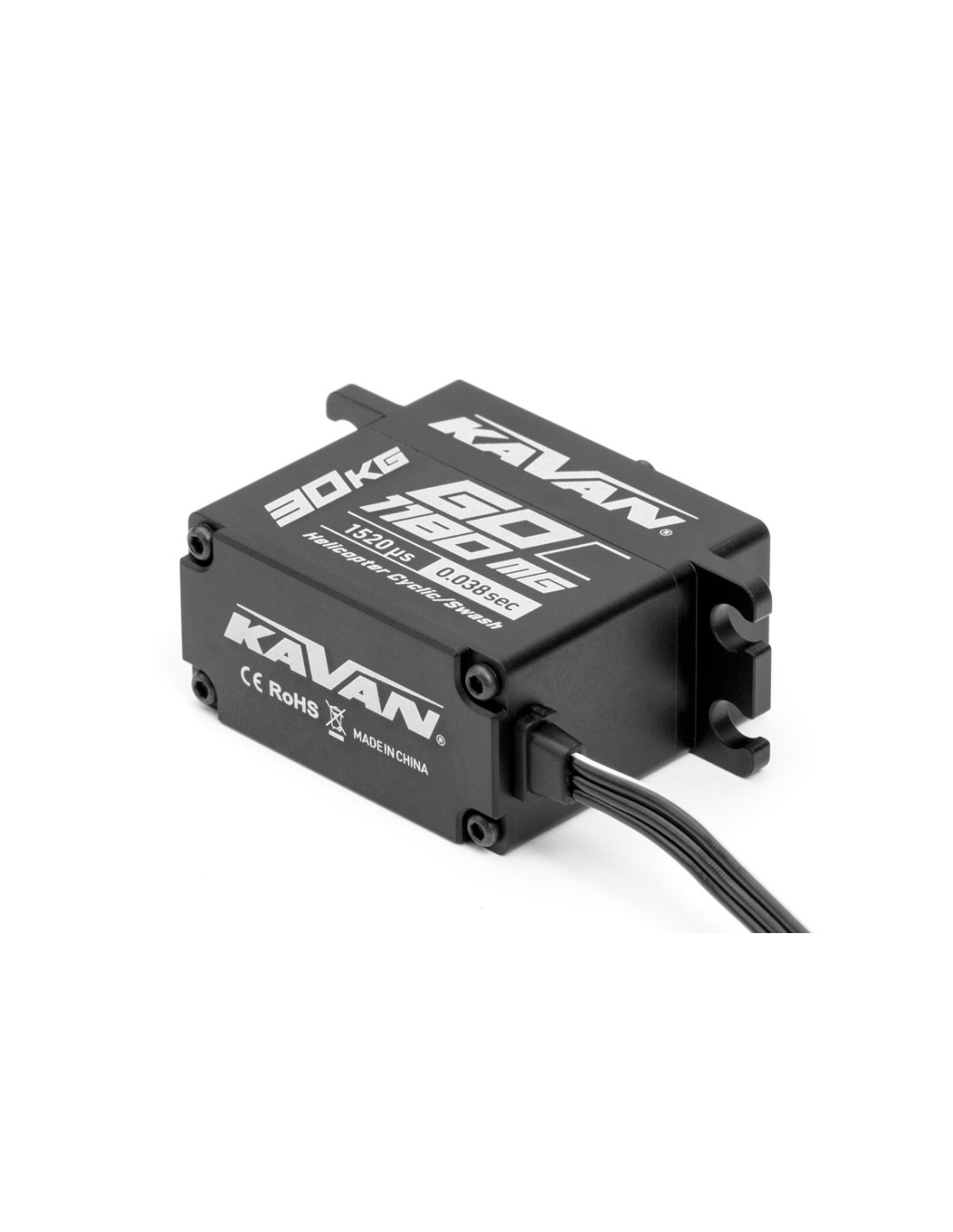

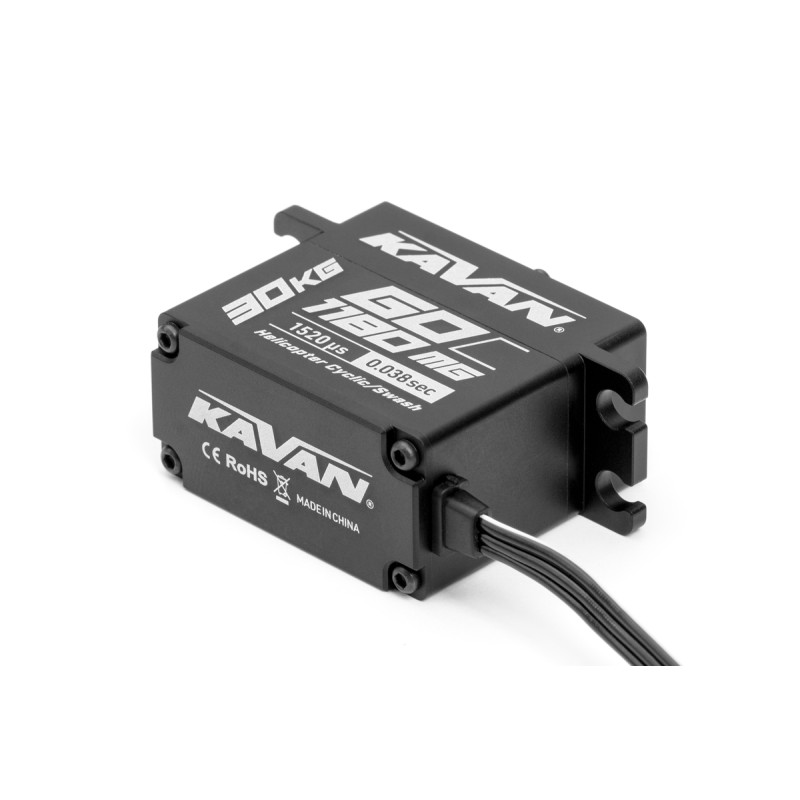

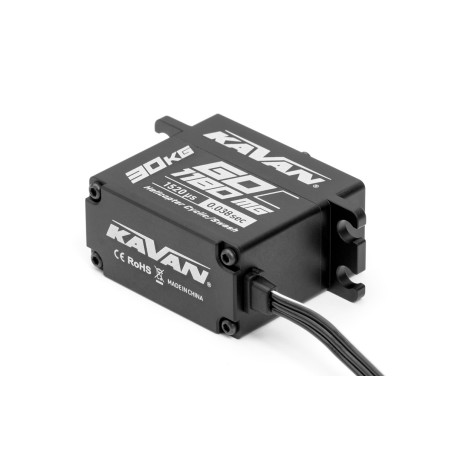

High torque, ultra high speed 79g digital standard brushless servo with titanium/hardened steel gearing and triple BB-ed output shaft. Works perfectly as a swashplate servo for RC 500-800 helicopters, etc. All aluminum housing for perfect cooling under heavy load.

GO-1180MG is not programmable.

Wide input voltage range 4.8-7.4V (nominal).

25T/5.92 mm output shaft.


custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option

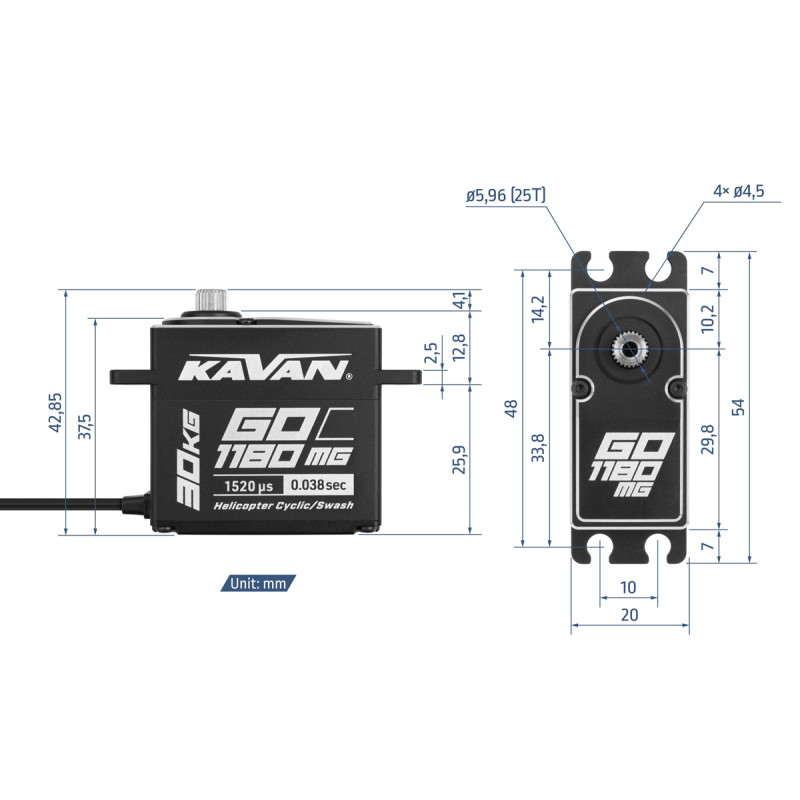

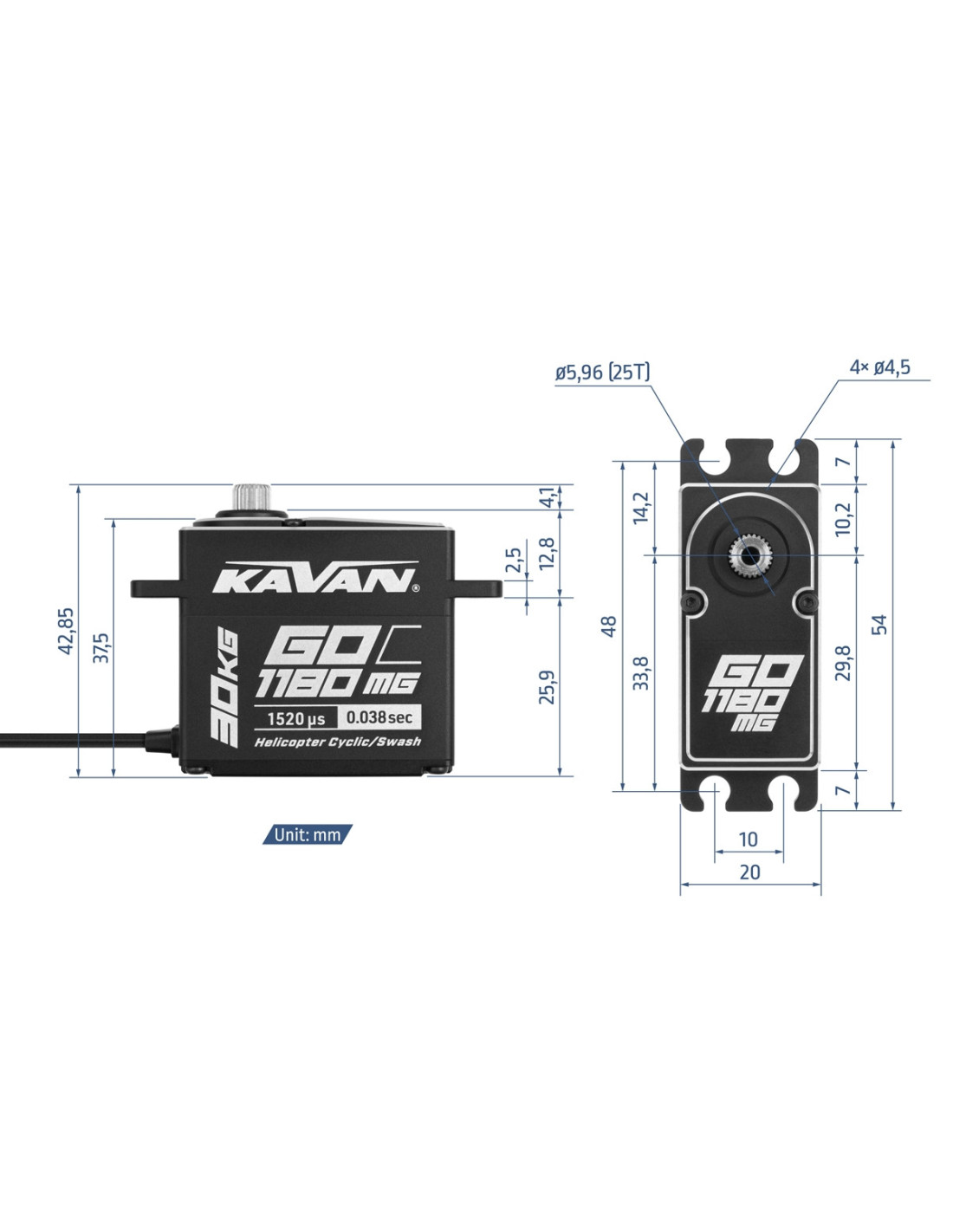

Servo dimensions Standard 40x20x38

Servo type Digital

Programmable No

Thrust at 4.8V [kg/cm] 22

Thrust at 6.0V [kg/cm] 24

Thrust at 7.4V [kg/cm] 28

Thrust at 8.4V [kg/cm] 30

Speed at 4.8V [s/60st] 0.06

Speed at 6.0V [s/60st] 0.05

Velocity at 7.4V [s/60st] 0.042

Speed at 8.4V [s/60st] 0.038

Servo gears Metal, Titanium

Ball bearings 3×

High voltage Yes

Power supply [V] 4.8 - 8.4

Length [mm] 40

Width [mm] 20

Height [mm] 37.5

Weight [g] 79

For use in helicopters

Thickness in mm (Servos)
20
Torque in kg.cm (servos)
30
Speed sec / 60° (servos)
0.04
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
79
210-KAV20.1180MG
8596450043022
