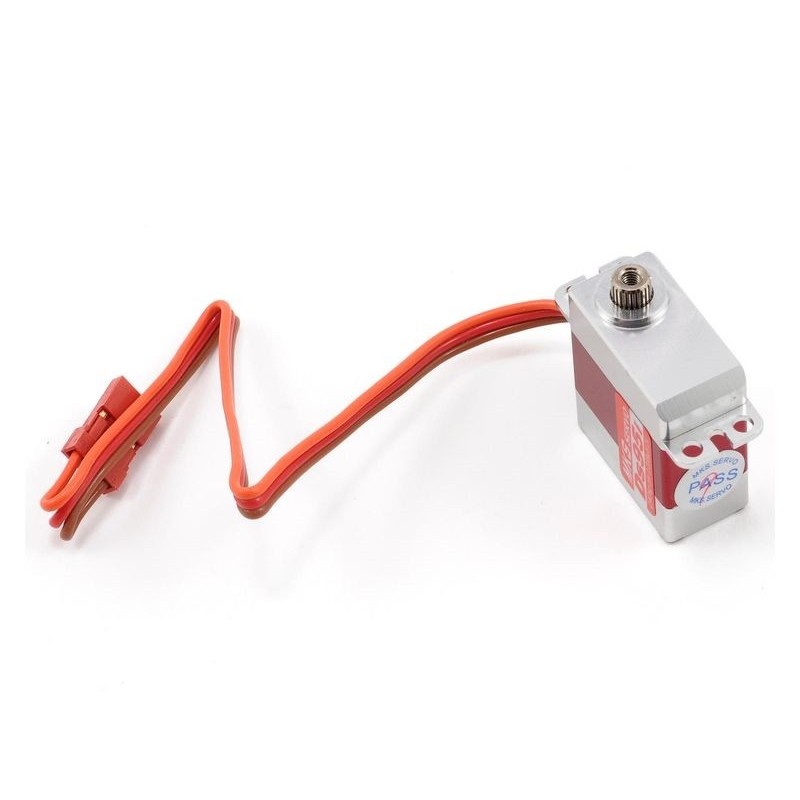

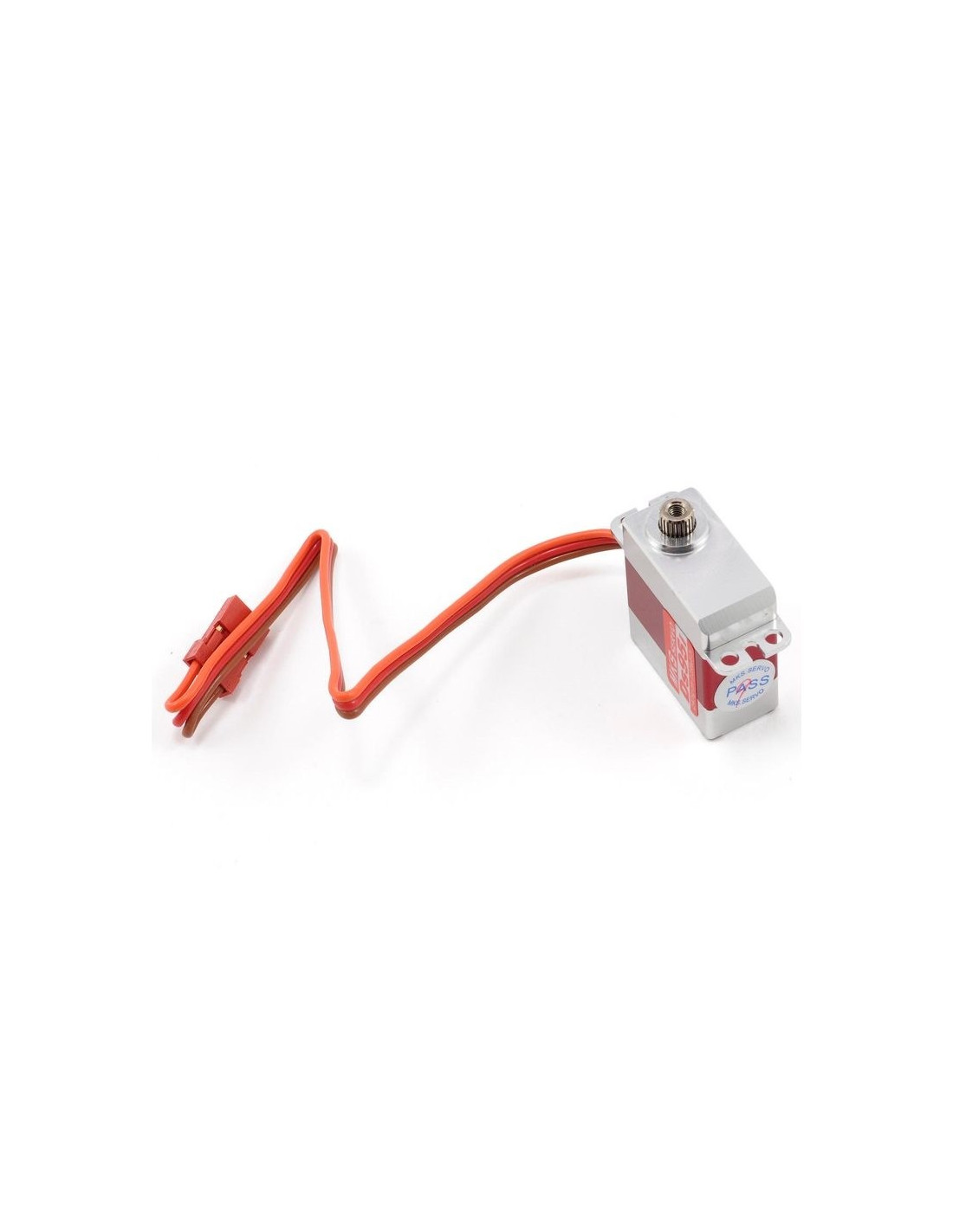

Digital metal servo DS95i Mks

Last items in stock

€70.75

Tax included

FLASH RC, authorized distributor MKS for France offers this elevator / drift servo for glider of very high quality: - digital servo - motor coreless - return to neutral ultra precise - zero play - aluminum housing machined in the mass, for extreme rigidity - chrome gear set - double bearing - locking torque 2.40kg/cm under 6V with speed 0.038sec/60°! set of chrome gears- double bearing- locking torque of 2,40kg/cm under 6,0V with a speed of 0,038sec/60° !- dead band : 0,001ms- Dimensions : 23x12x27.5 mm- weight : 21,21gr.The DS95i is an ultra fast servo designed to be connected on gyroscopes operating in 760µs (does not work on the classic 1520µs outputs of receivers).

Features :

Dead band: 0.001ms (Default)
Control System: +Pulse Width Control
Working frequence: 760µs / 560hz
(RX) Required Pulse: 3.0~5.0 Volt Peak to Peak Square Wave
Operating Voltage: 4.8~6.0 V DC Volts
Operating Temperature Range: -10 to + 60 Degree C
Operating Speed (4.8V): 0.047 sec/60° degrees at no load
Operating Speed (6V): 0.038 sec/60° degrees at no load
Stall Torque (4.8V): 1.92 kg-cm (26.66 oz/in)
Stall Torque (6V): 2.40 kg-cm (33.33oz/in)
360° Modifiable: YES
Motor Type: Coreless motor
Potentiometer Drive: Direct Drive
Driver Type: FET
Bearing Type: Dual ball bearings
Gear Type: Chrome-Titanium alloy gear
Programmable: NO
Connector Wire Length: 20.0 cm (7.86 in)

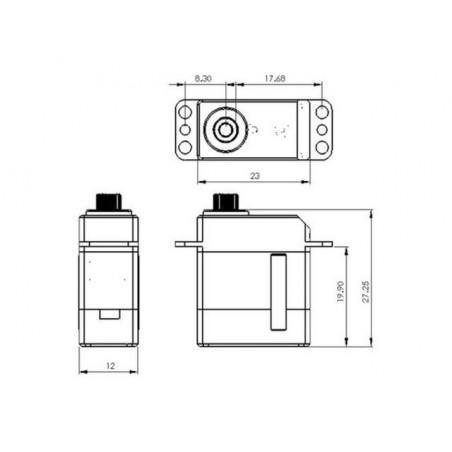

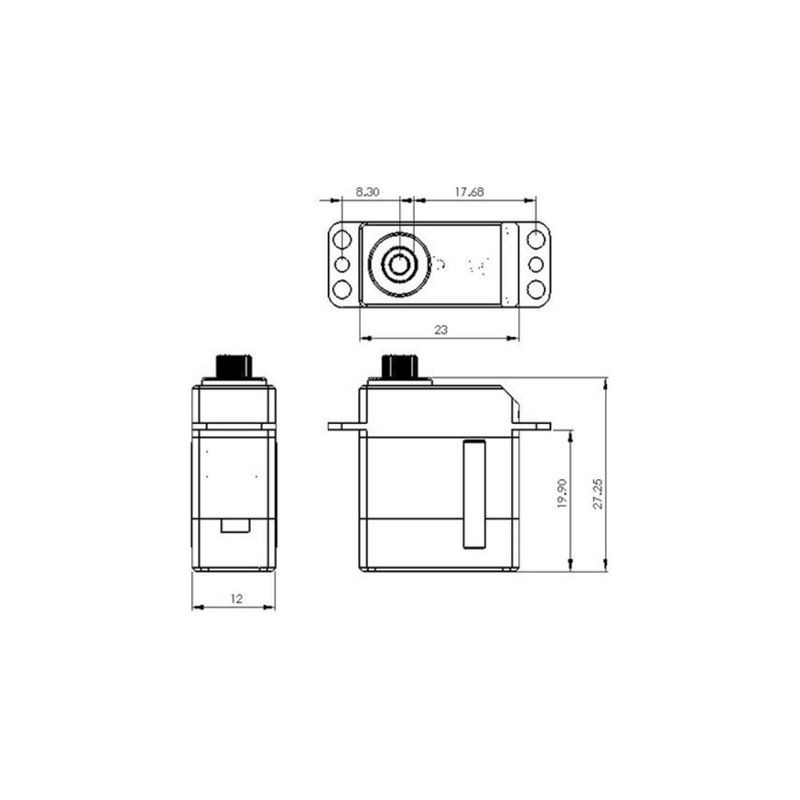

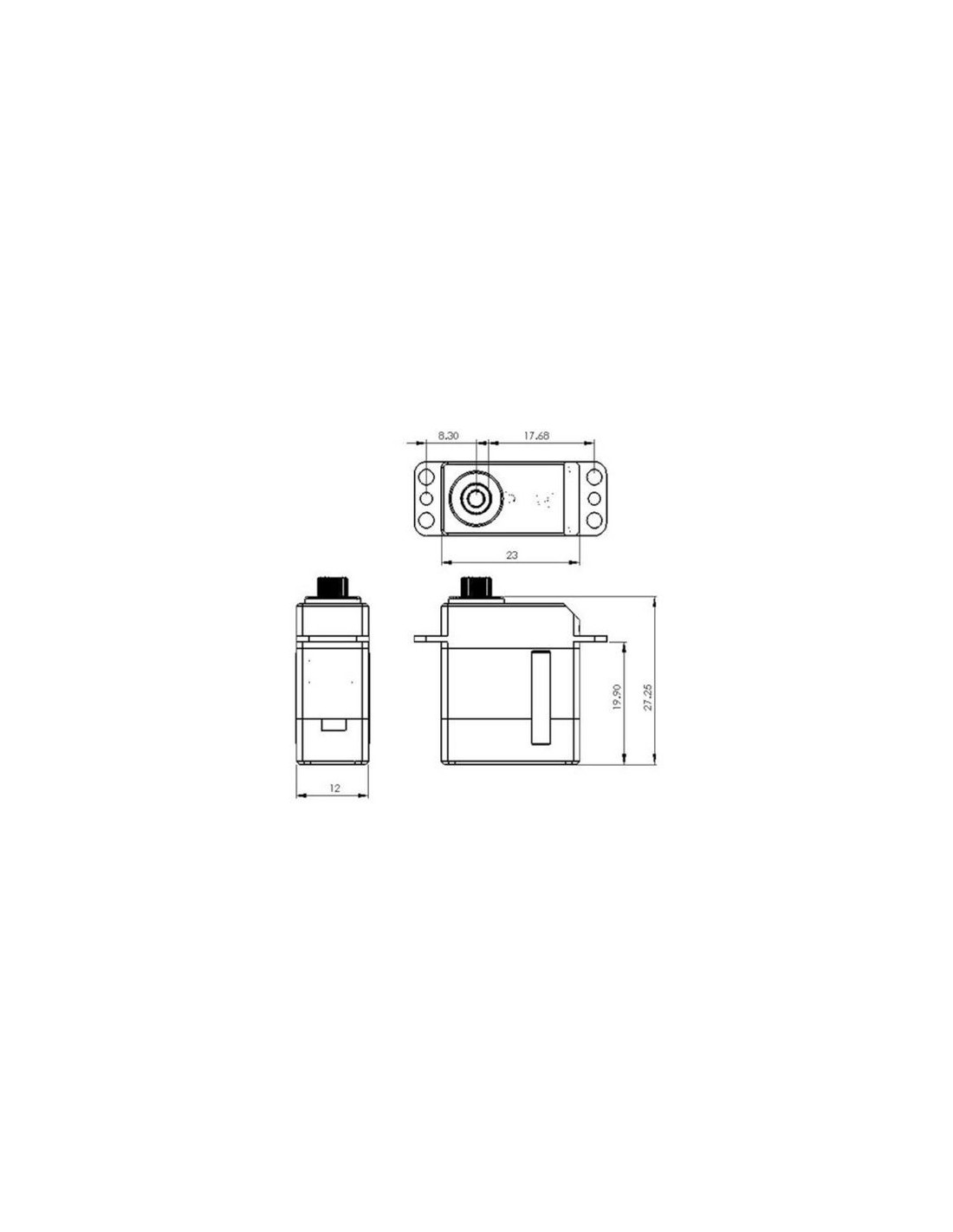

Dimensions: 23X12X27.25 mm (0.9X0.47X1.07 in)
Weight: 21.21 g (0.74 oz)

Thickness in mm (Servos): 12
Torque in kg.cm (servos): 2.4
Speed sec / 60° (servos): 0.03
Pinions (servos): Metal
Bearing (servos): yes
Technology (sevos): Digital
HV (servos): no
Weight in g (servos): 21.21

Reference 128-S0017002

EAN13 8800223315217

MPN 8800223315217
