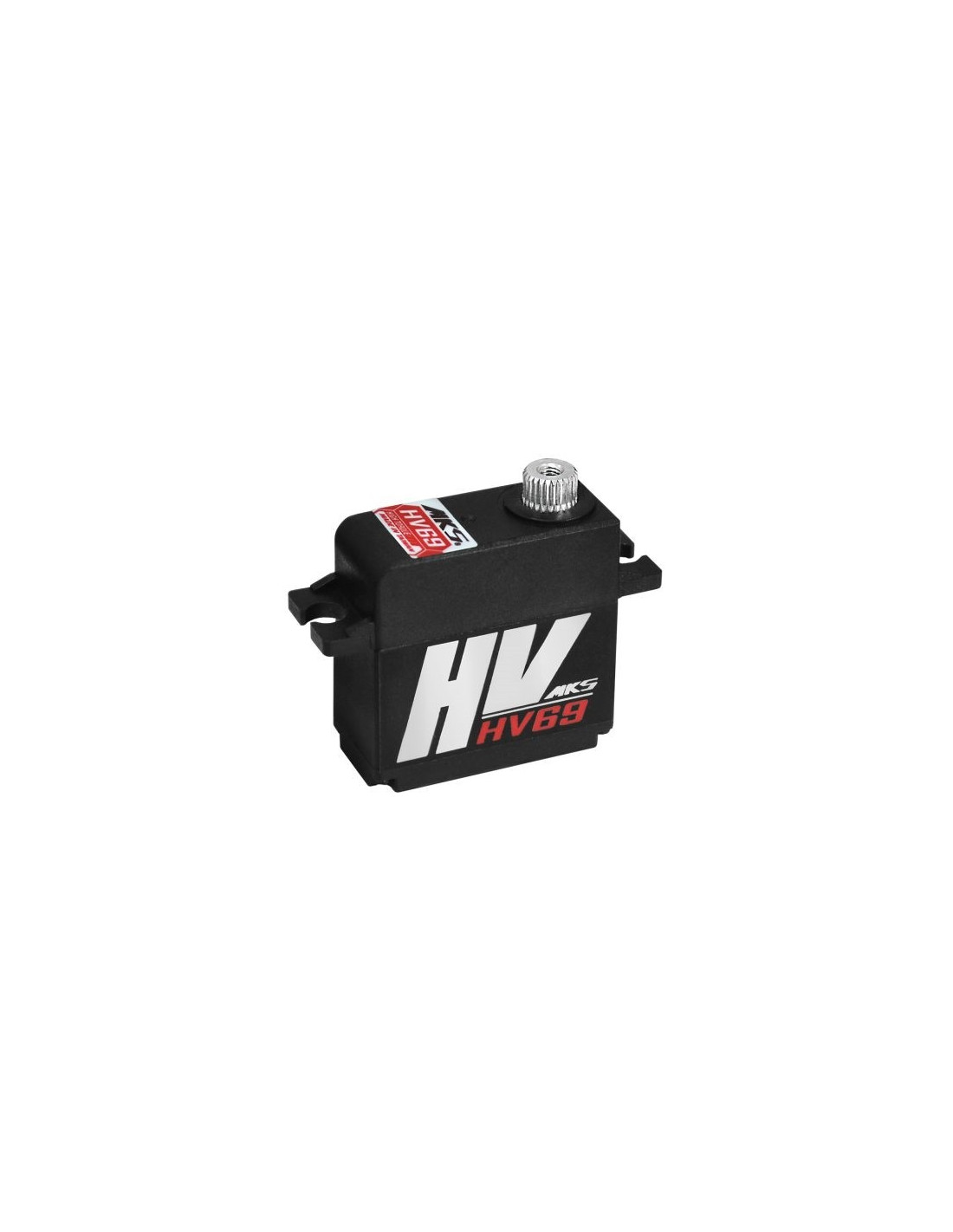

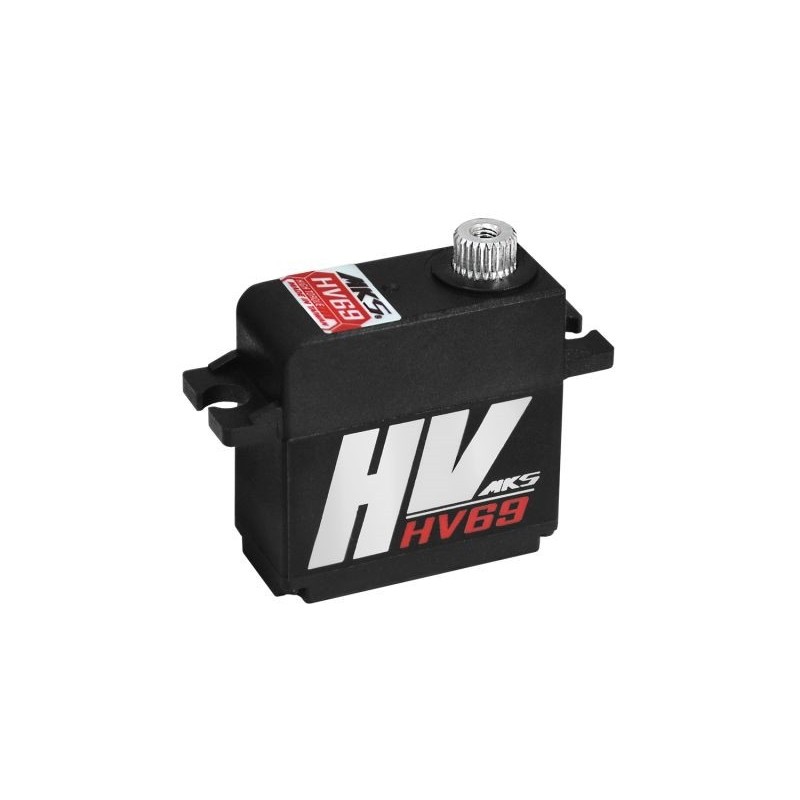

Digital metal servo HV69 Mks

€50.75
Tax included
FLASH RC, authorized MKS distributor for France offers this HV69 servo with very high torque of 10.2kg/cm for 13mm thickness only: - digital servo - ultra precise neutral return - coreless motor - set of metal gears - double bearing - locking torque of 10.2kg/cm under 8.2V with a speed of 0.10sec/60° - Dimensions : 29x13x29 mmThe HV69 is a metal gear servo particularly suitable for large glider wings due to its 13mm thickness, or the depth of many models.It is designed to be powered directly by 2S LiFe or LiPo, but also works with 5 NiMh cells. Its installation in the wings is made easier thanks to the two mounting brackets delivered with the HV69 servo.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Features:

Torque: 6.0 kg-cm (4.8V) / 7.5 kg-cm (6.0V) / 10.2 kg-cm (8.2V)
Speed: 0.17 s (4.8V) / 0.13 s (6.0V) / 0.10 s (8.2V)
Weight: 21 g

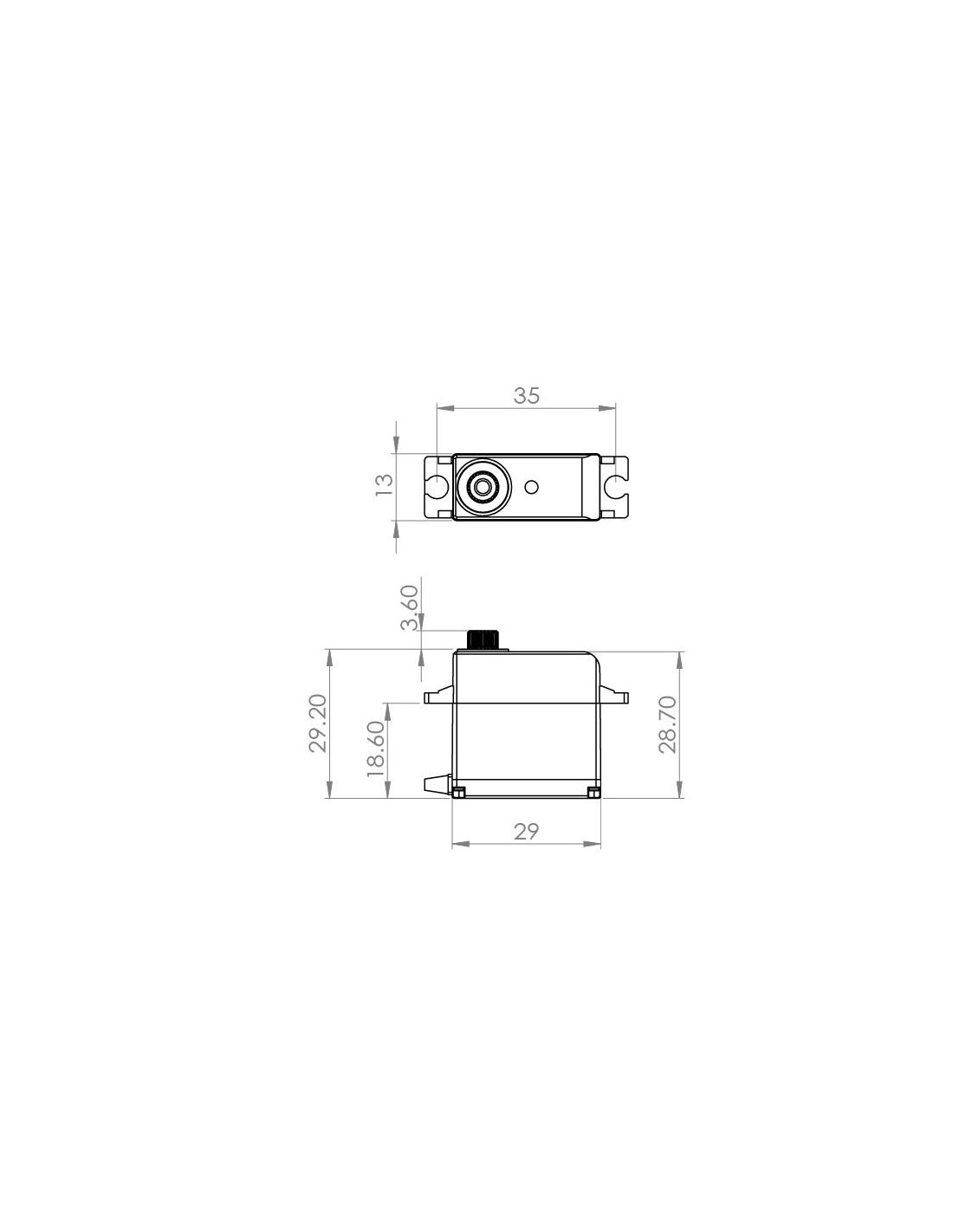

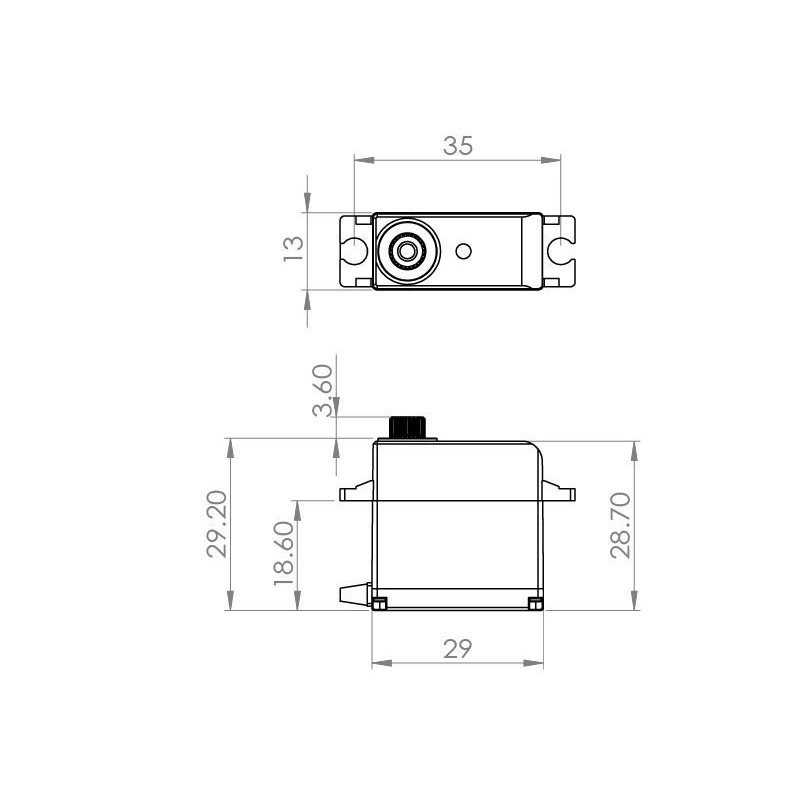

Dimensions : 29 x 13 x 29 mm
Voltage : 4.8V~8.2 V DC Volt (2S Lipo not regulated)
Frequency : 1520μs / 333hz
Dead Band : 0.001 ms (Default)
Bearing : 2 bearings
Motor : 1 Coreless motor
Pinions : Metal
Travel for +/- 60° : 920µs / 1520µs / 2120µs

Thickness in mm (Servos)
13
Torque in kg.cm (servos)
10.2
Speed sec / 60° (servos)
0.1
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
21
128-S0022012
4710150350257
4710150350257
No reviews
Comments (0)
No customer reviews for the moment.
