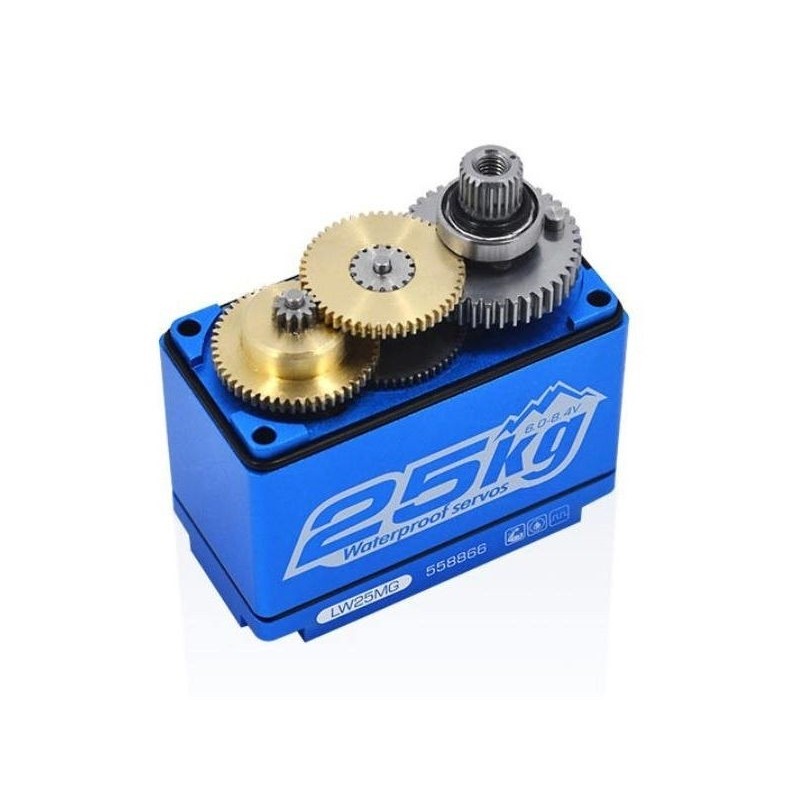

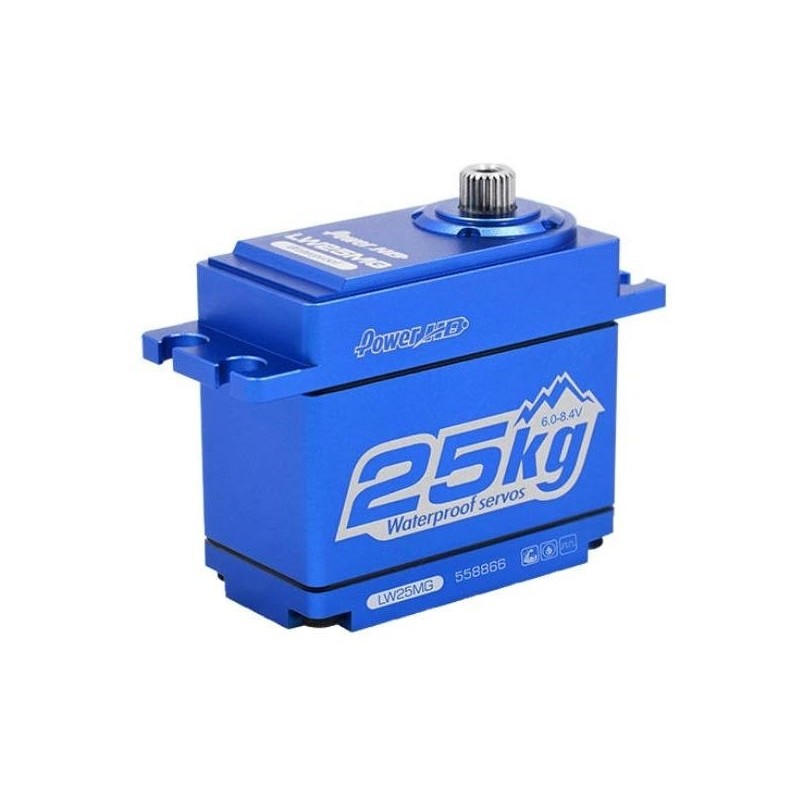

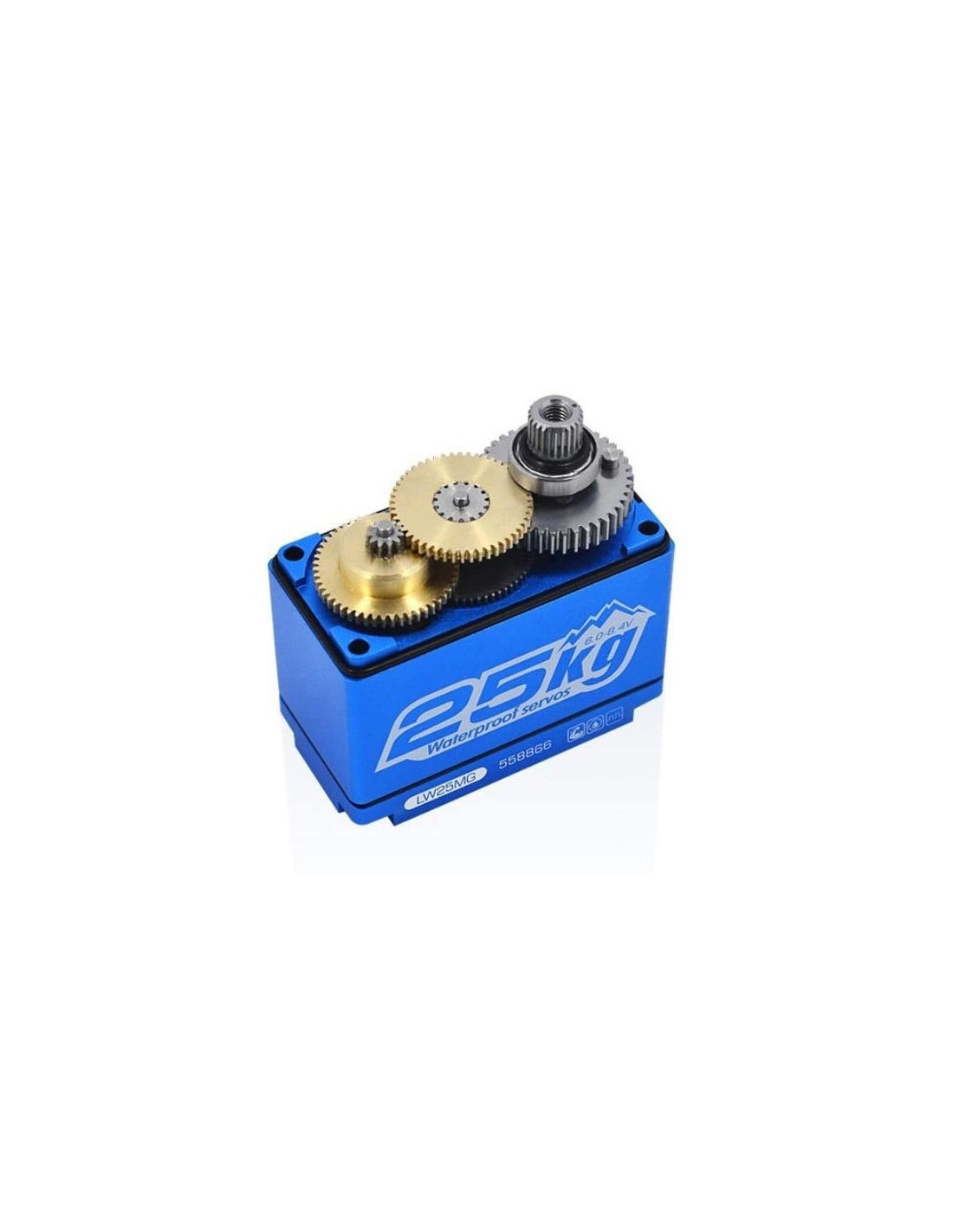

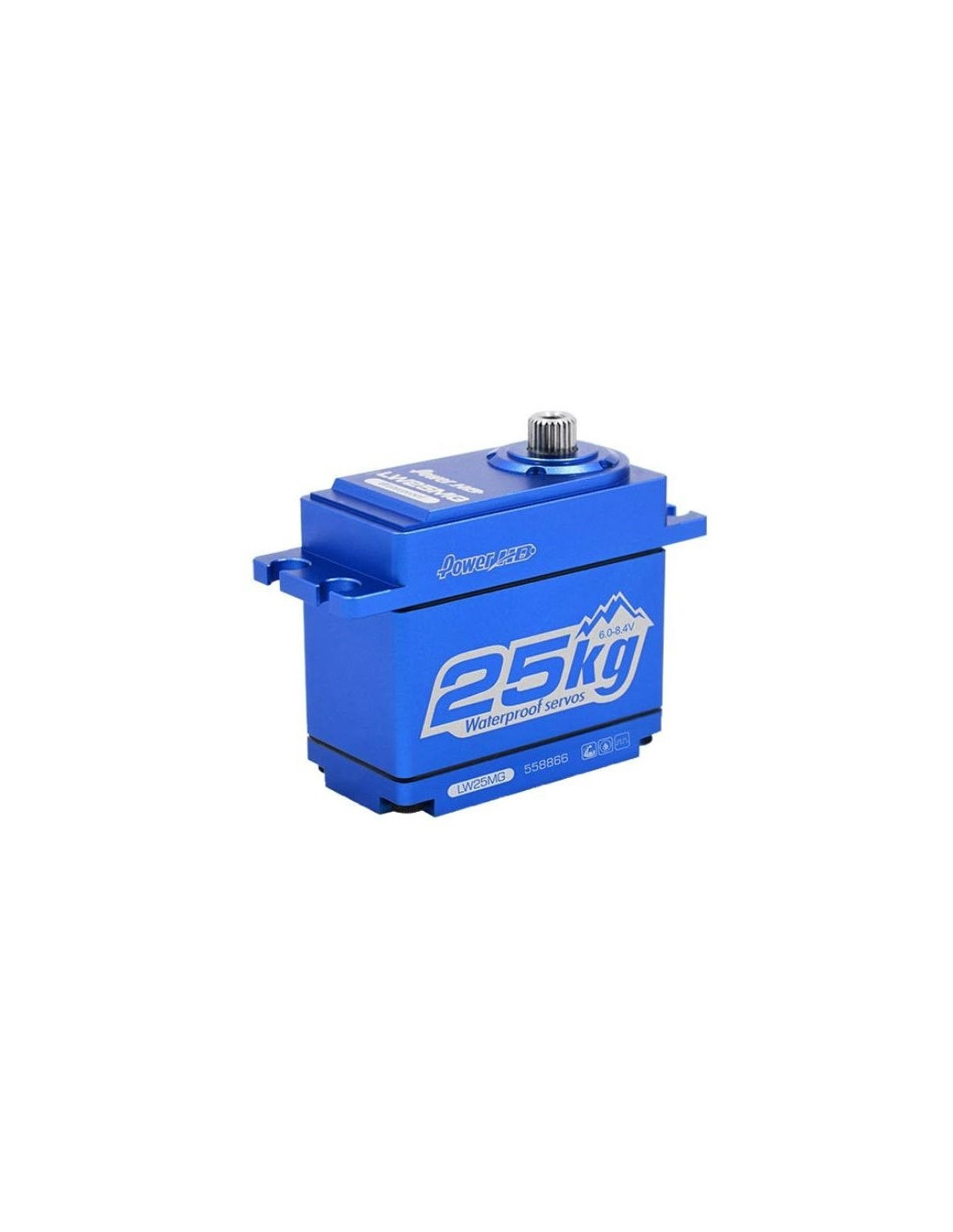

Power hd standard servo LW-25MG 25Kg digital HV

€49.92
Tax included
Servo Power HD LW-25MG, 25kg of torque with metal gears, HV waterproof servos, can be powered with 7.4VC, particularly suitable for Crawler (Traxxas TRX-4 for example)

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Technical data

  • Torque (6.0V): 23 kg-cm
  • Torque (7.4V): 25 kg-cm
  • Speed: 0.16 sec (6.0V)' 0.14 sec (7.4V)
  • Supply voltage: 6.0 - 7.4 V
  • Mass: 72 g
  • Double bearing
  • Pinions: Titanium / Steel
  • Frequency: 1520μs / 333hz
  • Dimensions: 40.7 x 20.5 x 38.5 mm

Thickness in mm (Servos)
20.5
Torque in kg.cm (servos)
25
Speed sec / 60° (servos)
0.14
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
72
178-HD-LW-25MG
6939680252505
6939680252505
No reviews
Comments (0)
No customer reviews for the moment.
