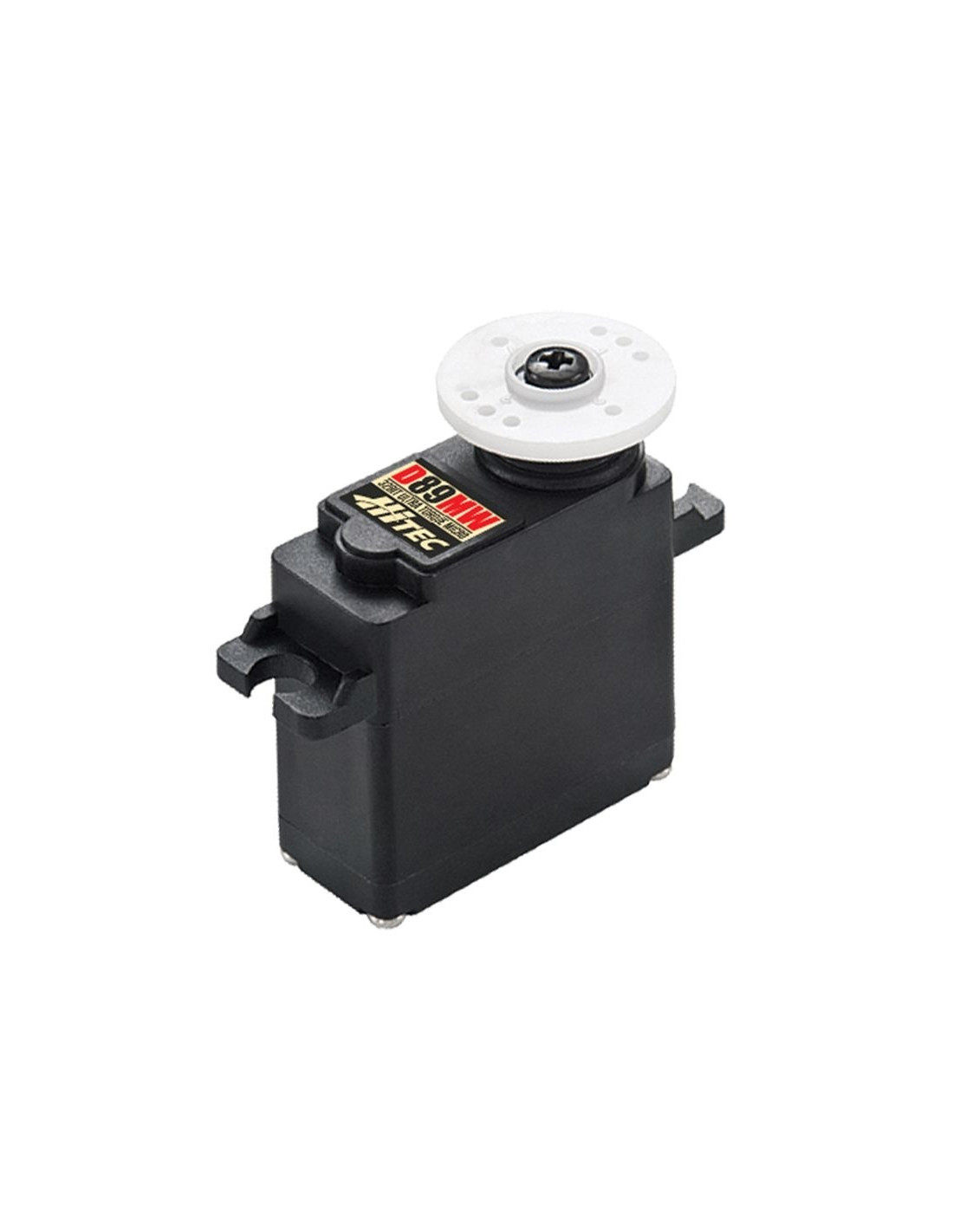

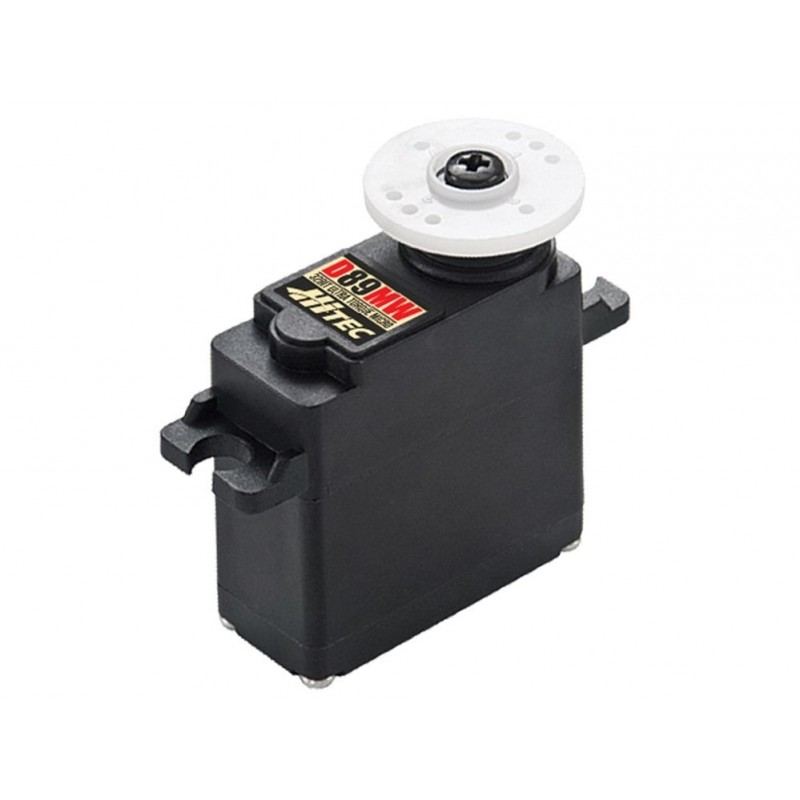

Hitec D-89MG HV digital servoTake the popular Hitec HS-85. Add a set of five metal gears, Hitec's High Response technology, 32-bit D-Series processor board, two bearings, and the ability to operate from 4.8V to 7.4V...and you have the new gold standard in mini performance servos! The HITEC D-Series D-89MW ultra-fast servos offer the highest resolution on the market today. The best response and programming capabilities are achieved through the 32-bit MCU and 12-bit ADC technology.The 'D' series includes HITEC servos that operate on both conventional (4.8/6V) and HV (8.4V) voltage. The D-89MW Digital servo is fully programmable and offers good durability thanks to its robust full steel gears and two ball bearings on the output shaft, which is especially suitable when low backlash and high positioning accuracy are important.The long life and uniquely designed transmission make it one of the most reliable and efficient servos on the market.
custom html
To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option
Features :
- Width: 13 mm
- Height: 30 mm
- Length: 29 mm
- Weight: 25 gr
- Servo type: mini
- Special features: large digital voltage
- gears: metal (x5)
- Operating voltage in V: 4.8-7.4 V
- Operating time s / 60 ° at 4.8 volts: 0.17
- Operating time s / 60 ° at 7.4 volts: 0.11
- Torque in kgcm at 4.8 volts: 5.3
- Torque in kgcm at 7.4 volts: 8.5
- Gear: 25T
- Ball bearing: yes, double
- Sealed: no

- Thickness in mm (Servos)
- 13
- Torque in kg.cm (servos)
- 8.5
- Speed sec / 60° (servos)
- 0.11
- Pinions (servos)
- Metal
- Bearing (servos)
- yes
- Technology (sevos)
- Digital
- HV (servos)
- yes
- Weight in g (servos)
- 25
