Savox SV-1232MG micro digital servo (23g, 5kg.cm, 0.05s/60°)

Last items in stock
€56.50
Tax included

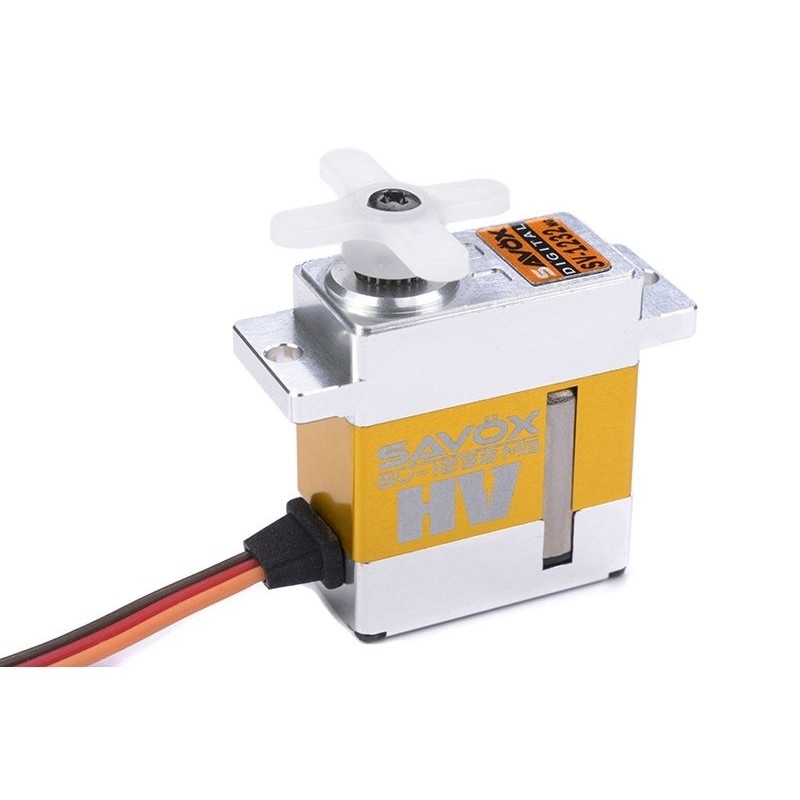

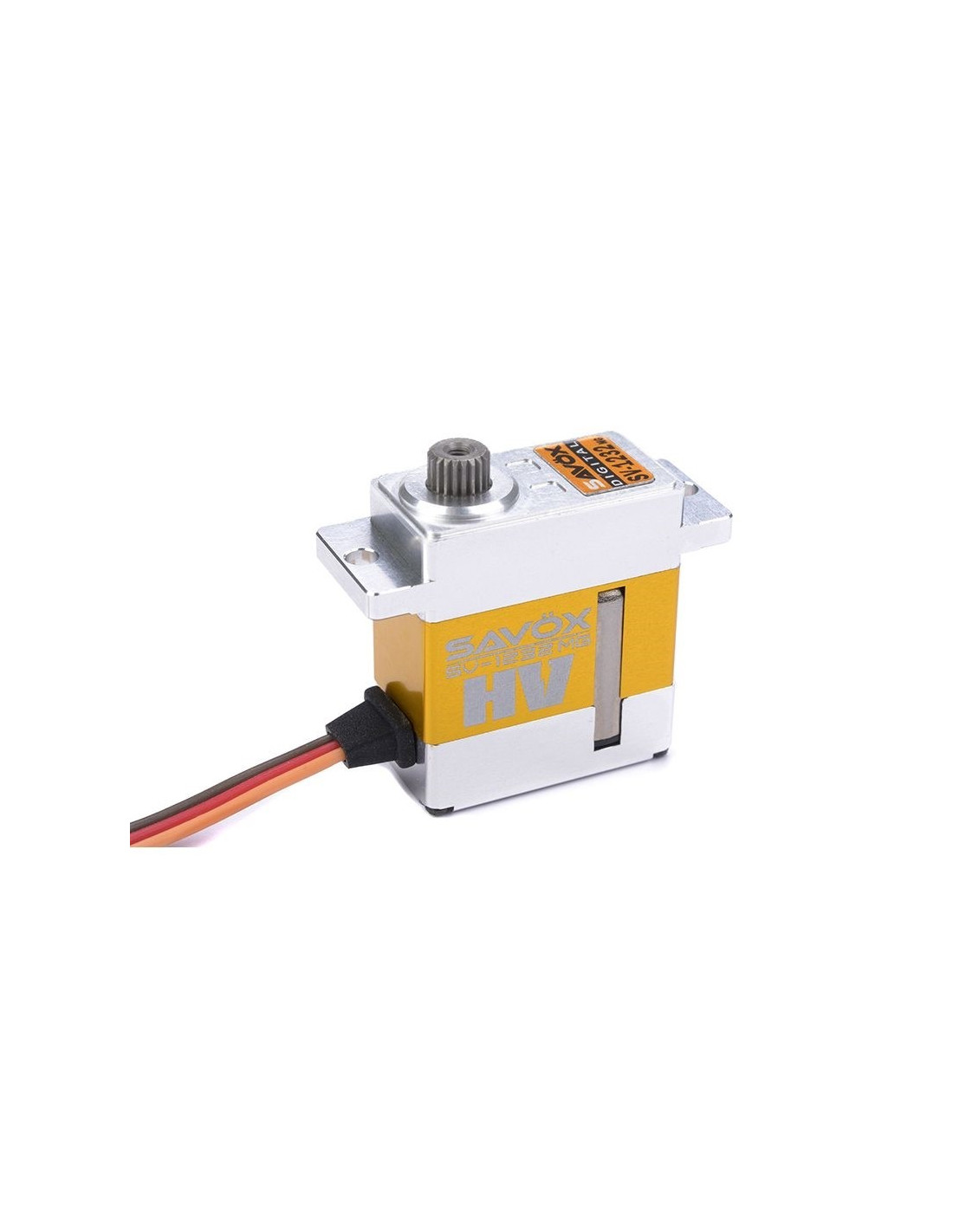

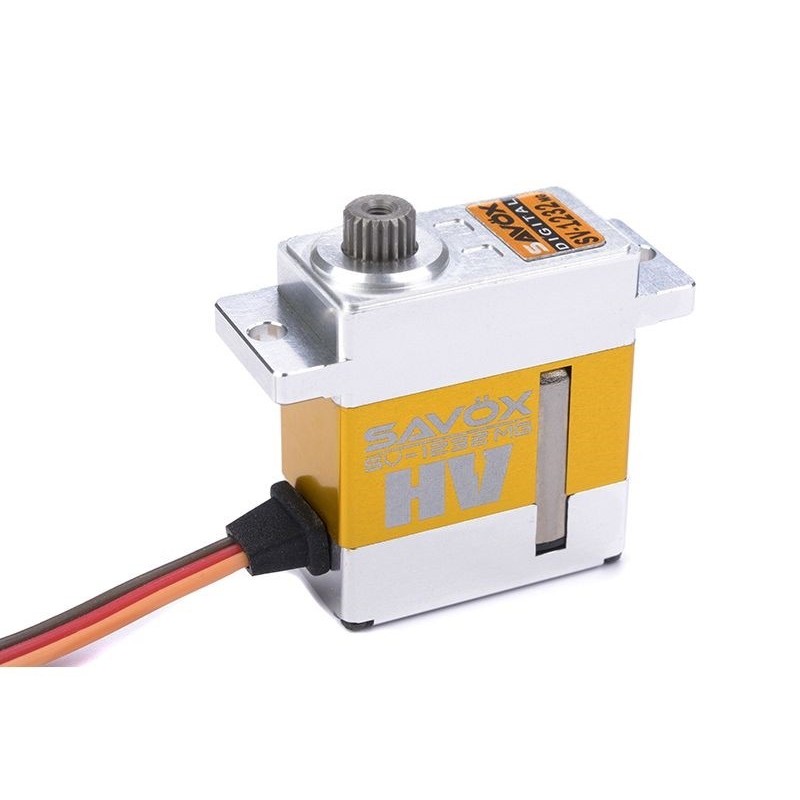

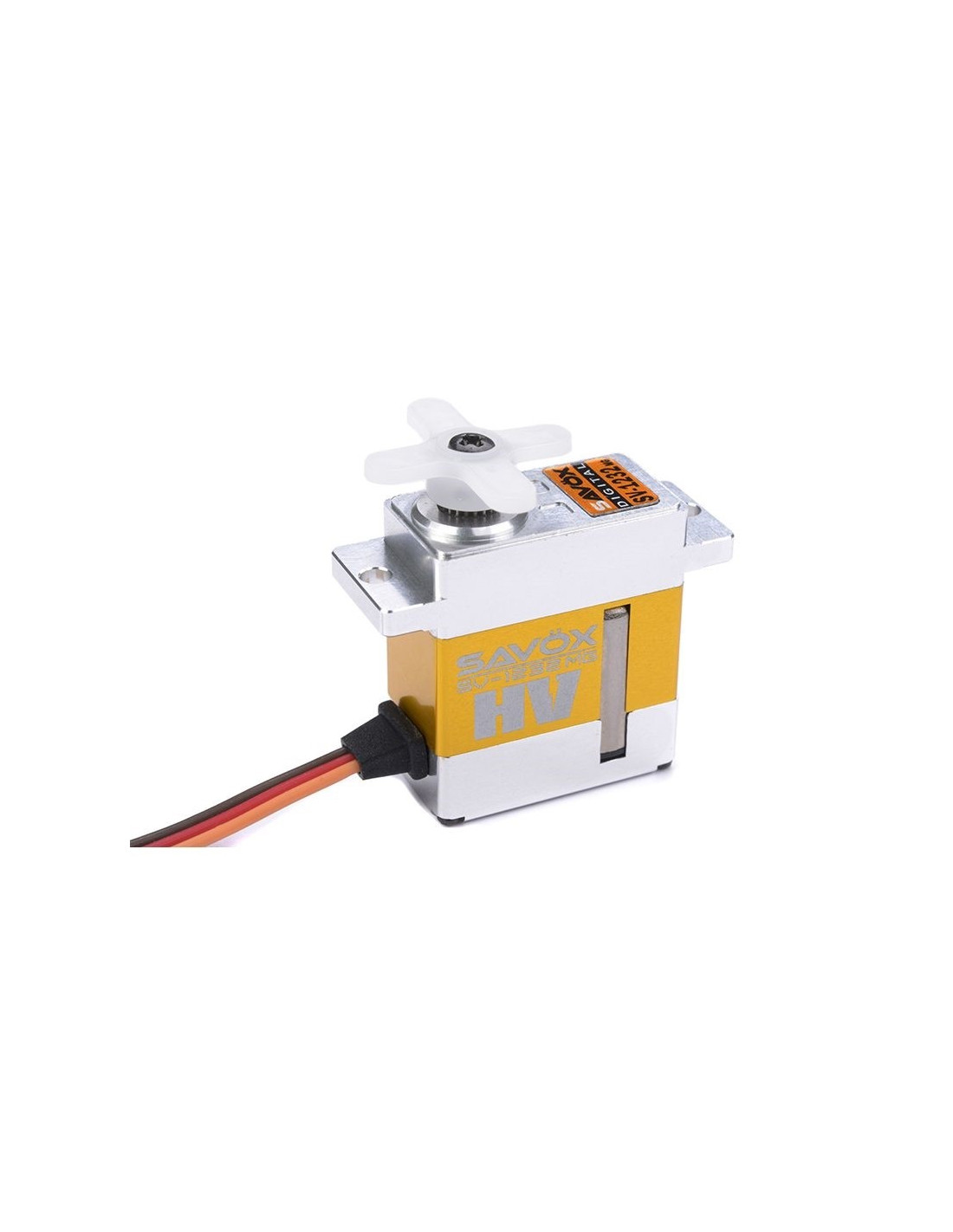

This SAVOX SV-1232MG servo has a waterproof aluminum housing, which allows it to be used in wet or dusty conditions. This servo is suitable for helicopter type 250/450 and parkflyer aircraft.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Technical specifications

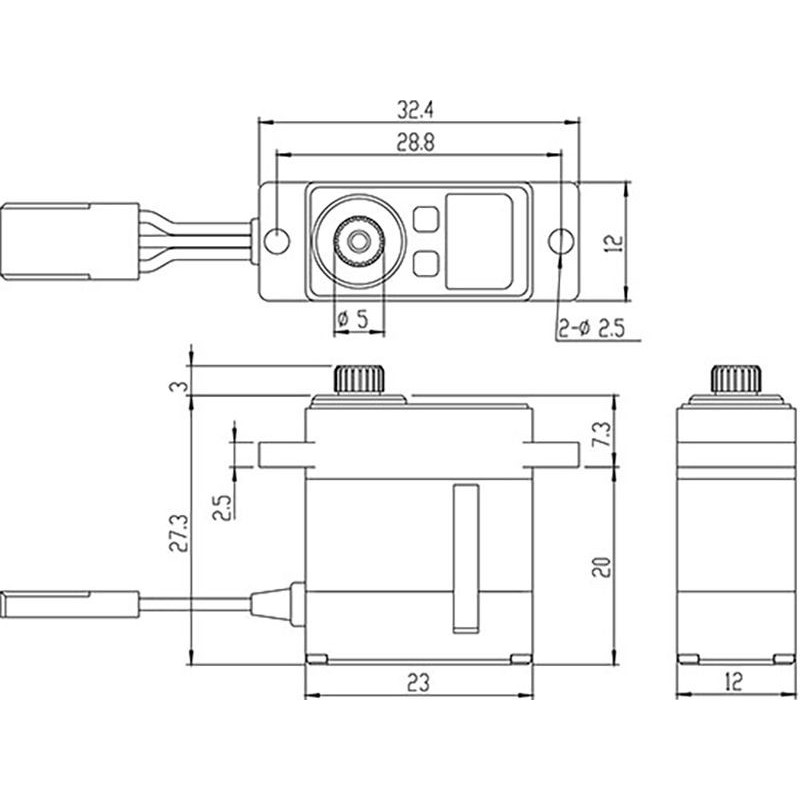

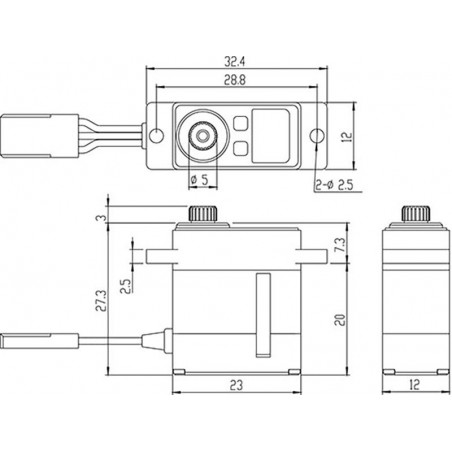

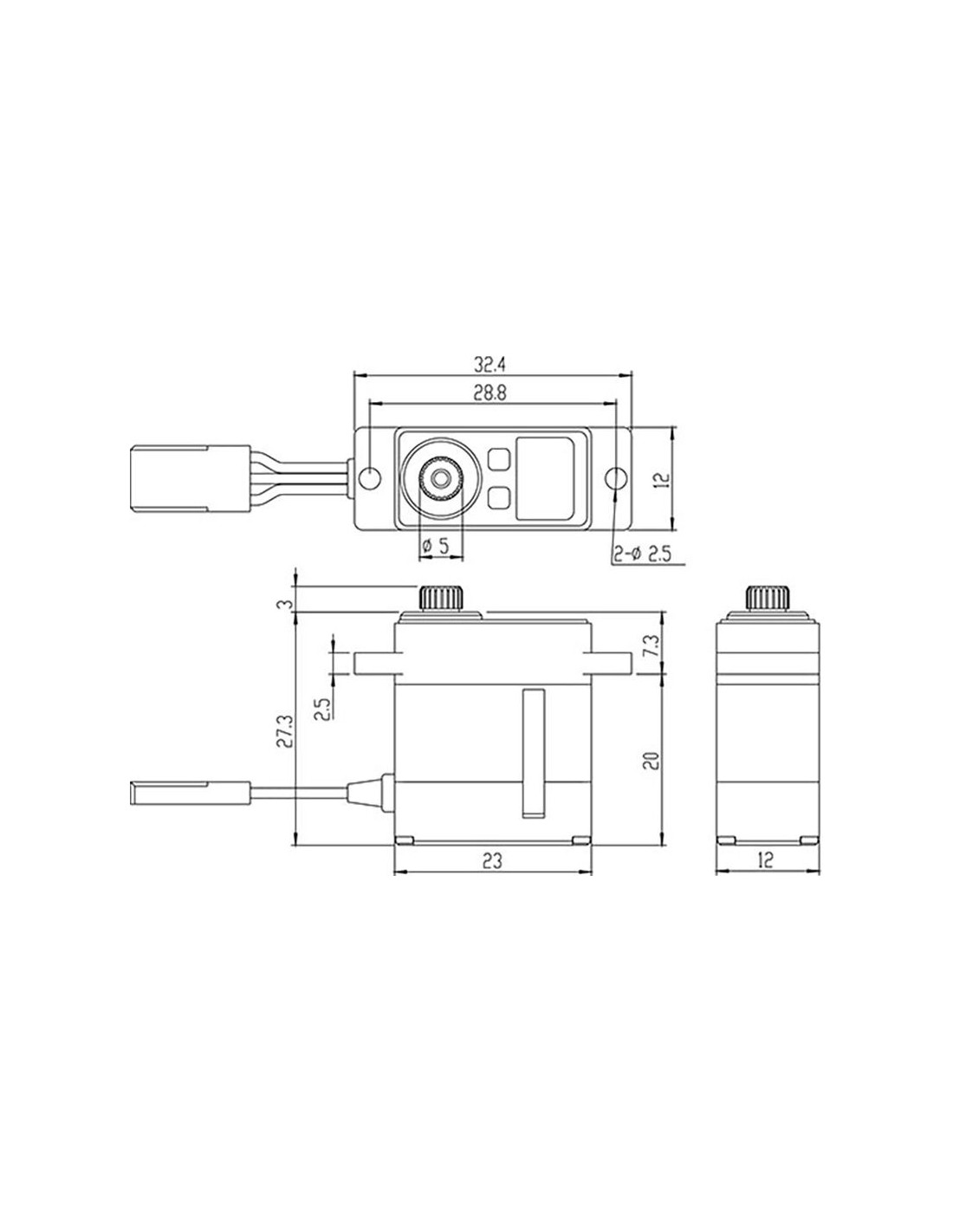

  • Dimensions (mm): 23X12X27.3
  • Weight (g): 23
  • Speed: 0.06 sec/60° (6.0V), 0.05 sec/60° (7.4V)
  • Torque: 4 Kg.cm (6.0V), 5 Kg.cm (7.4V)
  • Frequency : 333 Hz
  • Pulse length : 1520 µs
  • Coreless motor
  • Metal gears
  • Double bearing
  • Aluminium housing

savox sv-1232mg

Thickness in mm (Servos)
12
Torque in kg.cm (servos)
5
Speed sec / 60° (servos)
0.05
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
23
191-SV-1232MG
4710006992662
4710006992662
