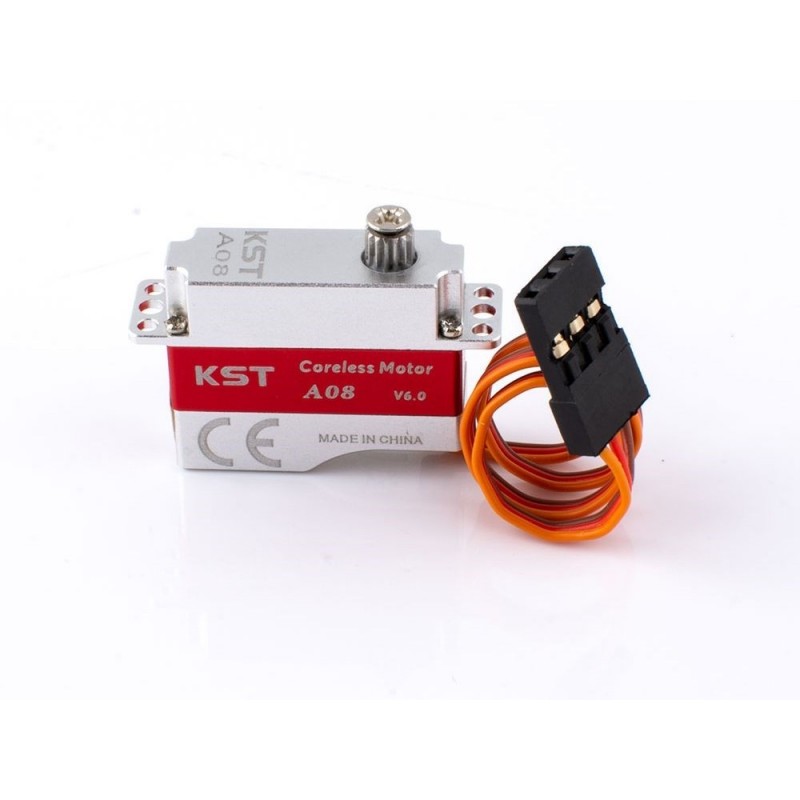

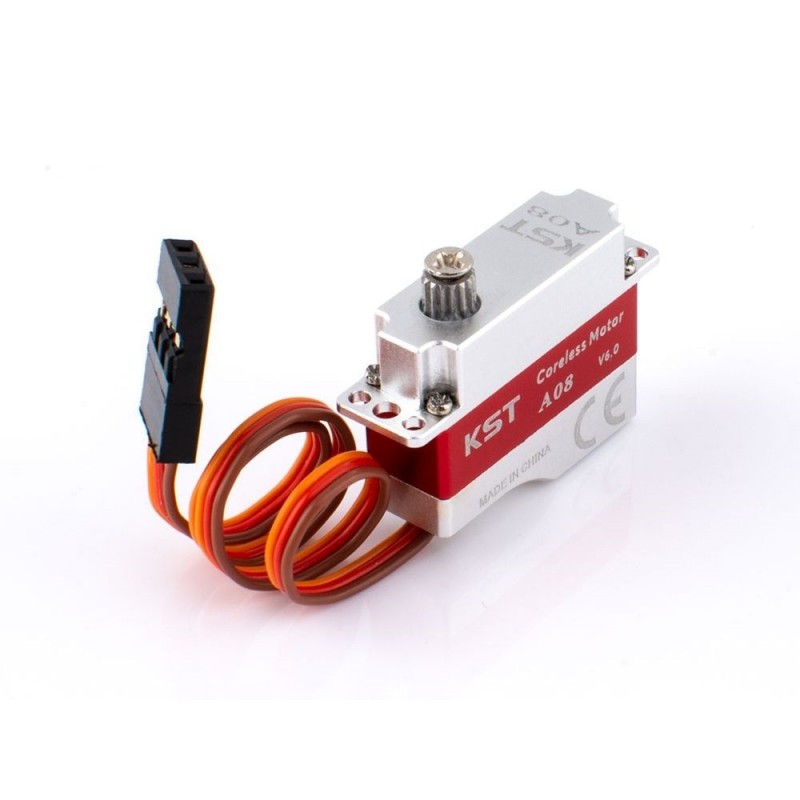

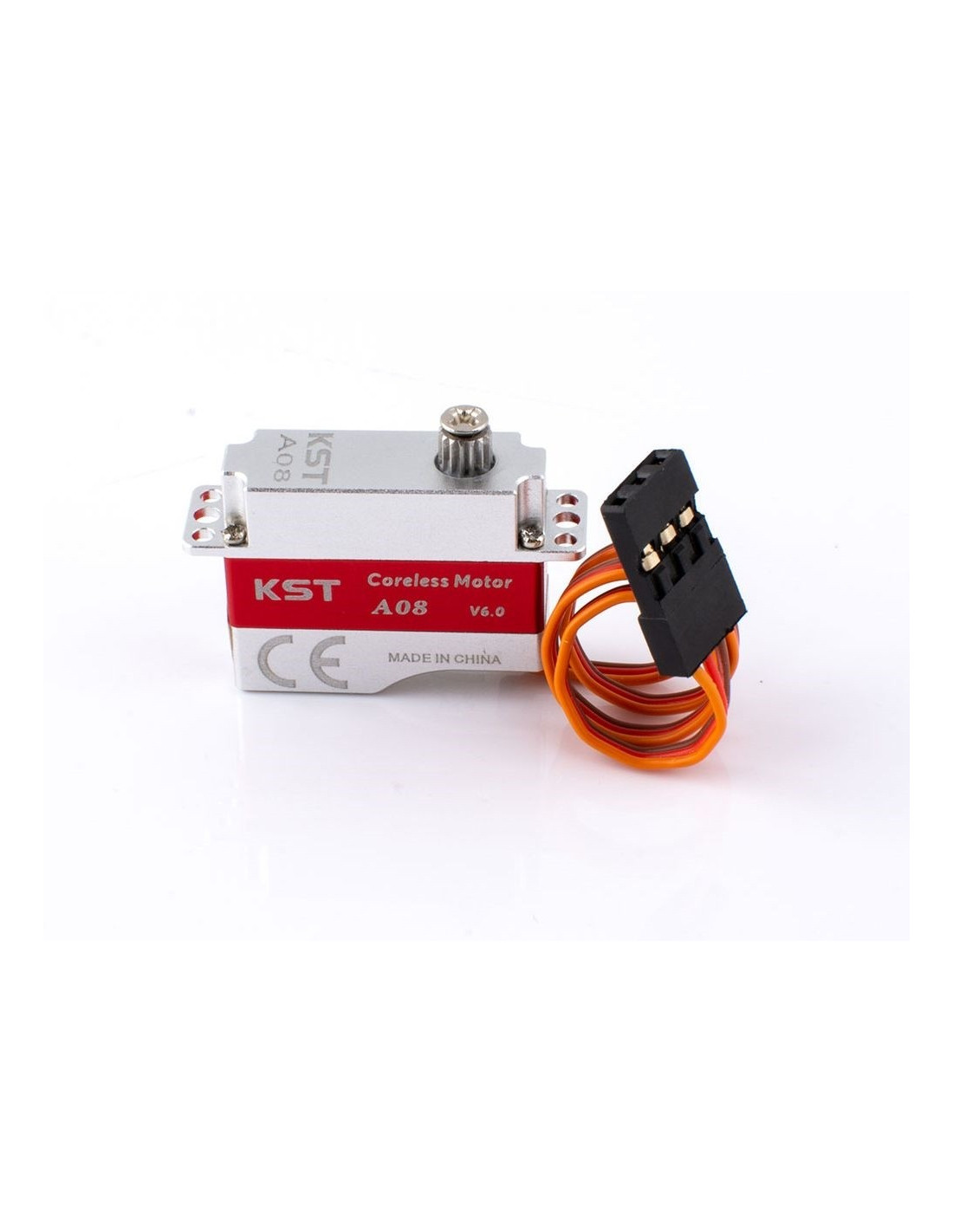

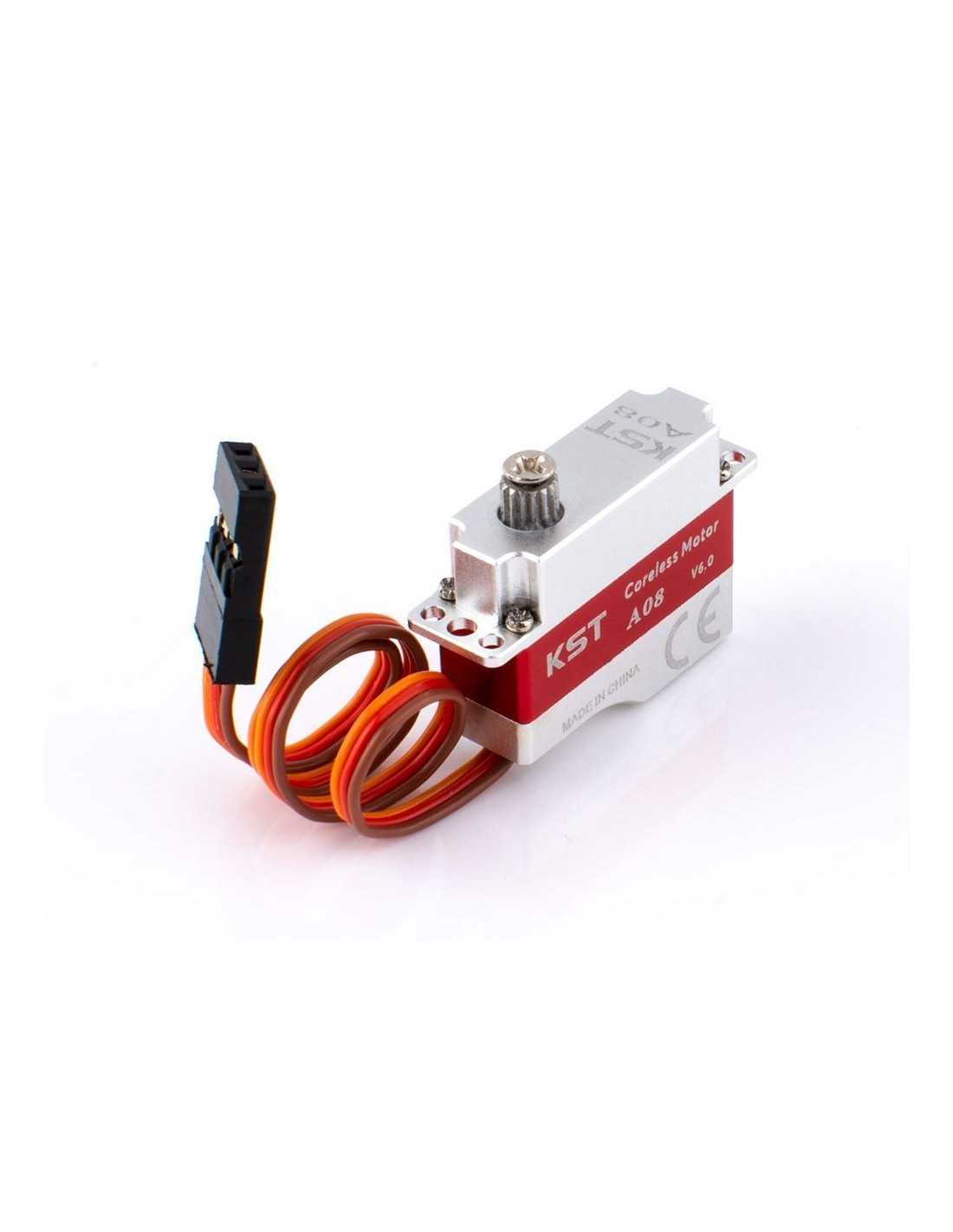

KST A08 V6.0 HV micro servo (7g, 3.2kg.cm, 0.09s/60°)

€43.33
Tax included

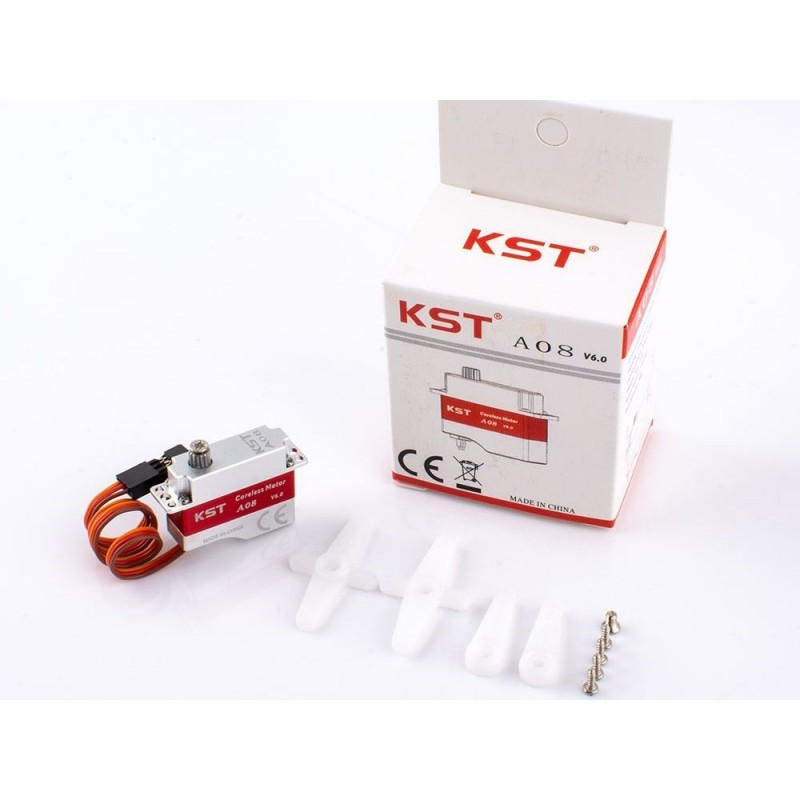

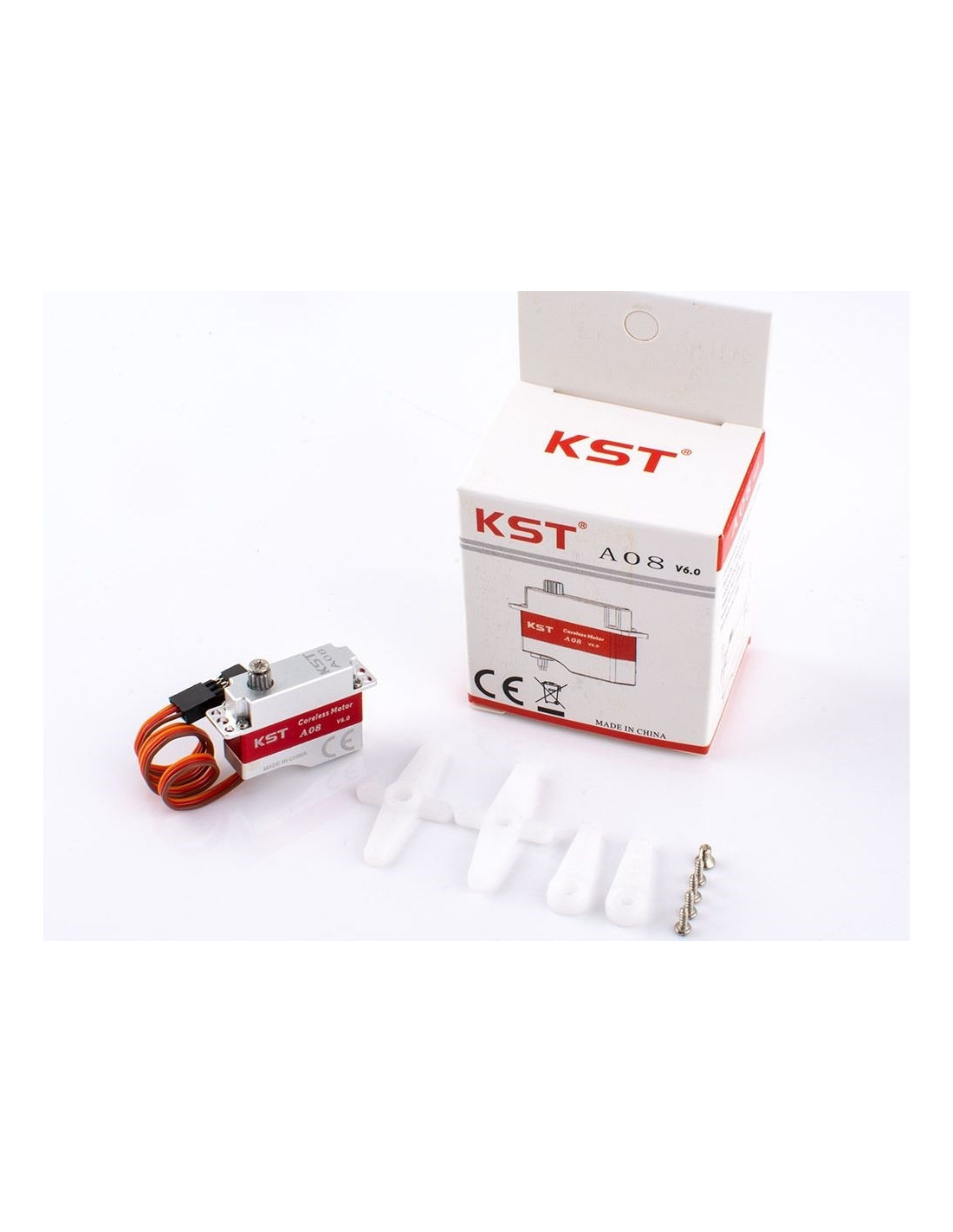

The main advantage of the A08 over the X08 is a slightly smaller footprint and a fully enclosed motor assembly. The gear train is also a brand new design and tighter than the X08 series and has a little extra travel. The weight between the X08 v5, X08 v6 and A08 v6 is about the same.The Micro servo A08 V6.0 KST is a powerful small digital servo with an aluminium housing, all with double bearing! Neither N nor H version = horizontally placed fixtures (classic).It will be perfect for F3K gliders.Delivered with rudder pedals and mounting screwsIt also works in 1 or 2S LIPO.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Technical specifications

  • Dimensions : 23.5 mm x 8 mm x 19 mm
  • Torque (6.0v/8.4v) : 2.2 Kg.cm/3.2 Kg.cm
  • Speed (6.0V/8.4V) : 0.13 sec/60° / 0.09 sec/60°
  • Power supply voltage : 3.8 - 8.4V
  • Mass : 7g +/- 10%.
  • Max. frequency 333Hz
  • Pulse width: 1520us
  • Coreless motor
  • Double bearing
  • Metal gears


Thickness in mm (Servos)
8
Torque in kg.cm (servos)
2.8
Speed sec / 60° (servos)
0.09
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
8
153-A08-V6
4897073541914
4897073541914
