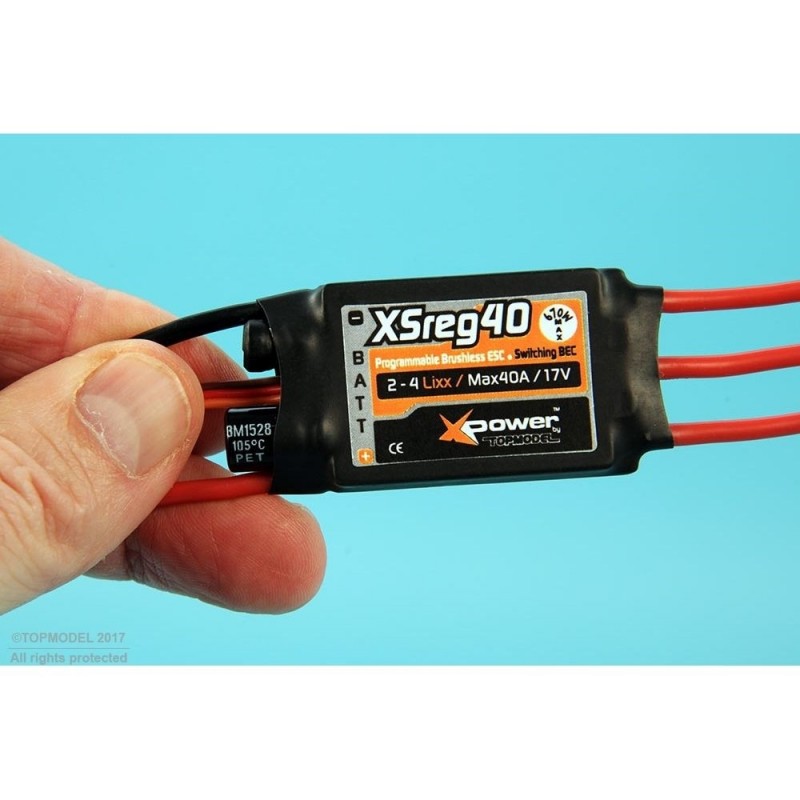

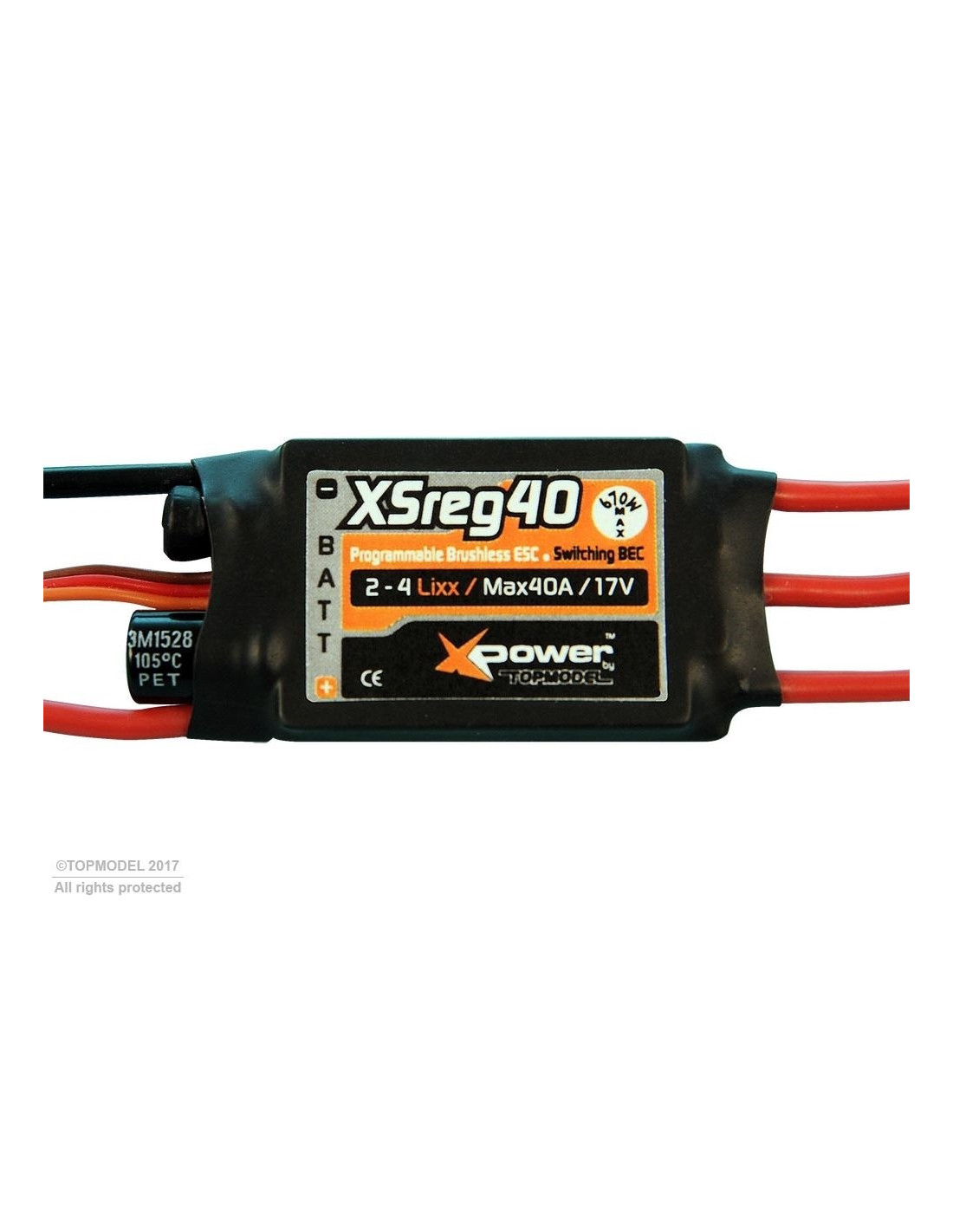

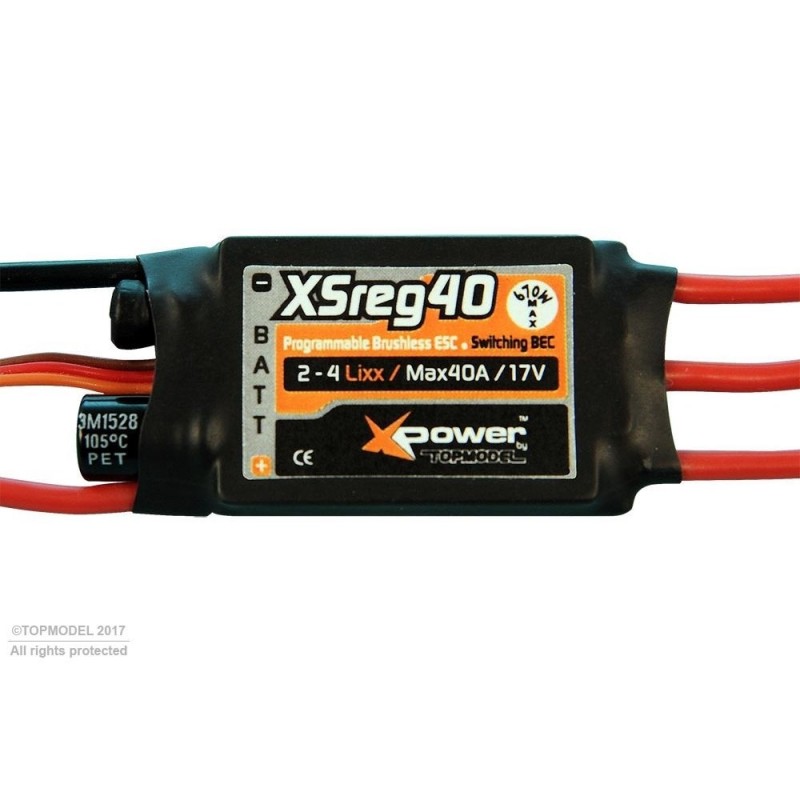

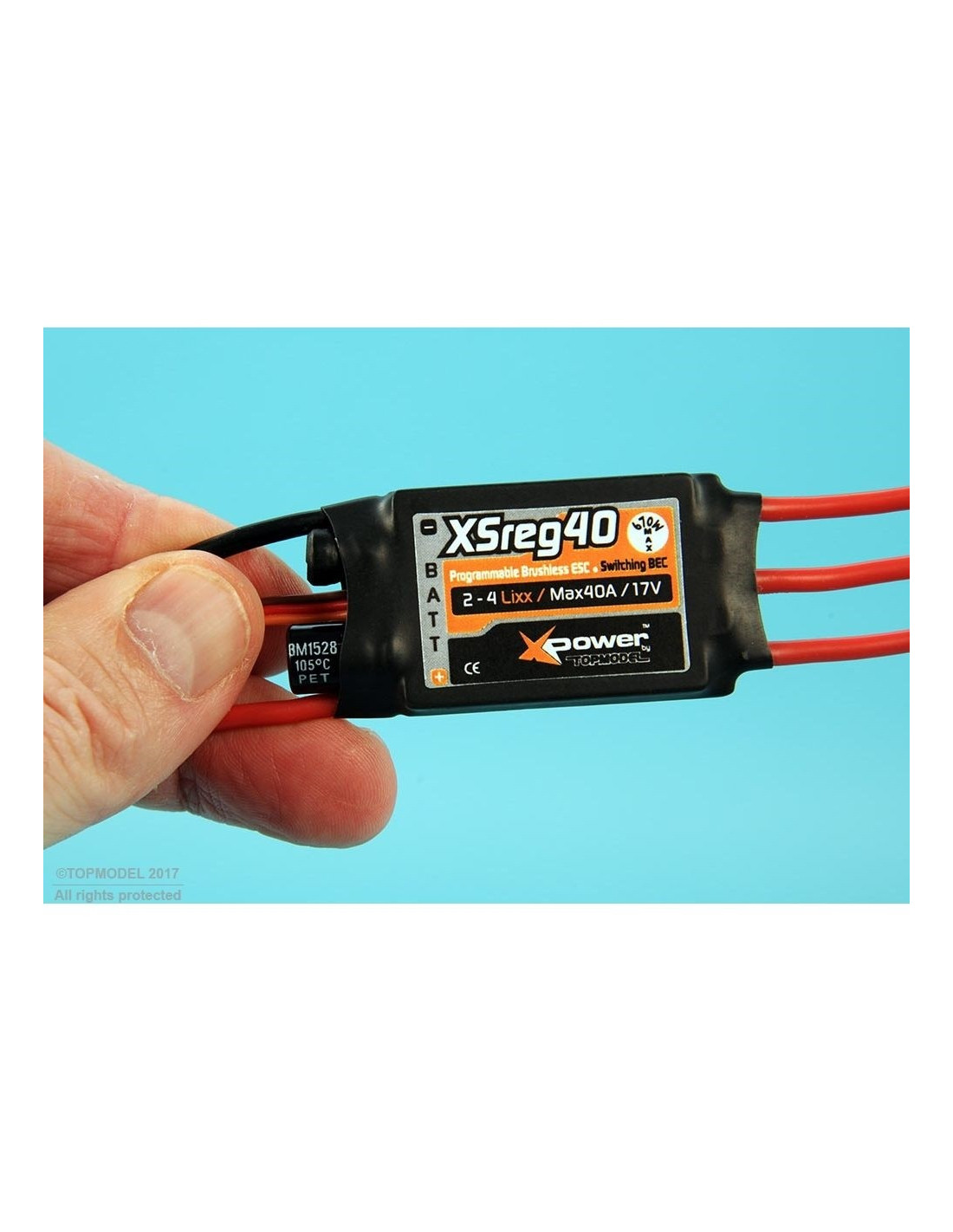

XPower XSreg40 controller

€33.25
Tax included
The XPower XS series are high performance controllers equipped with a high performance Switching BEC circuit and an Adjustment function via a Programming Card (part number 099PC1, sold separately).The elements that can be adjusted with the Programming Card are Brake ON / OFF, Motor Rotation direction, Timing, CutOff Voltage, Start type, Pulse Frequency.Among the 6 possible settings, for example, you can select Timing to Advance for a model equipped with an electric turbine, or select Start to Soft for a motorglider, so you can always choose the best setting for your model and motor.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


In addition, the motor cut-off is automatically determined according to the flight mode set on the controller depending on the voltage at start-up, thus avoiding overcharging of the battery.

Technical data :

For motors: Brushless
Number of cells/Battery type: 2-4 LiPo 6-12 Nixx
Continuous current rating: 40A
Maximum power: 670W
BEC circuit type: Switching 5V/2.5A continuous
OPTO: NO
Weight: 25.5g
Dimensions: 52.0x26.3x8.6mm
Application: brushless motors up to 40A

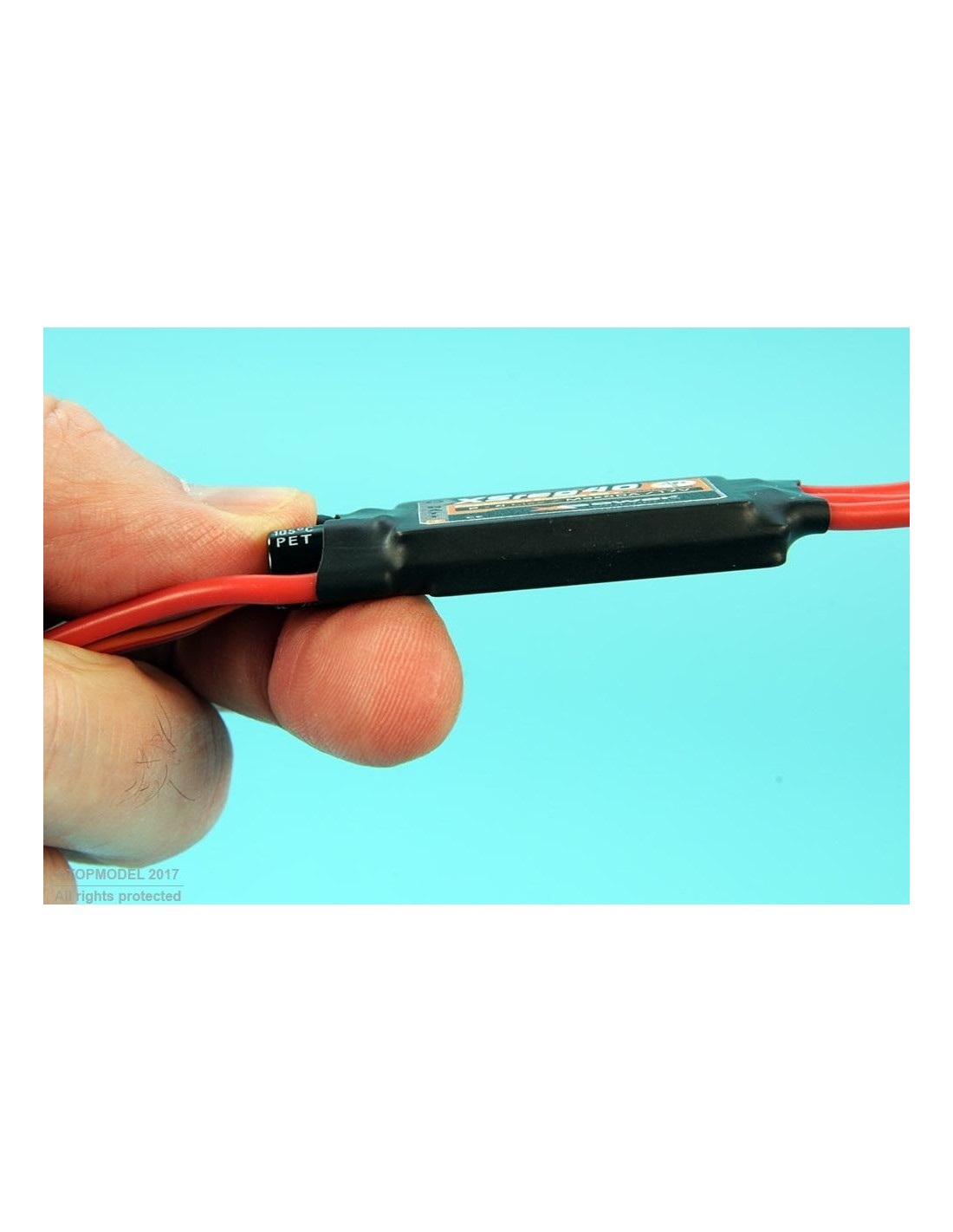

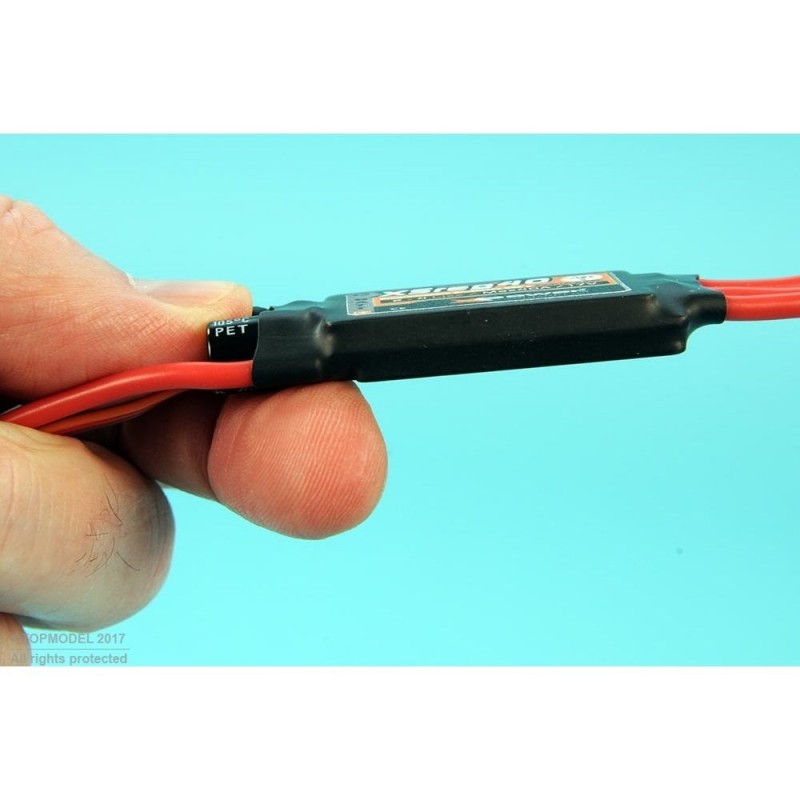

Light, compact and particularly thin, these controllers will work wonders in thin fuselages of gliders for example.

This controller has a safety device of throttle at the powering on, thus not allowing the use of device such as the "ALTIMETERS RECORDERS" for the category F5J for example

Intensité Contrôleurs
40
038-099XSREG40
