Linear nozzle - Linear nozzle VR Pro 10A - 5/7.4V - Dualsky - FLASH RC

Linear nozzle - Linear nozzle VR Pro 10A - 5/7.4V - Dualsky - FLASH RC

Linear nozzle - Linear nozzle VR Pro 10A - 5/7.4V - Dualsky - FLASH RC

Linear nozzle - Linear nozzle VR Pro 10A - 5/7.4V - Dualsky - FLASH RC

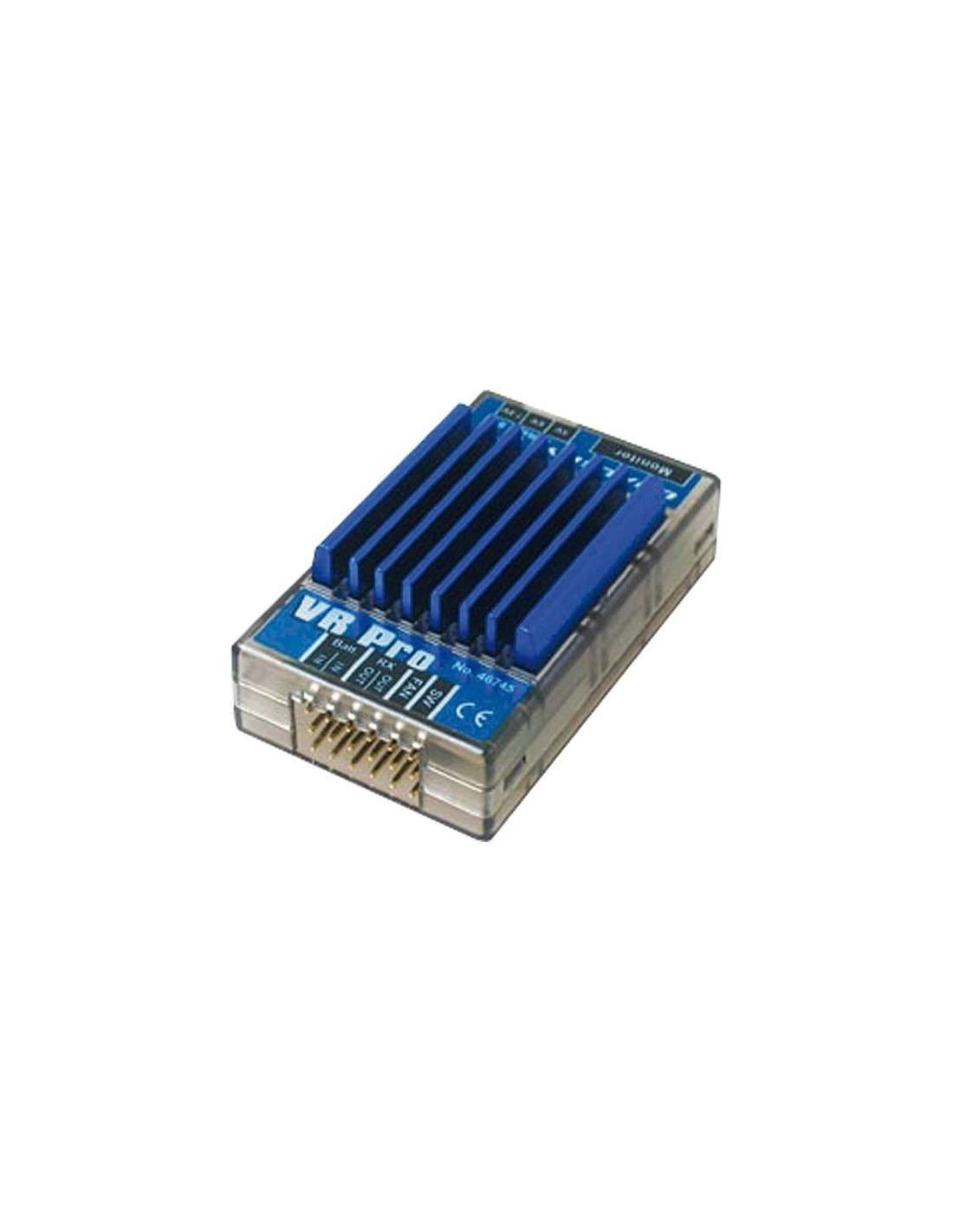

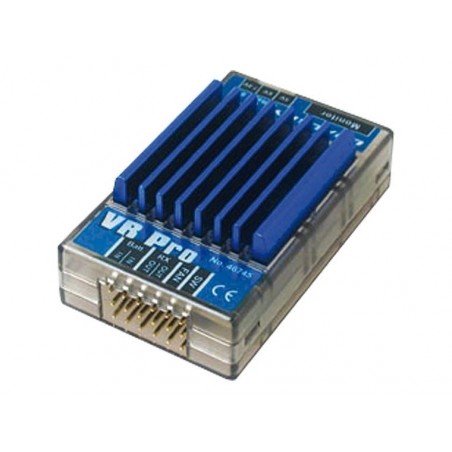

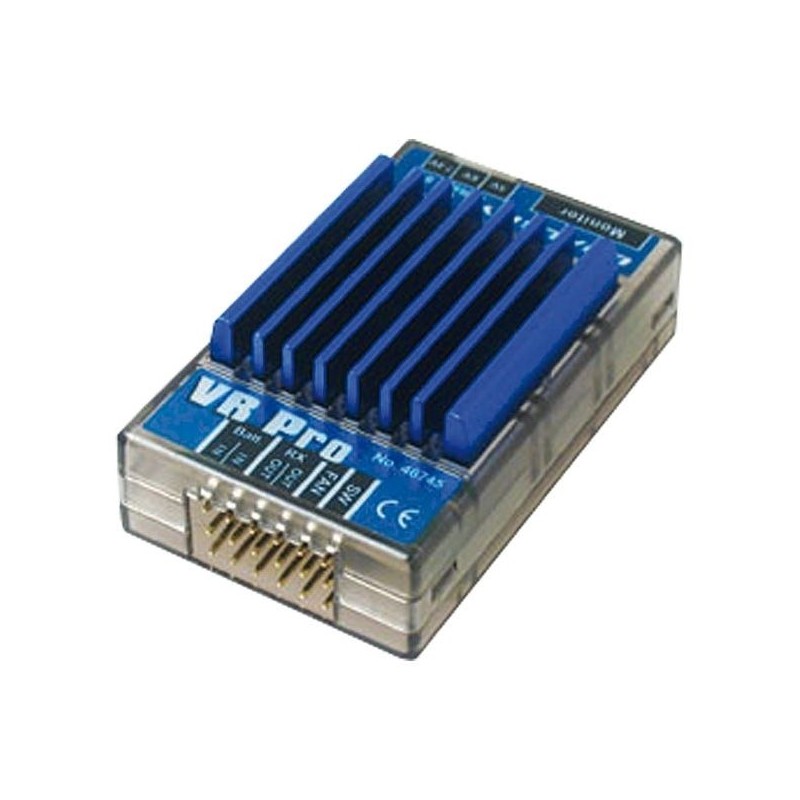

Linear Spout VR Pro 10A - 5/7.4V - Dualsky

Last items in stock

€38.33

Tax included

Adjustable linear regulator (5V/6V/7.4V) supporting up to 6 digital servos with a torque of 30kg/cm.(in current, but has 2 servo outputs integrated).the VR PRO is equipped with a switch and a voltage controller. An LED shows the status of your battery.Operation: connect your battery to the VR PRO, the stabilized output will be connected to the receiver by a female/female extension (patch). Suitable for aircraft models up to 8kg electric or thermal.

Technical data

Input voltage : 5.3V-8.4V, max10V (advisable' 2S LiPO 20C)
Output voltage : 5V, 6V, 7.4V (adjustable, tolerance + 3%)
Output current : 0 - 10A (Vin-Vout =1V)
Output ripple <2mV
Dimensions: 53mm X32mm X18mm
Weight : 30 g (without accessories)

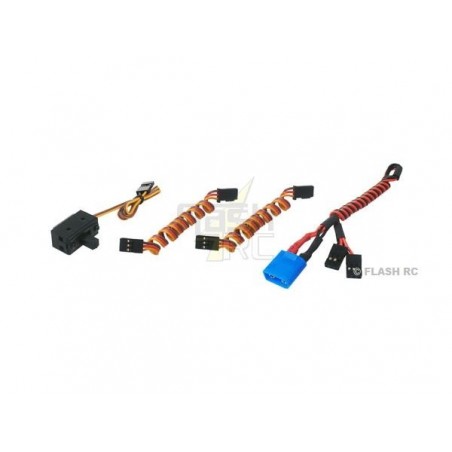

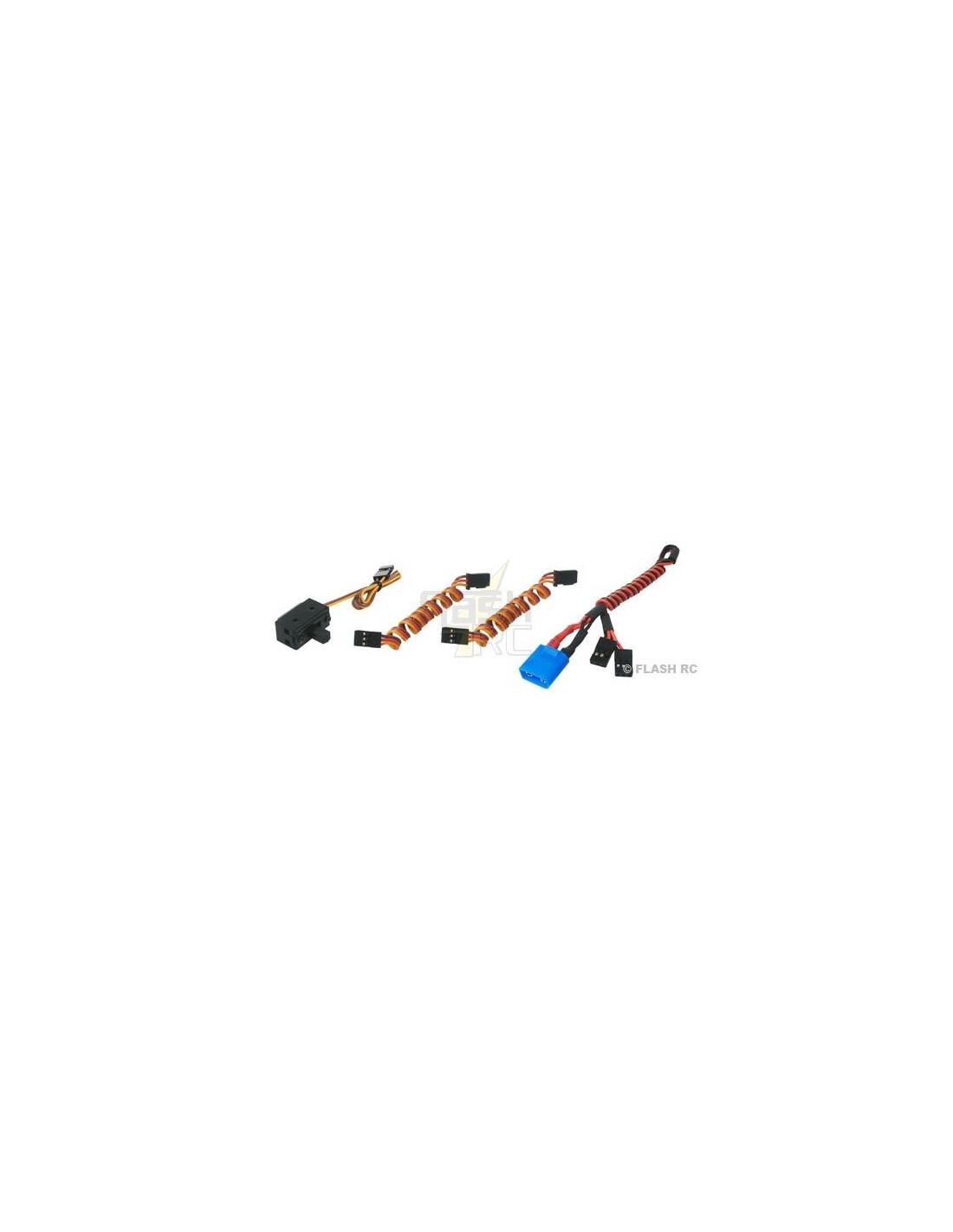

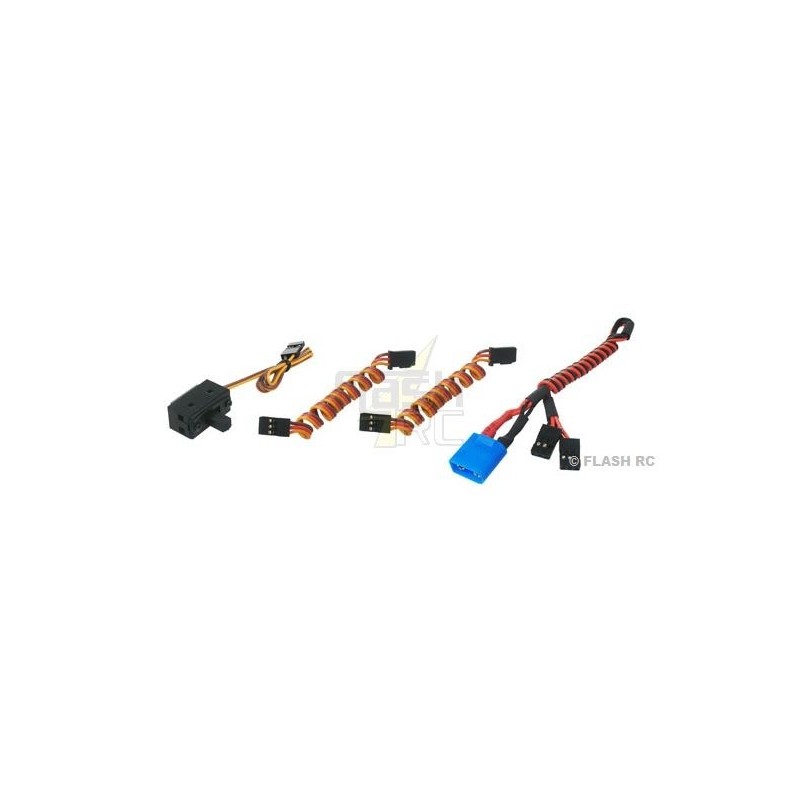

Contents of the kit

VR PRO
Switch
2 JR female/female extension cables
DC3/JR adapter to connect the battery

Instructions (in English + Flash RC translation in French)

Original manual : To download

French manual : To download

Reference 016-VRPRO-10A

EAN13 6941047107458

MPN 6941047107458

No reviews

Comments (0)

No customer reviews for the moment.

15 other products in the same category:

Linear nozzle - Voltage booster 1S Lipo -> 5V 1A Prolux - FLASH RC

Linear spout

Voltage booster 1S Lipo -> 5V 1A Prolux

This small component is a voltage booster (Prolux), allowing you to increase the output voltage from 1S Lipo to 5V.Max current: 1ADimensions: 23x19x14mmWeight: 10.6gInput socket: JST-BecOutput socket: Futaba

Linear spout - Single regulated power supply DigiSwitch V2, 6.0/7.6V - JR/JR PowerBox sockets - FLASH RC

Linear spout - Single regulated power supply DigiSwitch V2, 6.0/7.6V - JR/JR PowerBox sockets - FLASH RC 2

Linear spout

Single regulated power supply DigiSwitch V2, 6.0/7.6V - JR/JR PowerBox sockets

PowerBox Systems

Linear nozzle - 1A linear nozzle for a Servo - 5.5V - Jeti - FLASH RC

Linear nozzle - 1A linear nozzle for a Servo - 5.5V - Jeti - FLASH RC 2

Linear spout

1A linear spout for a Servo - 5.5V - Jeti

The JETI Single BEC is a mini nozzle for a single servo. It will be perfect for powering a classic 5.5V servo from a receiver where the other servos are HV (thus powered with 7.4V).The Single BEC has a JR female input and a JR male output to receive the servo.Moreover, a resettable fuse protects the output.

Linear nozzle - Linear nozzle 3A - 5V/6V - Roxxy UBEC 3A(5A) Multiplex - FLASH RC

Linear nozzle - Linear nozzle 3A - 5V/6V - Roxxy UBEC 3A(5A) Multiplex - FLASH RC 2

Linear spout

Linear spout 3A - 5V/6V - Roxxy UBEC 3A(5A) Multiplex

The Roxxy 3A UBEC is a compact power supply for your RC system.

Linear nozzle - Linear voltage regulator 6.0V PowerBox - FLASH RC

Linear spout

Linear voltage regulator 6.0V PowerBox

PowerBox Systems

Linear voltage regulator 6.0V PowerBoxInput voltage : 4 to 9Maximum current : 3A constant / 20A max (

Linear spout - Linear spout 5A - 5V + magnetic switch Zepsus - FLASH RC

Linear spout - Linear spout 5A - 5V + magnetic switch Zepsus - FLASH RC 2

Out-of-Stock

Linear spout

Linear spout 5A - 5V + Zepsus magnetic switch

The Zepsus BEC 5A magnetic switch combines a 5V linear nozzle with a magnetic switch. It is specially designed for F3F and F3B gliders. This module has two JR sockets to connect to the receiver for better power distribution and safety. A very bright LED, visible even through the fuselage, indicates whether the switch is on or off. Mounted inside the...

View

Linear nozzle - Linear voltage regulator 5.3V PowerBox - FLASH RC

Linear spout

Linear voltage regulator 5.3V PowerBox

PowerBox Systems

Linear voltage regulator 5.3V PowerBoxInput voltage : 4 to 9Maximum current : 3A constant / 20A max (

Linear spout - Single regulated power supply DigiSwitch V2, 6.0/7.6V - MPX/JR PowerBox sockets - FLASH RC

Linear spout - Single regulated power supply DigiSwitch V2, 6.0/7.6V - MPX/JR PowerBox sockets - FLASH RC 2

Linear spout

Single regulated power supply DigiSwitch V2, 6.0/7.6V - MPX/JR PowerBox sockets

PowerBox Systems

Linear spout - SVR REGULATOR CONNECTOR for 4S battery - FLASH RC

Out-of-Stock

Linear spout

SVR REGULATOR CONNECTOR for 4S batteries

At last you can use your LiPo 4S batteries as receiver batteries!

View

Linear nozzle - Linear nozzle 0.3A - 12V - input 13-18v Matek systems - FLASH RC

Linear spout

Linear spout 0.3A - 12V - input 13-18v Matek systems

Linear regulator accepting between 14 and 17V input and offering 12V 300mA outputDimensions: 25x10mmWeight: 1g

Linear nozzle - Linear nozzle 6A - 5/6V - Protronik - FLASH RC

Linear nozzle - Linear nozzle 6A - 5/6V - Protronik - FLASH RC 2

Out-of-Stock

Linear spout

Linear spout 6A - 5/6V - Protronik

Voltage regulator, known as BEC, allowing the supply of your model from a LiPo or LiFe 2S battery.small size, it supports nevertheless 6A continuous, and up to 10A peak.This new version has now two outputs and an indicator of battery charge by LED on the back of the module.features:Voltage regulator. Input: 2S Li-Xx or 5-6 elts Ni-Xx Output choice by...

View

Linear spout - Linear spout 14A - 5/6V + magnetic switch Zepsus - FLASH RC

Linear spout - Linear spout 14A - 5/6V + magnetic switch Zepsus - FLASH RC 2

Linear spout

Linear spout 14A - 5/6V + Zepsus magnetic switch

The Zepsus BEC 14A magnetic switch combines a linear nozzle (5-6V) with a magnetic switch. It is specially designed for F3F and F3B gliders. This module has two JR sockets to connect to the receiver for better power distribution and more safety. A very bright LED, visible even through the fuselage, indicates whether the switch is on or off. Mounted inside...

Régulateur de tension 6V - 2.4A pour servo - FlashRC

Linear spout

Régulateur de tension 6V - 2.4A pour servo - FlashRC

Linear nozzle - Linear voltage regulator 5.9V PowerBox - FLASH RC

Out-of-Stock

Linear spout

Linear voltage regulator 5.9V PowerBox

PowerBox Systems

Linear voltage regulator 5.9V PowerBoxInput voltage : 4 to 9Maximum current : 3A constant / 20A max (

View

Linear nozzle - Linear nozzle 5A - 5/6V - Jeti MAX BEC - FLASH RC

Linear nozzle - Linear nozzle 5A - 5/6V - Jeti MAX BEC - FLASH RC 2

Linear spout

Linear spout 5A - 5/6V - Jeti MAX BEC

JETI has used all its know-how in the design of dedicated R/C electronic modules to propose this MAX BEC linear voltage regulator.The MAX BEC is a sophisticated module providing the regulated voltage required by the servos and receiver.It consists of a linear regulator adjustable by jumper from 5 to 6V.The MAX BEC can be powered by either NiXx or LiXx...

Customers who bought this product also bought:

Fuel/methanol hoses & acc. - Hose cap ø3mm (2pcs) MPJET - FLASH RC

Gasoline/methanol hoses & acc.

Hose cap ø3mm (2pcs) MPJET

Hose plug ø3mm (2 pcs).

Cable ties - Cable tie rilsan black 2,5mmx100mm, 100 pieces - FLASH RC

Cable clamps

Cable clamp rilsan black 2,5mmx100mm, 100 pieces

Bag of 100 cable ties.

RC aircraft propulsion batteries - Battery Tattu lipo 3S 11.1V 750mAh 95C XT30 rline socket - FLASH RC

RC aircraft propulsion batteries - Battery Tattu lipo 3S 11.1V 750mAh 95C XT30 rline socket - FLASH RC 2

RC aircraft propulsion batteries

Battery Tattu lipo 3S 11.1V 750mAh 95C XT30 rline socket

218-TAA7503S95XT3

LIPo TATTU battery for FPV Racing.Tattu batteries, from the manufacturer GensAce are high quality and specifically designed for drone applications.

Brushless - Controller XPower XREG80 V5 - FLASH RC

Brushless - Controller XPower XREG80 V5 - FLASH RC 2

Brushless

XPower XREG80 V5 controller

The XPower Xreg V5 series of mid-level controllers for electric brushless propulsion systems offers outstanding performance, excellent current resistance and superb throttle feel and has been developed for various classes of electrically powered models, both aircraft and motorgliders.

Servos - Blue Bird servo BMS-207WV 7.5Kg.cm 0.05s 17.5g 12mm - FLASH RC

Servos - Blue Bird servo BMS-207WV 7.5Kg.cm 0.05s 17.5g 12mm - FLASH RC 2

RC Servos: Precision & Reliability for Modeling

Blue Bird servo BMS-207WV 7.5Kg.cm 0.05s 17.5g 12mm

Blue Bird servo BMS-125WV+ 7.1Kg.cm 0.09s 11.3g 10mm - FLASH RC

Blue Bird servo BMS-125WV+ 7.1Kg.cm 0.09s 11.3g 10mm - FLASH RC 2

RC Servos: Precision & Reliability for Modeling

Blue Bird servo BMS-125WV+ 7.1Kg.cm 0.09s 11.3g 10mm

Braided R&G (epoxy resin) - Braided carbon tube Ø10x8x1000mm (Taffeta 3k) R&G - FLASH RC

Braided R&G (epoxy resin) - Braided carbon tube Ø10x8x1000mm (Taffeta 3k) R&G - FLASH RC 2

Braided R&G (epoxy resin)

Braided carbon tube Ø10x8x1000mm (Taffeta 3k) R&G

Multi-layer carbon tube made by several processes.inner layer : carbon fiber +/- 45°middle layer : UniDirectional carbonouter layer : braided carbon 0/90°F Bright finish.very good mechanical resistance.* (possibility of cutting, see below)

Gasoline/methanol & acc tanks - Gasoline tank KUZA 410ml - FLASH RC

Gasoline/methanol & acc tanks - Gasoline tank KUZA 410ml - FLASH RC 2

Out-of-Stock

Gasoline/methanol & acc tanks

KUZA gasoline tank 410ml

KUZA 410ml tank. Looking for a simple, safe and durable tank? Kuza tanks are made for you.This tank is designed for gasoline but also for smoke oil and of course methanol (by changing the hoses) and has thicker walls than other tanks on the market.Kuza tanks are supplied with quality accessories (see photo), including an aluminum cap

View

Customers who bought this product also bought:

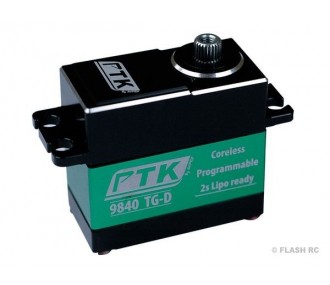

Servos - Servo Pro-Tronik Standard Digital Coreless 9840 TG-D - FLASH RC
