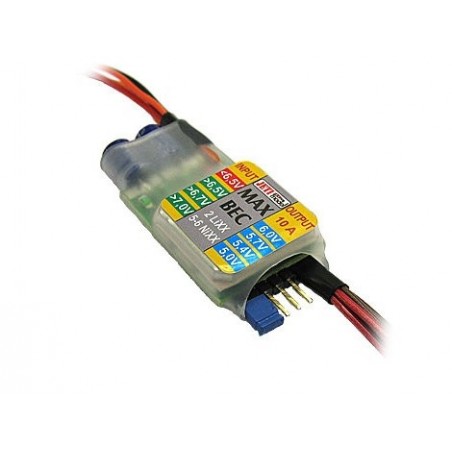

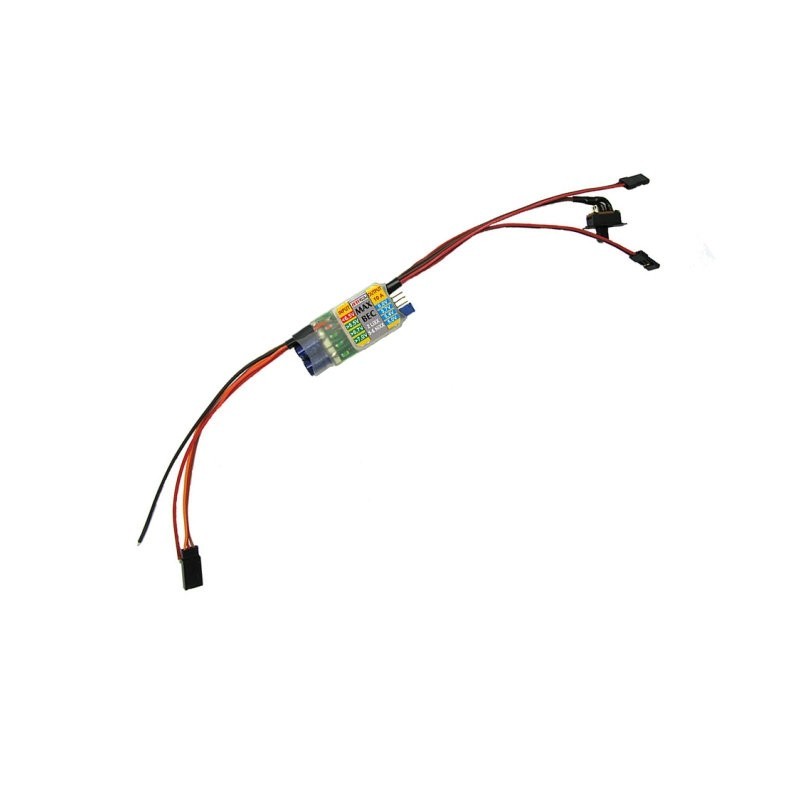

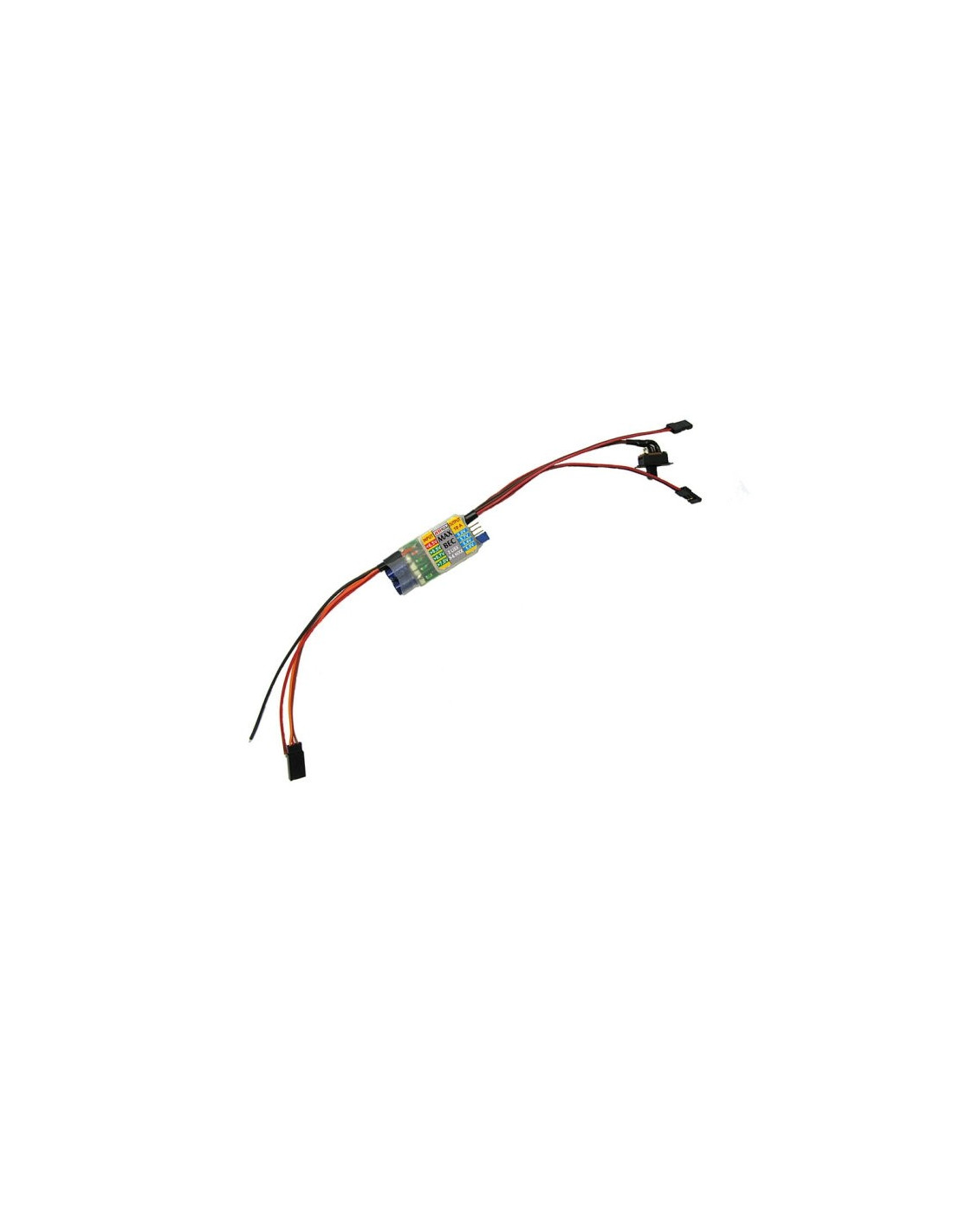

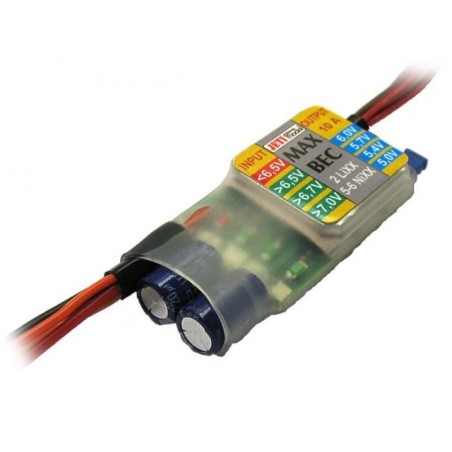

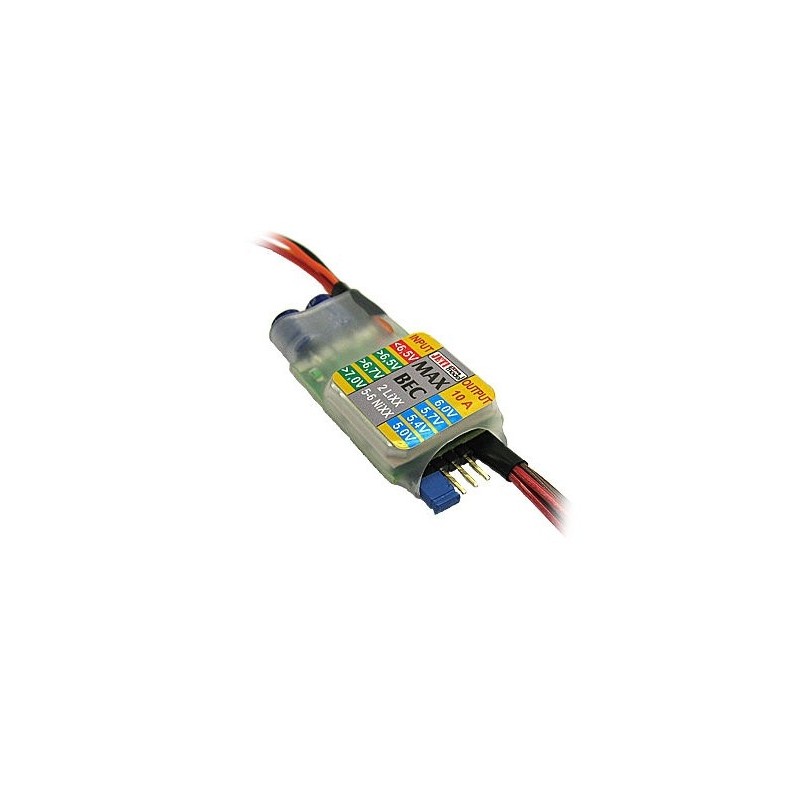

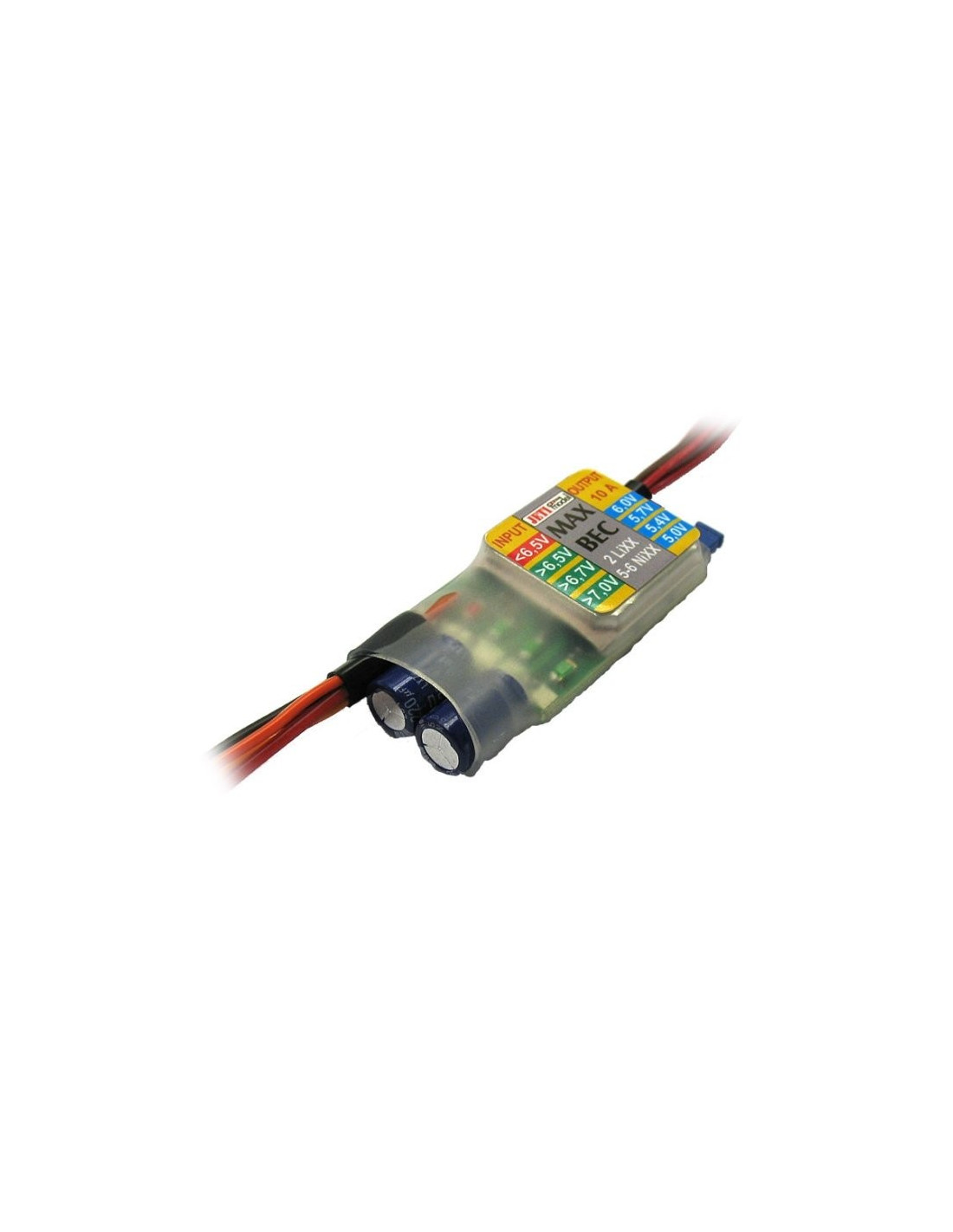

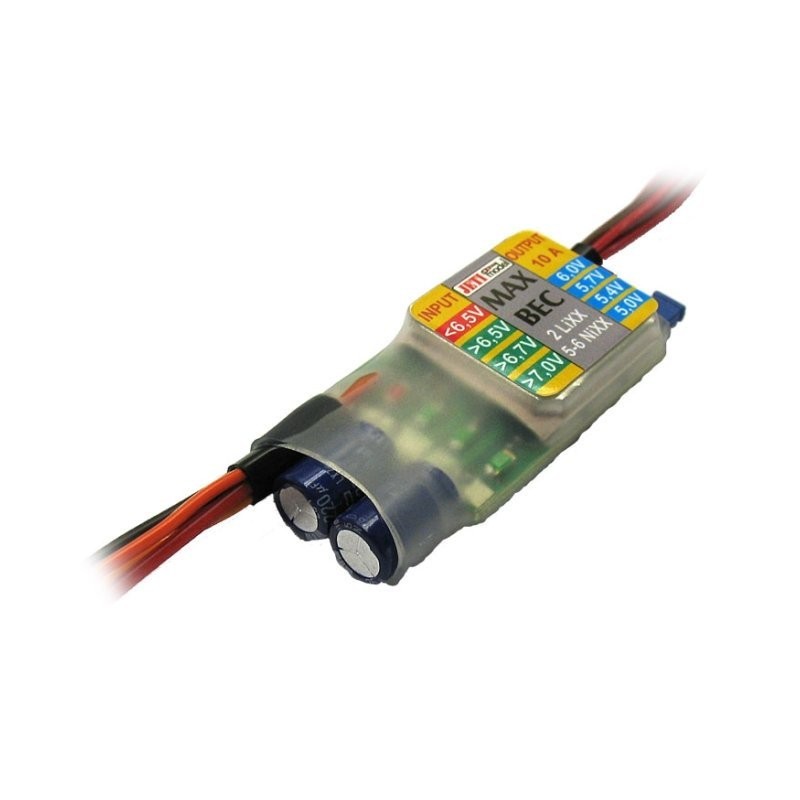

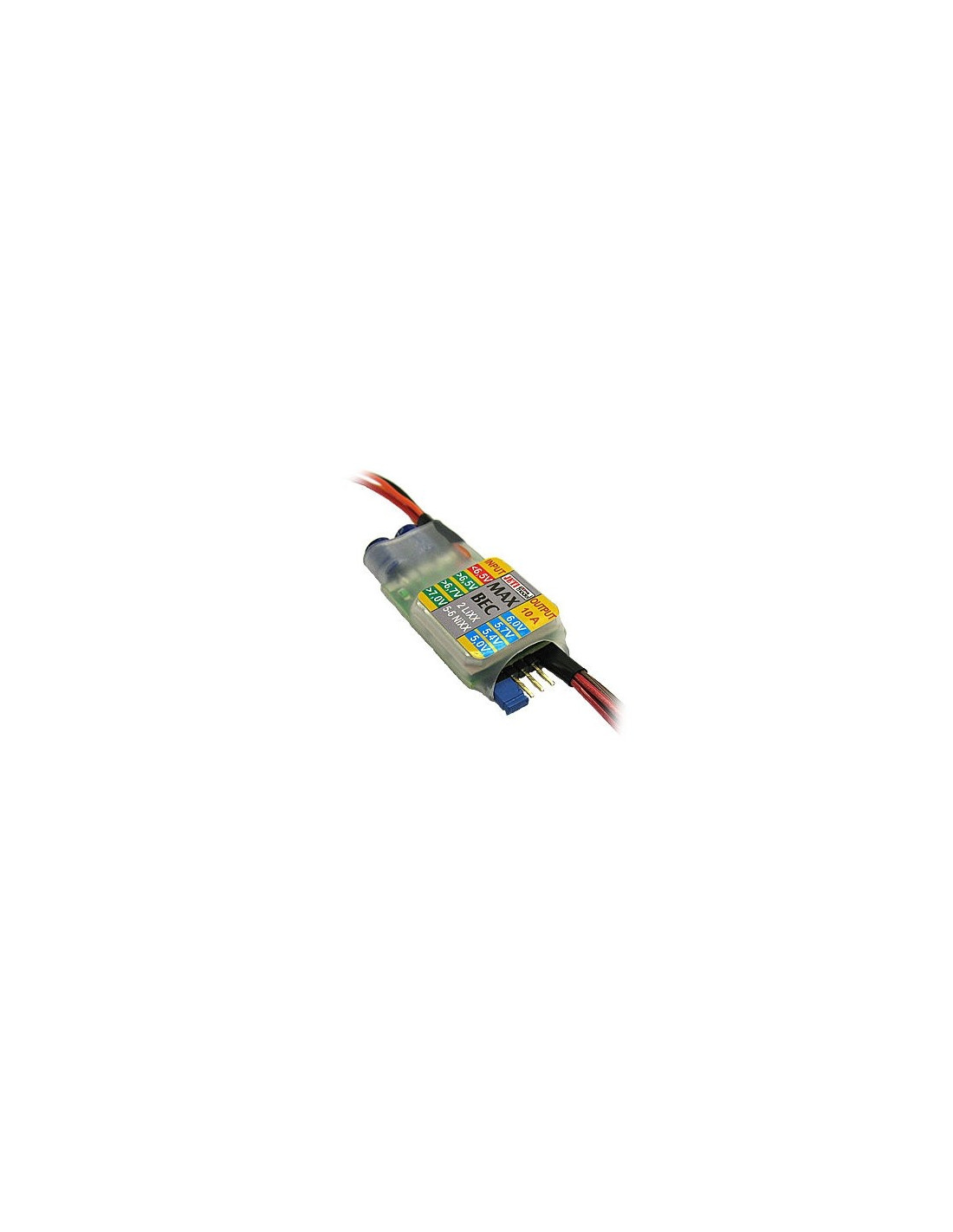

Linear spout 5A - 5/6V - Jeti MAX BEC

JETI has used all its know-how in the design of dedicated R/C electronic modules to propose this MAX BEC linear voltage regulator.The MAX BEC is a sophisticated module providing the regulated voltage required by the servos and receiver.It consists of a linear regulator adjustable by jumper from 5 to 6V.The MAX BEC can be powered by either NiXx or LiXx batteries, LIPO 2S are however recommended, or NiXx 5 or 6 cells.The input voltage is indicated by 4 diodes.The input voltage is indicated by 4 diodes, which gradually fade away as the batteries are discharged (< 7V, 6.7V, 6.5V), and if the input voltage is below 6.5V, the red diode lights up, indicating a discharged battery.The MAX BEC also includes a charging cable - it is possible to charge the battery directly via the MAX BEC.Technical specifications:Input voltage: 5 to 16V (2S LIPO recommended)Output voltage: 5.0 / 5.4 / 5.7 / 6.0 V Peak current: 10A Continuous current: 5A Max. temperature: 130°CWeight: 25gDimensions: 50x25x10mm
