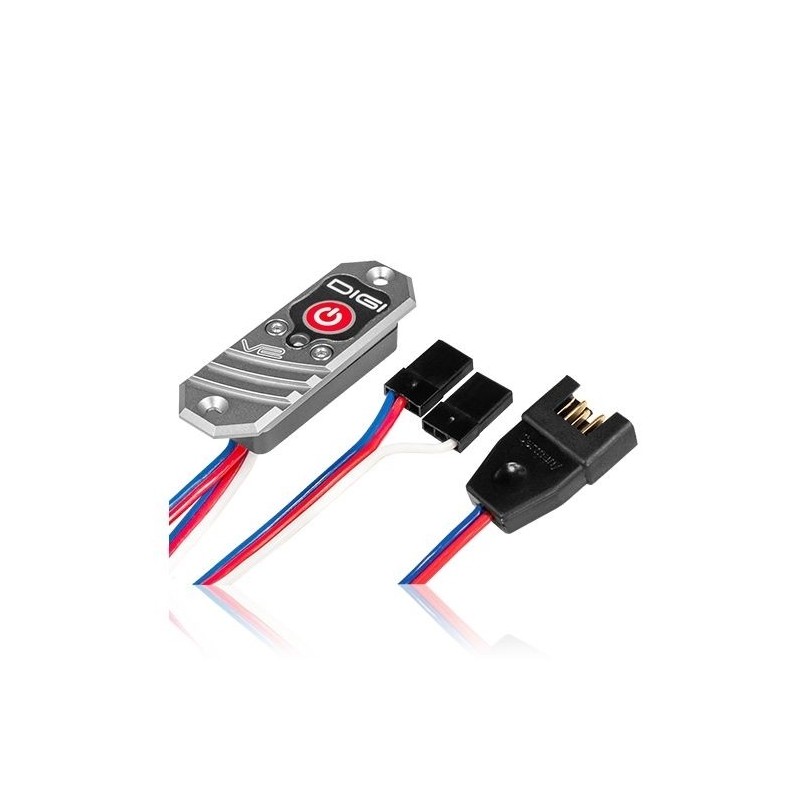

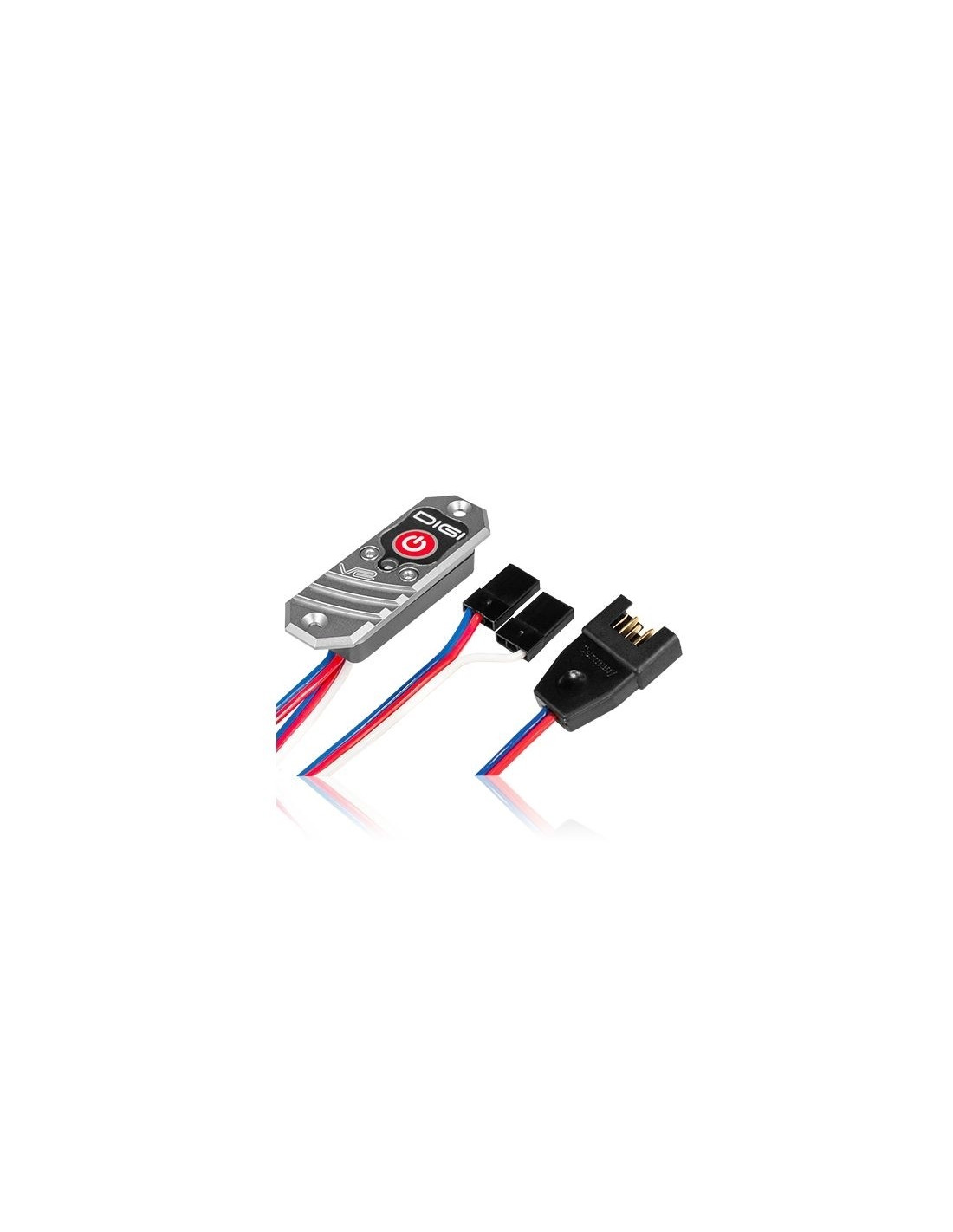

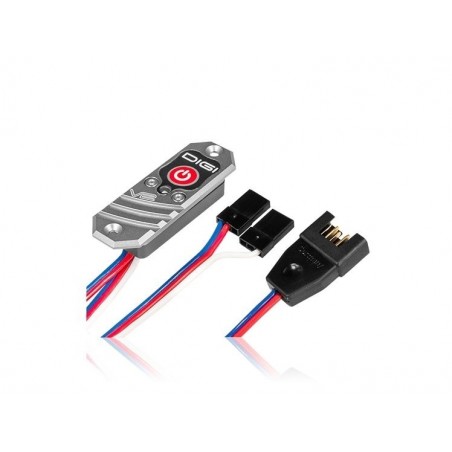

Single regulated power supply DigiSwitch V2, 6.0/7.6V - MPX/JR PowerBox sockets

The PowerBox DigiSwitch V2 is the second generation of the PowerBox Digi-
Switch, which is well known worldwide. For almost fifteen years, the
PowerBox DigiSwitch has been the standard for small and medium-sized models due to its compact size and versatility.

By using the latest components, we have been able to reduce the size of the Digi-Switch V2 by about 20%.

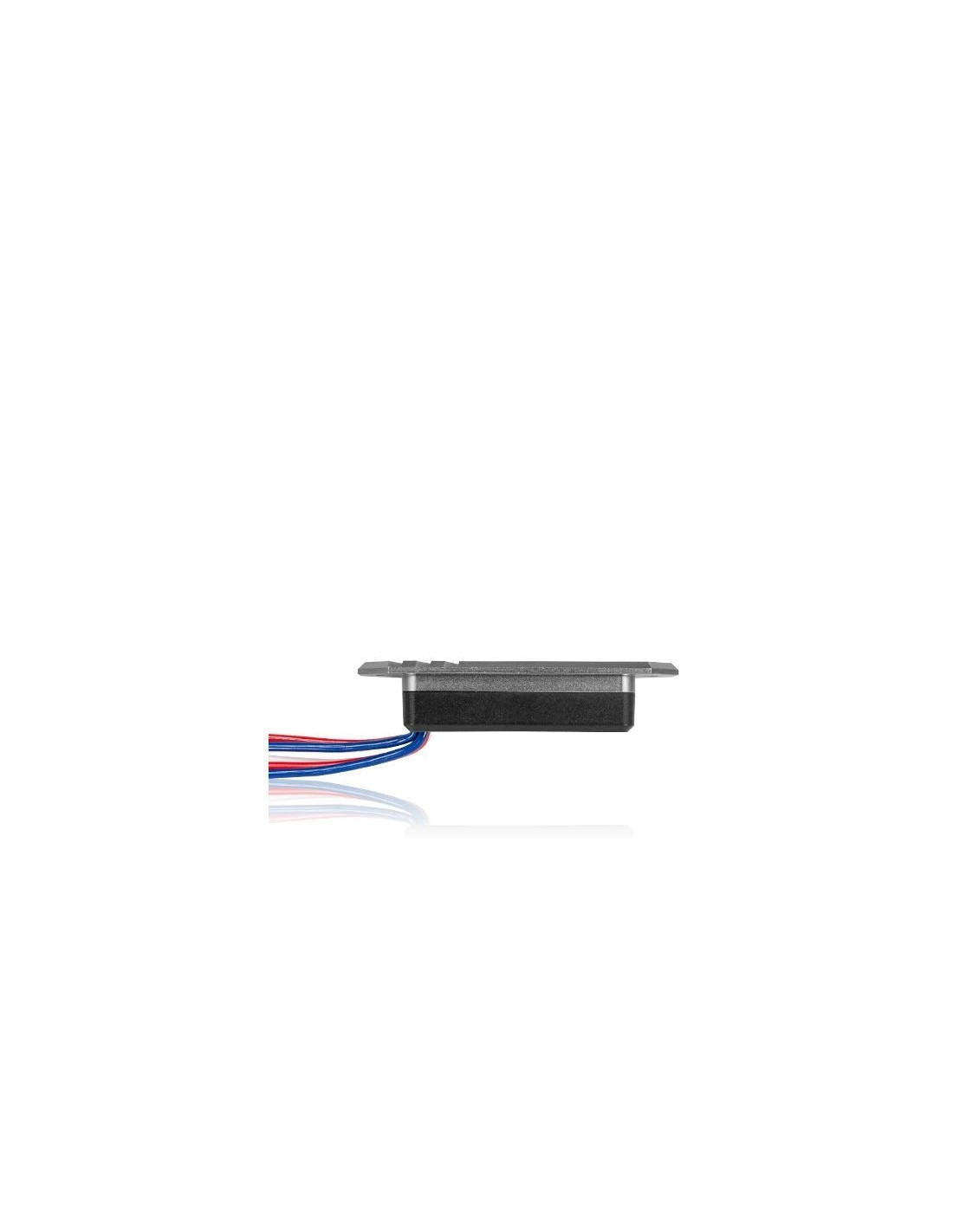

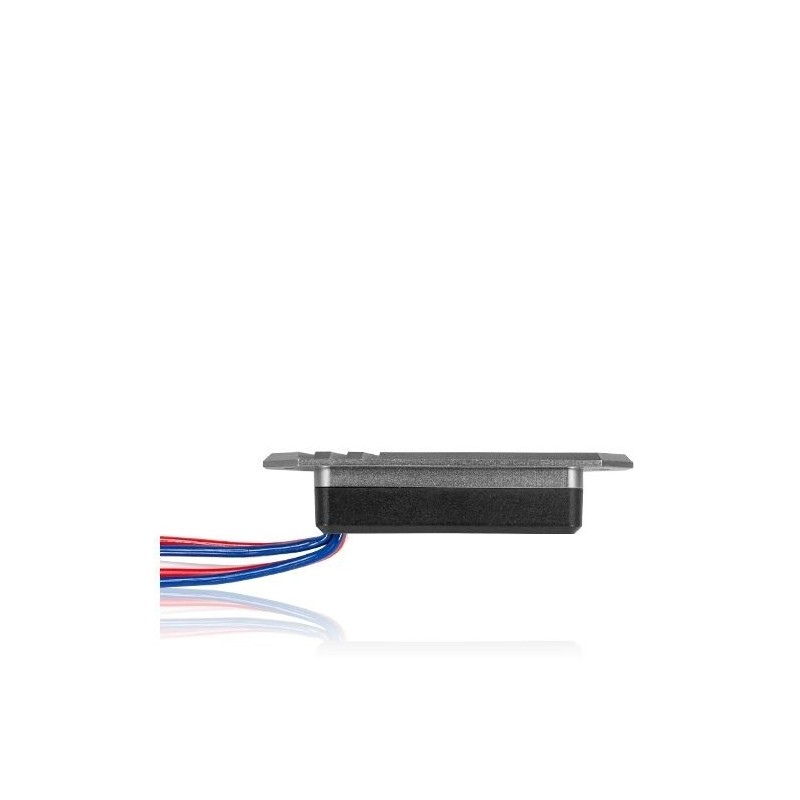

The introduction of a high-quality machined and anodized aluminum housing has significantly increased the unit's cooling efficiency, so the maximum DC capacity of the PowerBox DigiSwitch V2 is about 20% higher. In fact, the peak load capacity is twice as high: the DigiSwitch V2 can handle more than 10 A for several seconds!

The DigiSwitch V2 offers four user-selectable output voltages: for normal servos it can be set to 6.0 V regulated, 7.0 V and 7.6 V regulated voltages are available for HV servos, as well as an option for unregulated voltage.

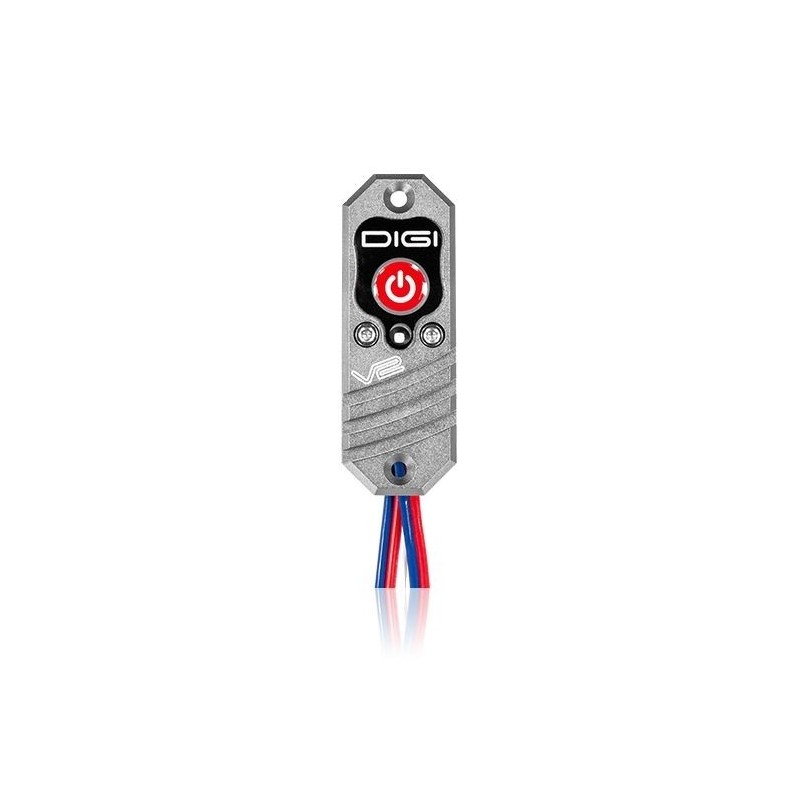

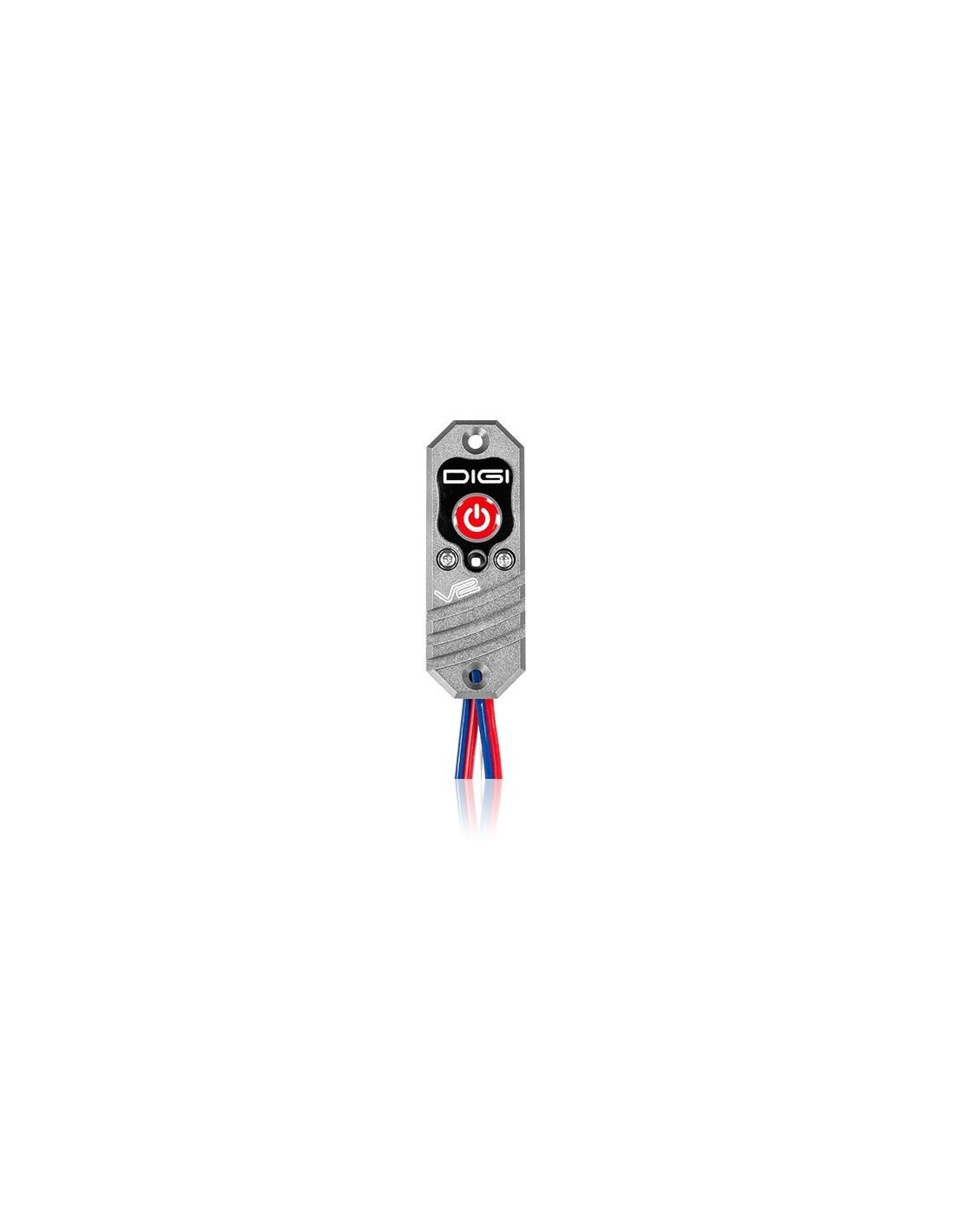

Power for the unit can be drawn from four different battery types: LiPo, LiIon, LiFePo, NiMH. Ultra-bright RGB LEDs are installed to indicate the battery voltage; they light up in different colors to display the batteries' state of charge.

CORE users also benefit from an additional feature: battery voltage and regulator voltage can be displayed directly on the transmitter via telemetry!

Features

High performance electronic switch
Ultra-lightweight unit, compact size
Regulated output voltage
User selectable output voltage 6.0 V / 7.0 V / 7.6 V or unregulated
RGB LED voltage indicator for battery
Telemetry support for CORE systems
Supports 4 different battery types: 2s LiPo, 2s LiIon, 2s LiFePo and 5s NiMH
Controller monitoring
Suppression of feedback currents

Technical data

Operating voltage 4.0 V - 9.0 V
Power supply 2s LiPo, 2s LiIon, 2s LiFePo, 5s NiMH
Power-on status of current consumption 23 mA
Standby current consumption 4 μA
Max. charging current 10 A
Dropout voltage 0.1 V
Output voltage 6.0 V / 7.0 V / 7.6 V stabilized or unregulated
Dimensions 50 x 18 x 11 mm
