Last items in stock
€29.08
Tax included

Discover the Chaservo DS09 servo, a concentrate of performance and precision for your model-building projects. Compact and lightweight, this digital servo is ideal for demanding applications where speed and reliability are essential. Thanks to its high torque and fast response, the DS09 is perfect for equipping your RC aircraft, helicopters or drones, ensuring optimum control even in the most delicate maneuvers.

Highlights :

  • High precision: advanced digital technology for ultra-precise response.
  • Compact and lightweight: ideal for models requiring weight reduction.
  • Enhanced reliability: designed to withstand vibration and high loads.

At FlashRC, you'll benefit from extensive stock availability and fast delivery, so you never have to delay your passions. Trust our team of experts to choose the right equipment for your needs. Add the Chaservo DS09 to your shopping cart now and enhance the performance of your RC models!

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Nominal voltage: 7.4V
Voltage range: 4.8-8.4V
Ball bearing: 2BB

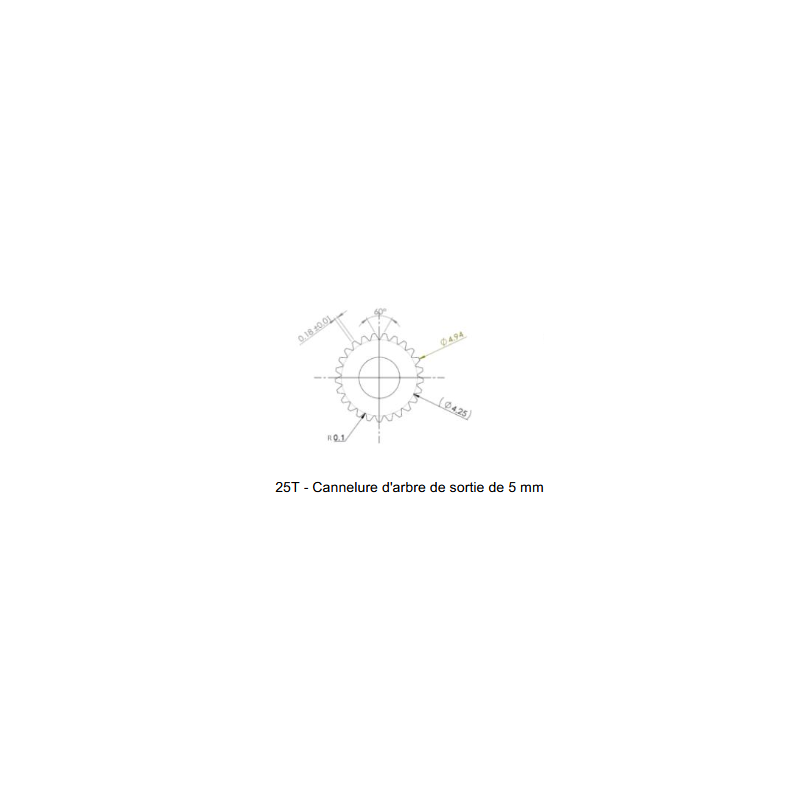

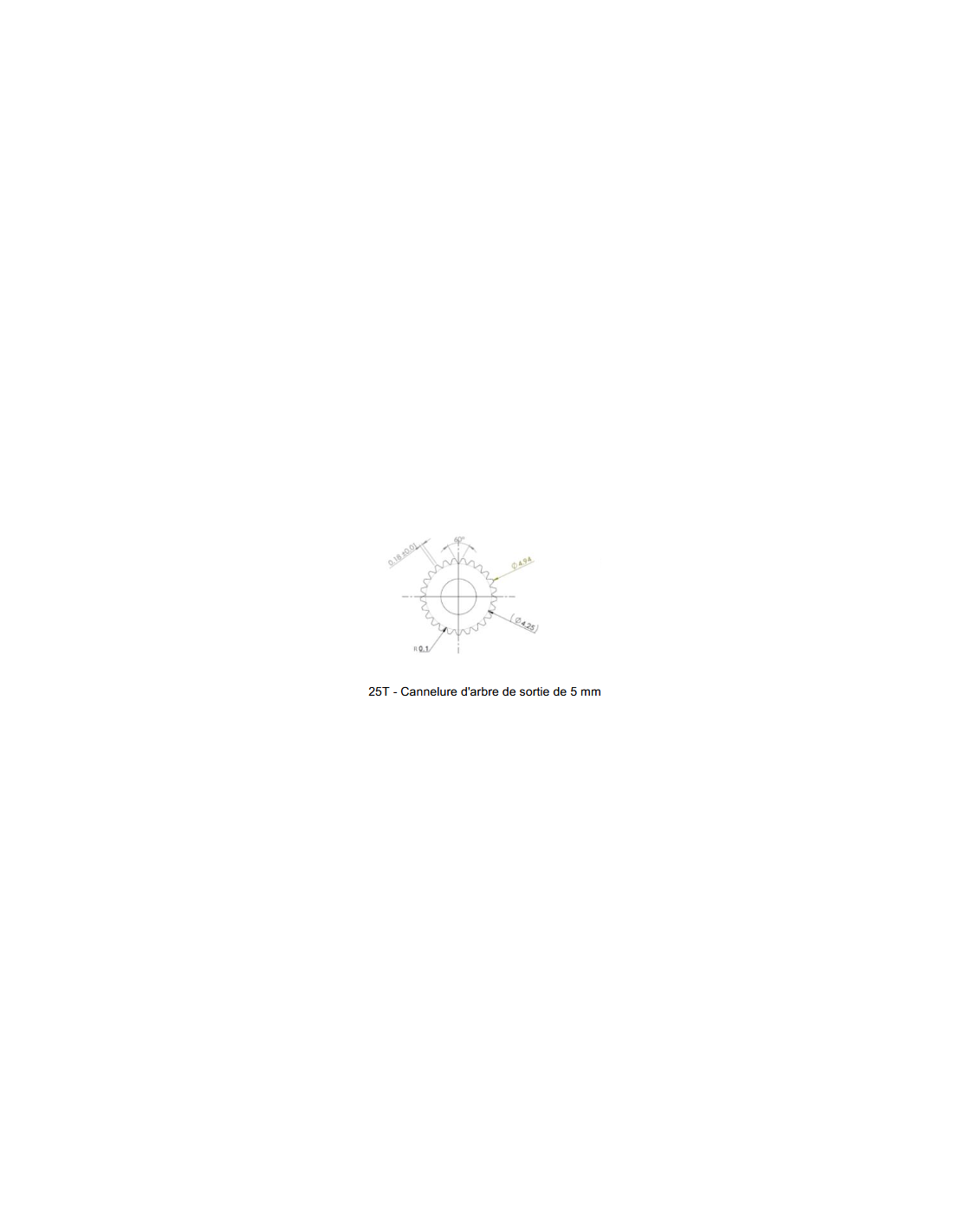

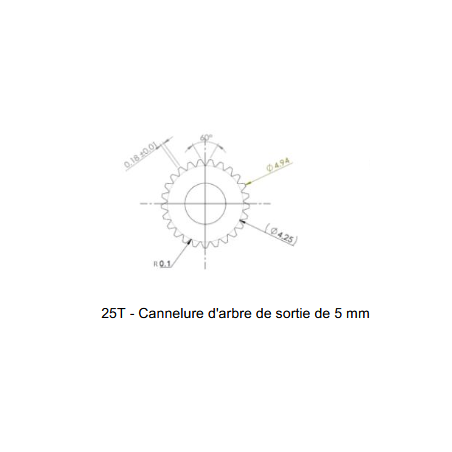

Spline: 25T (5mm)
Housing: high-quality Technopolymer
Pinion: metal
Position sensor: potentiometer
Motor: Coreless DC
Frequencies: 150μs/ 20 KHz
Pulse range: 900μs-2100μs
Programmable: YES
Torque at 4.8V: 6kg.cm
Torque at 6V: 7kg.cm
Torque at 7.4V: 8kg.cm
Torque at 8.4V: 9kg.cm
Max current at 4.8V: 0.80A
Max current at 6V: 0.90A
Max current at 7.4V: 1.15A
Max current at 8.4V: 1.25A
No-load speed at 4.8V : 0.16s/60°
No-load speed at 6V : 0.13s/60°
No-load speed at 7.4V : 0.11s/60°
No-load speed at 8.4V : 0.10s/60°

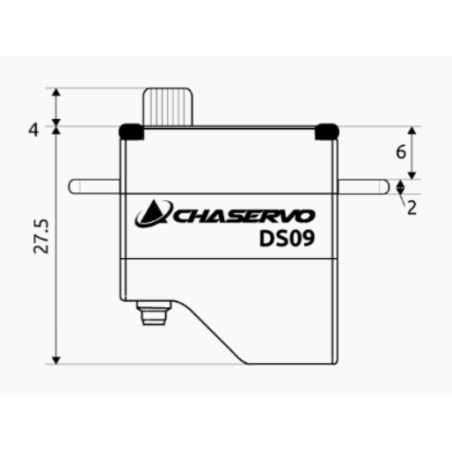

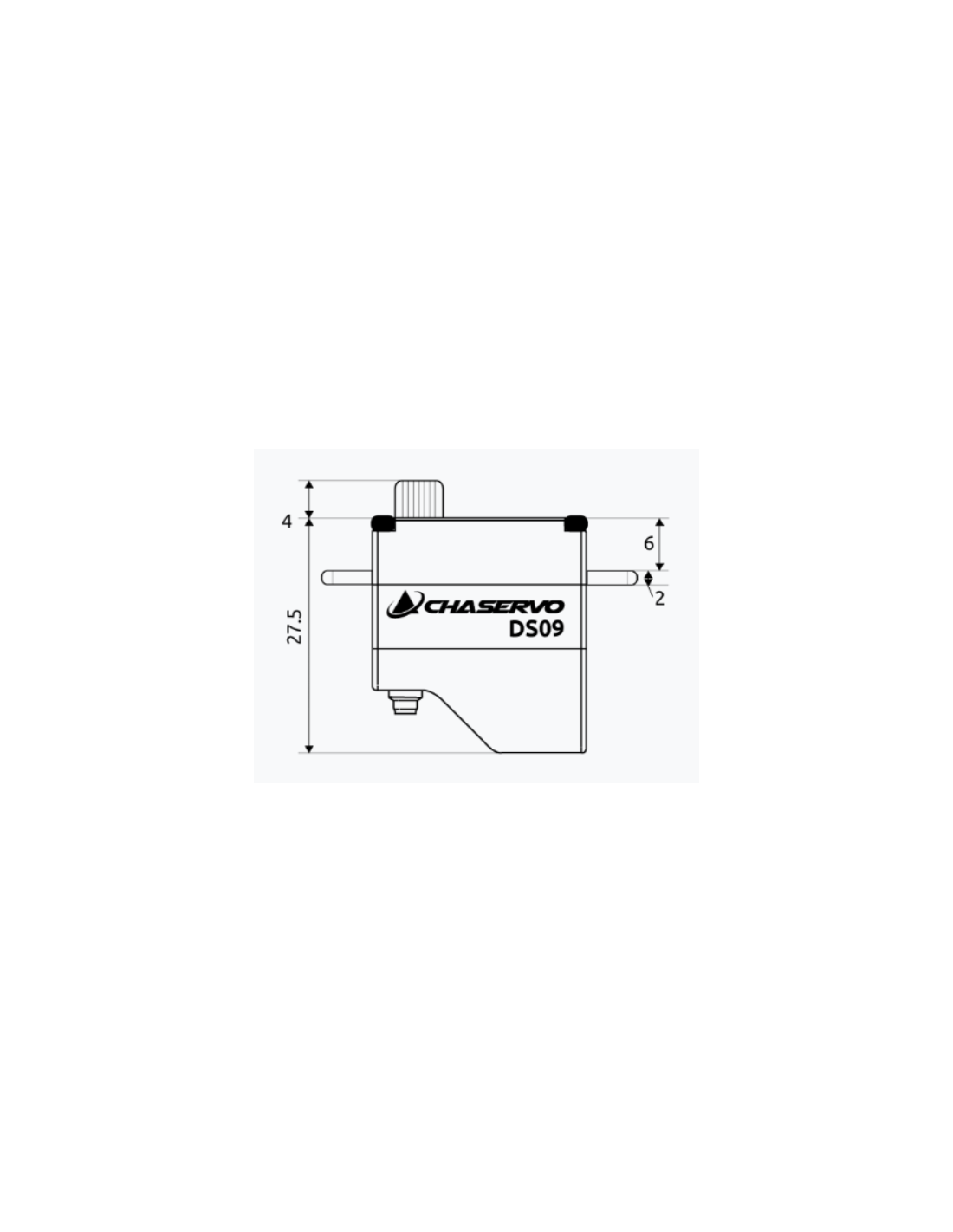

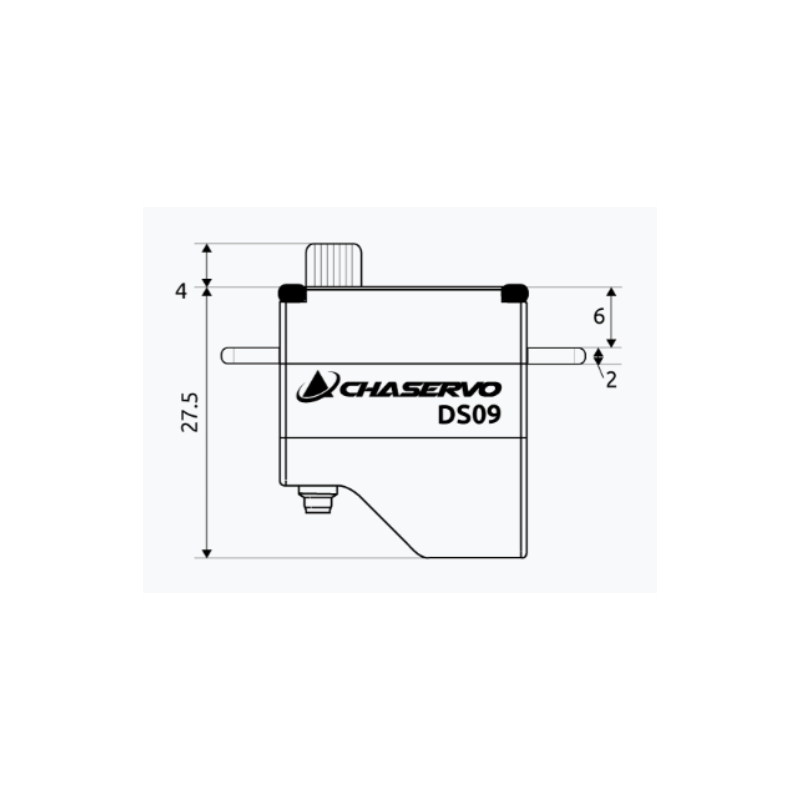

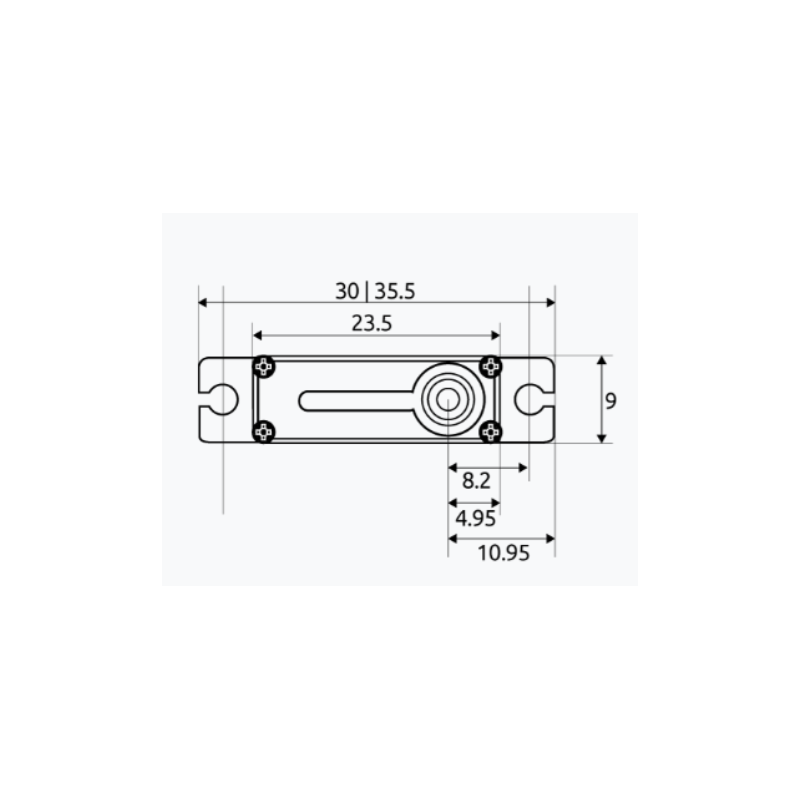

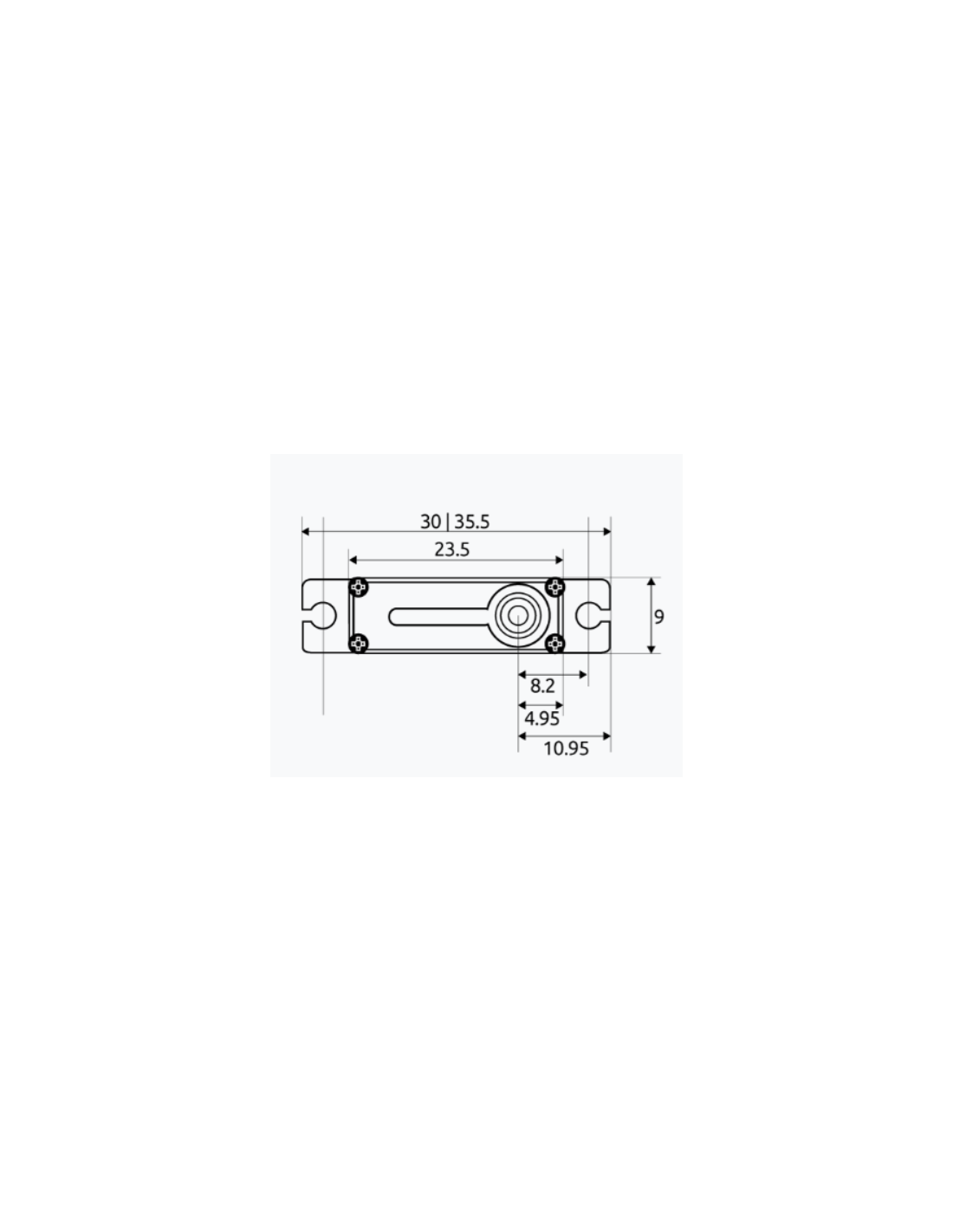

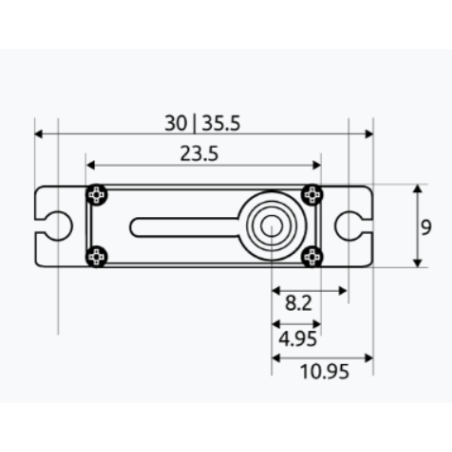

Dimensions : 23.5x9x27.5mm
Weight : ~12gr

Number of servo teeth
25 Teeth / 25T
Torque in kg.cm (servos)
9
366-DS09
4897073542416
