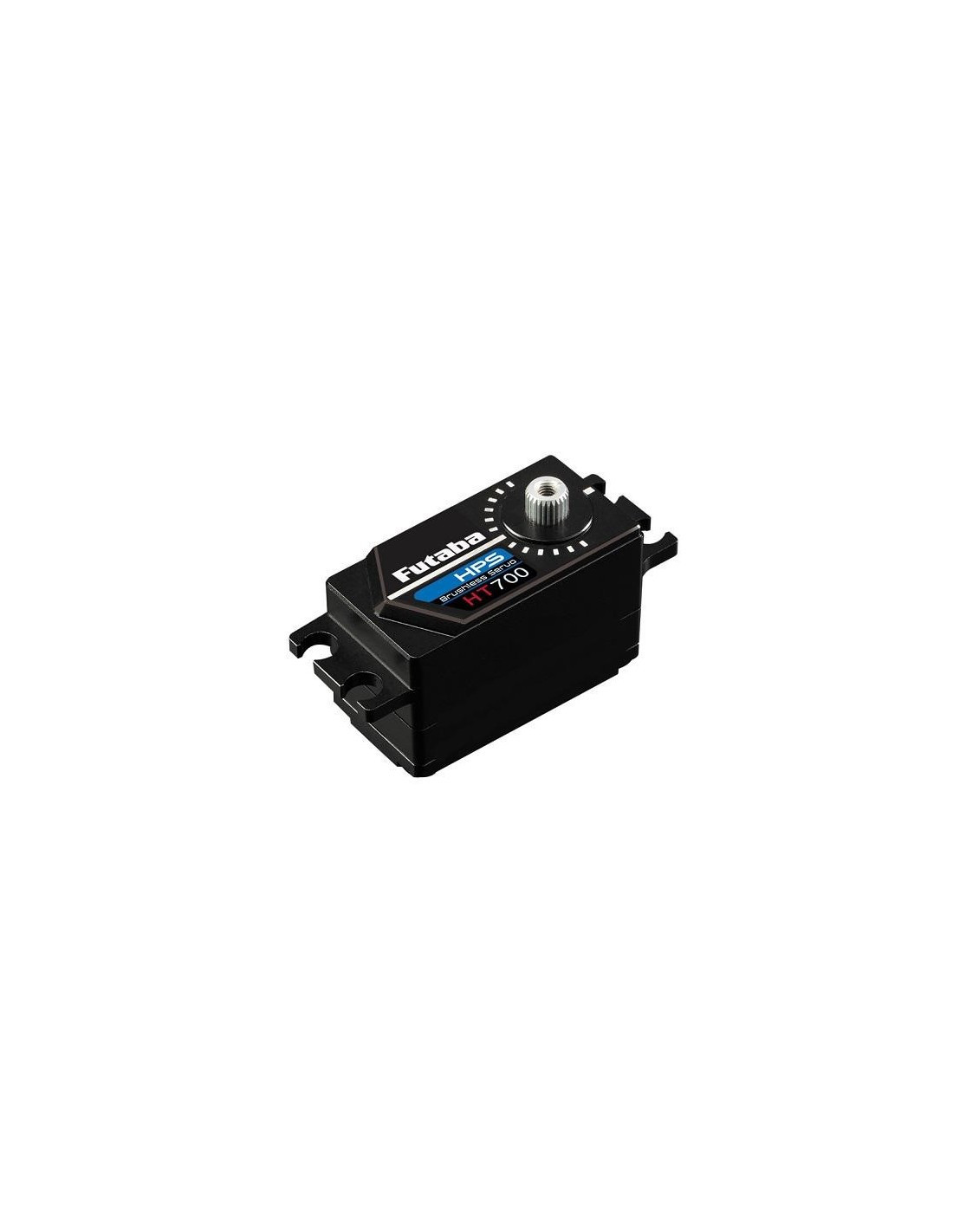

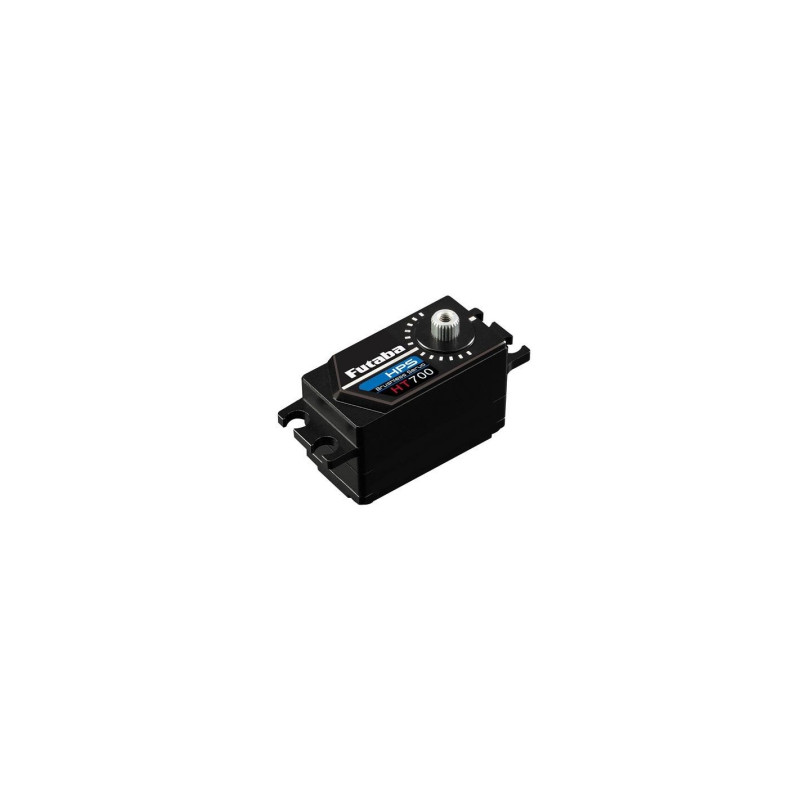

FUTABA HPS-HT700 SERVO

HPS-HT700 - Low-profile, high-voltage helicopter anti-torque servo S.Bus2
High-performance servo with brushless motor (switchable 1,520 uS/760 uS).
New HPS brushless motor technology specially designed for higher performance and better cooling.

Technical data:
- Suitable for RC 500-800 3D/F3C helicopters. - Programmable/high-performance brushless servo.
- New brushless motor.
- Specially developed for the F3C.
- Supports 760 uS (default value, can be set to 1,520 uS with GPB-1 v4.3.)
- Programmable and compatible with S.Bus and S.Bus2 systems.
- Can be connected to a PC using the USB CIU-2/-3 adapter sold separately.
- Metal output gear.
- Top/middle/bottom: all-aluminium housing

Speed:
0.05 s/60° at 6.6 V
0.0455 s/60° at 7.4 V

Torque:
8.6 kgf/cm at 6.6 V
9.60 kgf/cm at 7.4 V

Dimensions:
40.5 × 21.0 × 26.2mm
Weight:54g

Nominal voltage: DC 6.0V-7.4V
Operating voltage: DC 4.8-8.4V

NO DRY BATTERY OR BEC!
