Servos - DS450 Mks digital metal servo - FLASH RC
Servos - DS450 Mks digital metal servo - FLASH RC

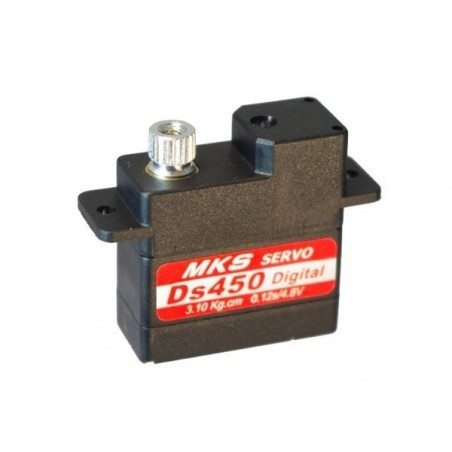

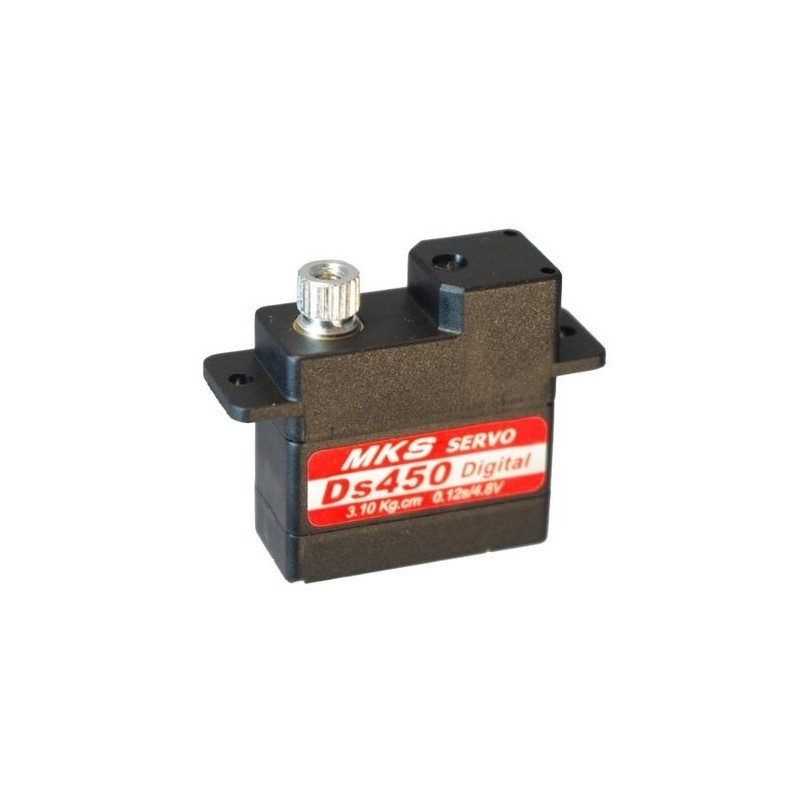

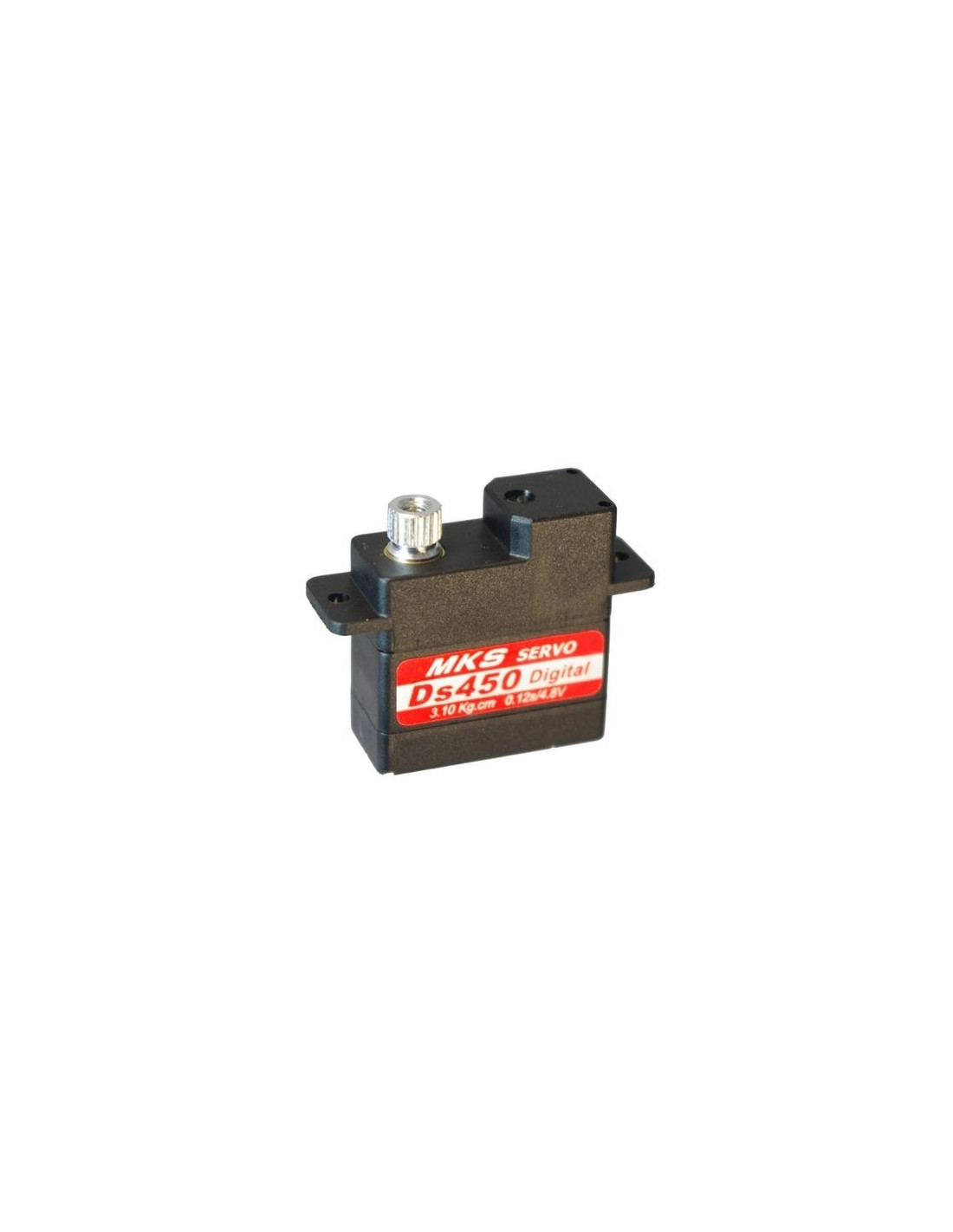

Digital metal servo DS450 Mks

€29.08
Tax included
FLASH RC, authorized distributor MKS for France offers this micro digital metal servo of high quality: - digital servo - set of metal gears - double bearing - blocking torque of 3.22kg/cm under 5.0V with a speed of 0.115sec/60° - dead band: 0.002ms - Dimensions: 22.5x10x23.5 mmThe DS450 is a very thin (10mm), fast and powerful micro servo that will find its place in many models such as gliders <2.0m, aircraft class 30, cyclic heli class 450It is recommended to power it with 4S NiMh or with a BEC at 5.0V maximum.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


DS-450 Features

Dead band: 0.002ms (Default)
Control System: +Pulse Width Control
Working frequence: 1520µs / 333hz
(RX) Required Pulse: 3.0 ~ 5.0 Volt Peak to Peak Square Wave
Operating Voltage: 4.8 ~ 5.0 V DC Volts
Operating Temperature Range: -10 to + 60 Degree C
Operating Speed (4.8V): 0.120 sec/60° degrees at no load
Operating Speed (5.0V): 0.115 sec/60° degrees at no load
Stall Torque (4.8V): 3.10 kg.cm (43.0 oz/in)
Stall Torque (5.0V): 3.22 kg.cm (44.7 oz/in)
360° Modifiable: YES
Motor Type: Coreless Motor
Potentiometer Drive: Indirect Drive
Driver Type: FET
Bearing Type: Dual Ball Bearings
Gear Type: Metal + Aluminum-magnesium alloy Gears
Programmable: YES
Connector Wire Length: 15.0 cm (5.9 in)
Dimensions: 22.5X10X23.5 mm (0.89x 0.39x 0.93 in)
Weight: 9.5 g (0.335 oz)

Thickness in mm (Servos)
10
Torque in kg.cm (servos)
3.1
Speed sec / 60° (servos)
0.11
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
no
Weight in g (servos)
9.5
