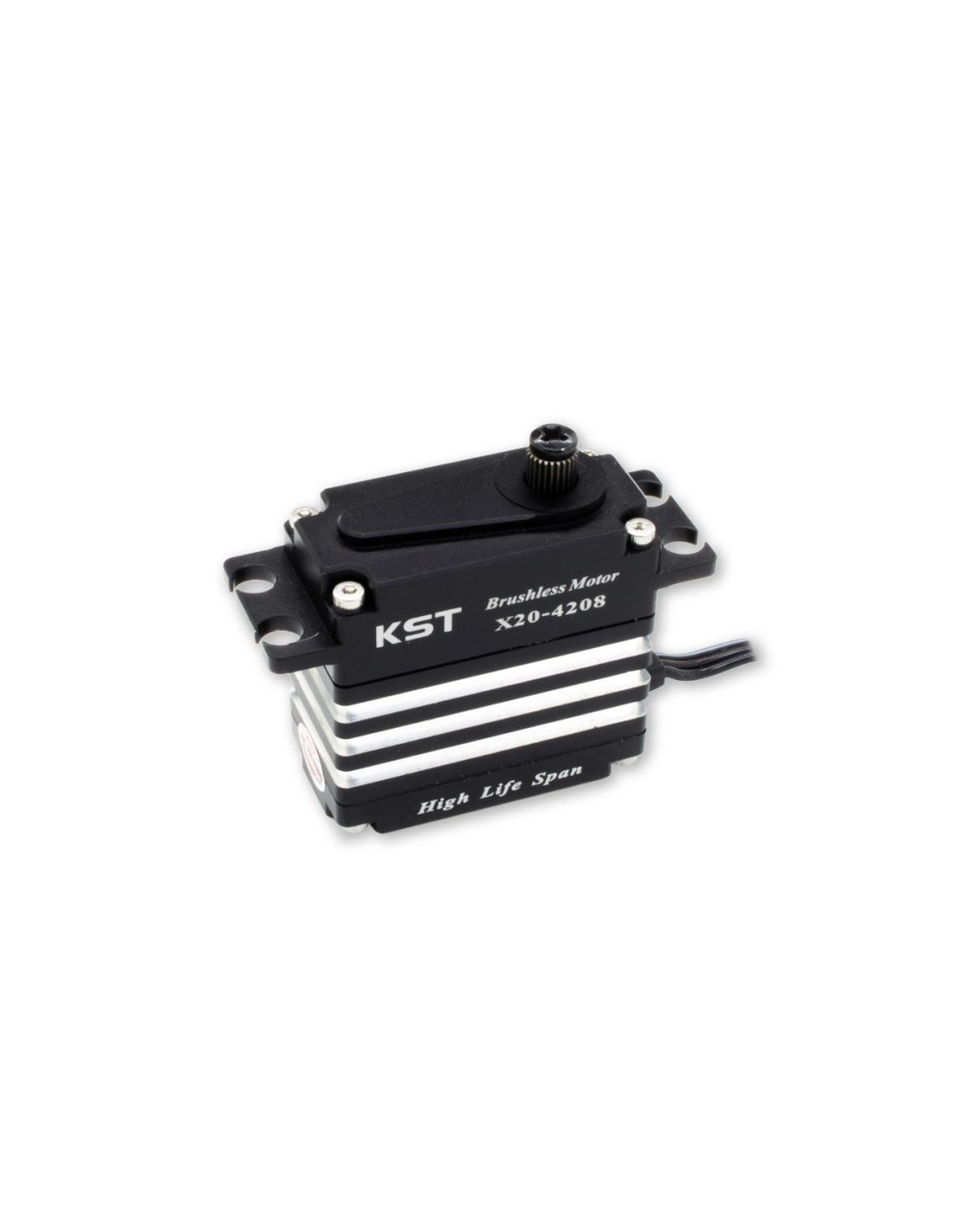

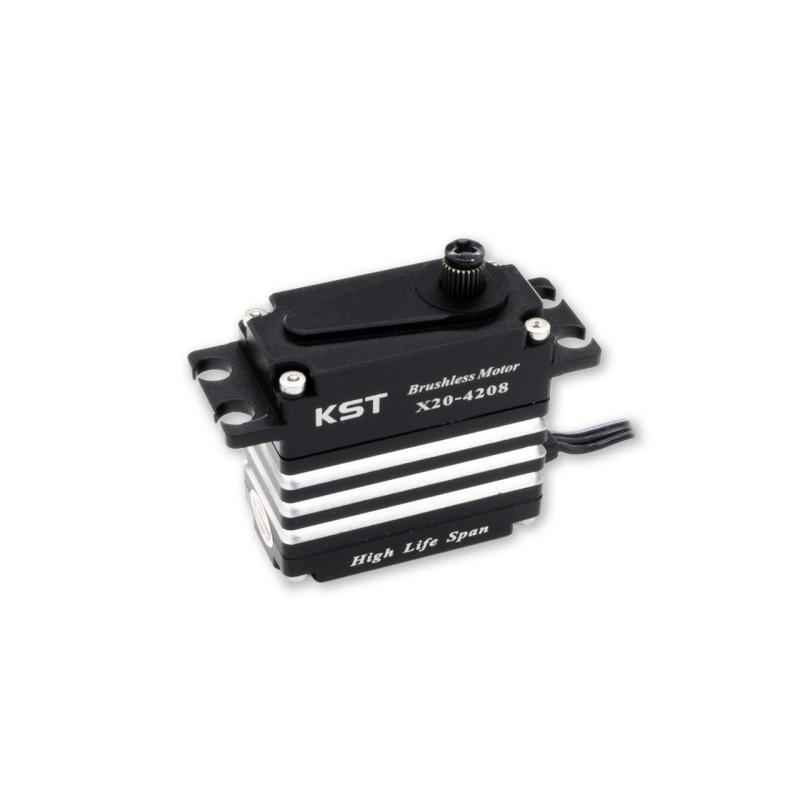

Servo brushless KST X20-4208 V8.0
Servo brushless KST X20-4208 V8.0
Servo brushless KST X20-4208 V8.0
Servo brushless KST X20-4208 V8.0

Servo brushless KST X20-4208 V8.0

€133.25
Tax included

X20-4208 brushless servo is the first servo with a 4-pole brushless DC motor, long-life gear set and 6 ball bearing. The X20-4208 is a super-fast, high-torque servo for all applications such as on-road and off-road RC car racing in 1:7 and 1:8 scale.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Features

  • 4-pole brushless DC motor with fast response and high efficiency
  • Extreme torque and excellent speed
  • Hardened steel gears and CNC aluminum housing
  • 6 ball bearings
  • IP65 splashproof
  • Operating frequency up to 1520us/333Hz
  • Programming box/USB connection compatible
  • Designed for 1:7 and 1:8 scale on-road and off-road RC racing cars (racing, buggy, truggy). - Also suitable for high-performance aerobatic aircraft, jets, scale models and more.

* Please note: never connect the servo to a live system.

Specification

  • Item: Brushless servo X20-4208
  • Rated voltage: DC7.4V
  • Voltage range: DC6.0V-8.4V
  • Torque: 38Kgf.cm@6.0V, 42Kgf.cm@7.4V, 46Kgf.cm@8.4V
  • Speed: 0.10sec/60 ° @ 6.0V, 0.08sec/60 ° @ 7.4V, 0.07sec/60 ° @ 8.4V
  • Stall current: 8.80A@6.0V, 10.8A@7.4V, 12.3A@8.4V
  • Operating frequency: 1520us/333Hz
  • Default displacement angle: ± 60 ° = 120 ° Total
  • Total temperature range: -20 ℃......+ 65 ℃
  • Programmable: Yes
  • Housing material: aluminum alloy
  • Motor type: 4-pole brushless DC motor
  • Gear set material: Hardened steel/HLS
  • Position sensor: potentiometer
  • Ball bearing: 6BB
  • Waterproof: IP65

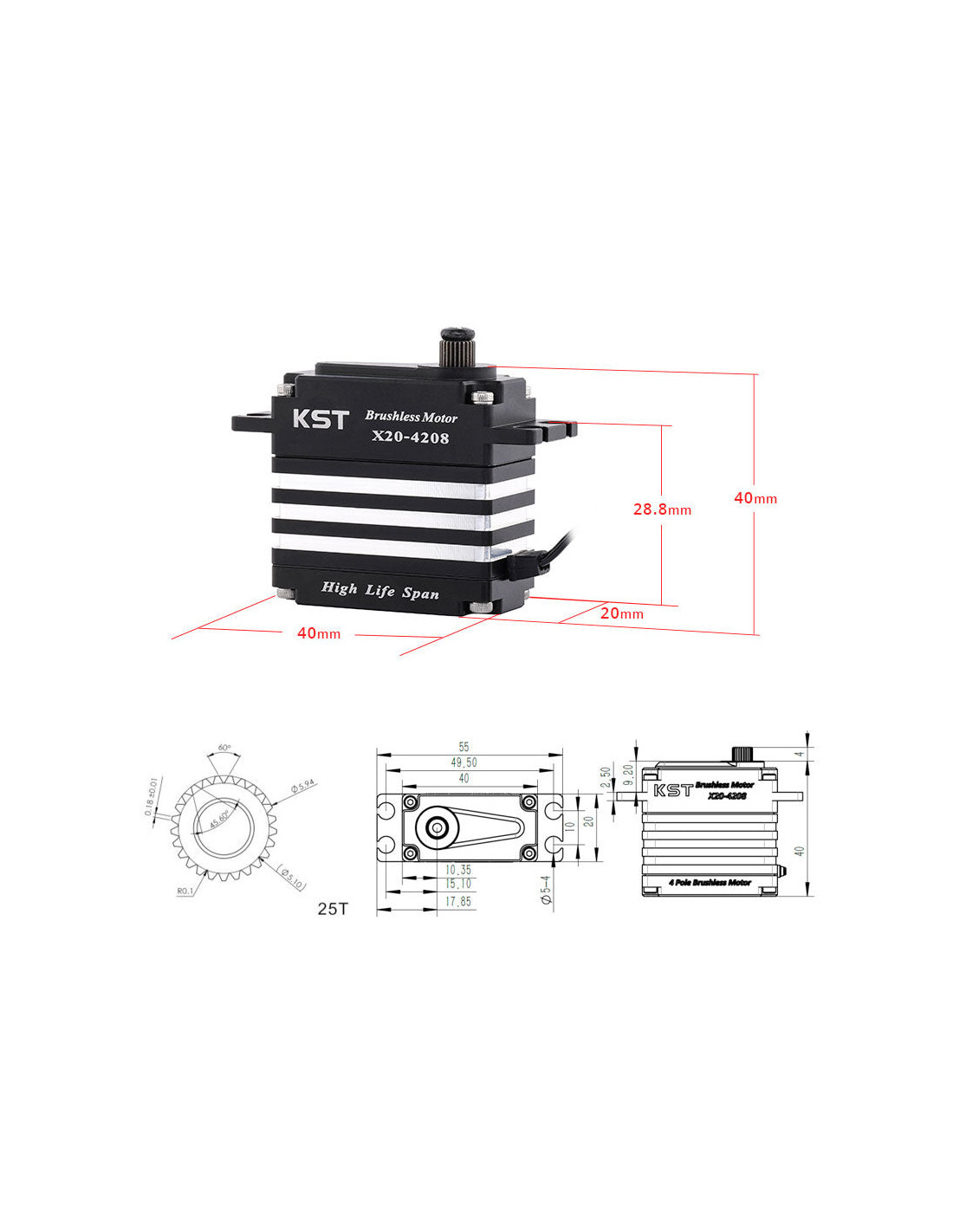

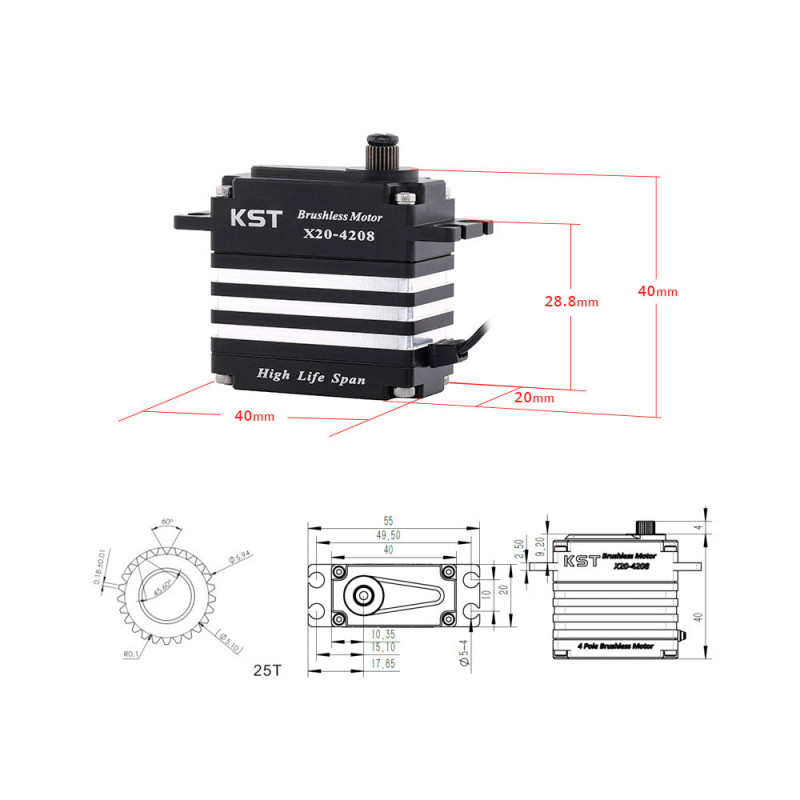

  • Housing dimensions: 40mm * 20mm * 40mm ± 0.2mm
  • Weight: 80g ± 10%
Thickness in mm (Servos)
20
Torque in kg.cm (servos)
46
Speed sec / 60° (servos)
0.07
Pinions (servos)
Metal
Bearing (servos)
yes
HV (servos)
yes
Weight in g (servos)
80
153-X20-4208
4897073542249
