KST A12-T HV 12mm wing servo (32g, 13.8kg.cm, 0.08s/60°)

The KST A12-T servo uses a magnetic (hall effect) sensor to provide position feedback, replacing the troublesome sliding contact potentiometer used in most servos. This greatly improves the reliability of the servo, while providing better accuracy and resolution. The A12-T also features an ultra-efficient coreless motor, steel gear train, aluminum housing, slow start-up, low current consumption and constant power output. These features make it perfect for high performance gliders, large electric models and jets.

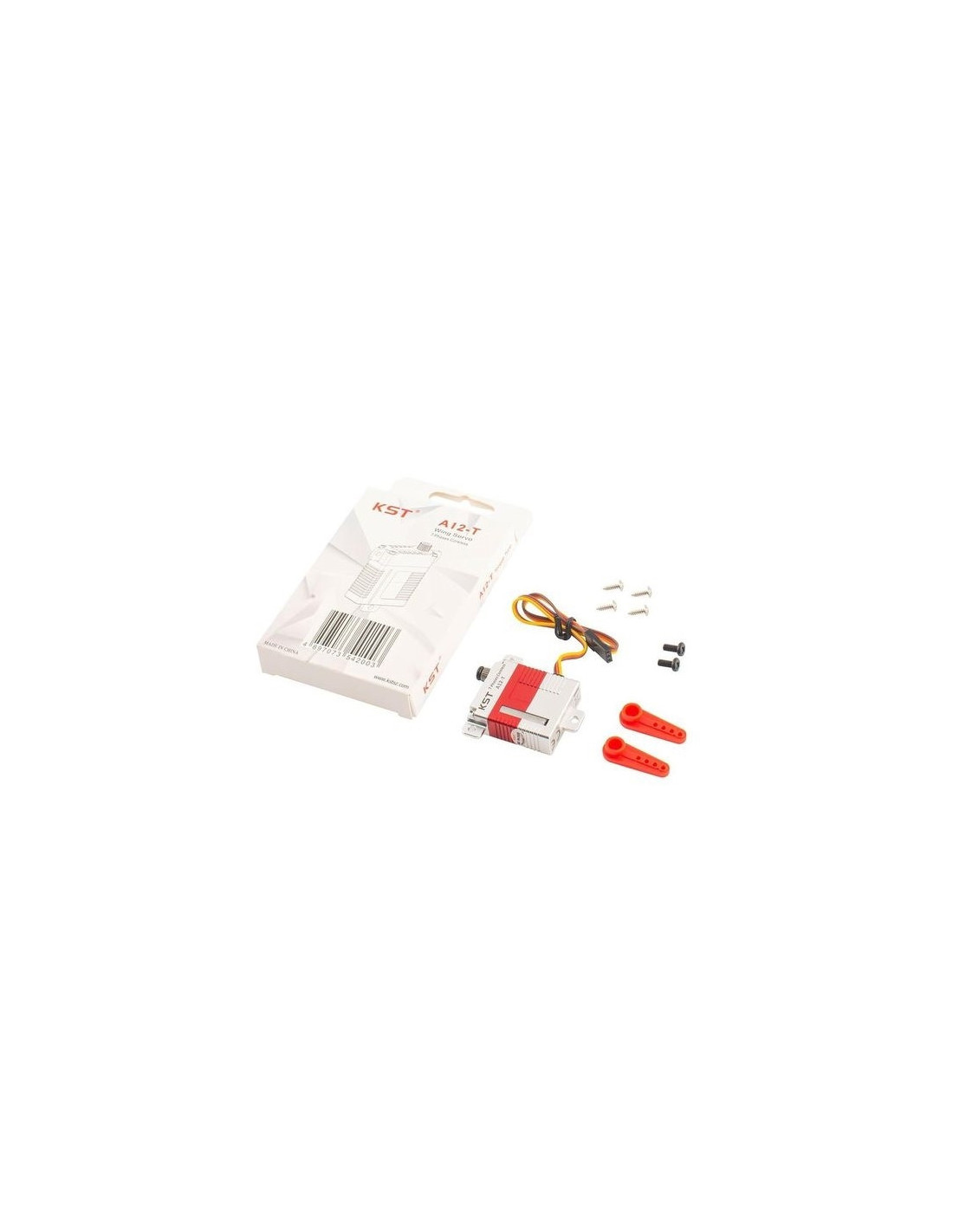

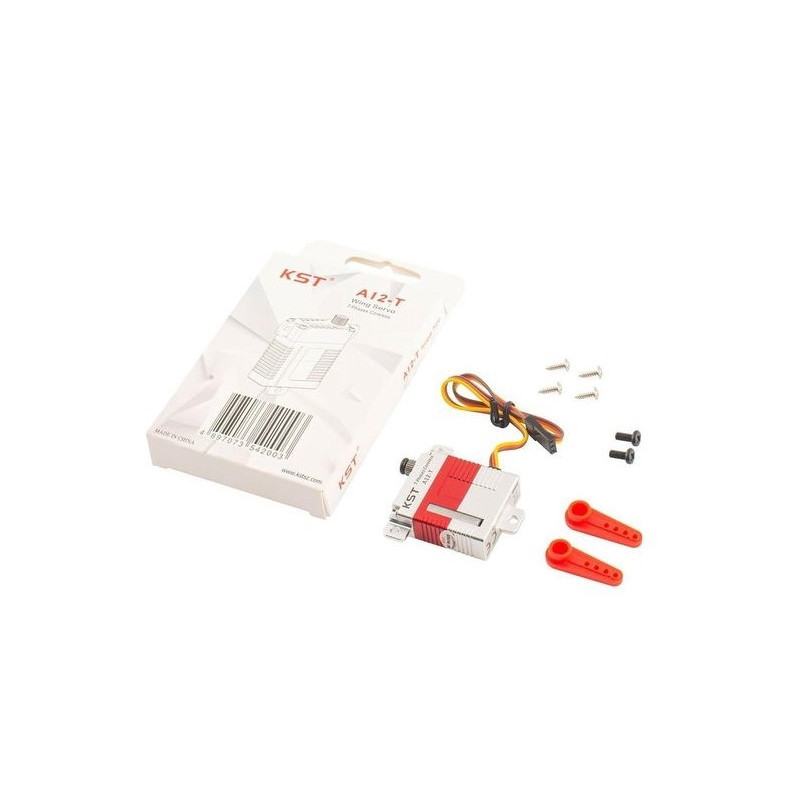

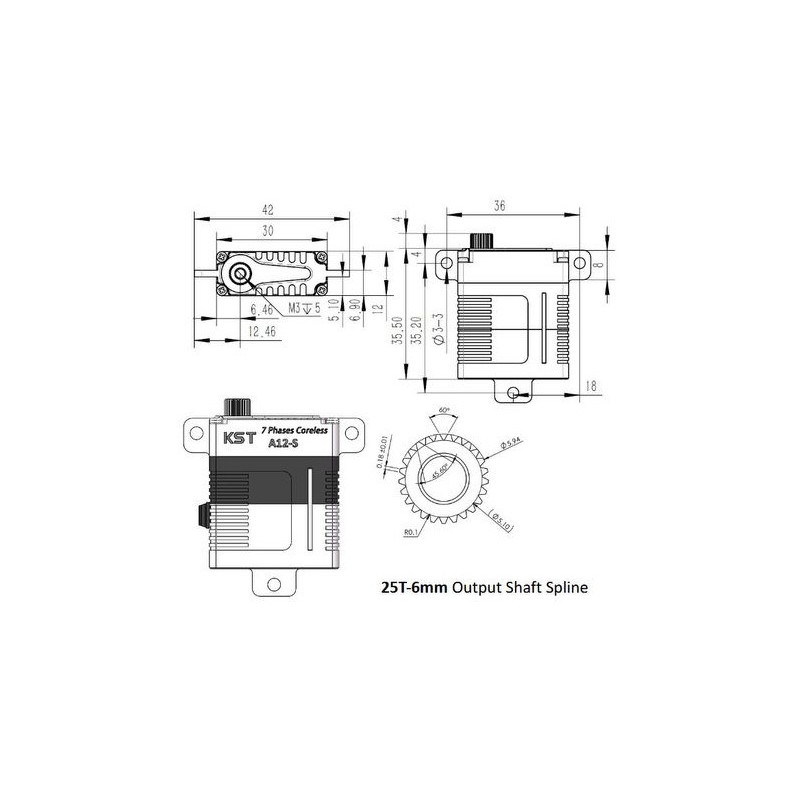

This servo uses a mini 25 tooth output spline (Futaba) for maximum compatibility with the wide variety of aftermarket control horns. Supplied accessories include two heavy-duty red nylon output arms, and three normal strength white nylon output arms.

KST A12-T Features

• Magnetic position sensor
• 7-phase coreless motor
• 12 mm body for stronger gears and better resistance.
• Excellent torque of 13.8 Kg.cm
• Compact and lightweight design
• Excellent torque and speed
• Wide voltage range from 4S NiMH to 2S LiPo
• Excellent heat dissipation
• 7075 alloy casing
• Hardened steel gears
• Designed for high performance RC gliders and helicopters.
