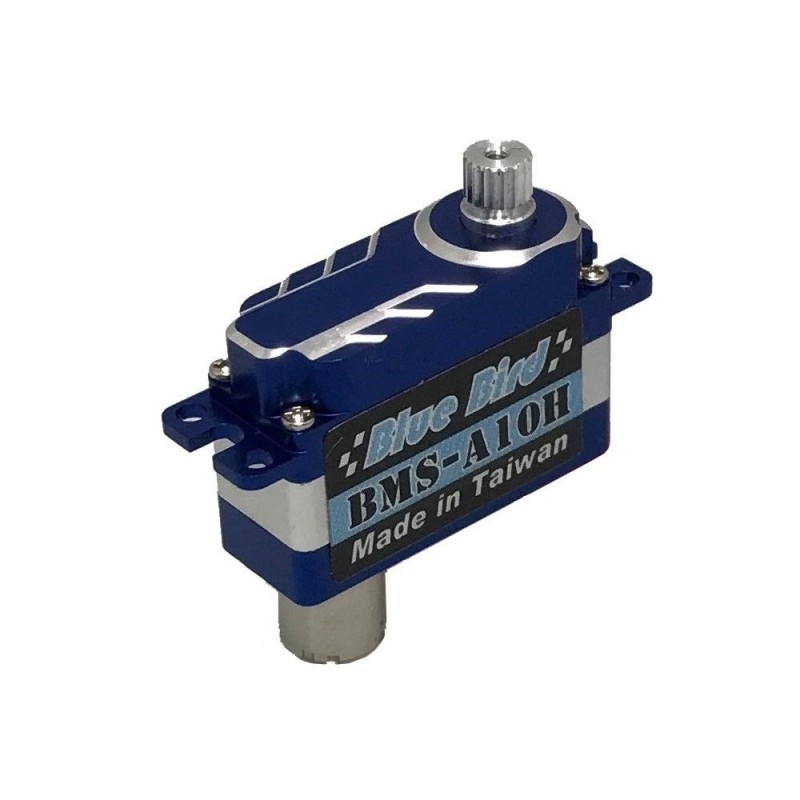

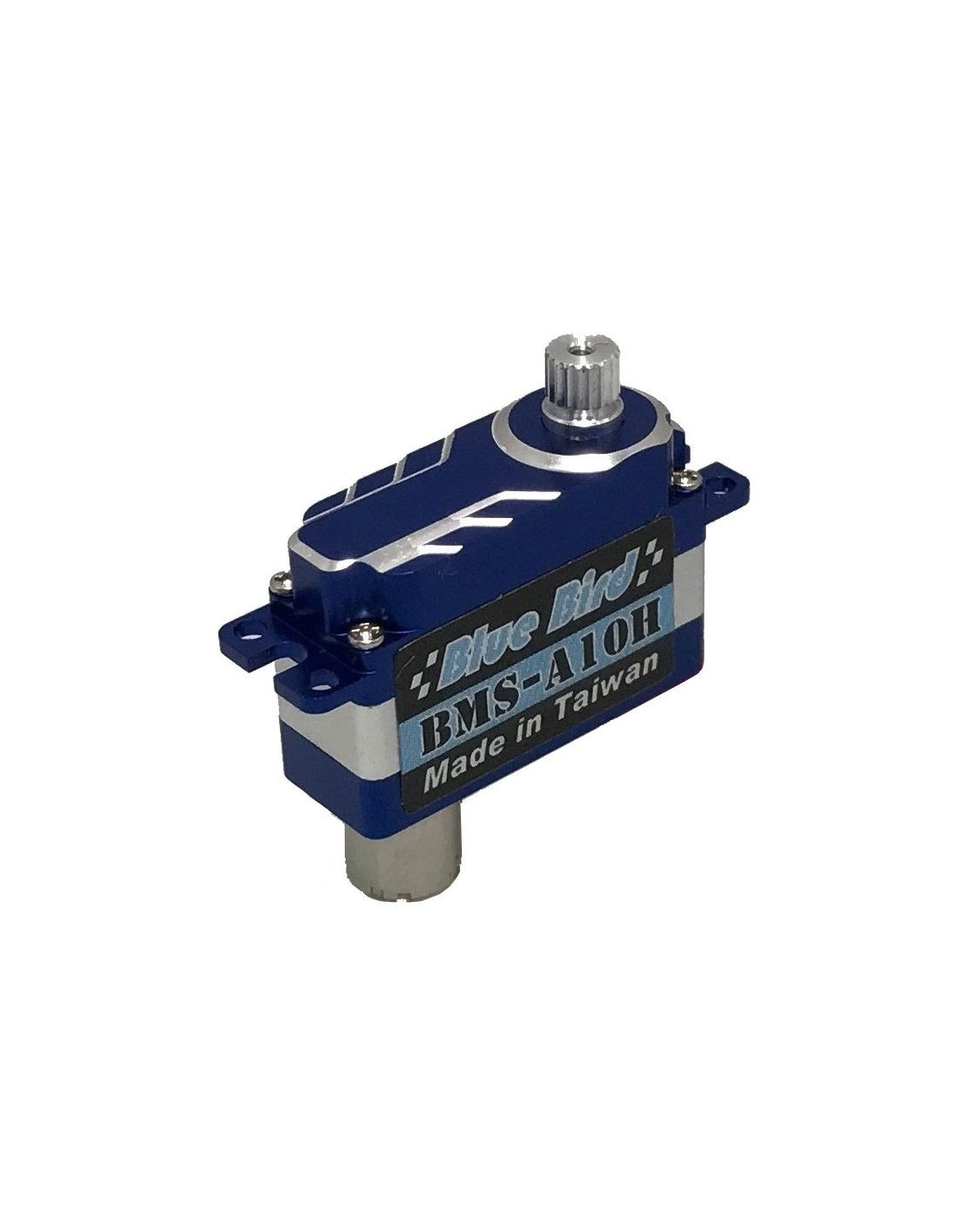

Blue Bird servo BMS-A10H 3.2Kg.cm 0.07s 7.4g 8mm

The Blue Bird BMS-A10H is an excellent wide voltage range (WV) servo offering incredible torque, speed and accuracy in a small 8mm thick metal housing.
The H suffix refers to the servo's horizontal (conventional) mounting lugs, making it ideal for fuselage mounting for example.

With a weight of 7.4 grams and a speed of 0.07 sec / 60°, the Blue Bird BMS-A10H is ideal for DLGs, F3Ks, F3Ps, F5Js, as well as for all electric racers, small gliders and small 3D RC models.
The A10 is also ideal for installation in the tailplane of larger models

With a wide voltage range of 3.7V to 8.4V, the Blue Bird A10H servo works perfectly on 1S and 2S LiPo, as well as on 4 and 5 cell NiMH batteries

Specifications

Operating voltage : 3.5 to 8.4V DC
Speed : 0.15sec/60° (3.7V) - 0.10sec/60° (6.0V) - 0.07sec/60° (8.4V)
Locking torque : 1.6kg/cm (3.7V) - 2.4kg/cm (6.0V) - 3.2kg/cm (8.4V)
Pinions : Metal
Cable length : 15 cm
Dimensions : 22,8x15x15,3 mm
Weight : 7.4 gr
