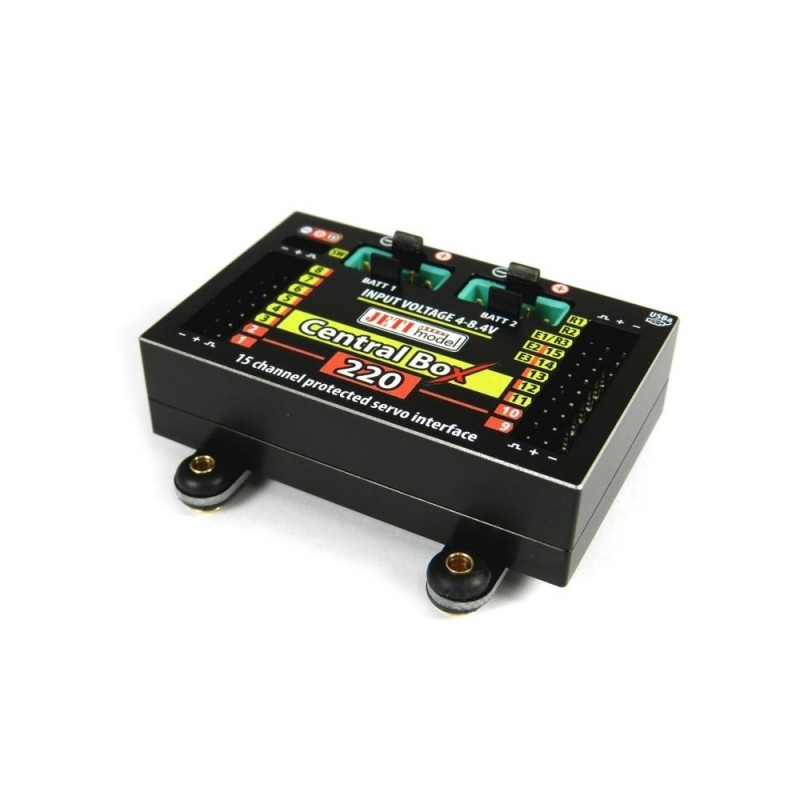

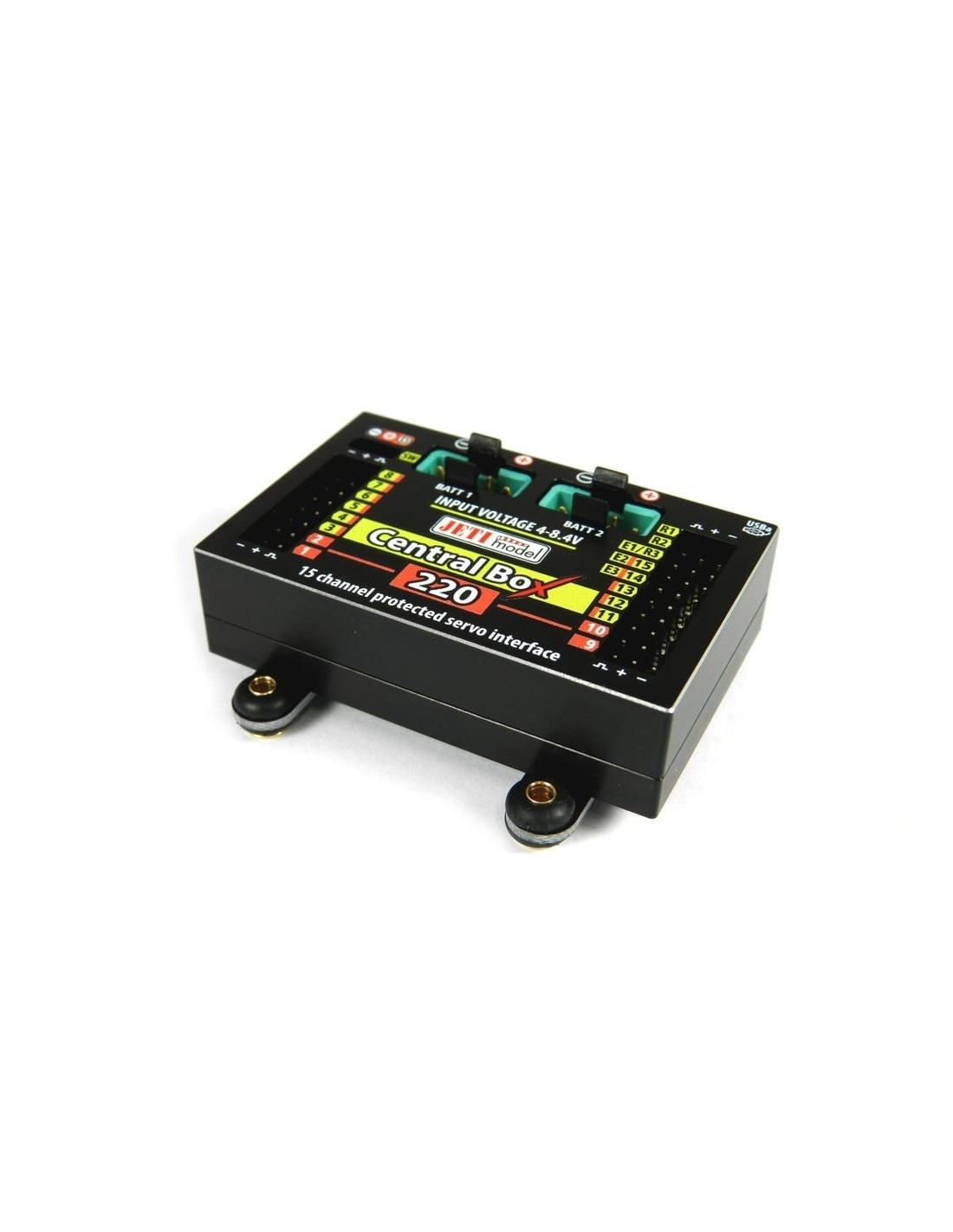

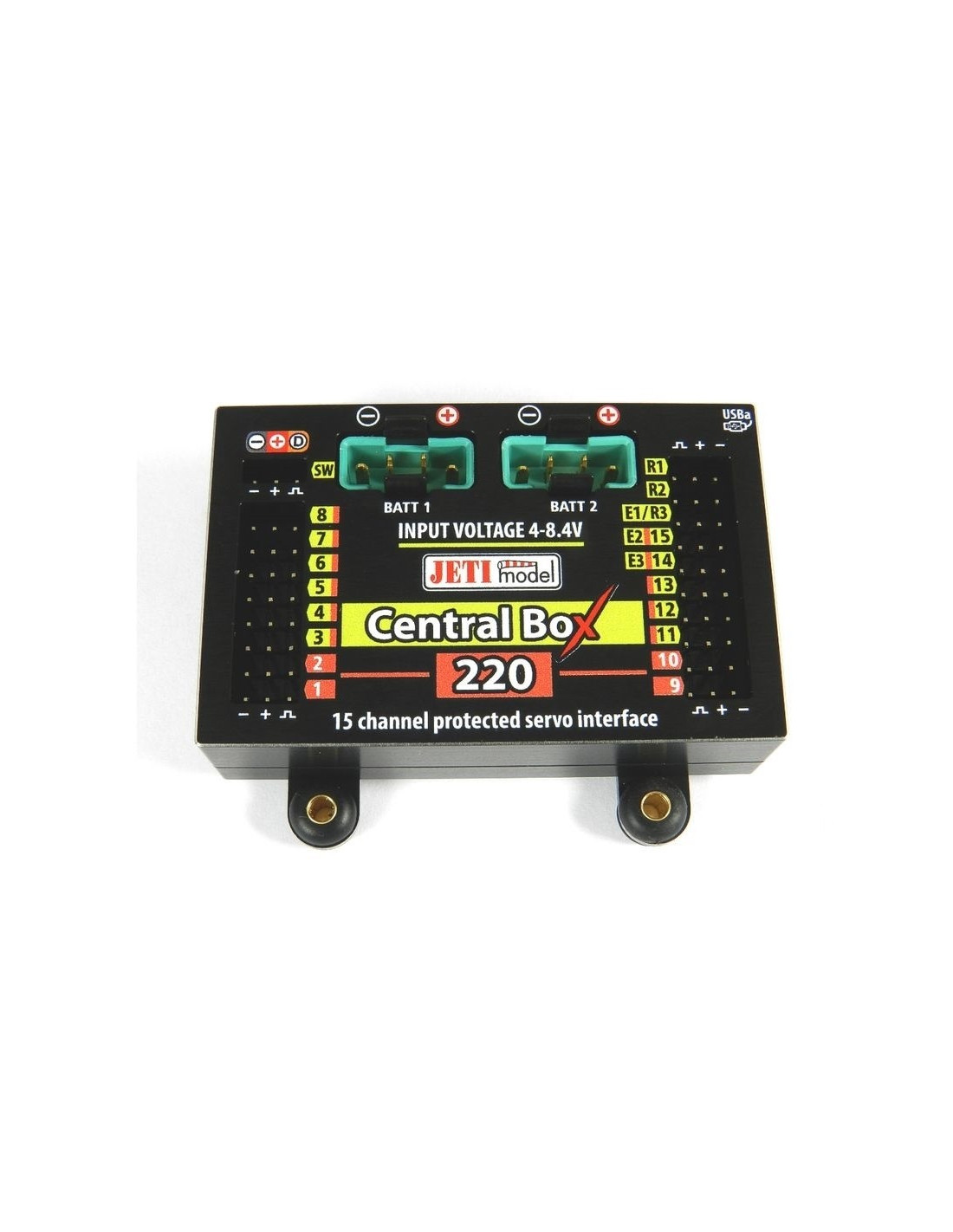

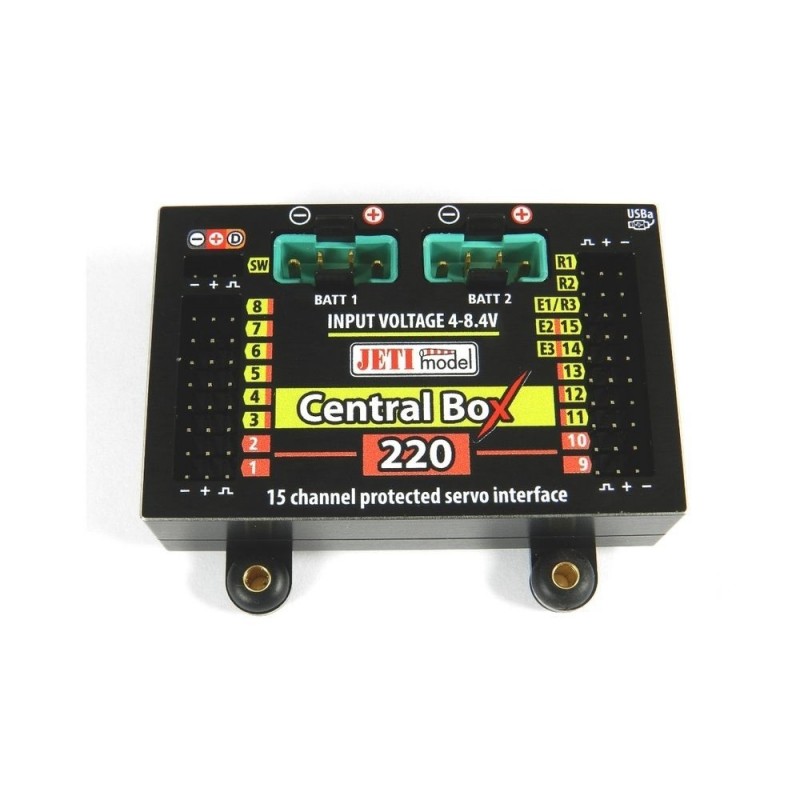

Central Box 220 Duplex 2.4EX + 2x Rsat2 + 1x RC switch - Jeti This is actually a product name or technical specification, so it generally remains the same in English. If you’d like it fully translated for clarity, it would be: Central Box 220 Duplex 2.4

Last items in stock
€336.58
Tax included
The "Central Box 220" from Jeti is a module that allows the complete management of the servos and power supplies of the model. The Central Box 220 is equipped with overcurrent protection on each output.The Central Box 210 can manage 2 batteries simultaneously and supports the Jeti DUPLEX EX telemetry protocol.Up to 3 receivers can be connected to the Central Box 210 to benefit from transmission security.With the DC/DS series transmitters, the full potential of the Central Box 210 can be exploited. The Central Box 210 can accommodate up to 15 servo outputs, 2 battery inputs and also the possibility to connect a MagSwitch or RC Switch (for remote powering of the model). (Recommended maximum power supply voltage: 2S Lipo)

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Technical data

  • Power supply voltage: 4 - 8.4V
  • Recommended battery (number / type): 2-3 LiXX
  • Channels 1, 2, 9 and 10 are equipped with protection for servomotors up to 60 Kg.cm
  • Channels 3 - 8 and 11 - 15 are equipped with protection for servomotors up to 30 Kg.cm.
  • Load current: 90A peak / 20A continuous
  • 15 fully programmable servo outputs
  • Input for Magswitch or Rc Switch

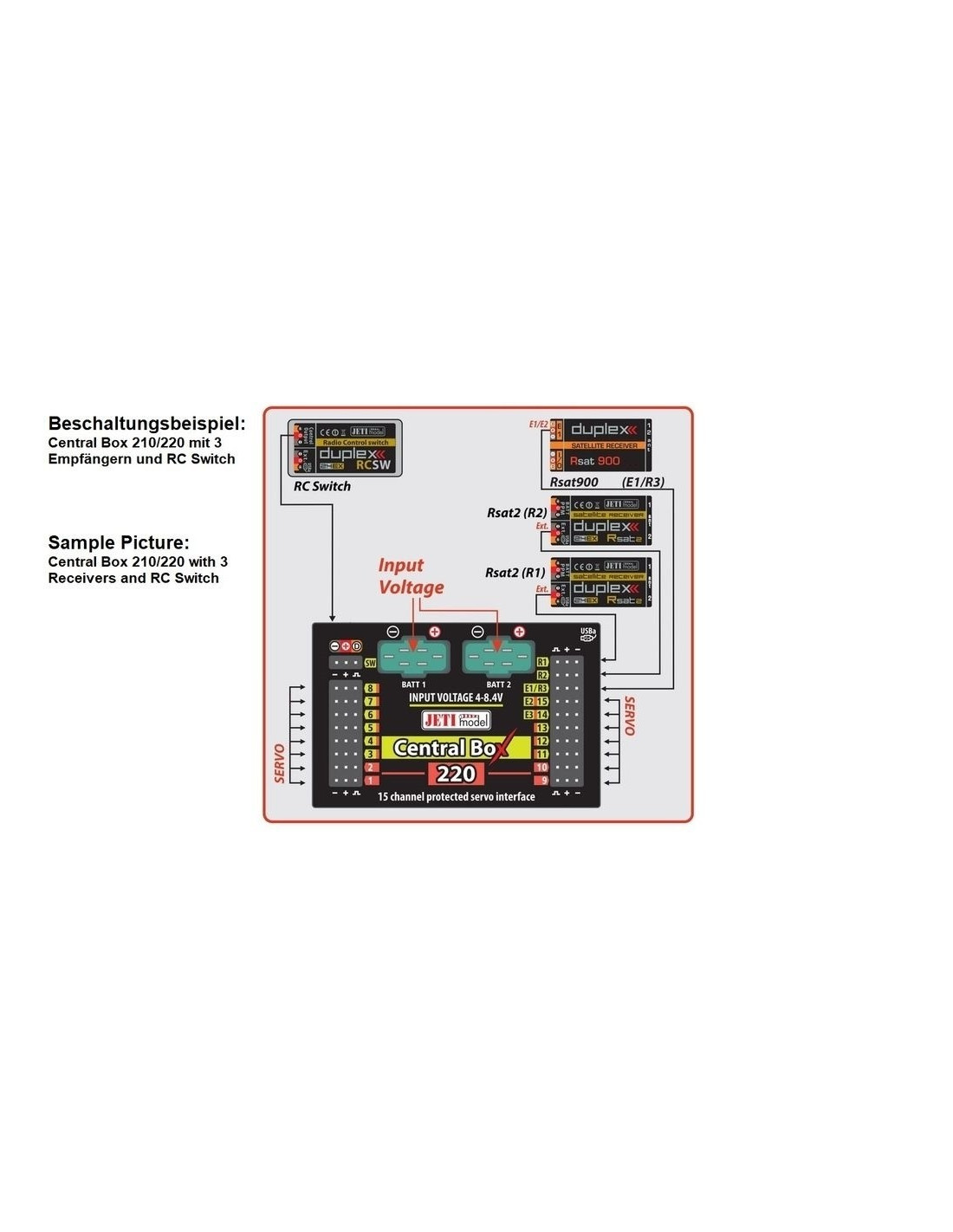

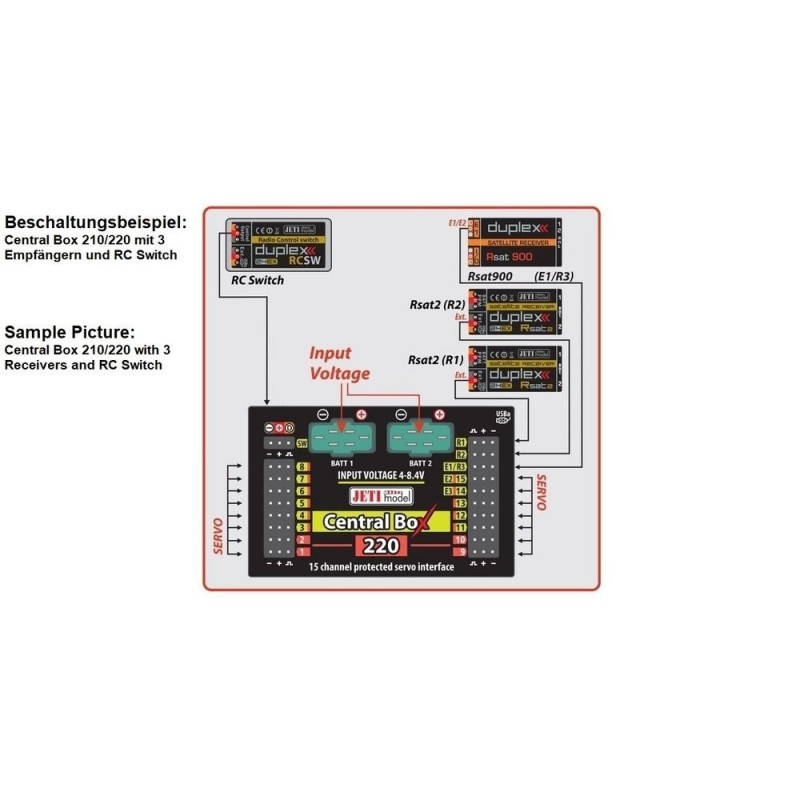

  • 3x inputs for connecting receivers with serial or PPM output
  • 3x inputs for EX Duplex telemetry sensors
  • Telemetry measurements: power consumption, voltage, current
  • Suitable for use with HV (High Voltage) servos
  • Operating temperature [° C] - 20 to 75
  • Weight [g] : 65
  • Size [mm] : 66x42x18

Contents of the box

  • Central Box 220
  • 2 X RSAT2
  • RC-Switch

308-J-CB-220-RS-RCSW
8595245914479
8595245914479
No reviews
Comments (0)
No customer reviews for the moment.

16 other products in the same category:

Box (Powerbox, Emcotec, Jeti, ...) - PowerBox Royal SR2 - FLASH RC Box (Powerbox, Emcotec, Jeti, ...) - PowerBox Royal SR2 - FLASH RC 2
Last items in stock
Box (Powerbox, Emcotec, Jeti, ...)

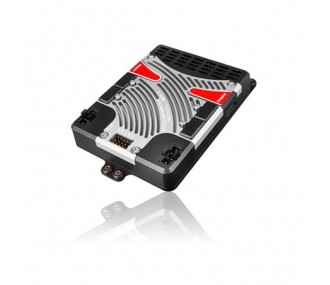

PowerBox Royal SR2 The text "PowerBox Royal SR2" is already in English and does not...
