PowerBox Royal SR2 The text "PowerBox Royal SR2" is already in English and does not require translation. If you meant to provide a longer French text, please paste it, and I will translate it for you.
Last items in stock
€499.17
Tax included

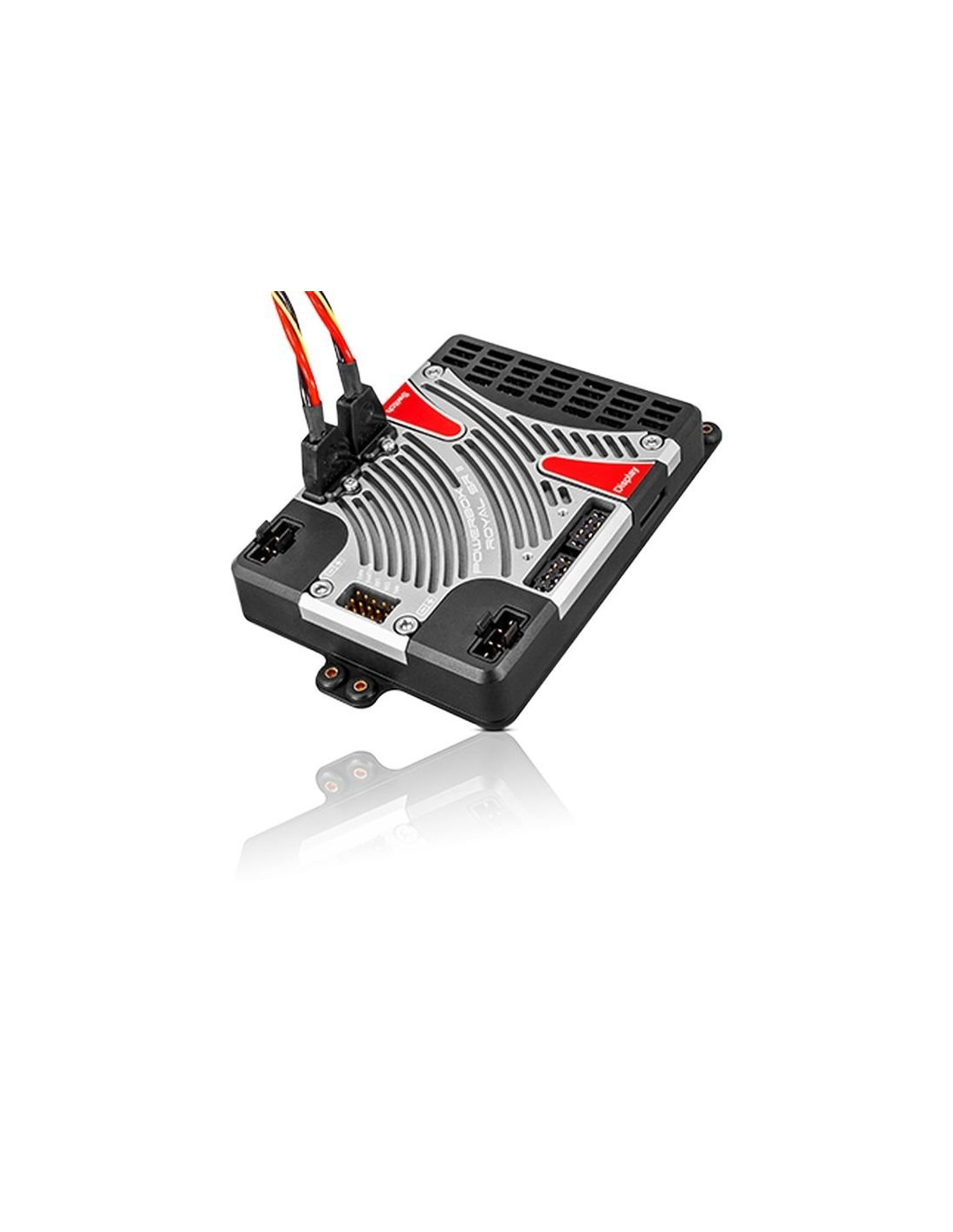

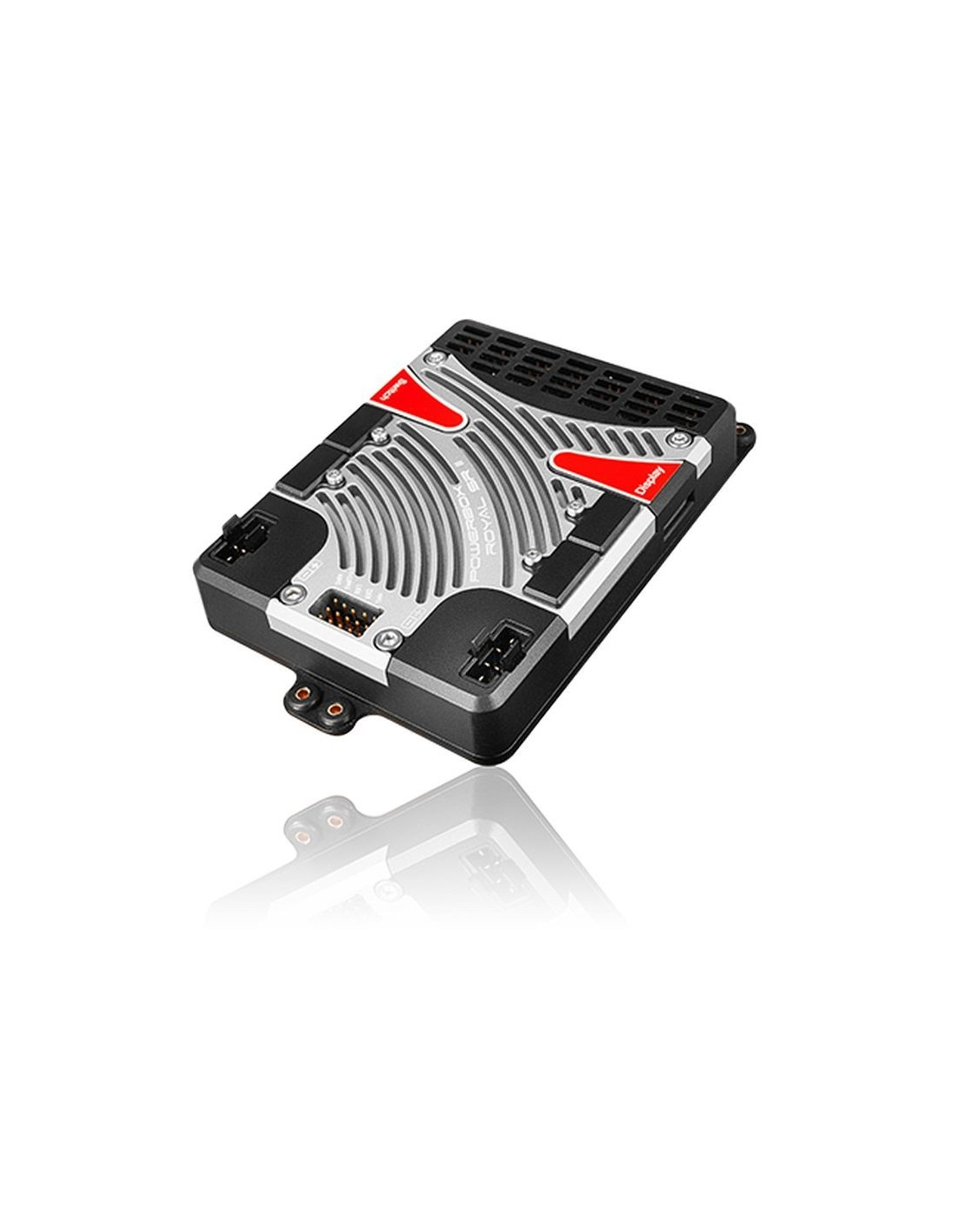

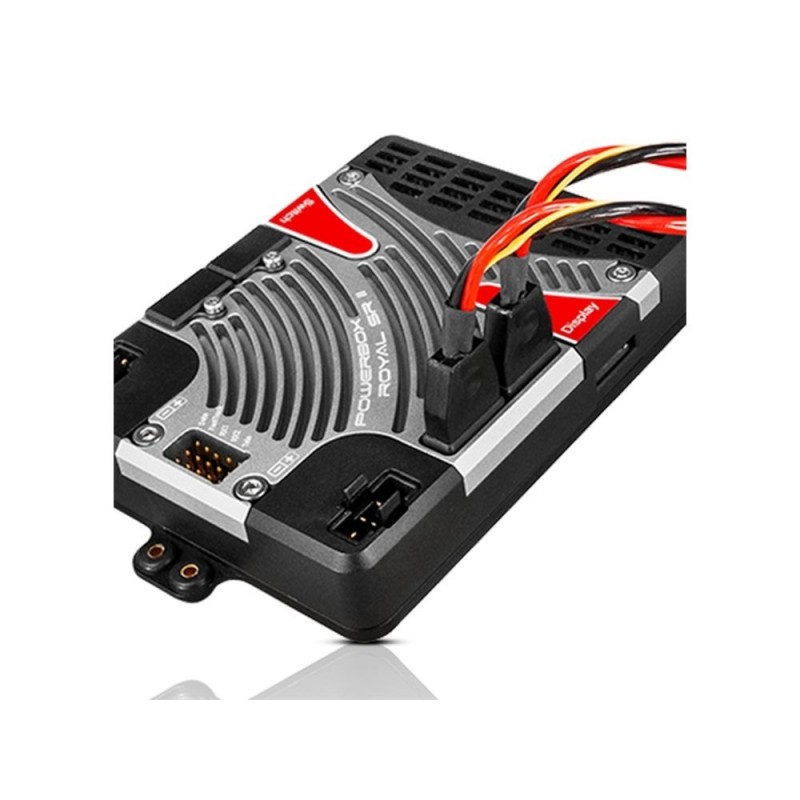

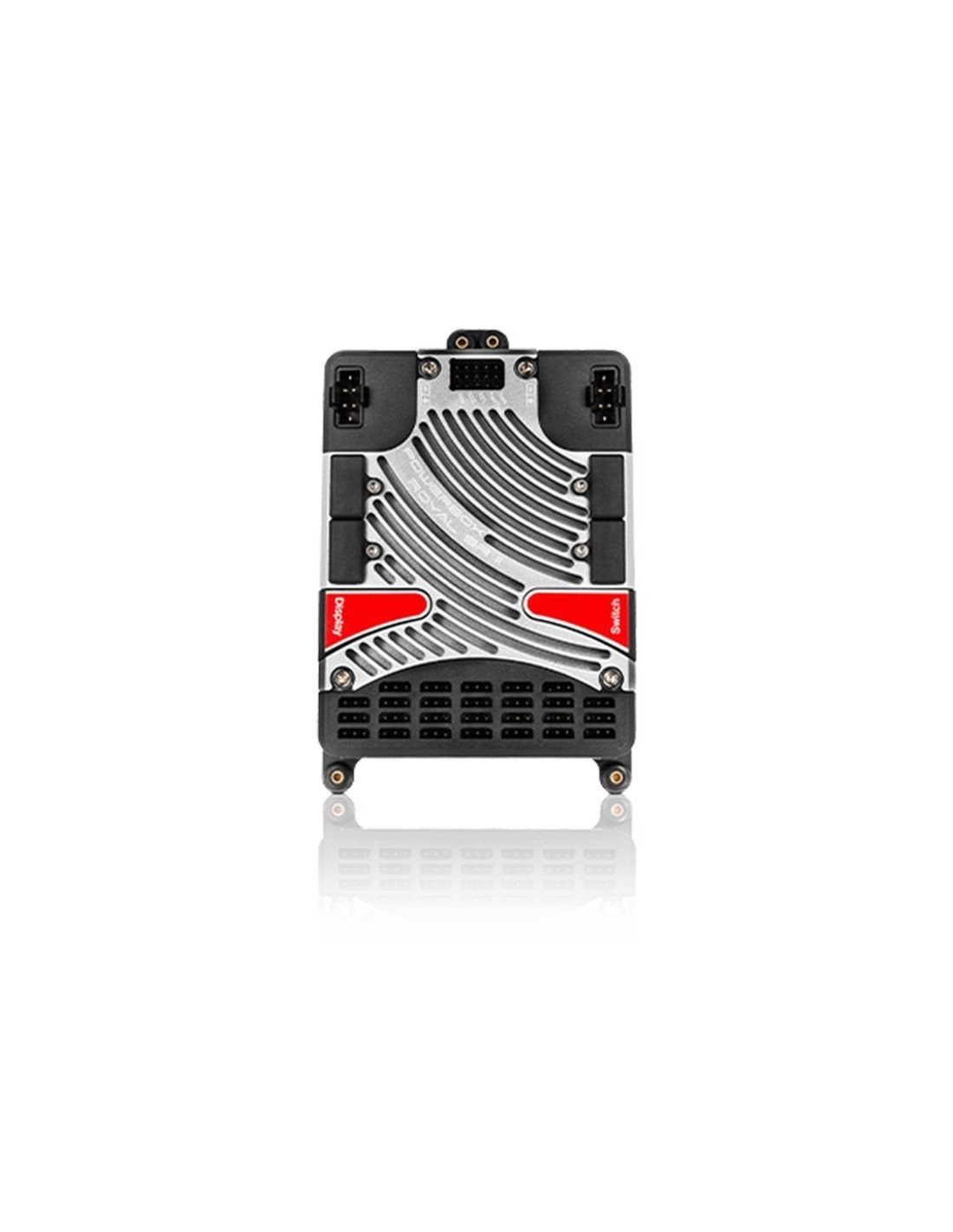

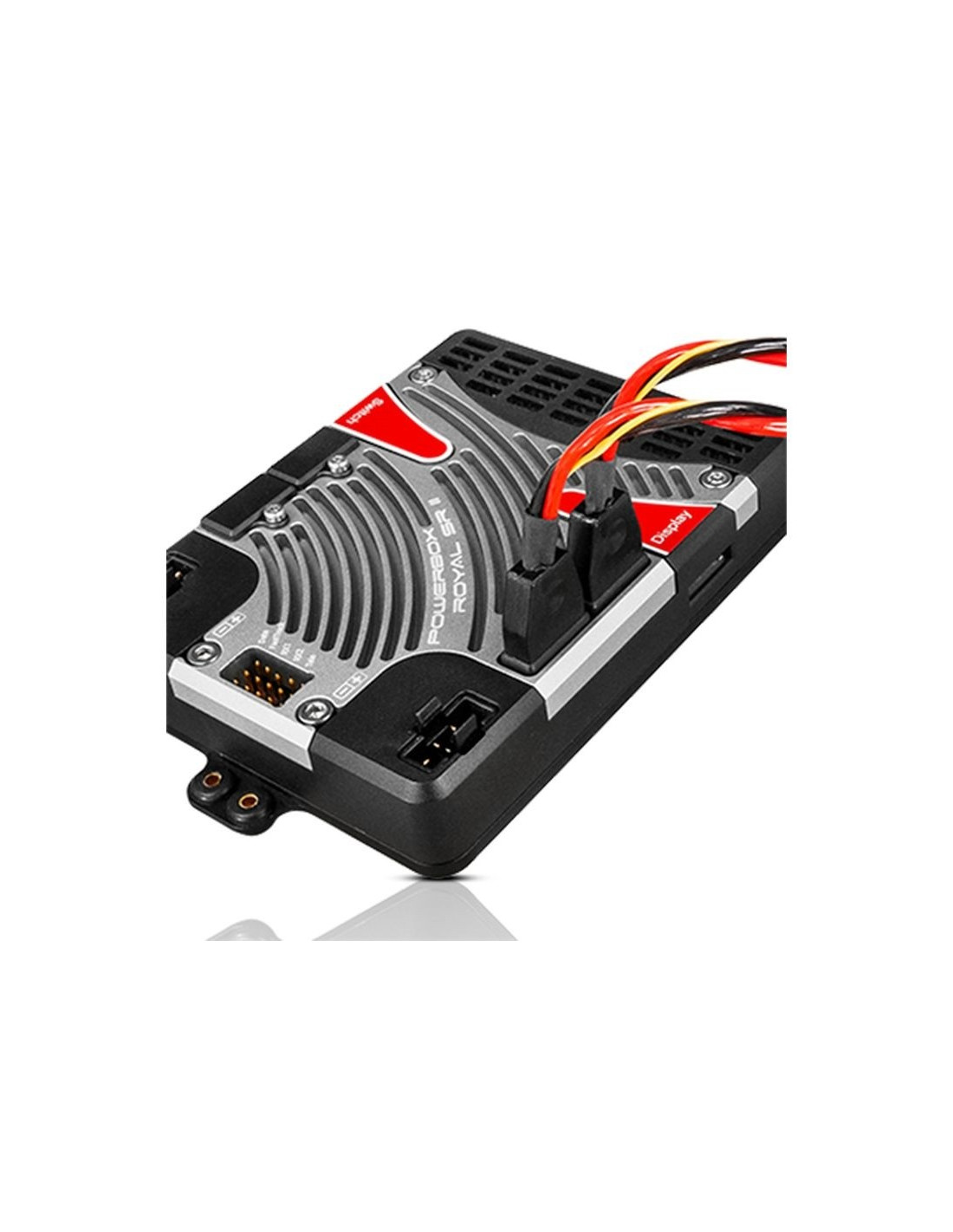

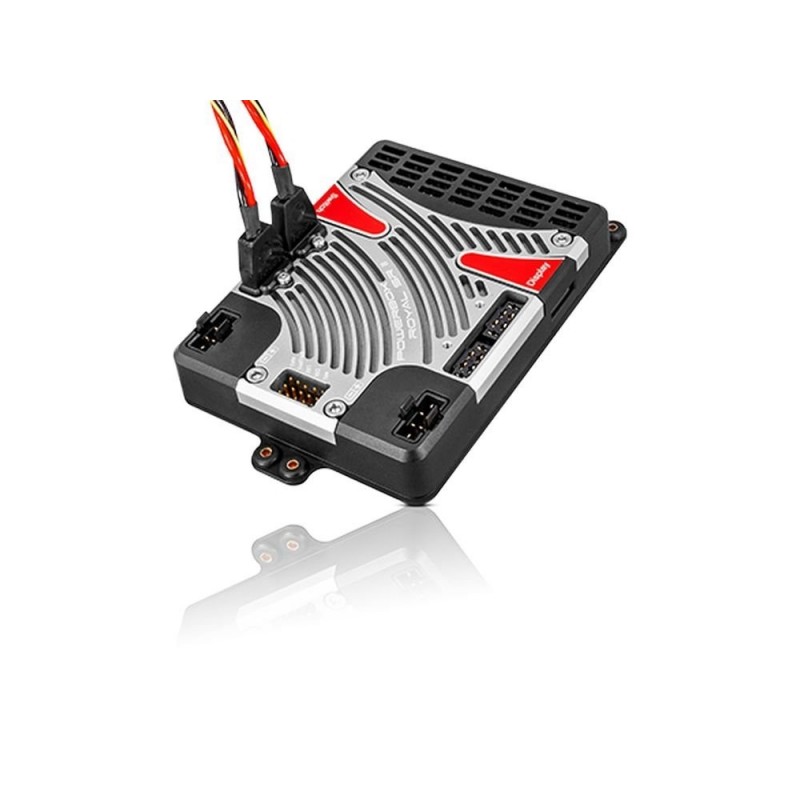

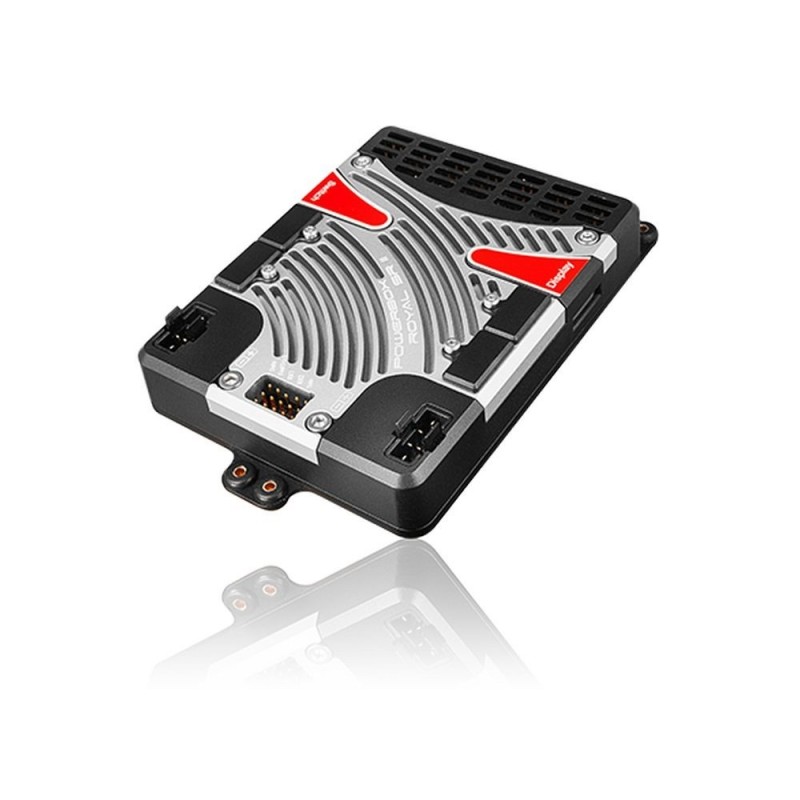

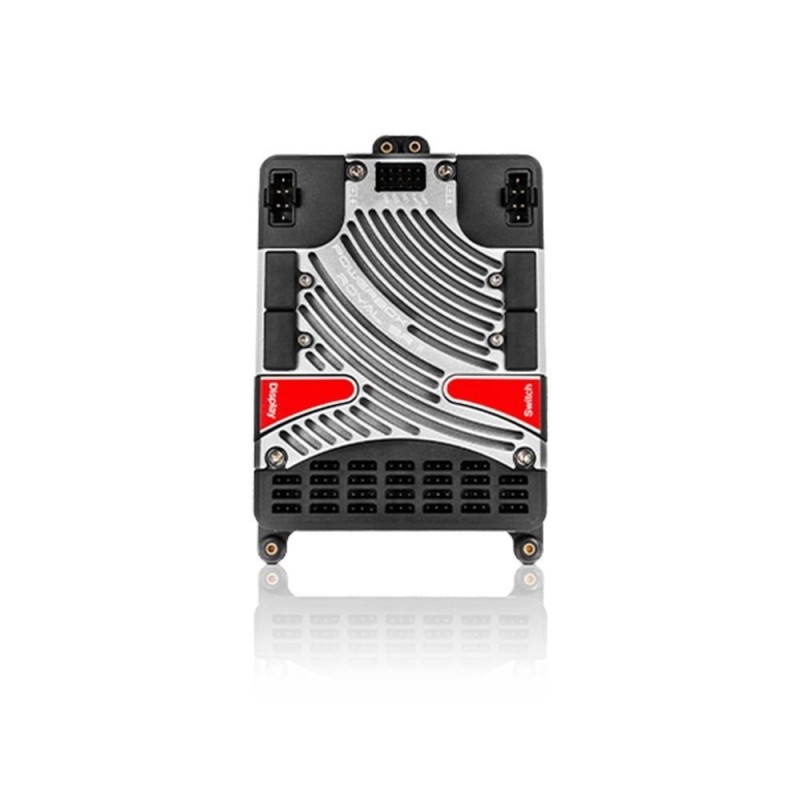

The PowerBox Royal SR2 once again sets new technical standards, offering a full range of features that until now have been the exclusive preserve of professional aviation: P² servo bus, 26 channels, 12-axis gyro, two pairs of controllers and a color display. These are just a few of the technical refinements that the PowerBox Royal SR2 offers the ambitious pilot.
Some details:
- 26 channels
- High performance battery booster with high continuous discharge capacity
- Four P²-BUS outputs with full telemetry support for servos
- 2.4" TFT display, sunlight readable
- Bilingual menu system (German and English)
- Constant duplication of all power electronics
- Redundant electronic switch
- Matching servo for all 26 outputs
- Automatic pairing function
- Two independent door sequencers with setup assistant (retractable train)
- The latest iGyro technology integrated, using the iGyro SAT as gyro sensor
- Twelve independent gyro outputs for: 4x aileron, 4x elevator, 4x rudder
- Individual gain control for the twelve gyro outputs
- Special control algorithm for fixed wing models
- The system detects all transmitter mixes
- Four selectable output voltages: 6.0 V, 7.4 V, 7.8 V or unregulated
- Two different, separately adjustable voltage levels for the left and right menu diagrams ensure ultra-simple programming
- Quick basic configuration procedure using the sophisticated wizard
- Optional GPS III for speed-dependent gyro compensation
- Telemetry data for PowerBox P²BUS, Futaba S.BUS2, Jeti Ex-BUS, Spektrum SRXL2, Multiplex M-Link, JR DMSS and Graupner HoTT
- Transmission of battery, receiver and GPS data
- Virtually all features can be controlled from PowerBox and Jeti transmitters
- Selectable servo frame rate: 10 ms, 12 ms, 14 ms, 16 ms, 18 ms
- Servo feedback current suppression
- Latest 32-bit microprocessor for fast and accurate signal processing
- High performance machined heat sink for optimal heat distribution
- Machined anodized aluminum switch and protective housing
- Compact size
Technical Specifications:
- Operating voltage: 4.0V - 9.0V
- Battery configuration: 2S LiPo, 2S LiIon, 2S LiFePo, 5S NiCd/NiMH
- Power-on state drain current: 300mA (with TFT)
- Standby drain current : 60µA
- Max Current: 4 x 20A
- Voltage difference Sotie-Entry : 0.3V
- Output voltage : 6.0V, 7.4V, 7.8V, Unregulated (= Input voltage)
- Input signal : serial
- Supported radio systems : PowerBox, Futaba, MPX, Jeti, Spektrum, JR, Graupner
- Receiver redundancy : SRS
- Number of channels : 26
- Servo slot : 26
- Programmable servo output: 26
- Signal resolution : 0.5µs
- Signal preperiod : 10ms, 12ms, 14ms, 16ms, 18ms
- Gyro regulation : Heading- and Normal mode
- External Gyro type: iGyro SAT
- Number of sensor axis: 12

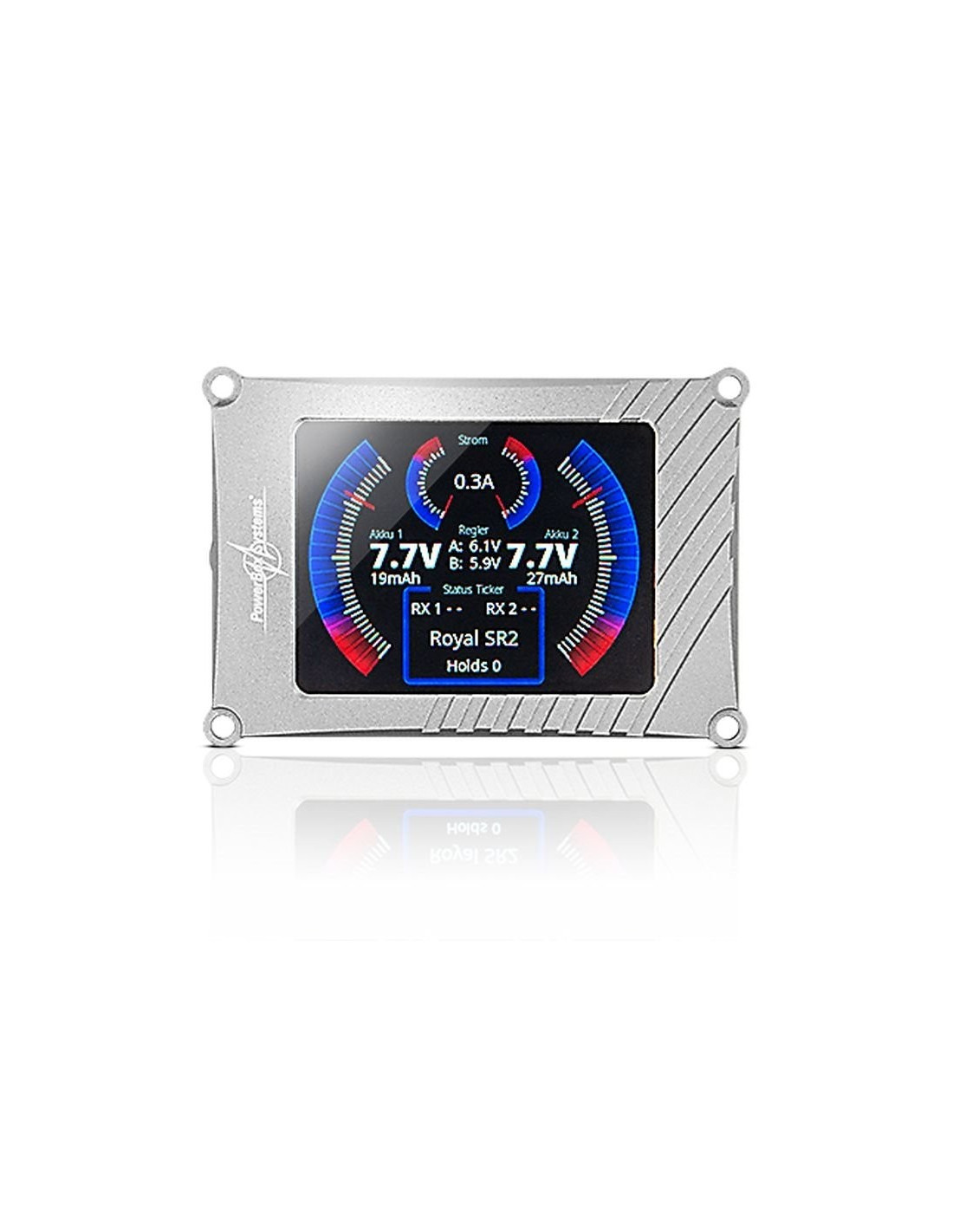

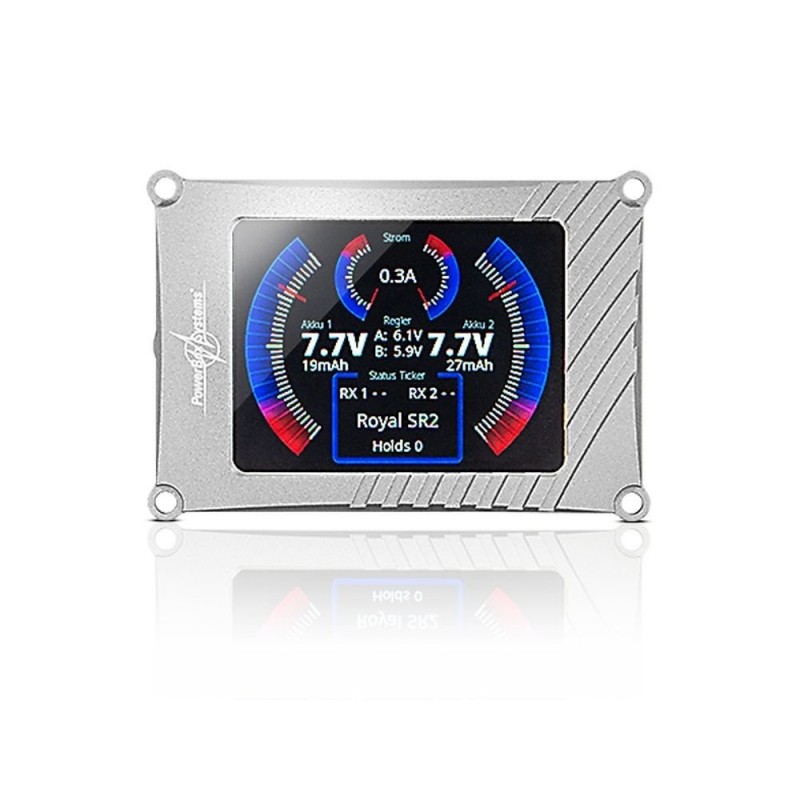

- TFT display 320x240 pixels
- Gate sequencer (landing gear): 2x
- Compatible telemetry system : P²BUS, S.BUS2, EX-Tele, SRXL2, M-Link, Hott, X.BUS
- Dimensions 136 x 82 x 18 mm
- Weight of the module 162g
- Weight of the switch 15g
- Weight of TFT display 34g
- Operating temperature -30°C to +105°C

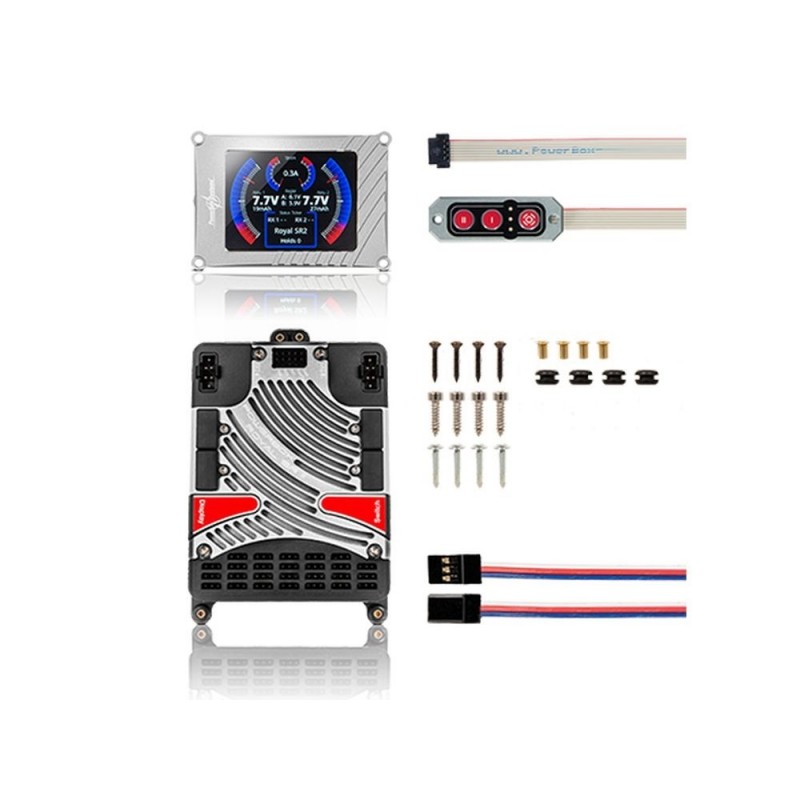

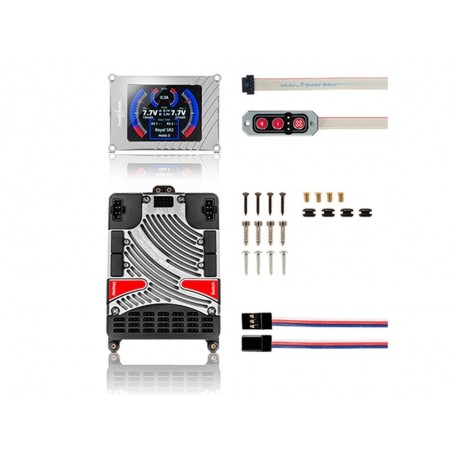

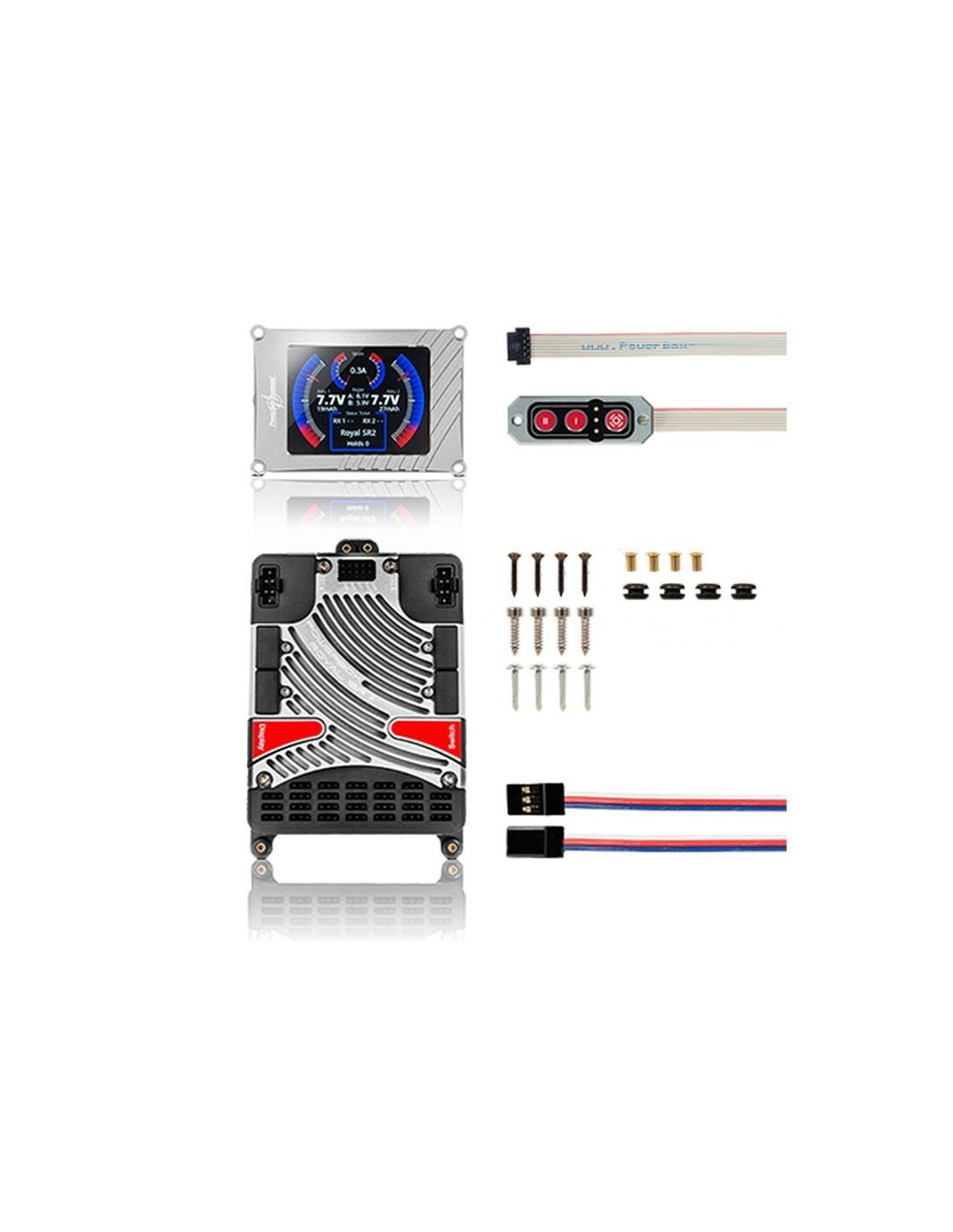

Contents of the box :
(1) PowerBox Royal SR2
(1) TFT display

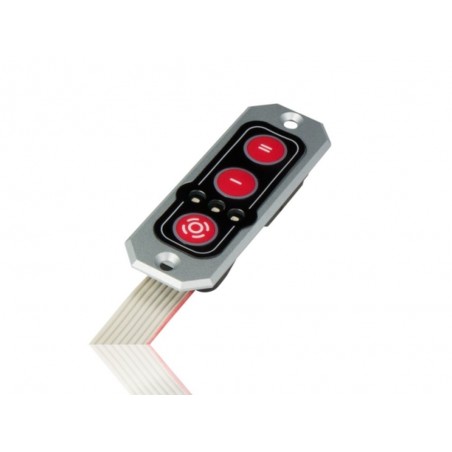

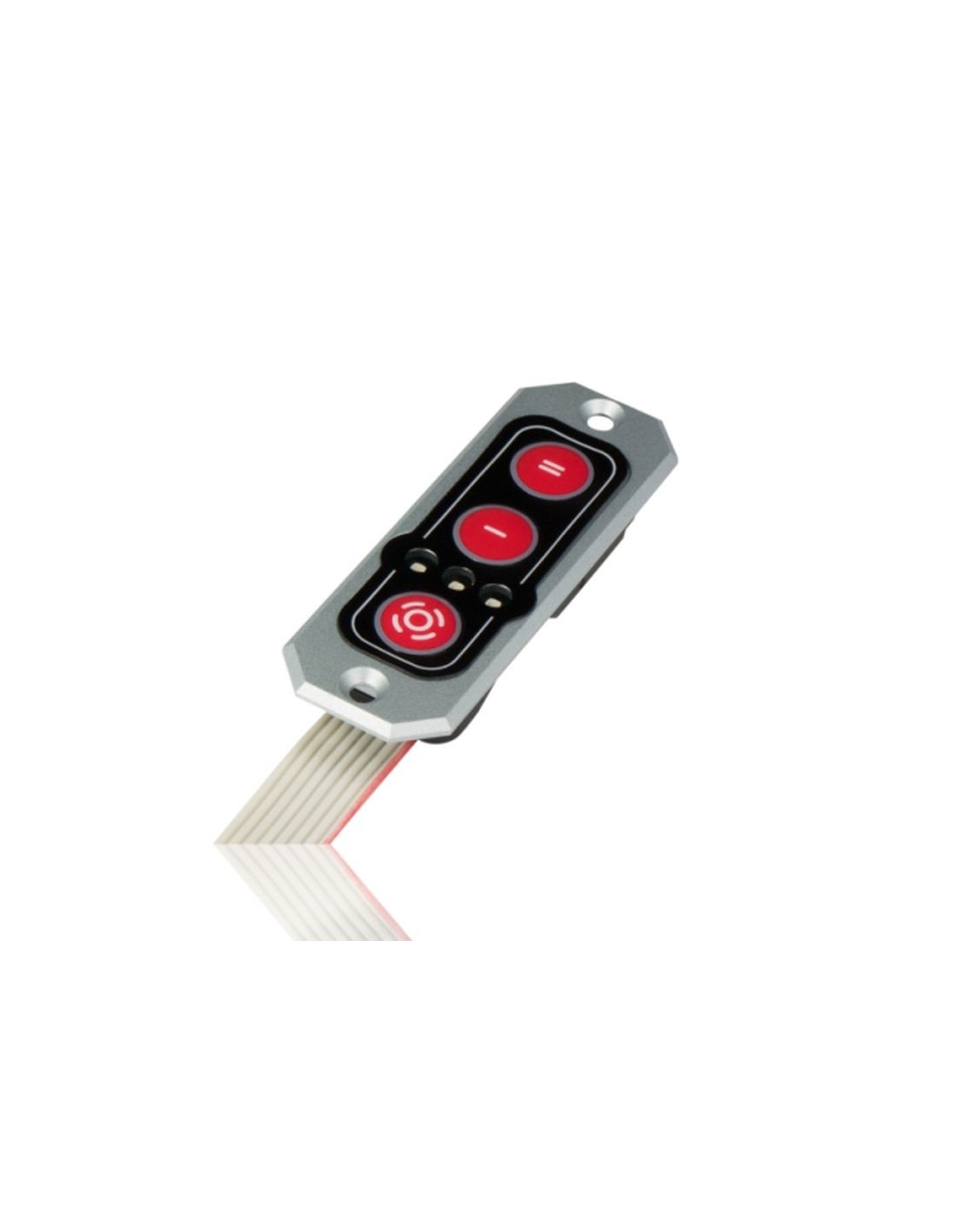

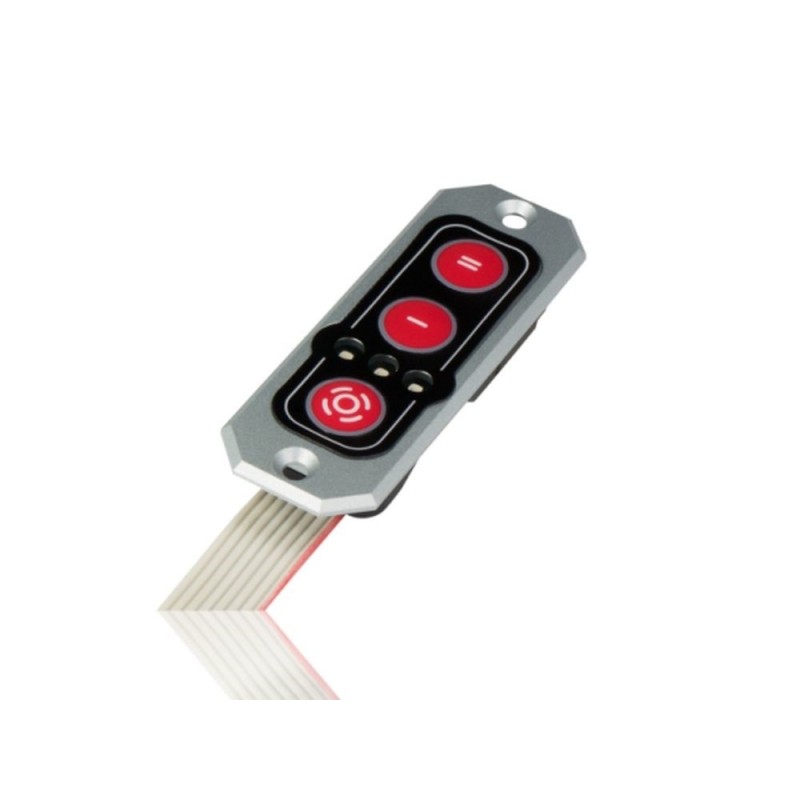

(1) Touch switch
(2) Connection cables, 180 mm
(4) retaining screws
(4) rubber grommets / brass spacer sleeves
(4) brackets/covers
(1) Operating instructions in German and English
