Central Box 400 Duplex 2.4EX - Jeti

Out-of-Stock
€562.42
Tax included

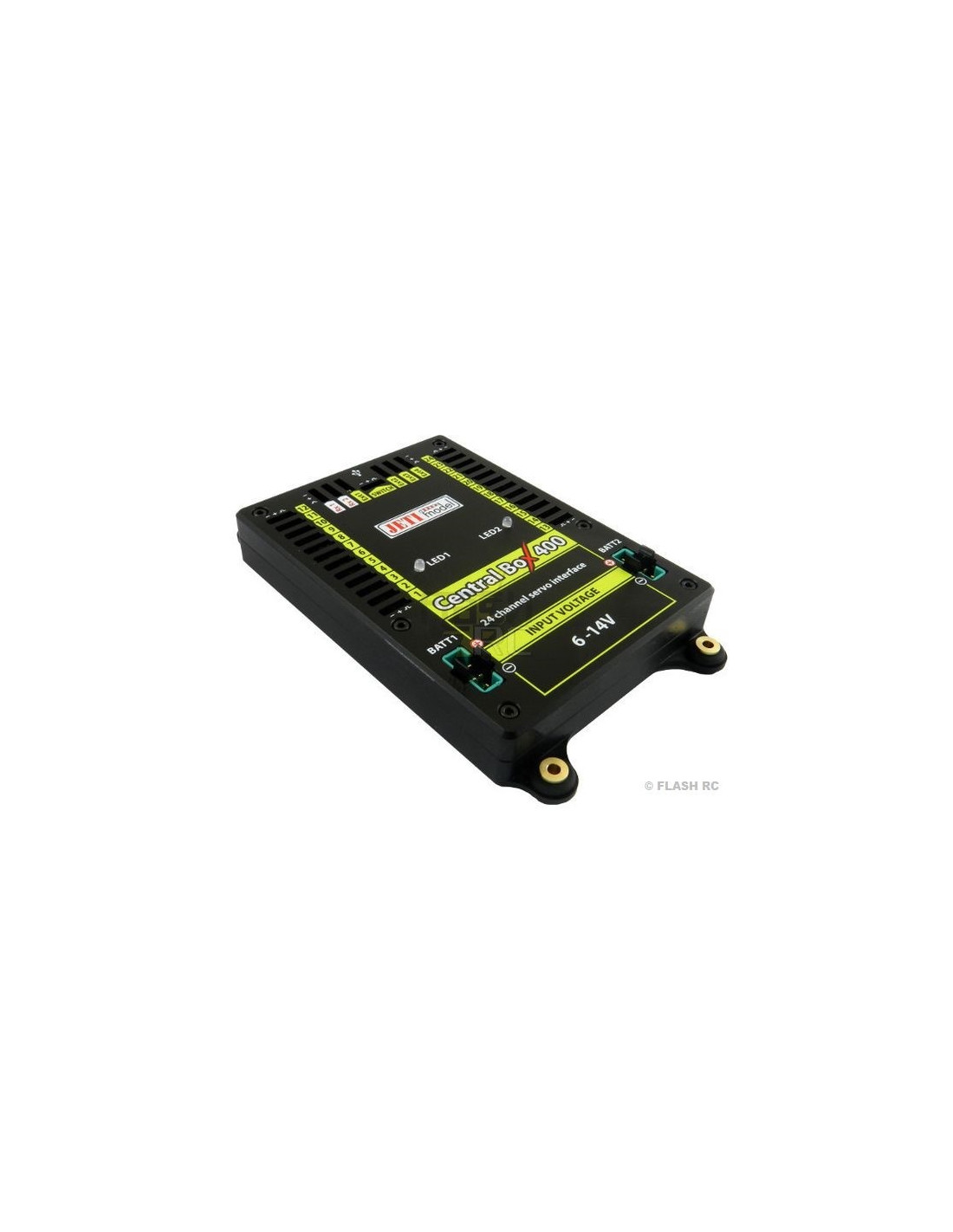

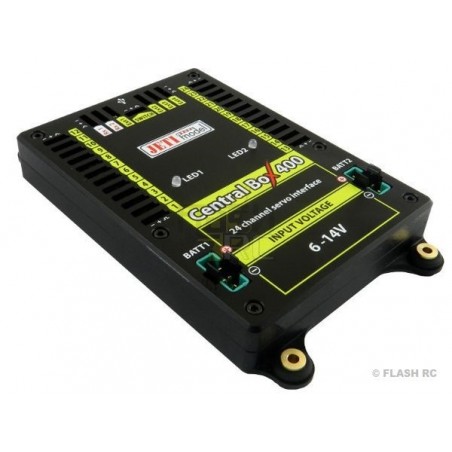

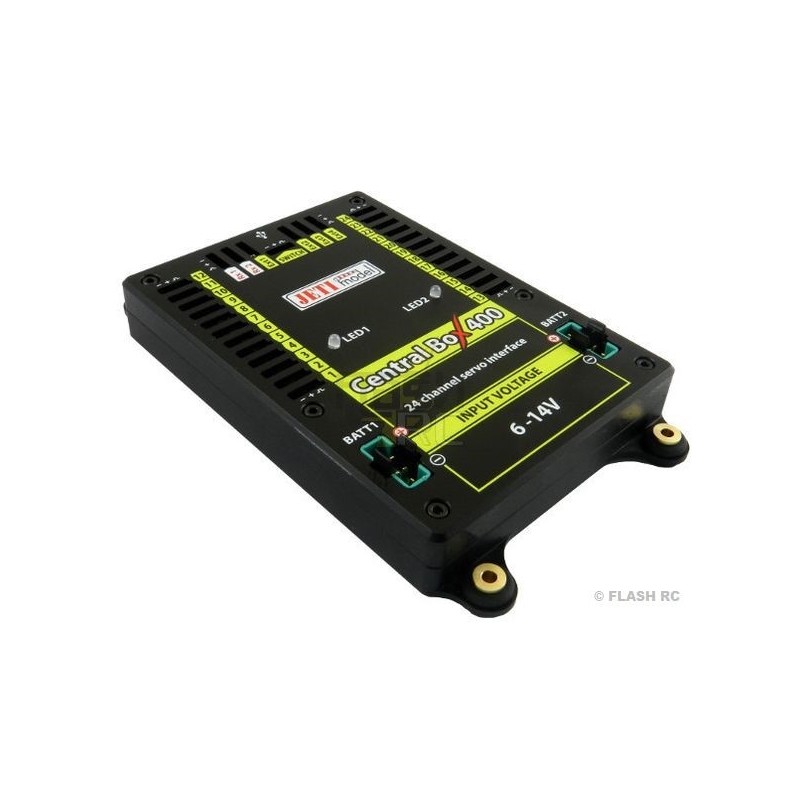

The Jeti Central Box 400 is a switch, dual power supply and voltage regulator (adjustable output voltage).you can connect up to 24 servos, two receivers or two satellites in series or PPM and it has four telemetry ports.each servo output is protected by a resettable fuse.the Central Box 400 is switched on via a magnetic switch.


custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Technical specifications

  • Supply voltage: 6-14V
  • Adjustable output voltage: 5V to 8.4V
  • Supported current: 30A continuous / 200A peak
  • 24 fully programmable servo outputs
  • Each servo output is protected by a resettable fuse - in case of short circuit the power supply is cut off
  • 2x inputs for connecting receivers with serial or PPM output
  • 4x inputs for EX Duplex telemetric sensors
  • Magnetic safety switch
  • Telemetry measurements: power consumption, voltage, current
  • Operating temperature [° C] : - 20 to 75
  • Weight [g] : 330
  • Size [mm] : 130x86x19
308-J-CB-400
8595245909994
8595245909994
No reviews
Comments (0)
No customer reviews for the moment.

16 other products in the same category:

Box (Powerbox, Emcotec, Jeti, ...) - PowerBox Royal SR2 - FLASH RC Box (Powerbox, Emcotec, Jeti, ...) - PowerBox Royal SR2 - FLASH RC 2
Last items in stock
Box (Powerbox, Emcotec, Jeti, ...)

PowerBox Royal SR2 The text "PowerBox Royal SR2" is already in English and does not...

PowerBox Systems
235-4750
€499.17
The PowerBox Royal SR2 once again sets new technical standards, offering a full range of features that until now have been the exclusive preserve of professional aviation: P² servo bus, 26 channels, 12-axis gyro, two pairs of controllers and a color display. These are just a few of the technical refinements that the PowerBox Royal SR2 offers the ambitious...
Box (Powerbox, Emcotec, Jeti, ...) - Central Box 210 Duplex 2.4EX + 2x Rsat2 + 1x RC switch - Jeti - FLASH RC Box (Powerbox, Emcotec, Jeti, ...) - Central Box 210 Duplex 2.4EX + 2x Rsat2 + 1x RC switch - Jeti - FLASH RC 2
Out-of-Stock
Box (Powerbox, Emcotec, Jeti, ...)

Central Box 210 Duplex 2.4EX + 2x Rsat2 + 1x RC switch - Jeti

JETI
308-J-CB-210-RS-RCSW
€317.42
The Jeti Central Box 210 is a module for the complete management of the servos and power supplies of the model. The Central Box 210 can manage two batteries simultaneously and supports the Jeti DUPLEX EX telemetry protocol. 3 receivers can be connected to the Central Box 210 for secure transmission. The full potential of the Central Box 210 can be...
View
Box (Powerbox, Emcotec, Jeti, ...) - Central Box 220 Duplex 2.4EX + 2x Rsat2 + 1x RC switch - Jeti - FLASH RC Box (Powerbox, Emcotec, Jeti, ...) - Central Box 220 Duplex 2.4EX + 2x Rsat2 + 1x RC switch - Jeti - FLASH RC 2
Last items in stock
Box (Powerbox, Emcotec, Jeti, ...)

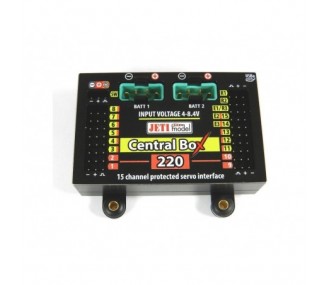

Central Box 220 Duplex 2.4EX + 2x Rsat2 + 1x RC switch - Jeti This is actually a...
