The Mercury SR2 PowerBox is your first choice when you need a small, high-performance power supply with maximum functionality. All the features that are usually found in larger power supplies are present in the compact PowerBox Mercury SR2: iGyro, servo matching, unrestricted channel assignment and even a gate sequencer-it's truly a complete system!

The PowerBox Mercury SR2 provides 16 freely assignable outputs with servo matching, i.e. the travel of each channel can be adjusted in five steps. If you are flying models with large control surfaces, in which the individual control surfaces are operated by two servos, the unique auto-match function can be used to precisely match the two servos to each other within seconds.

The integrated iGyro software requires a sensor unit in the form of an iGyroSAT; with this, it can individually address and adjust three aileron, three elevator and three rudder functions. The configuration wizard simplifies the initial settings of the gyro system, reducing the time required to just a few minutes. When the system is first used, the wizard collects basic information about the wing and tail format and the vector control system - if present. A complex model matrix then works in the background, calculating which servo should be connected to which output, while linking the corresponding gyro function. A wide range of additional expert parameters offers complete freedom, allowing you to tailor the gyro system to your particular needs.

The Mercury SR2 PowerBox provides a regulated output voltage that can be set to 6.0V or 7.8V. The two voltage regulators offer generous capacity thanks to the machined aluminum heatsink on the top and bottom surfaces, allowing the unit to effortlessly cope with the current-hungry servos used in 3D machines.

Features:

• 16 outputs
• High performance battery holder with high continuous charge capacity
• OLED display, sunlight readable
• Bilingual menu system
• Consistent duplication of all power electronics
• Redundant electronic switch
• Servo adaptation for all 16 outputs
• Automatic adaptation function
• Door sequencer with configuration wizard
• Latest integrated iGyro technology, using the iGyroSAT as gyro sensor
• 9 independent gyro outputs for: 3x aileron, 3x elevator, 3x rudder
• Two selectable output voltages: 6.0 V or 7.8 V
• Optional GPS III for speed dependent gyro compensation
• Telemetry data for PowerBox P²BUS, Futaba S.BUS2, Jeti Ex-BUS, Spektrum SRXL2, Multiplex M-Link, JR X-BUS and Graupner HoTT
• Transmission of battery, receiver and GPS data*.
• Virtually all functions can be controlled from the PowerBox and Jeti transmitters.
• Selectable servo frame rate: 12ms, 14ms, 16ms, 18ms
• Suppression of servo return current

Technical Specifications :

• Operating voltage 4.0V - 9.0V

• Power supply 2S LiPo, 2S LiIon, 2S LiFePo, 5S NiCd/NiMH

• Current consumption in operating state 100mA

• Current consumption in standby mode 30µA

• Maximum load current 2 x 20A (<30s)

• Output voltage 0.3V

• Output voltage 6.0V, 7.8V

• Serial signal input

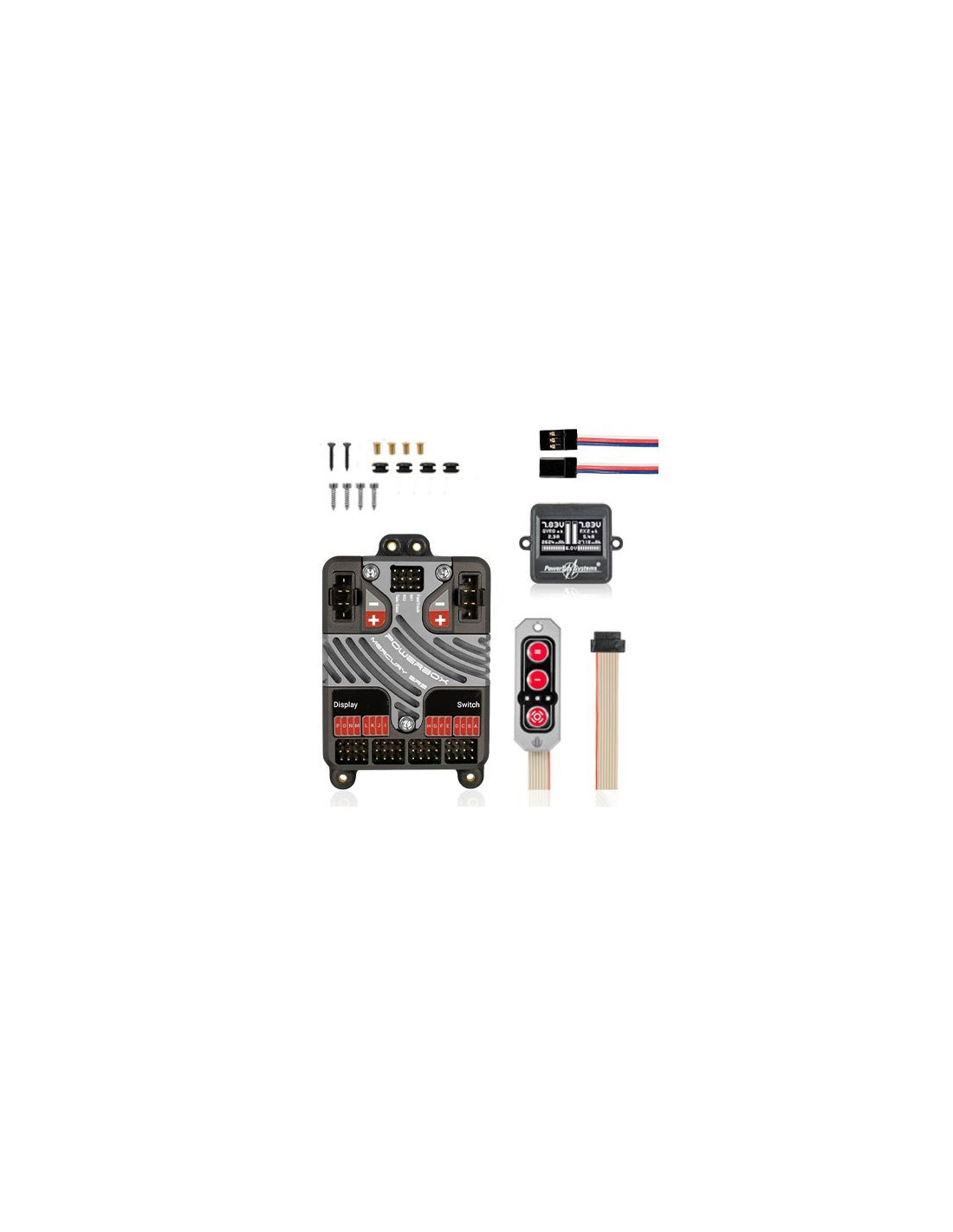

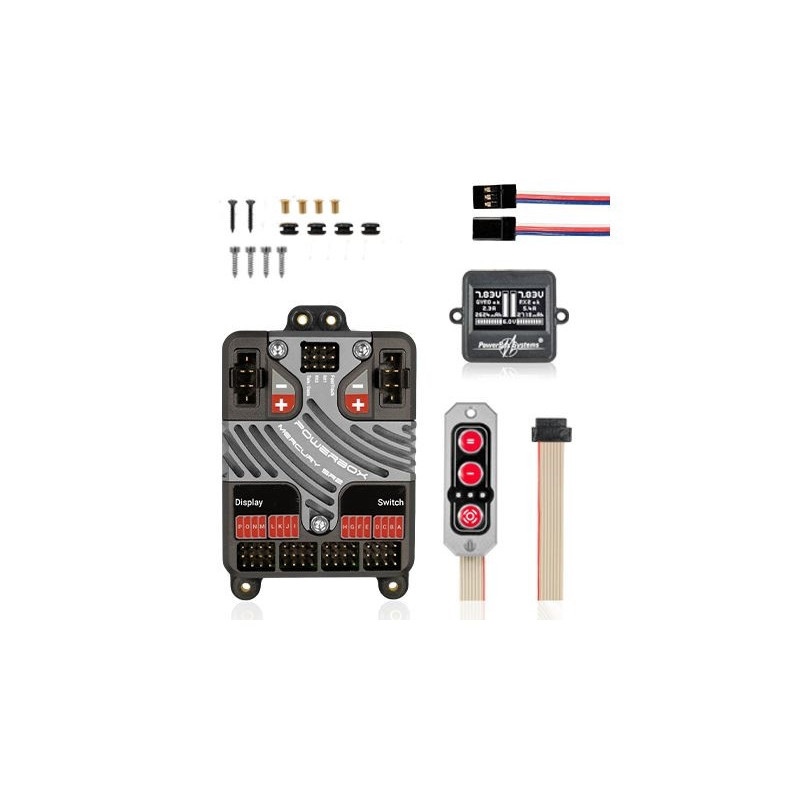

Mercury Contents:

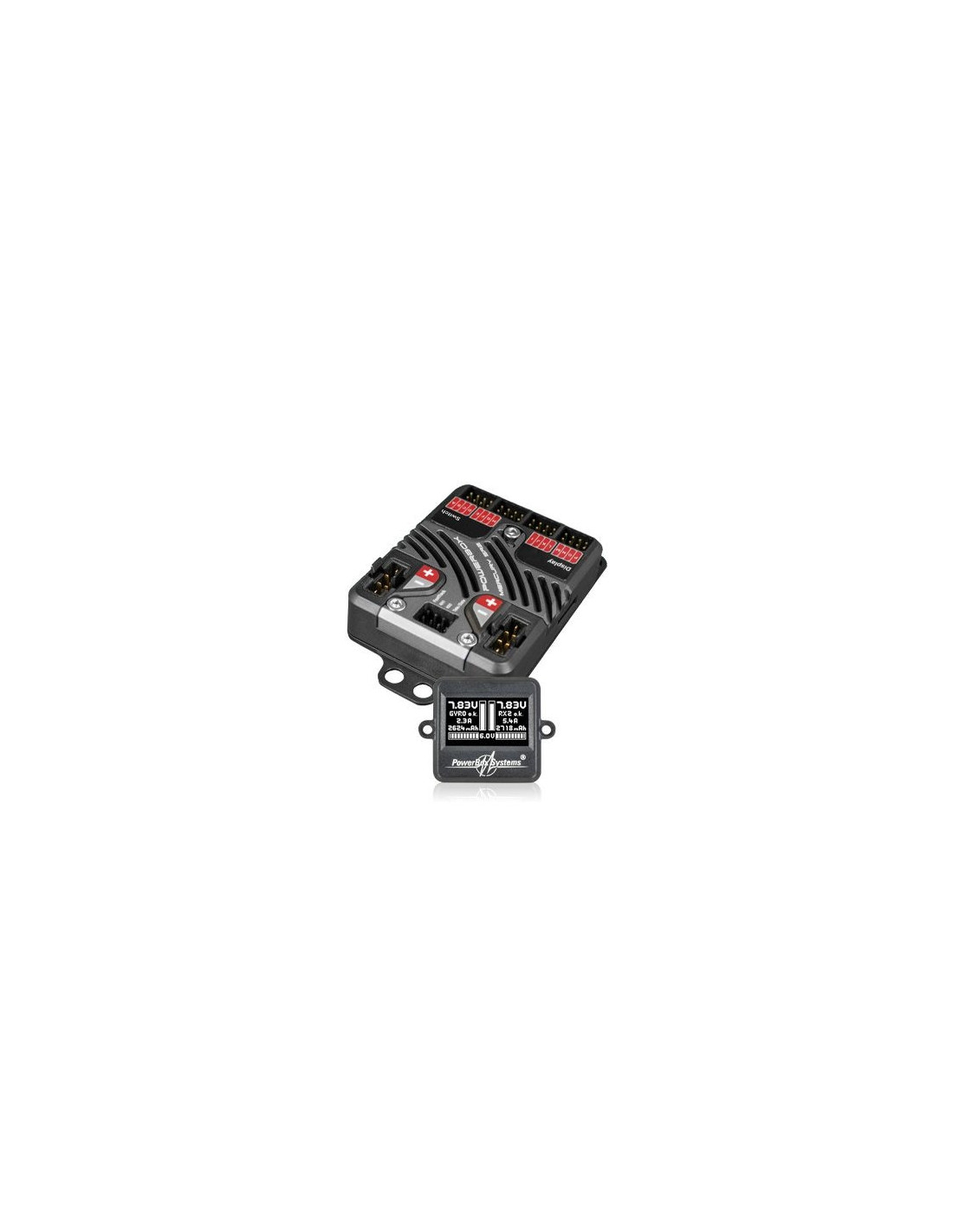

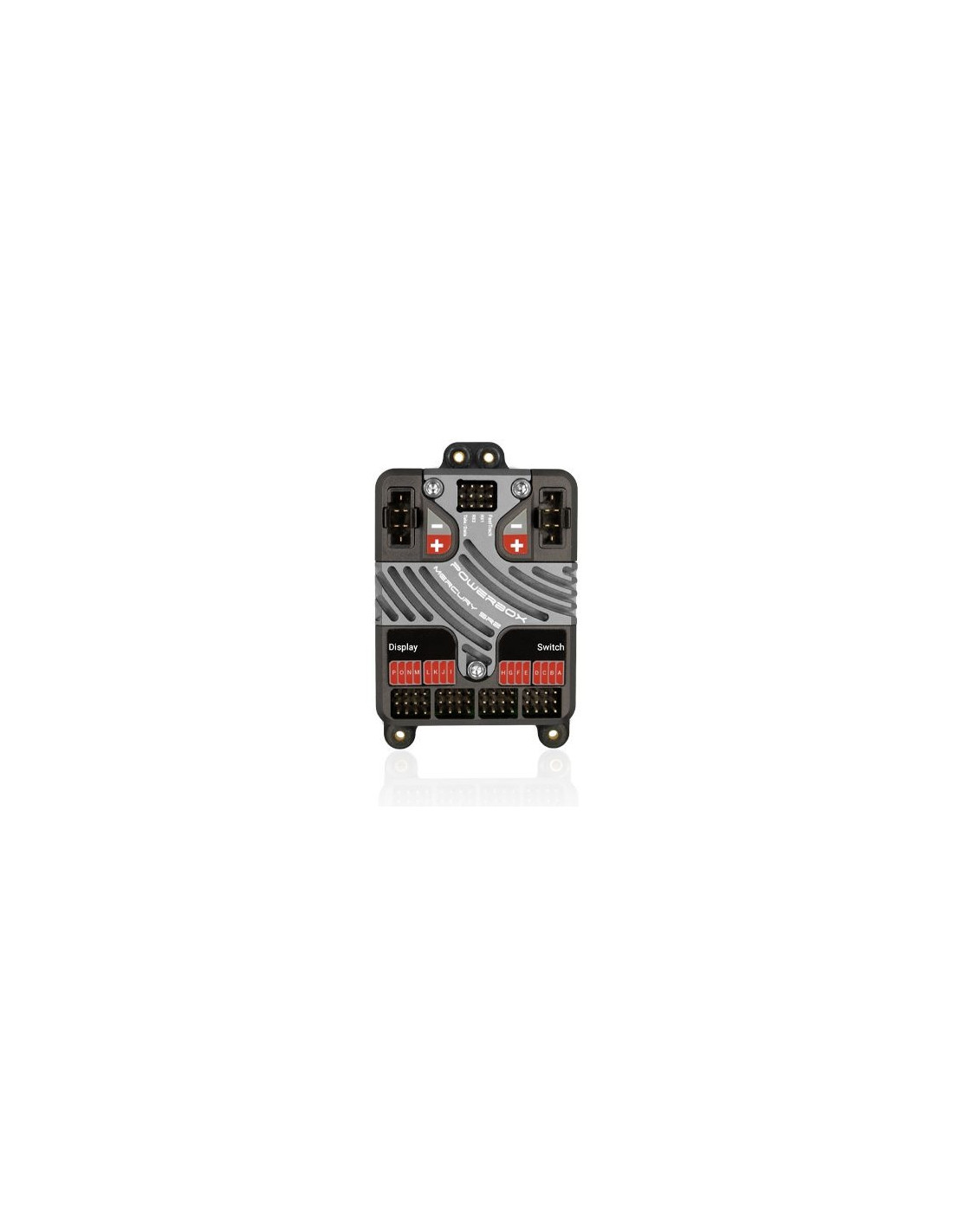

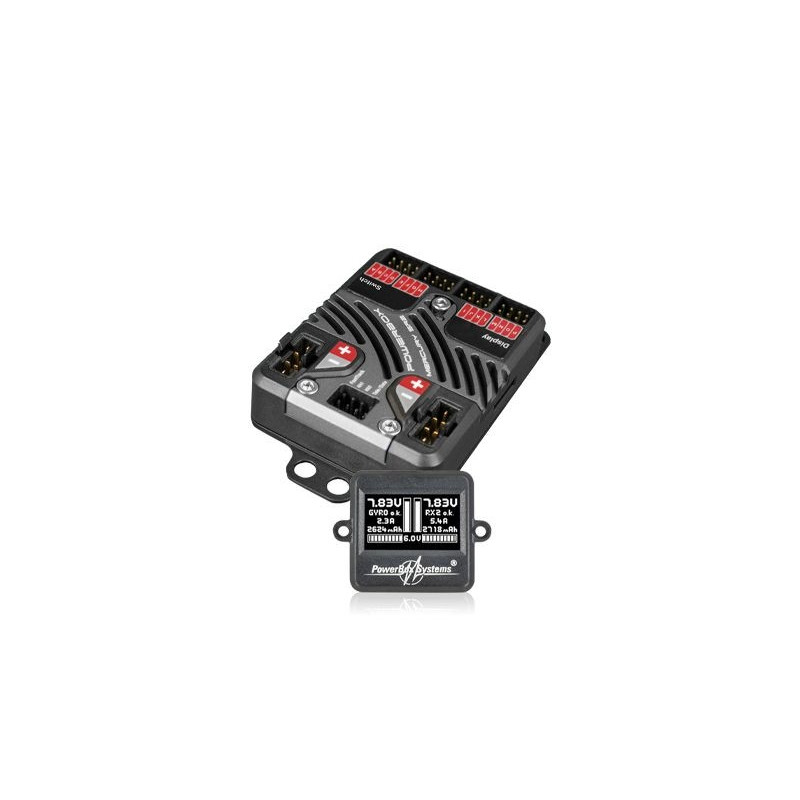

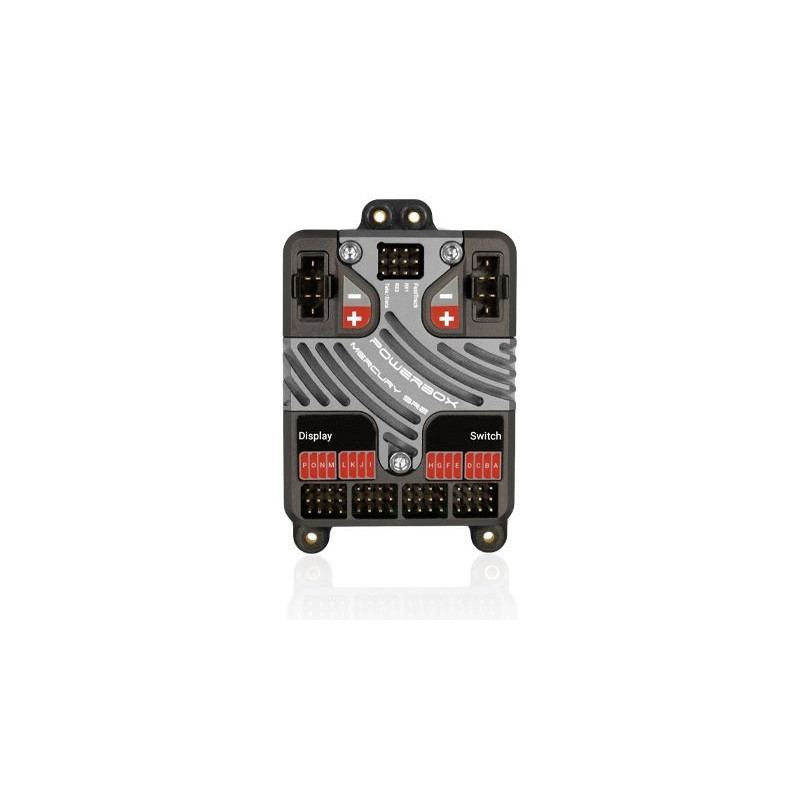

PowerBox Mercury SR2

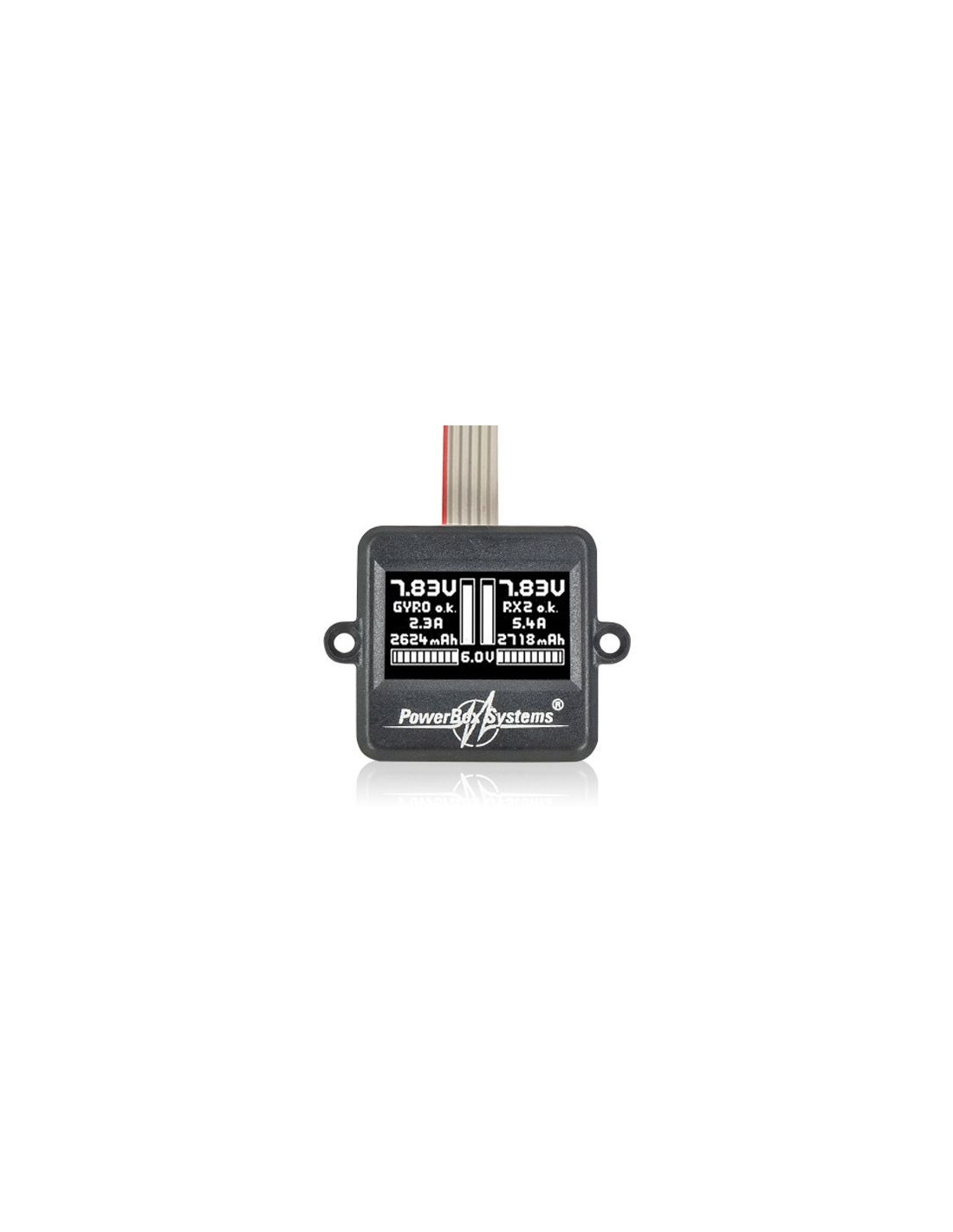

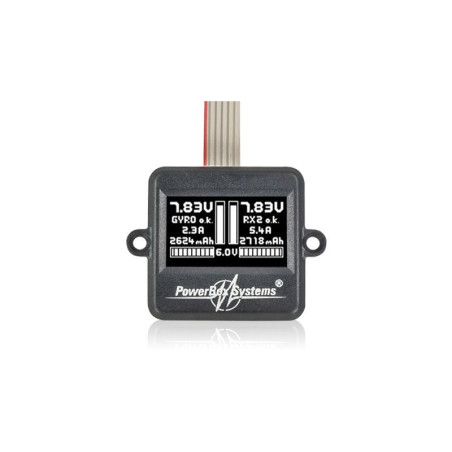

OLED display
SensorSwitch
2 connecting leads
4 rubber grommets and brass spacer sleeves
8 fixing screws
Operating instructions in German and English
