Hitec D-945TW HV Standard Digital Servo (68g, 23kg.cm, 0.07s/60°) - FLASH RC
Hitec D-945TW HV Standard Digital Servo (68g, 23kg.cm, 0.07s/60°) - FLASH RC

Hitec D-945TW HV standard digital servo (68g, 23kg.cm, 0.07s/60°)

Last items in stock
€90.83
Tax included

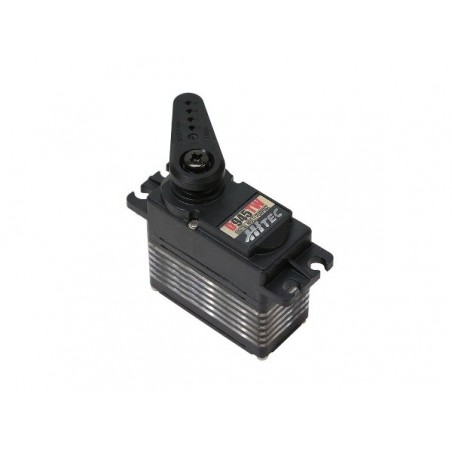

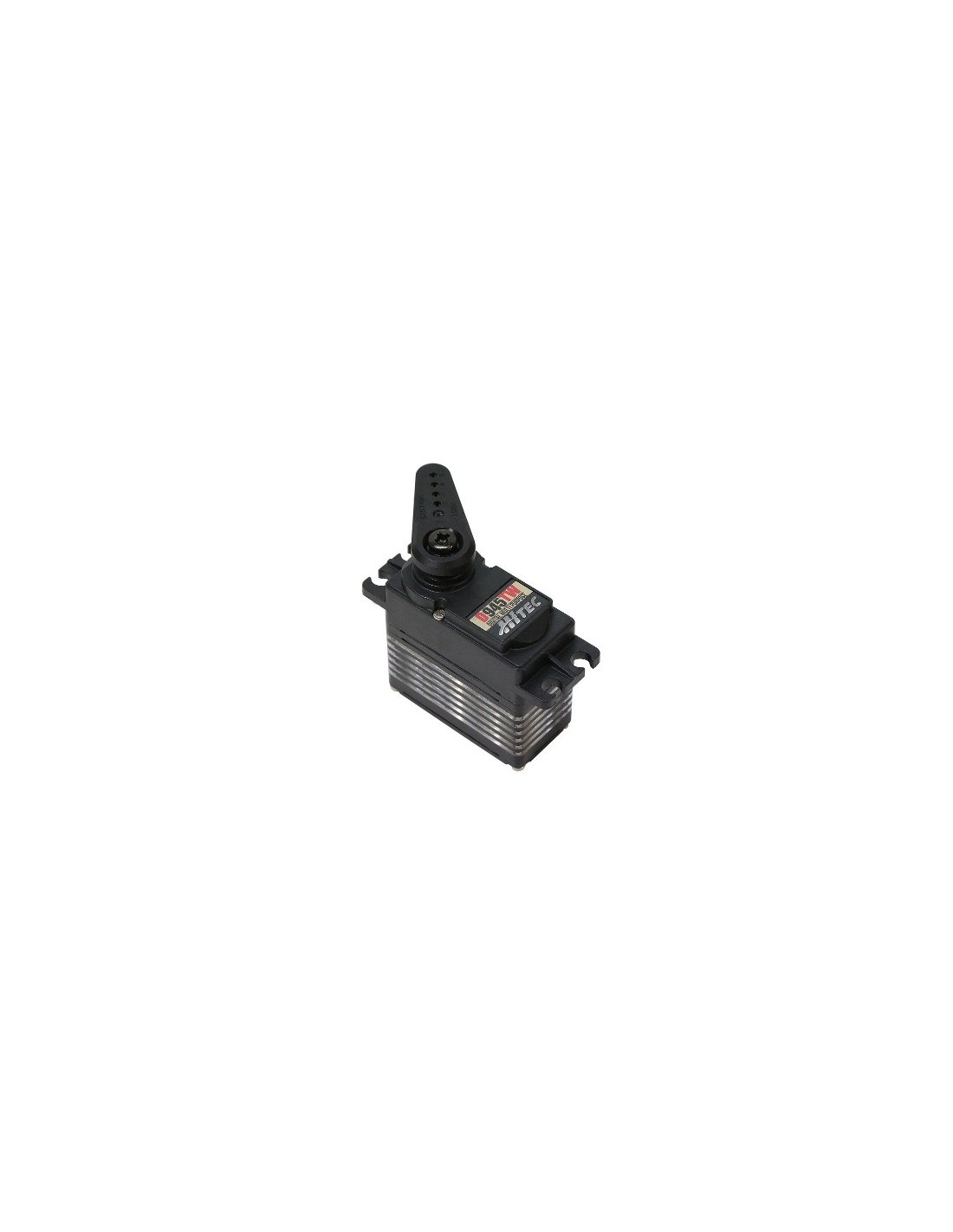

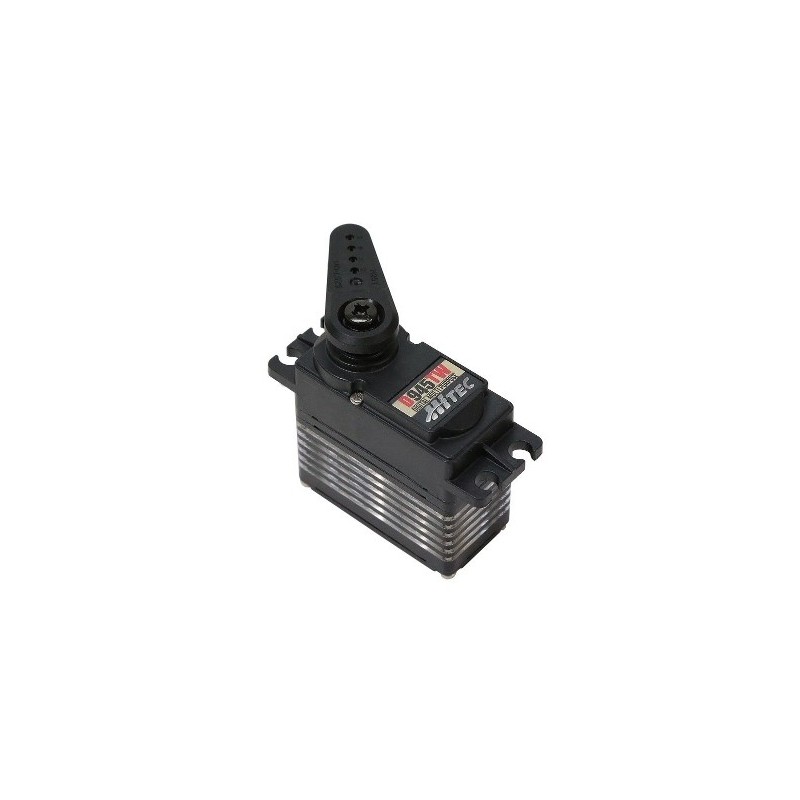

Hitec D-945TW HV digital servo

The ultra-fast HS D-945 TW HITEC D-Series servos offer the highest resolution on the market today. The best response and programming capabilities are realized through the 32-bit MCU and 12-bit ADC technology.

The 'D' series includes HITEC servos that operate on both conventional (4.8/6V) and HV (8.4V) voltage. You can therefore power it as you wish.

The HS-D945 TW Digital servo is fully programmable and offers good durability thanks to its robust Titanium gears and two ball bearings on the output shaft, which is especially suitable when low backlash and high positioning accuracy are important.

The long service life and uniquely designed transmission make it one of the most reliable and efficient servos on the market.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Features :

  • Width: 20 mm
  • Height: 37 mm
  • Length: 40 mm
  • Weight: 68gr
  • Servo type: standard
  • Special features: wide-voltage digital
  • Servo motor type: coreless
  • Gears: titanium
  • Operating voltage in V: 4.8-8.4 V
  • Operating time s / 60 ° at 4.8 volts: 0.16
  • Operating time s / 60 ° at 6.0 volts: 0.12
  • Operating time s / 60 ° at 7.4 volts: 0.10
  • Torque in kgcm at 4.8 volts: 14
  • Torque in kgcm at 6.0 volts: 18
  • Torque in kgcm at 7.4 volts: 23
  • Gear: 25T
  • Ball bearing: yes
  • Sealed: no
Thickness in mm (Servos)
20
Torque in kg.cm (servos)
23
Speed sec / 60° (servos)
0.1
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
68
064-116945
669962369459
669962369459
No reviews
Comments (0)
No customer reviews for the moment.
