KST X10 MINI PRO-B wing servo ( 20g, 8kg.cm, 0,08/60°)

Features

• Programmable
• Supports soft start
• Hardened steel gears
• Anodized CNC aluminum housing
• Ultra-high torque and excellent speed
• Smaller size and wider travel angle
• Ideal for competition and large-scale gliders

specification

• Item: X10 Mini ProServo
• Nominal voltage: DC7.4 V.
• Voltage range: DC4.8 V-8.4 V.
• Torque: 4.5 Kgf.cm at 4.8 V, 6.0 Kgf.cm at 6.0 V, 7.2 Kgf.cm at 7.4 V, 8.0 Kgf.cm at 8.4 V
• Speed: 0.13 s/60° at 4.8 V, 0.11 s/60° at 6.0 V, 0.09 s/60° at 7.4 V, 0.08 s/60° at 8.4 V
• Operating frequency: 1520us/333 Hz
• Default displacement angle: ±60°=120° Total
• Temperature range: -10 ℃ ....... + 65 ℃
• Soft start: programmable
• Programmable: Yes
• Housing material: aluminum alloy.
• Motor type: coreless DC motor
• Gear set material: hardened steel
• Position sensor: Potentiometer

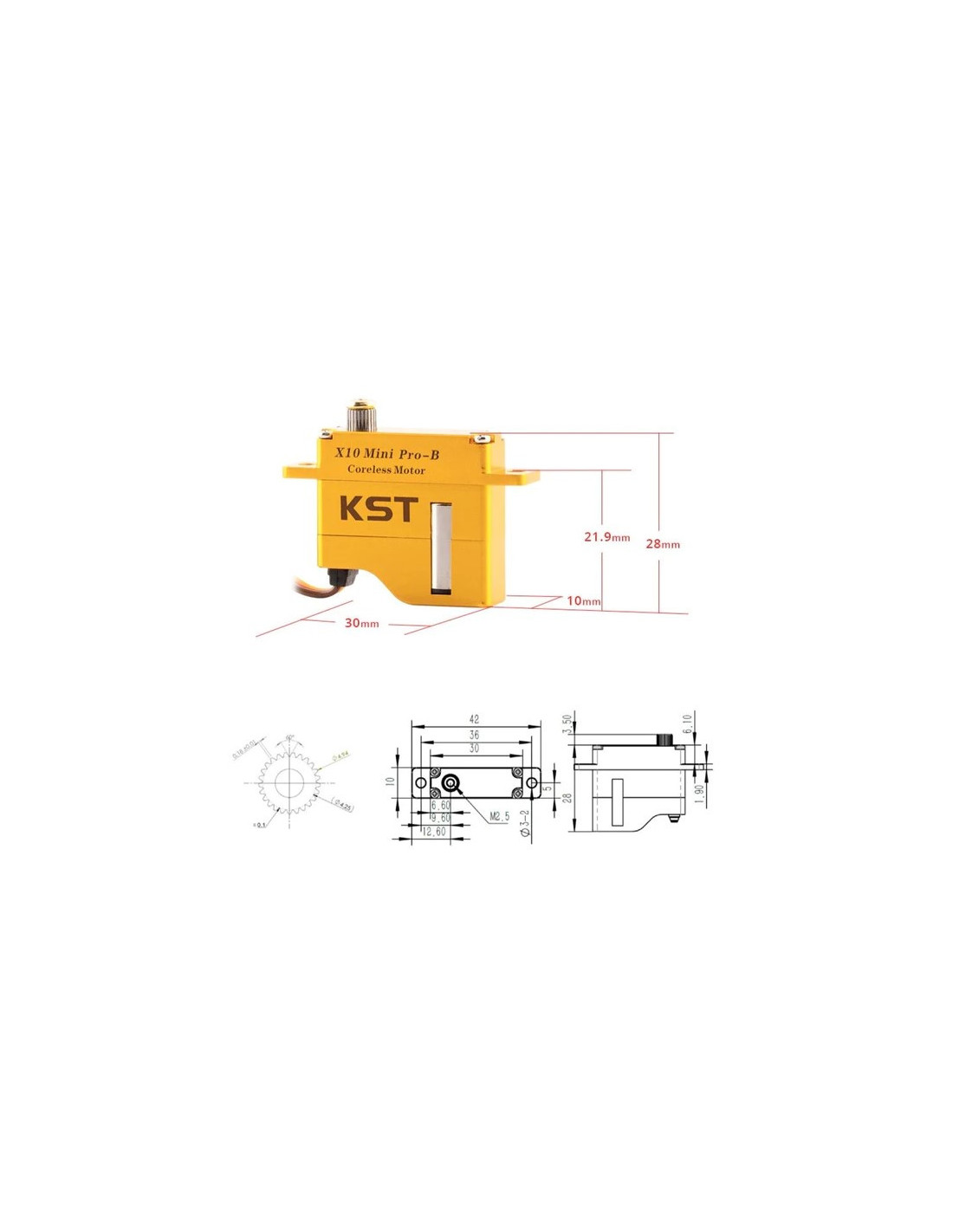

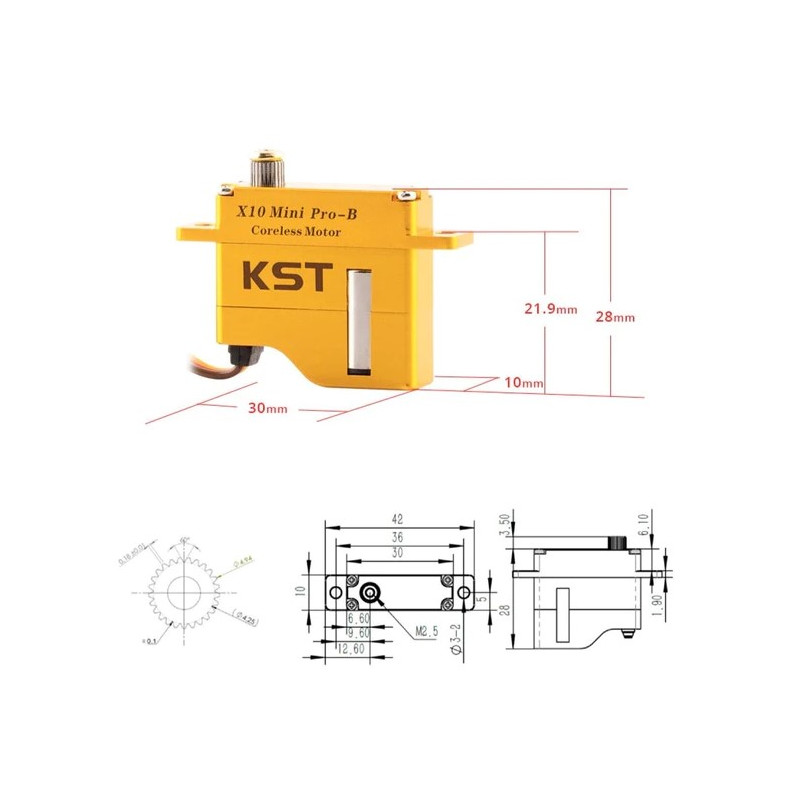

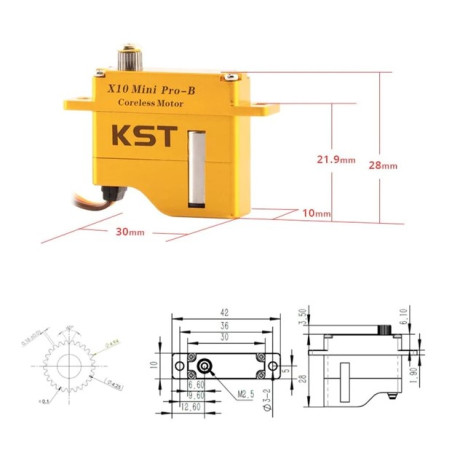

• Housing dimensions: 30 mm * 10 mm * 28 mm ± 0.2 mm
• Weight: 20g±10
